Specifications
ShangChai Marine Diesel Generator Sets1.Shangchai Engine
2.40kW Output Power
3.AC Three Phase
4.OEM Manufacturer

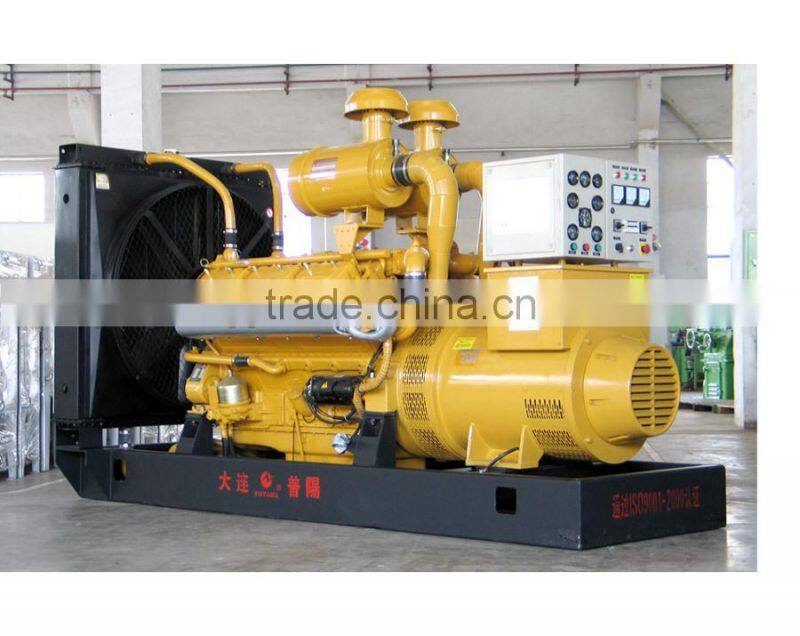

AVR ShangChai Marine Diesel Generator Sets 40kW/50kVA
Diesel engine:
*Heavy load durable, four-stroke, water cooled Shangchai engine
*Excellent transient response
*Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid cylinder liner
*24V DC safe isolate valve
Alternator:
*Brushless, four-pole revolving field, single bearing and drop proof screen protected.
*Class H insulation
*IP21-IP23 protection standard
*Dynamically balanced rotor
*Completed gen-set parameter display, perfect protection and control function
*Excellent anti-jamming function, adapt to extreme condition
*Independent over-load protection
*Unique sensors protection, adapt to all sensors
500KW Shangchai Diesel Generator Set Features |
|
Genset model | PF40GF |
Prime power(KW/KVA) | 40/50 |
Frequency & voltage | 400V, 50HZ |
Nos. of Phase | 4 |
Genset type | Open |
Reference Dimension | 1800*730*1330 |
Weight(kg) | 745 |
Diesel Engine | |
Engine brand | Shangchai |
Rated output | 40kW |
Rated Speed | 1500rpm |
Engine Type | In-line, direct injection, four stroke |
No. of cylinder | 4 |
Bore*stroke(mm) | 110*115 |
Aspiration method | Naturally |
Governor | Mechanical/Electrical |
Starting method | Electric starting |
Cooling method | Forced water cooled |
Displacement | 3.93L |
Fuel consumption | 8.5L/h |
Rotation direction of crankshaft | Counter clockwise(face to flywheel end) |
Alternator | |
Alternator brand | KAIJIELI |
Type | Brushless & self-excited |
No. of phase | 4 |
Volatage | 400V |
Frequency | 50Hz |
Power Factor | 0.8 |
Insulation Grade | H |
Protection Grade | IP22/23 |
Altitude | ≤1000m |
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system
designing.
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most
proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular
return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
