China Manufacturer Generator 300kw Diesel Generator With Cummins Engine

Name: China Manufacturer Generator 300kw Diesel Generator With Cummins Engine
Brand: PUYANG
SKU: 141415330
Availability: InStock

US$ 5,000 - 240,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

PUYANG

Model Number:

PFC375

Dalian Puyang International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name PUYANG

Model Number PFC375

Output Type AC Three Phase

Speed 1500RPM

Frequency 50Hz

Rated Power 300kw

Rated Voltage 400/230v

Rated Current N/A

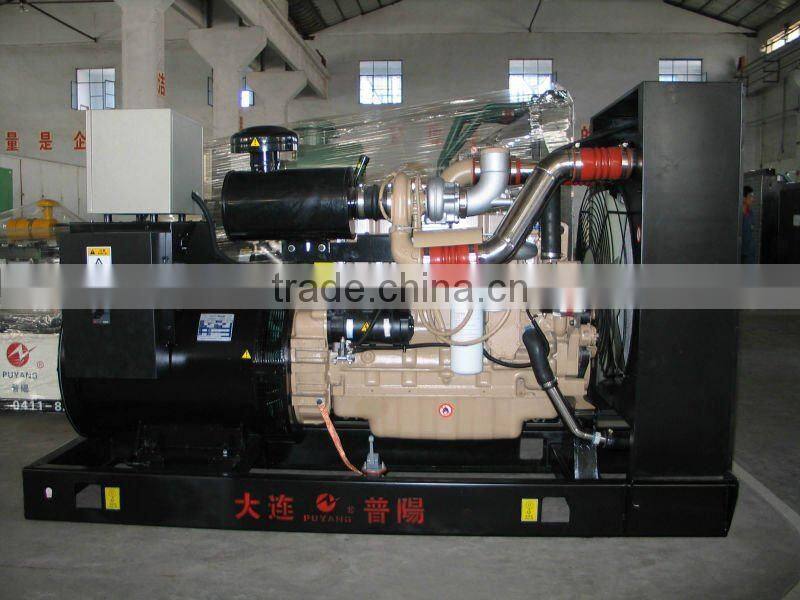

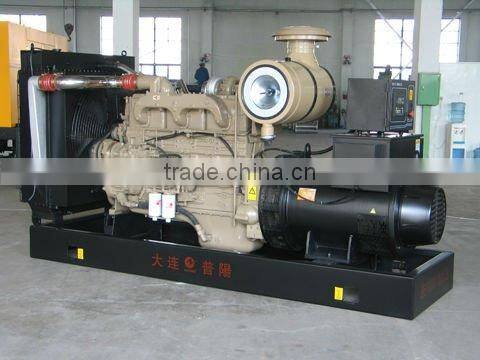

China manufacturer generator 300kw diesel generator with cummins engine

Diesel generator features:
- Prime power: 300kw/375kva
- Standby power: 330kw/413kva
- Voltage: 230/400V (adjustable)
- Power factor: 0.8 (lagging)
- Connect type: three-phase and four-wire
- Insulation class: H/H
- Protection grade: IP21-23
- Consumption:71.8 l/h diesel at full load
- Dimension: 2960*1400*1700 mm
- Weight: 2920 kg
Diesel Generator features:
- Voltage regulation: ≥ ±5%
- Voltage regulation, stead state: ≥ ±1%
- Sudden voltage warp (sudden reduce): ≤ +20%
- Sudden voltage warp (sudden increase): ≤-15%
- Voltage stable time (sudden reduce): ≤1.0s
- Voltage stable time (sudden increase): ≤ 1.0s
- Frequency regulation, stead state: ≤0.5%
- Frequency waving: ≤ 0.5%
- Frequency recovery time (sudden reduce): ≤ 1.0s
- Frequency recovery time (sudden increase): ≤ 1.0s
Engine features:
- Engine brand: Cummins
- Engine type: in-line four-cycle and water cooled
- Turbocharged and inter-cooler
- Combustion type: direct injection
- Model: NTAA855-G7
- Maximum power:377 kw
- Bore and stroke: 140*152 mmv
- Coollant capacity: 75.0 L
- Oil capacity: 37.0 L
Standard accessories of diesel generator :
- Standard control panel, exhaust silencer, flexible pipe, battery and battery cables, battery rack, operation manual and document
