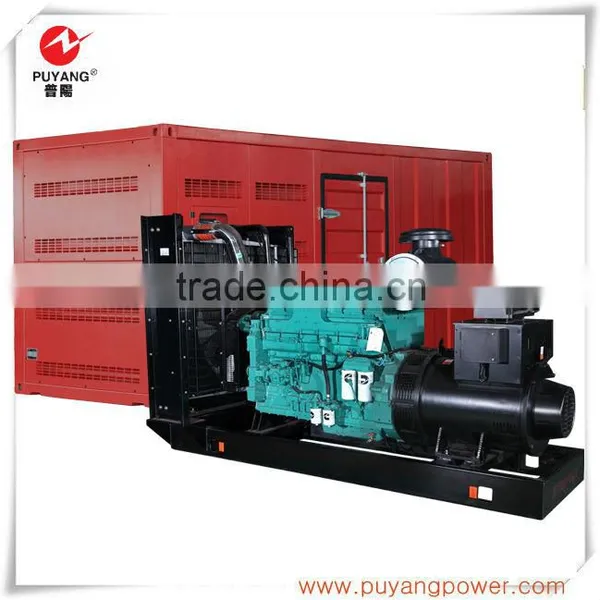

China genset manufacturer 1mw diesel generator

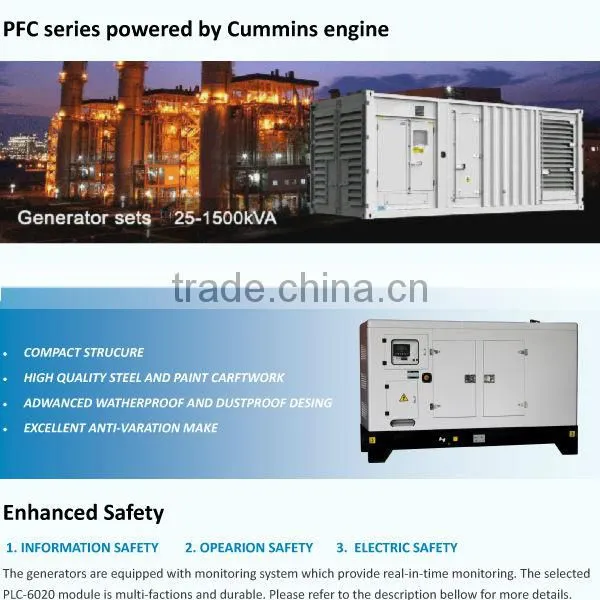

50Hz 3ph 1500rpm 400/230V Diesel generator powered by cummins engine
| Model | Prime Power | Standby Power | Engine | Alternator | Control | Tech. Data | ||
| kW | kVA | kW | kVA | |||||
| PFC1250E | -- | -- | 1000 | 1250 | KTA38-G9 | LSA50.2M6 | DSE6020 | »Details |
| PFC1250 | 1000 | 1250 | 1100 | 1375 | QSK38-G5 | LSA50.2M6 | DSE6020 | »Details |
| PFC1250 | 1000 | 1250 | 1100 | 1375 | KTA50-G3 | LSA50.2M6 | DSE6020 | »Details |
1mw diesel generator Features:
1. Cummins engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Original Stamford, Leroy Somer, Marathon, Engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
Diesel engine:
*Heavy load durable, four-stroke, water cooled engine
*Excellent transient response
*Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid, cylinder liner
*24V DC safe isolate valve
*Dual spin-on paper element fuel filter
*Gen-sets equipped with dual flexible fuel union pipe
Alternator:
*Brushless, four-pole revolving field, single bearing and drop proof screen protected.
*Class H insulation
*IP21-IP23 protection standard
*Dynamically balanced rotor to BS 5625 grade 12.5
*High-quality lubrication sealed for long-life bearing
*If need Stamford Original, PLS contact us for further prices

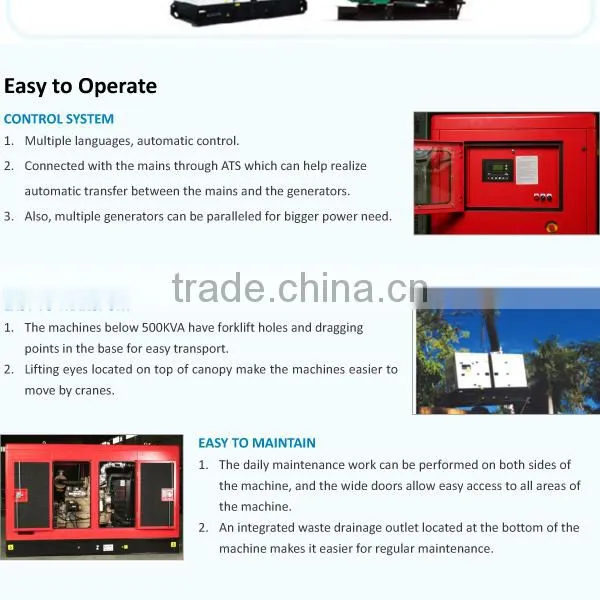

*Control system: Cummins standard control module
*Completed gen-set parameter display, perfect protection and control function
*All English display, friendly operation interface
*Excellent anti-jamming function, adapt to extreme condition.
*Independent over-load protection
*Unique sensors protection, adapt to all sensors
» Clic the power range for more
