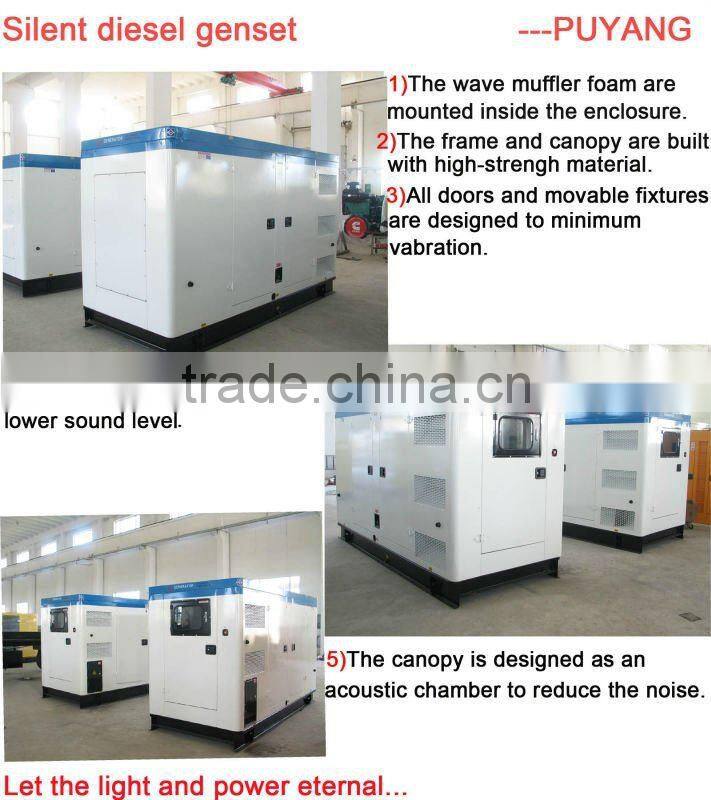

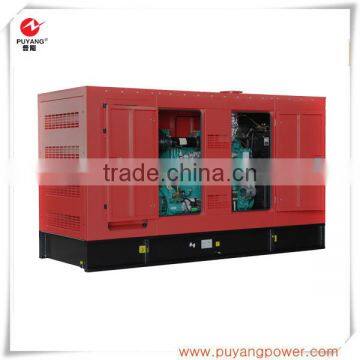

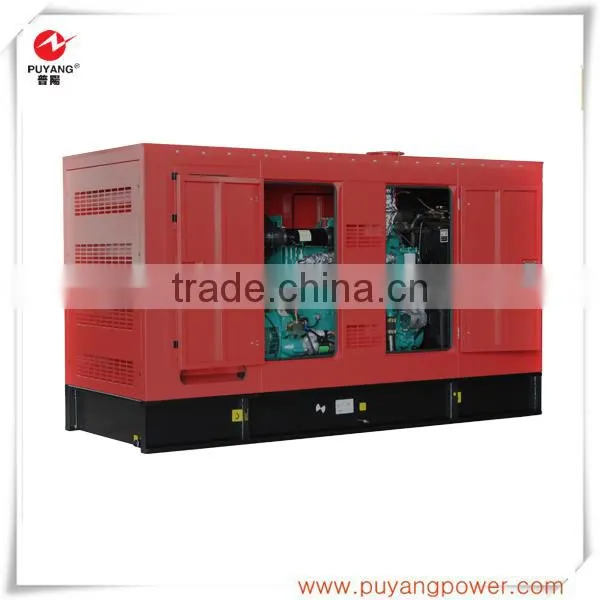

200kw Silent diesel generator with NT855-GA engine
What is diesel generator?
A diesel generating set is the combination of a diesel engine with an electrical generator (often called an alternator) to generate electrical energy. Diesel generating sets are used in places without connection to the power grid, as emergency power-supply if the grid fails, as well as for more complex applications such as peak-lopping, Grid Support and export to the power grid. Sizing of diesel generators is critical to avoid low-load or a shortage of power and is complicated by modern electronics, specifically non-linear loads.
Why Cummins Engine?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most wildly use in every filed and everywhere around the world.
Genset model | PFC250 diesel generator set |
Type | silent |
Genset output power range | 200kw/250kva |
Rated voltage | 220/380V,230/400V,240/415V,120/240V |
Frequency | 50HZ |
Power factor | 0.8 |
Rated speed | 1500rpm |
output type | AC three phase |
Motor | Brushless,self-excitation |
Frequency | <3% |
Frequency at stable state: | <0.5% |
Frequency deviation at instantaneous state | ≤+10% |
Frequency return time | ≤3s |
Voltage deviation at stable state | ≤±1% |
Voltage deviation at instantaneous state | ≤+20% |
Voltage return time | ≤4s |
Voltage modulation | ≤0.3% |
Engine | Cummins, NT855-GA |
Engine type | water cooling, electrical or mechanical governor, natural aspirated or turbocharged, 12/24V DC electric starting,4 stroke |
Alternator | Marathon,Stamford,Engga,brushless,IP21/23, AVR automatic voltage regulating |
Standard Accessories of diesel generator set:
Standard control panel, Exhaust silencer,Flexible pipe, Battery and battery cables,Battery rack, Operation manual and document
Optional Accessories of diesel generator set:
Intelligence control panel, Paralleledcontrol panel, Automatic transfer switch (ATS) panel,
Automatic Remote Control Panel, Waterheater, Oil-water separator, intelligent battery
charger, Soundproof canopy, Weatherproofcanopy, Fuel tank, Trailer.
