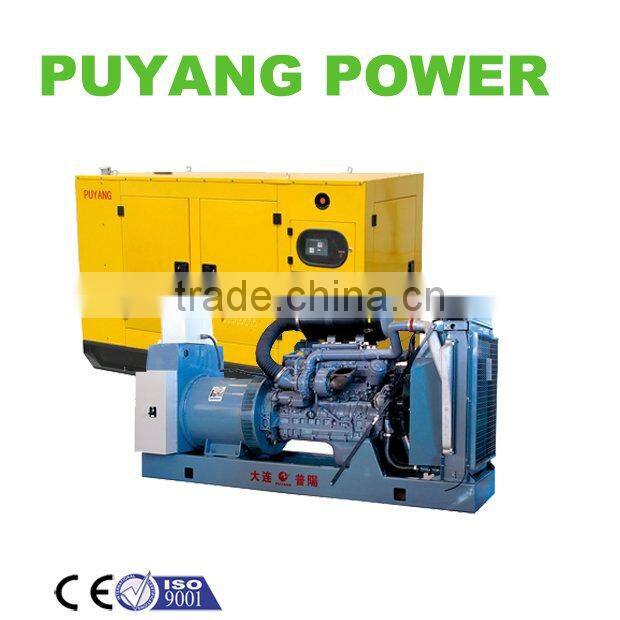

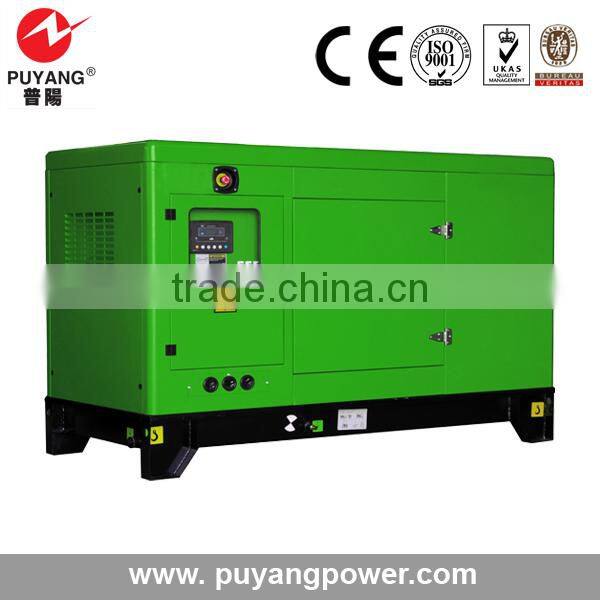

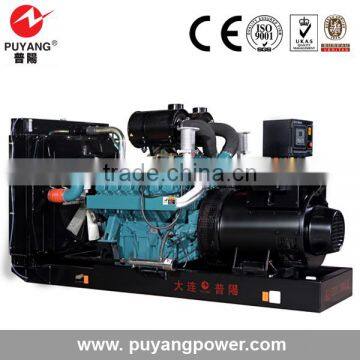

CE/ISO9001 Approved Doosan/Man Soundproof Genset From 20kW To 1200kW
General Advantages
1.World famous diesel engine brand:Cummins/Dosan/Man
2.World-renowned AC alternator brand:Leroy Somer
3.Low cost, high efficiency, compact structure, environment friendly
4. Heavy load durable, four-stroke, water cooling engine
5. Excellent transient response
6.Installed the damper for anti-vibration
7.ALarm shutdown feature
Specification of the Soundproof Genset
Generator set model |
PF Series |
Type |
silent |
Generator set output power range |
From 20kW To 1200kW |
Rated voltage |
440/400/230V |
Frequency |
50Hz/60Hz |
Power factor |
0.8 |
Rated speed |
1500rpm/1800rpm |
Output type |
AC three phase |
Motor excitation type |
brushless |
Frequency at stable state: |
<0.5% |
Frequency deviation at instantaneous state |
≤+10% |
Frequency return time |
≤3s |
Voltage deviation at stable state |
≤±1% |
Voltage deviation at instantaneous state |
≤+20% |
Voltage return time |
≤4s |
Voltage modulation |
≤0.3% |
Parameters of the Engine
Brand |
Cummins/Man/Doosan |
Cooling method |
water cooling |
Rotating speed |
1500rpm/1800rpm |
Governor system |
electrical or mechanical governor |
Aspiration mode |
natural aspirated or turbocharged |
Starting method |
12/24V DC electric starting |
Stroke |
4 stroke |
Parameters of the Alternator
Brand |
Leroy Somer |
Regulator |
AVR automatic voltage regulating |
Excite type |
Self-excitation |
Connecting type |
3 phase 4 wires |
Steady frequency change |
0-5% |
No load voltage |
≥95%-105 |
Steady voltage |
≤±1% |
Insulation degree |
H/H |
Exclosure degree |
IP21/23 |
Accessories for the Containerized Diesel Generator Set
| Standard Accessories | Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document |
| Optional Accessories | Engine coollant and oil heater, alternator space heater, cooling for heat exchanger, control panel, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer |
Q1:How long time is the warranty?
Answer:We can provide 12 months mending service guaranteed.
Q2:What is the delivery time?
Answer:7 days after receiving your deposit.
Q3:What are the payment terms?
Answer:T/T 30% deposit .70% balance against the B/L copy or L/C at sight.
Q4:How about the quality of your machine?
Answer: a.Good reputation for reliable quality and reasonable price
b.Advanced technology and production line by skilled workers
c.We will test and check the machine strictly before shipment.And we have the only one full-function testing center in
northern China.
d.CE ISO approved
Warranty: We provide the guarantee for 500 running hours or 6 months ranging from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months ranging from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
Dalian Puyang Generating Set has become the leading generating set manufacturer in northern China during the past years.Being an OEM factory,we have the advanced technology and skilled workers so that we own the largest scale of production and full product specifications and models.We have the only one full-function testing center in northren China to make the genset checked strictly.
