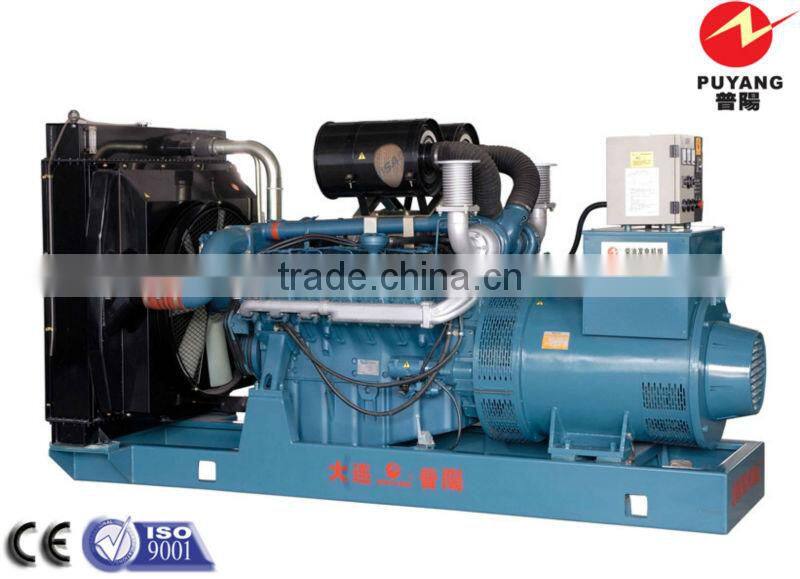

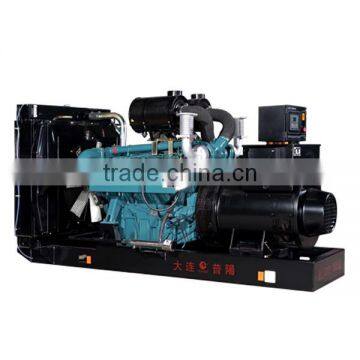

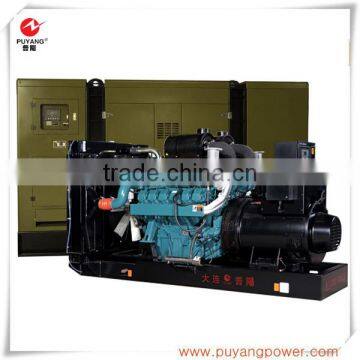

High Power Water Cooled Doosan AC Three Phase Output Type Generator Price 500kW
- 100 Set / Sets per Month
- Dalian
- T/T
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Puyang | Model Number: | PFD625 |
Output Type: | AC Three Phase | Speed: | 1500rmp | Frequency: | 50Hz |
Rated Power: | 625kVA/500kW | Rated Voltage: | 440V | Rated Current: | N/A |
Product Description
High Power Water Cooled Doosan AC Three Phase Output Type Generator Price 500kW
1) Diesel Generator Specification:
Engine Brand:Doosan
Engine Model:P222LE
Prime Power: 500kW/625kVA
Standby Power:550kW/ 687.5kVA
Voltage: 400V
Insulation Grade: H
Protection Grade: IP21/22/23
Dimension: 3280X1410X1940 mm
Weight: 3540 kg
2) Diesel Engine Specification:
Engine Brand: Doosan
Engine Type: 12 Cylinders and water cooling method
Turbocharged and inter-cooler
Combustion Type: direct injection
Maximum power: 687.5kW
3) Alternator Specification:
Marathon,Engga, Stamford
Brushless, self-excitation
IP21/23 Protection Grade
H class insulation
50Hz Frequency , 1500rpm Rotating Speed
100% copper wires
902A Cureent
4)Controller (Control Panel) Brand: Deep Sea or Smartgen
(digital and intelligent) LED screen and touch buttons
Main Functions of 500kW/625kVA diesel generator set
Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage et
5)Standard accessories of diesel generator:
Standard control panel
Exhaust silencer, flexible pipe,
Battery and battery cables, battery rack
Operation manual and document
Generator set
| Generator Model | PFD625 |
Rating Power (KW/KVA) | 500/625 | |
Standby Power(KW/KVA) | 550/687.5 | |
Rating Ammeter | 902A | |
Diesel engine | Engine Model | P222LE |
Bore X Stroke (mm) | 128X142 | |
number of Cylinder & Configuration | V 12 | |
Displacement | 21.9L | |
Compression Ratio | 15:01 | |
Aspiration Type | Turbocharged & After-cooled | |
Max. intake depression | 220mm | |
Combustion air Volume(m³/min) | 38 | |
Max. exhaust back Pressure | 600mm | |
Exhaust Gas Flow(m³/min) | 117.5 | |
Max. Exhaust Gas Temperature(°C) | 606 | |
Cooling Type | Water cooled with Radiator | |
Fan cooling air flow(m³/min) | 535 | |
Engine Coollant capacity | 126L | |
Max. temperature of coolant(°C) | 100 | |
Max. permissible oil temp.(°C) | 120 | |
Total oil capacity | 45L | |
Rating Fuel Consumption(L/h) | 124.4 | |
Governing Type | Electrics Governor | |
Alternator
| Rating Voltage | 400/230V |
Alternator Model | MX-500-4 | |
Rating Capacity(KW/KVA) | 500/625 | |
Eff.% | 94% | |
Power Factor | 0.8 lagged | |
Exciting Type | Brushless self-exciter, DVR | |
Voltage Regulation | ±0.25% | |
Connecting Type | 3 phase 4 wire | |
Enclosure Class | IP22 | |
Insulation Class | H | |
Control Panel | Control Module | 6200 AMF Module |
Battery | Rating Capacity | 2X200AH 12V |
Dimension | LXWXH (mm) | 3280X1410X1940 |
Weight | Weight (kg) | 3540 |
1. Is your company a trade one or factory?
Answer: Being an OEM company, Our factory has established more than ten years.
2. What about the cooperation process?
Answer: Firstly we confirm the details of the product.When we guarantee all details, you must pay 30 percent deposit.Then
we will arrange the inventory and production. Finally you need to pay the balance when shipnment.
3. How to deal with the broken machine?
Answer: We will provide professional technical response for your questions until we have made sure that the configuration,
feature, optional item can work smoothly. But maintenance freight has to be paid by yourself.
4. what about your warranty?
Answer: Almost one year quality warranty. We base on the output power to decide the final warranty as well. During
guaranteed period, we will provide free quick-wear parts for problem caused by our quality of production.
After the development of more than ten years,Dalian Puyang Generating Set Co.,Ltd. has become the leading generatign set manufacturer in northern China. We have the largest scale of production and full product specifications and models.Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Center, and we have also got the telecommunication facilities network import license of National Information Industry Department and marine product certification of PRC. What is more, we have been authorized by ISO9001 and WSSN2000.
We have got long-term cooperation partners as CUMMINS,MAN,DEUTZ,LOVOL,DOOSAN.SHANGHAI MARATHON ,STAMFORD,ENGGA and so on.With self-contained producing conditions,advanced testing equipments and abundant technology ,we can provide diesel generating set ranging from 8kW to 1800kW.It deserves to be mentioned that we have the only one full-fuction testing cneter in northern China.Right now,our diesel generators are serving in most fields.
Not only is “Let the light and power eternal” the wish of all clients,but also it is our key of subsistence. We would like to obtain your support and trust with the method of our best quality and service.
