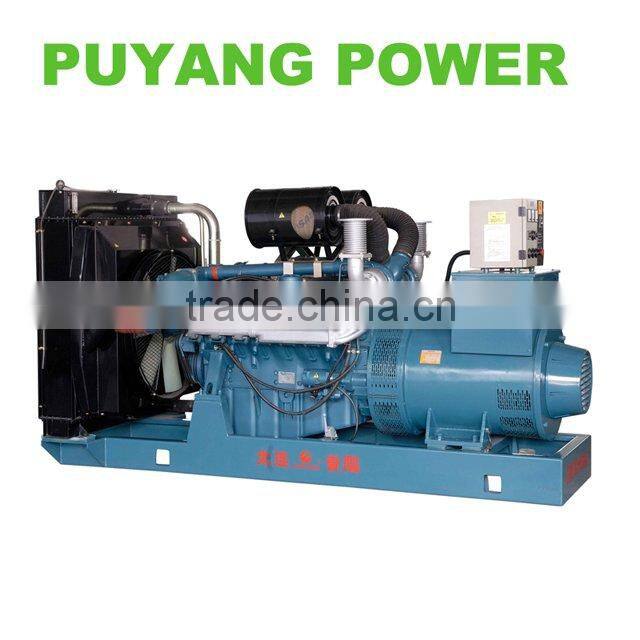

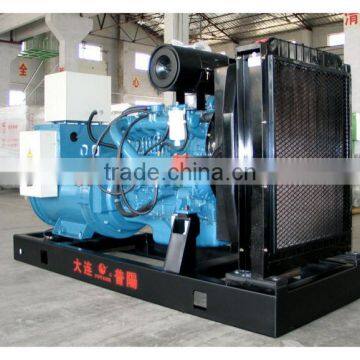

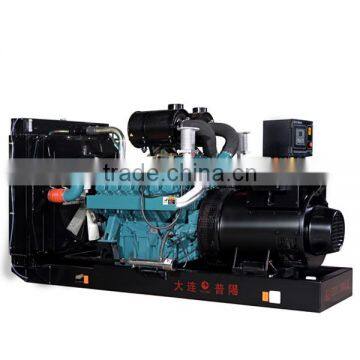

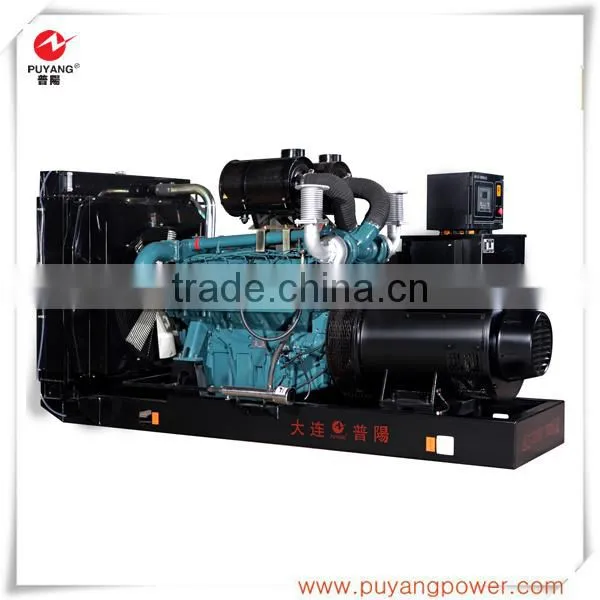

80kVA to 750kVA Doosan origianl from Kroea diesel generator set with Brushless alternator Water Jacket Heater as optional

80kVA  to 750kVA Doosan origianl from Kroea diesel generator set with Brushless alternator Water Jacket Heater as optional

Key Specifications/Special Features:

• Features:
  • Rated power: 80kVA/750kVA
  • Voltage: 400/230kVA(adjustable)
  • Frequency: 50/60Hz
  • Power Factor: 0.8(lagging)
  • Connecting type: 3 phase 4 wires
  • Insulation class: H/H
  • Protection type: IP21-23
  • Voltage regulation: ≥ ± 5%
  • Voltage regulation, stead state: ≤ ± 1%
  • Sudden voltage warp (sudden reduce): ≤ +20%
  • Sudden voltage warp (sudden increase):≤ -15%
  • Voltage stable time (sudden reduce):≤ 1.0S
  • Voltage sable time (sudden increase):≤ 1.0S
  • Frequency regulation, stead state: ≥ 0.5%
  • Frequency waving: ≤ 0.5%
  • Frequency recovery time (sudden decrease): ≤ 1.0S
  • Frequency recovery time (sudden increase): ≤ 1.0S
• Engine features:
  • Engine brand: Doosan
  • Engine model: P126TI-II
  • Engine type: i-line cycle, water-cooled, turbocharged, intercooler
  • Combustion type: direct injection
  • Number of cylinders: 6
  • Displacement: 11.05liter
  • Firing order: 1-5-3-6-2-4
  • Bore x stroke: 126 x 155mm
  • Compression ratio: 17: 1
  • Rated rpm: 1,500

• Standard Accessories:
  • Standard control panel
  • Exhaust silencer
  • Flexible pipe
  • Battery and battery cables
  • Battery rack
  • Operation manual and document

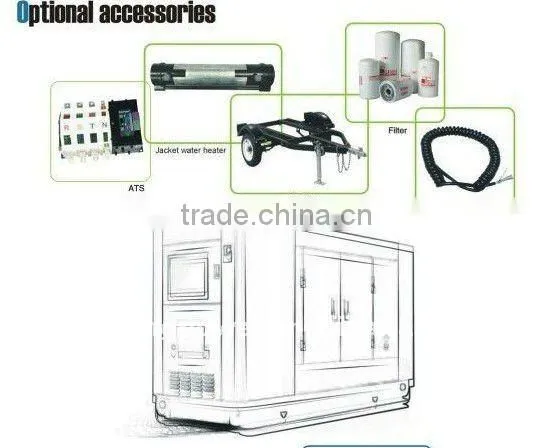

• Optional accessories:
  • Intelligence control panel
  • Paralleled control panel
  • Automatic transfer switch (ATS) panel
  • Automatic remote control panel
  • Water heater, Oil-water separator
  • Intelligent battery charger
  • Soundproof canopy and weatherproof canopy
  • Fuel tank and trailer
