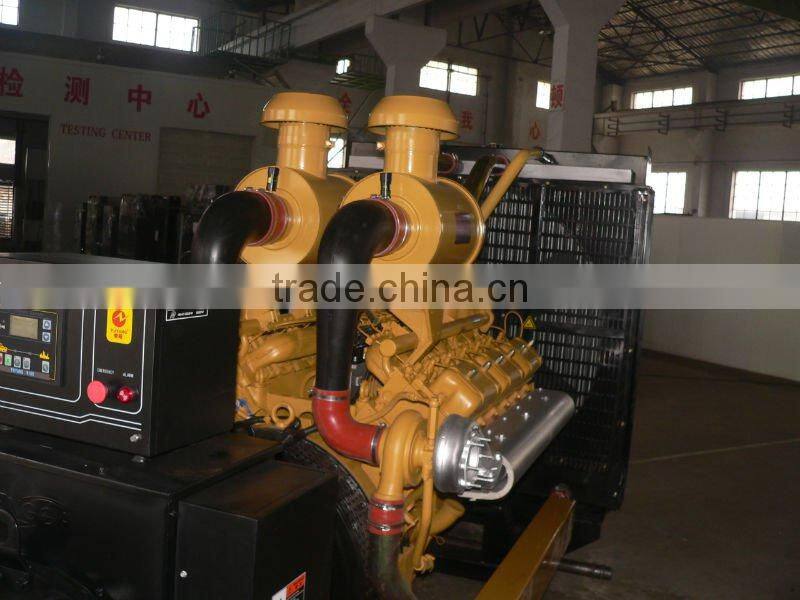

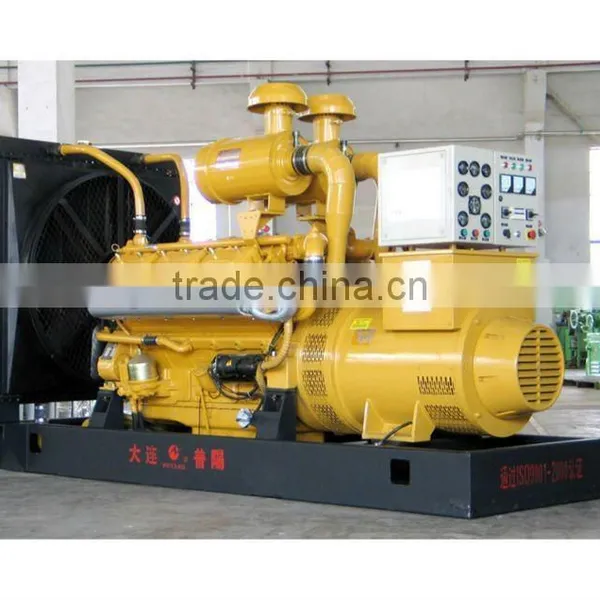

500kw Shangchai diesel genset
Diesel Genset features:
- Prime power:450kw/ 563kva
- Stadnby power:500kw/625kva
- Voltage: 230/400V (adjustable)
- Power factor: 0.8 (lagging)
- Connect type: three-phase and four-wire
- Insulation class: H/H
- Protection grade: IP21-23
- Consumption:117.8 L/H diesel at full load
- Dimension: 3380*1650*2080 mm
- Weight: 3750kg
- Engine brand: Shangchai(china original)
- Engine type: in-line four-cycle and water cooled
- Turbocharged and inter-cooler
- Combustion type: direct injection
- Model:12V135BZLD1
- Maximum power:555.5 kw
- Bore and stroke: 135*150mm
- Coollant capacity: 126.0 L
- Oil capacity: 65.0 L
Package: plastic wrapping, plywood case
Standard accessories of diesel genset:
Standard control panel, exhaust silencer, flexible pipe, battery and battery cables, battery rack, operation manual and document
Payment Terms:
1. By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch
2. By full amount irrevocable confirmed Letter of Credit at sight.
Delivery:
Goods will be delivered within 35 days with receipt of down payment.
Quality:
ISO9001:2000 quality control system, CE cetification, Full load and 110% load testing report.
Warranty:
We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
Our service quality assurance:
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service
