Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Weichai Automatic 30kw Open Diesel Generator Set

Weichai Automatic 30kw Open Diesel Generator Set

Name: Weichai Automatic 30kw Open Diesel Generator Set
Brand: PUYANG
SKU: 141415312
Availability: InStock

Weichai Automatic 30kw Open Diesel Generator Set thumbnail-1

Weichai Automatic 30kw Open Diesel Generator Set thumbnail-2

Weichai Automatic 30kw Open Diesel Generator Set thumbnail-3

Weichai Automatic 30kw Open Diesel Generator Set photo-1

Weichai Automatic 30kw Open Diesel Generator Set photo-2

Weichai Automatic 30kw Open Diesel Generator Set photo-3

US$ 1 - 99,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

PUYANG

Model Number:

PF30GF

Contact Supplier Request Quote Chat Now

Dalian Puyang International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name PUYANG

Model Number PF30GF

Output Type AC Three Phase

Speed 1500rpm, 1500rpm

Frequency 50Hz

Rated Power 30kw/38kva

Rated Voltage 400/230v

Rated Current N/A

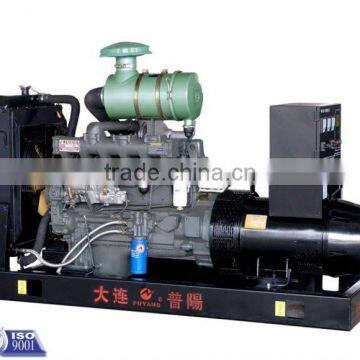

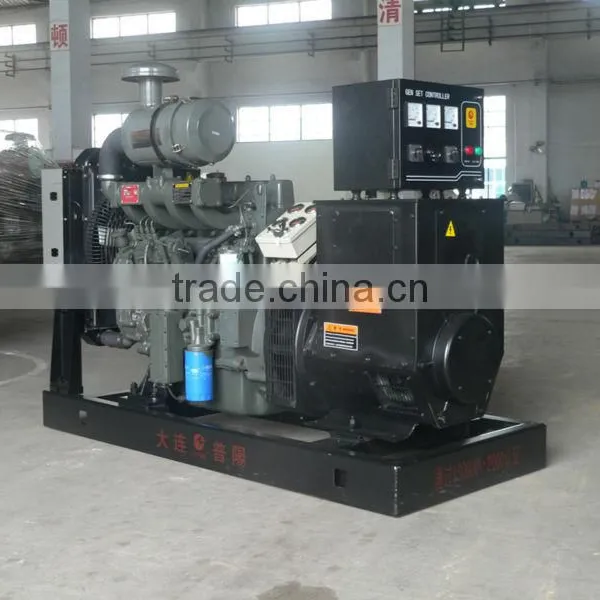

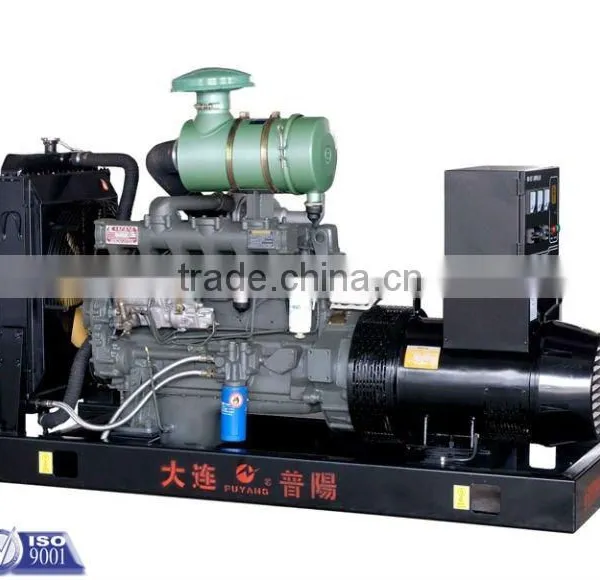

Weichai Automatic 30kw Open diesel generator set

Diesel Generator set specification:

Genset Type	Open-frame
Genset standby power	33KW
Genset prime power	30KW
Related Voltage	400/230V; 480/227V
Related Current(A)	54
Frequency/rpm	50Hz@1500rpm or 60Hz@1800rpm
Starting Method	DC 24V Electric Starting
Dimension	1700 x 650 x 1010 mm
Weight(kgs)	615
Packing	Plastic wrapping, playwood case

Engine Technical Details:
Engine Type	K4102D3-1
Engine standby power	36KW
Engine prime power	30KW
Fuel Consumption(L/H)	8.0
Cylinder No.	4 cylinders,in-line,direct injection
Bore*Stroke ( mm )	102 x 115strokes
Cooling Way	water-cooled
Displacement(L)	3.76
Lubricating Capacity(L)	18
Compression Rate	N/A
Speed governor	Mechanical

Alternator Technical Details:
Alternator Type	Marathon GM-30-4
Alternator Related Power	N/A
Connecting Type	3 phase-4wire; 100% copper wire
Power Factor	0.8 ( lagging )
Operating Mode	continous
Exciter Type	brushless, self-exciting, synchronous
Insulation Class	H class
Ingress Protection	IP22
Voltage Control	AVR ( automatic voltage regular )

Guarantee:

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period,We will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, We provides cost spare parts maintenance of alternator.
