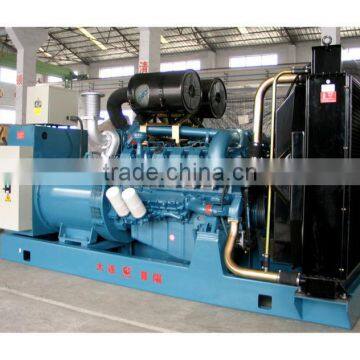

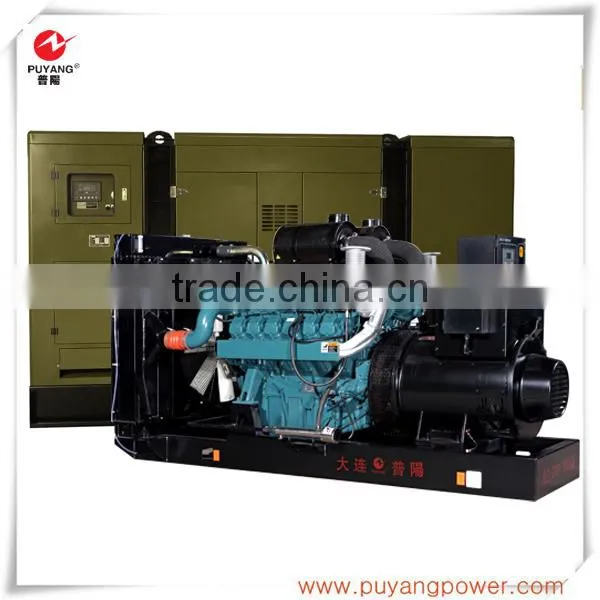

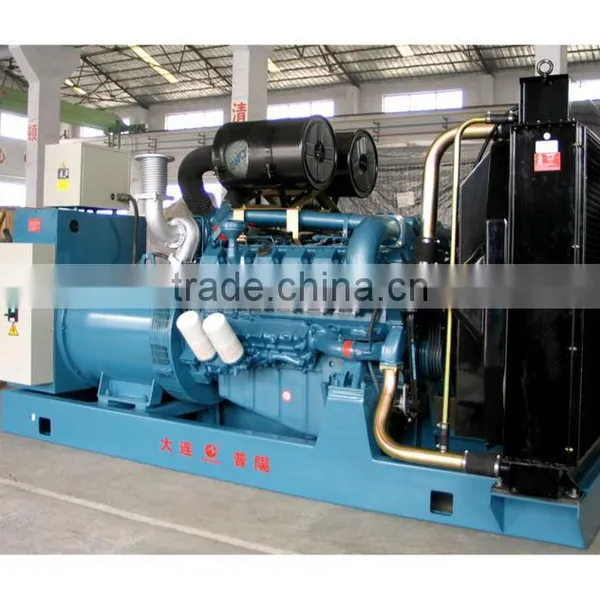

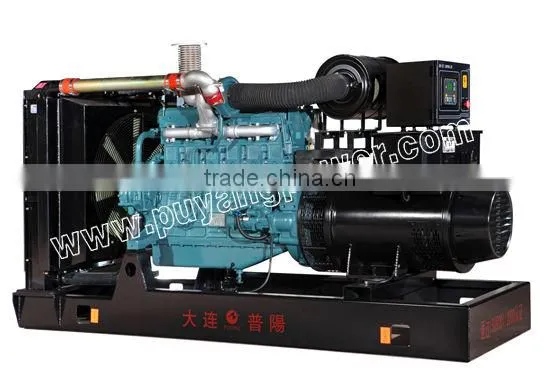

Doosan series open type 230/400V diesel generator
Diesel Generators set
Power range:64-500KW
Warranty:1000hours or 12months
Delivery:in 10-25 working days
ATS/AMF
THE SPECIFICATIONS OF THE ENGINE:
1) The rated speed : 1500rpm, four strokes, inline. Fan and water tank cooling system, up to the ISO3046 standard
2) The rated output: from 8 kw (10KVA) to 1600kw (2000kva)
3) The engine model: CUMMINS/PERKINS/DEUTZ/VOLVO
4) The character of the engine:
High efficiency. Low exhaust,good start eddiciency
24V DC start motor
Egnine driven alternator
High pressure oil pump
Turbine charge
Three filter
SAE flywheel shell
THE SPECIFICATIONS OF THE ALTERNATOR:
The world first class alternator, up to the GB755, BS5000, VDE0530, IEC34-1, CSA22.2, AS2359 standard,brushless and self-excitation,it be can supply excitation in many cases:
STAMFORD/ MARATHON/ ENGGA/ QIANGHUI
Standard pitch winding can be inhibit currents nterruption
Insulation Class: H Protection class: H
Frequency at stable state: ≤±1.0%
Telephones interference: THF < 2%, TIF < 50
THE SPECIFICATIONS OF DIESEL GENERATORS SET
1. The basic specifications: 230 / 400V AC, 50Hz / 60Hz, 0.8Pf , three phase four wires
2. Character: base fuel tank for 8 hours
3. Use: can be used for the open type and the soundproof type , automatic type
4. Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
i) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
5.Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
