900*1800mm Small Grinding Ball Mill
- any main port in China
- T/T
You May Like
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 22KW | |
| Capacity(t/h) | 1-100T | Place of Origin | Henan, China | |
| Brand Name | Hongke | Model Number | 2200*7500 | |
| Dimension(L*W*H) | 2.5*2.5*9 | Weight | 60T | |
| Certification | BV ISO | Warranty | 3 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
standard export packing for small grinding ball mill
Product Description
A ball mill is a type of grinder used to grind materials into extremely fine powder for use in mineral dressing processes, paints, pyrotechnics, ceramics and selective laser sintering.
A ball mill consists of a hollow cylindrical shell rotating about its axis. The axis of the shell may be either horizontal or at a small angle to the horizontal. it is partially filled with balls. The grinding media is the balls, which may be made of steel (chrome steel), stainless steel or rubber. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel or rubber. Less wear takes place in rubber lined mills, such as the Sepro tyre drive Grinding Mill. The length of the mill is approximately equal to its diameter.
Features of ball mill
1.This type of ball mill is a kind of traditional ball mill, with rolling bearings (Babbit metal bearing bushing seat)
2. Simple structure, and split installation.
3. It is easy to lift it whileinstalling and maintaining.
4. Its feeders are classified intotwo types: combined feeder and cylinder feeder.
Working principle of ball mill
1. This ball mill is horizontal type and tubular running device, has two warehouses.
2. This machine is grid type and its outside runs along gear.
3. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device.
Notes for ordering of ball mill
1. While placing your order, please specify themodel, quantity, and the rotating direction as well.
2.Since the ball mills are classified into two types: grate ball mill and overflow ball mill, please specify the type.
Technical Specifications of ball mill
Model | Rotary Speed (r/min) | The feeding size (mm) | The final Size (mm) | Capacity(t/h) | Main Motor (kw) | Weight (t) |
900×1800 | 38 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.9 | 3.6 |
900×3000 | 38 | ≤ 20 | 0.075-0.89 | 1.1-4.8 | 22 | 4.6 |
1200×2400 | 32 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
1200×2800 | 35 | ≤ 25 | 0.074-0.4 | 1.2-3.7 | 30 | 11.5 |
1200×3000 | 32 | ≤ 25 | 0.074-0.4 | 1.6-5 | 45 | 12.8 |
1200×4500 | 32 | ≤ 25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 27 | ≤ 25 | 0.074-0.4 | 2-5 | 75 | 17 |
1500×4500 | 27 | ≤ 25 | 0.074-0.4 | 3-6 | 90 | 21 |
1500×5700 | 27 | ≤ 25 | 0.074-0.4 | 3.5-6 | 110 | 24.7 |
1830×3000 | 24 | ≤ 25 | 0.074-0.4 | 4-10 | 180 | 28 |
1830×6400 | 24 | ≤ 25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 24 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
2200×5500 | 21 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
2200×6500 | 21 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
2200×7000 | 21 | ≤ 25 | 0.074-0.4 | 8-36 | 380 | 50 |
2200×7500 | 21 | ≤ 25 | 0.074-0.4 | 16-29 | 475 | 56 |
2100×2700 | 24 | ≤ 20 | 0.074-0.4 | 3.5-25 | 150 | 33 |
2100×3500 | 24 | ≤ 25 | 0.074-0.4 | 4.5-33 | 180 | 37 |

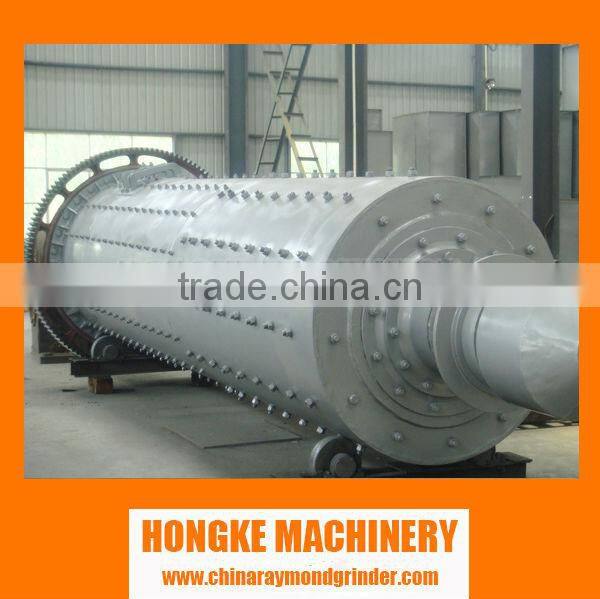

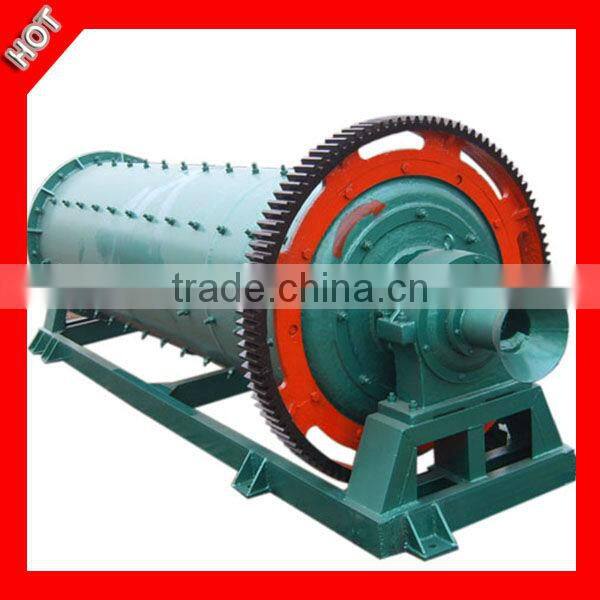

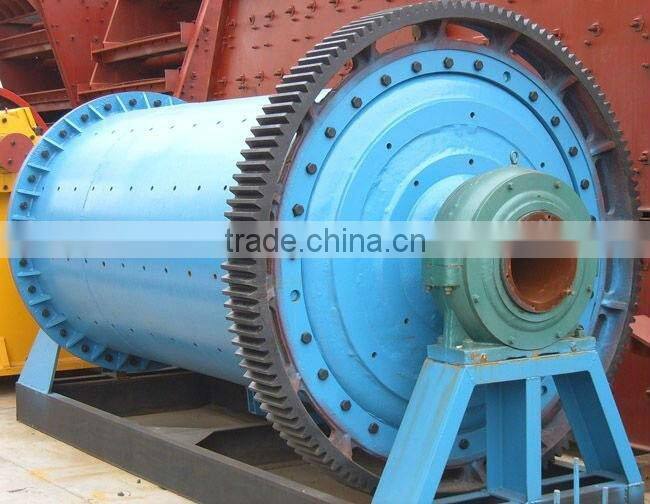

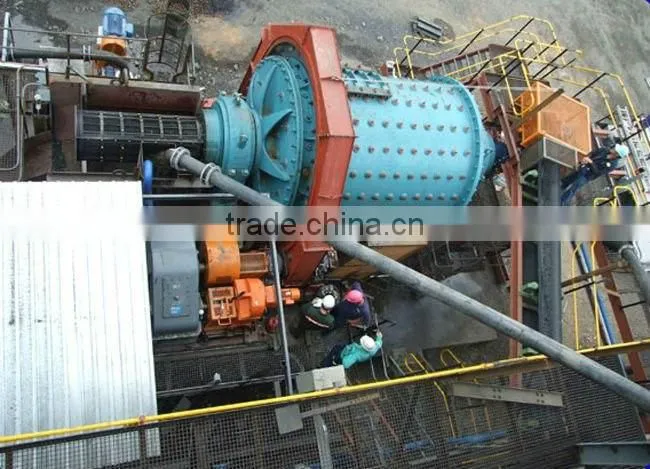

Pictures of ball mill
Service Promise
Everything we do, only to let customers get more benefits in the market to get more business opportunities to create more value for our customers and the community.
The company development philosophy, and always adhere to the "science and technology and quality peer technology is the root, innovation is the soul,
the talent is this" talent as the entrepreneurial enterprise development and competitiveness of the country,
the development of the. Company adhere to the concept of "first-class talent is the basis of building a first-class enterprise" has always been to focus on the training and introduction.
The company regards product quality as the life of the enterprise, the main parts and wearing parts are made of high-quality wear-resistant materials, coupled with advanced processing technology, the equipment to be durable
.
Please Inform below informations when you contact with us
1. The capacity of the ball mill?
2. The out size of the raw material?
3. What product you use to?
Welcome to your inquiry!
Company Profile
Henan Hongke Heavy Machinery Co., Ltd. . is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing. We are a newly-risen dazzling star in China's machinery industry with the development of market economy. Our manufactory is a high-tech enterprise that specializes in the research and production of rotary kilns, driers, and crushers. Our major products, for example, rotary kilns, Raymond mills, a series of crushers, stone crushers, and a series of screens, jaw crushers, hammer crushers, impact crushers, cone crushers, and sand making machines, rank highly in the domestic market and some products have reached international advanced level. Due to decades of venture and the self-improvement of our staff, our company has developed well. Employing a large number of talents who are keen on innovation and enjoy a high level in outstanding scientific research and management in the industry, our company cultivates talents with strict disciplines and high efficiency in order to forge ahead together. In order to meet the needs of the development of our company and the market competition, we have built the first-class modern production and testing base, established a worldwide sales network, and provided considerable services for our respectable customers. We adhere to the pioneering ideas of "quality prospers our company", pursue the service tenet of "we satisfy our customers with our whole heart", and insist on the operation essential of "honest and good faith, and seek truths from facts". We have won honorable titles like Good Credibility of After-Sales Service, and our "Hongke" trademark has become a symbol of the reputation. The quality is the life of our enterprise. Our company has modern scientific management, advanced production equipment and strict testing means to improve products. Our company will continue to uphold our concept, serve our nation sincerely, and rejuvenate our nation. We are willing to work together with friends from all over the world to create a bright future and flourish our national industry.
