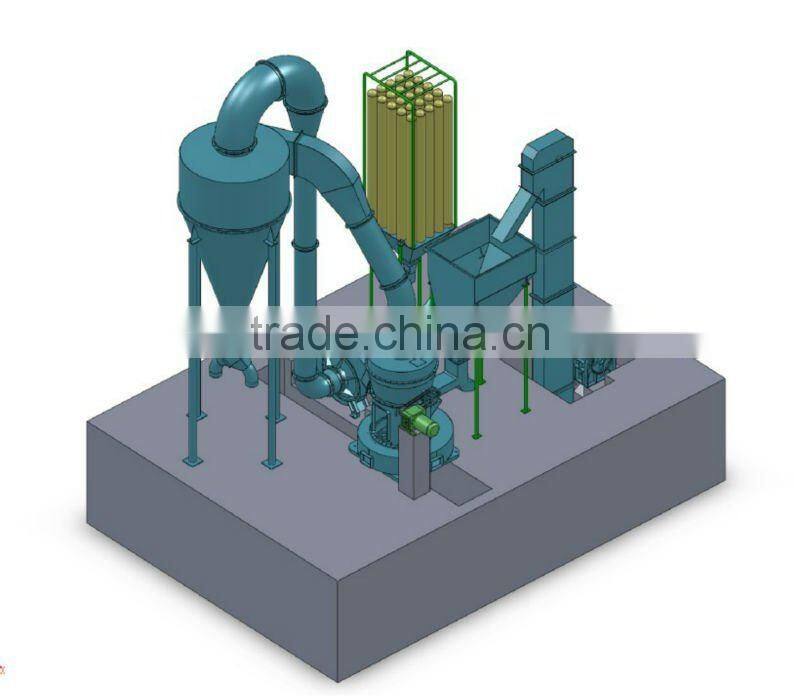

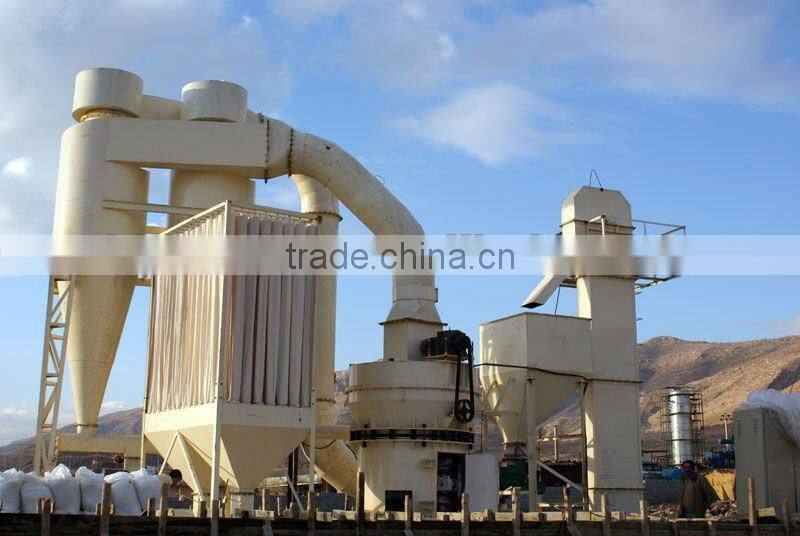

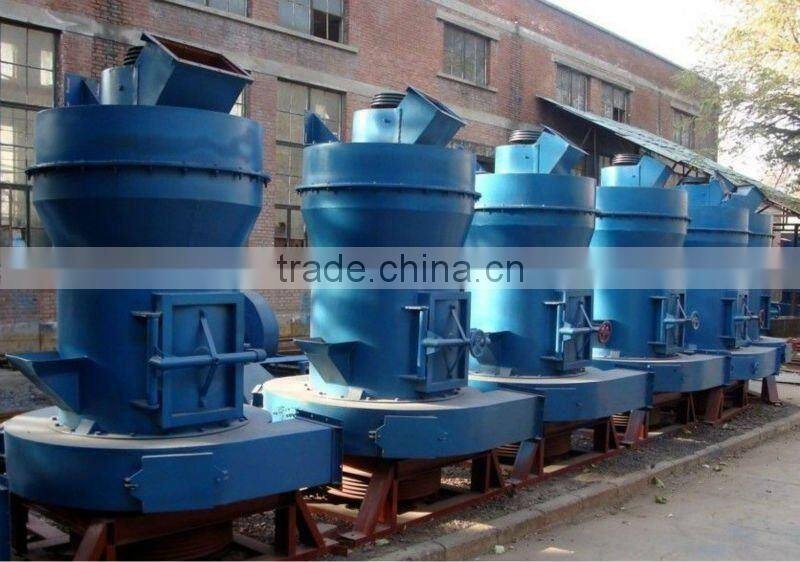

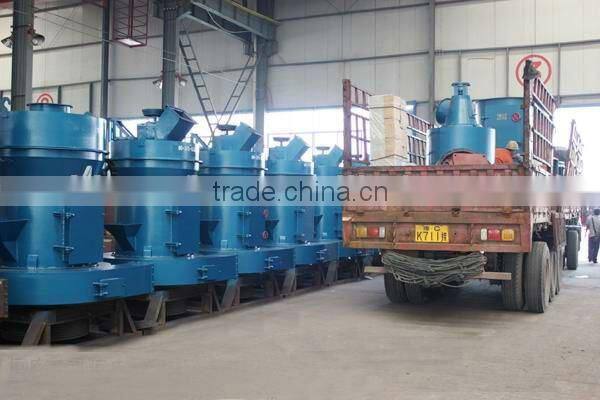

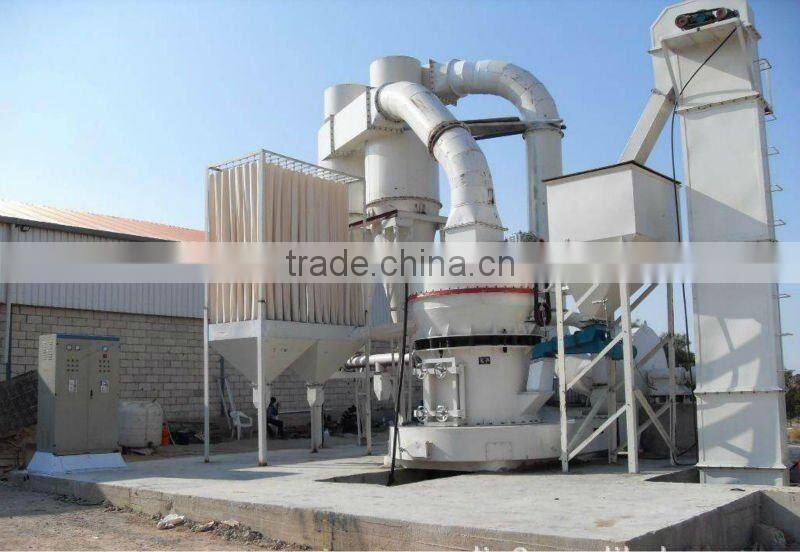

micro powder mill
1. Application
This machine is applicable to the grinding and processing of barite, calcite, feldspar, talcum, marble, limestone, clay, glass, The fineness of the finished product can be adjusted from 30 mesh to 325 mesh according to requirements
2. Working principle of micro powder mill
In the mainframe of High Pressure Suspension Mill, there are strong springs with pressure as high as 1000-1500 kg equipped on the roller suspender.
3. Main technical parameters
Type |
3R1510 |
3R2115 |
3R2615 |
3R2715 |
4R2715 |
4R3015 |
4R3216 |
5R4119 |
Max particle size of feed(mm) |
5-8 |
15 |
20 |
20 |
15-25 |
15-25 |
25 |
20-25 |
Particle size of finishedproduct(mm) |
0.125-0.044 |
|||||||
|
Amount of products (T) |
1-10 |
1-18 |
2-25 |
2-28 |
3-30 |
3-30 |
3-38 |
6-66 |
Rotate speed of central shaft (r/min) |
280 |
160 |
170 |
170 |
170 |
155 |
130 |
105 |
Inner diameter of pulverizing ring (mm) |
Φ500 |
Φ630 |
Φ780 |
Φ830 |
Φ830 |
Φ875 |
Φ970 |
Φ1270 |
Diameter of pulverizing roller(mm) |
Φ150 |
Φ210 |
Φ260 |
Φ270 |
Φ270 |
Φ300 |
Φ320 |
Φ410 |
Height of pulverizing roller and ring(mm) |
100 |
150 |
150 |
140 |
140 |
150 |
160 |
190 |
Electrical machine of main frame(kw) |
Y160M-6-7.5 |
Y200L-8-15 |
Y225S-8-18.5 |
Y225S-8-18.5 |
Y225M-8-22 |
Y250M-8-30 |
Y225S-4-37 |
Y280S-4-75 |
