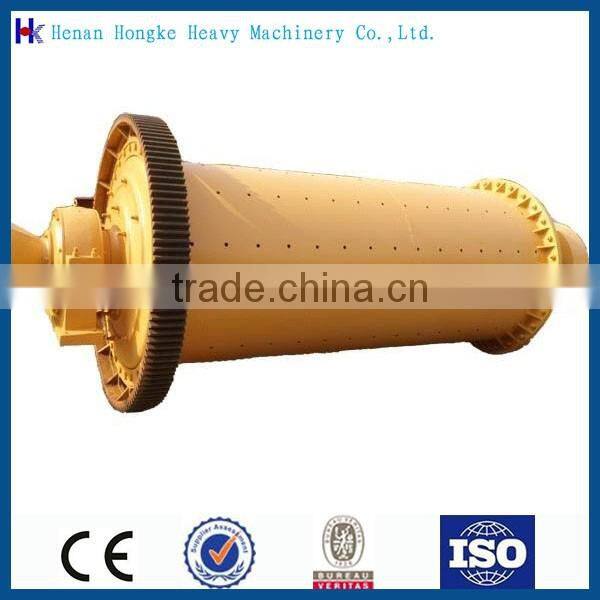

High Performance Dry Ball Mill Machinery

High Performance Dry Ball Mill Machinery thumbnail-1
High Performance Dry Ball Mill Machinery photo-1
US$ 2,200 - 2,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Hongke Heavy Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 30kw
Capacity(t/h) 1.5-4.8t/h
Place of Origin Henan, China
Brand Name Hongke
Model Number 1200*2400
Dimension(L*W*H) As different models
Weight 12t
Certification ISO9001:2008
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Overview of dry ball mill:

The dry ball mill is a key equipment for regrinding, which is widely used for cement, silicate product, new type building material, refractory material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. The ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.


Wet ball mill is new ball mill according to new concept design which adopts special rolling bearing as support structure of barrel. It solves service life of overload rolling bearing and problem of regulating mental activities, sealing problem under severe environmental condition    and barrel movement caused by long working hours.



Dry Ball Mill Working Principle:

The dry ball mill is a horizontal cylinder rotating device. It is equipped with drive gear which drives the cylinder for rotation in the working process outside the cylinder. There are two chambers. Materials go into the first chamber of the grinding machine spirally and evenly through the feeding hollow shaft from the feeding device, and there are ladder lining plates or ripple lining plates inside the first chamber where there are different kinds of steel balls. When the cylinder rotates, it will produce eccentric force to bring the steel balls to a certain height, the steel balls will fall down to impact and grind the materials. After being coarsely grinded in the first chamber, the materials will go into the secondary chamber where there are flat lining plates through the single-layer partition board. There are steel balls for further grinding the materials in the lining plate, and steel ball is set inside the second chamber. Materials will be grinded. Finally the powdery materials will be discharged from the discharging grating bar to complete powder grinding operation.

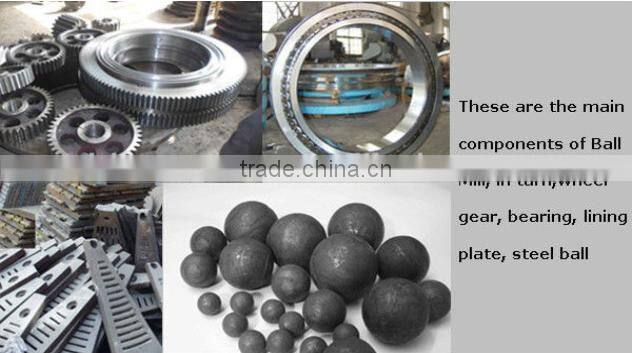

 High performance dry ball mill machineryHigh performance dry ball mill machinery

Specification and technical parameters:



Model Shell rotation speed
(r/min)		 Ball load
(t)		 Feeding size
(mm)		 Discharging size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 56.6
2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 69
2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 137
3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 158
3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 175
3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525



FAQ:
1.What is the raw material do you want to mill?
2.What is the capacity per hour do you need?
3.What is the raw material input size?
4.What is the output size of your product?

Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification,so pls leave us an inquiry to know more details about price,packaging shipping and discount.
Now,please click the following contact to send us email for best offer and more details!

↓↓↓
