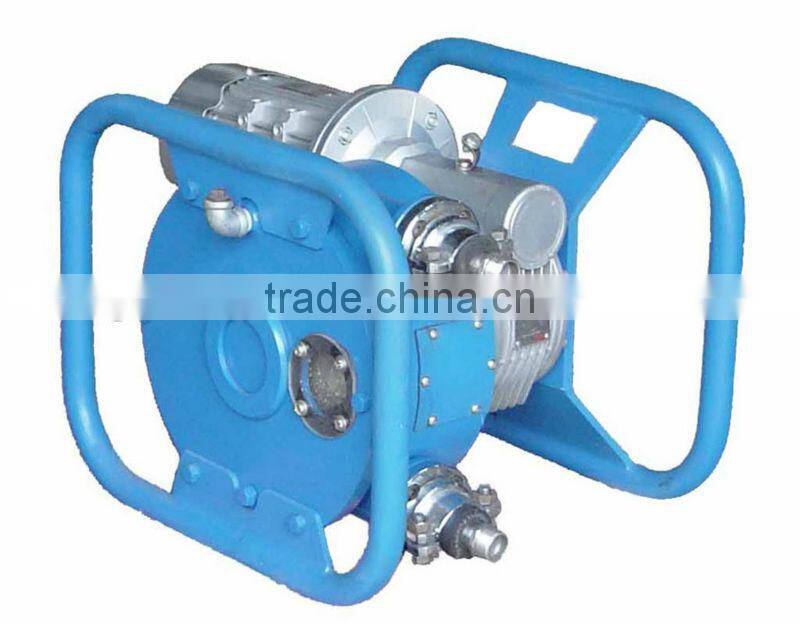

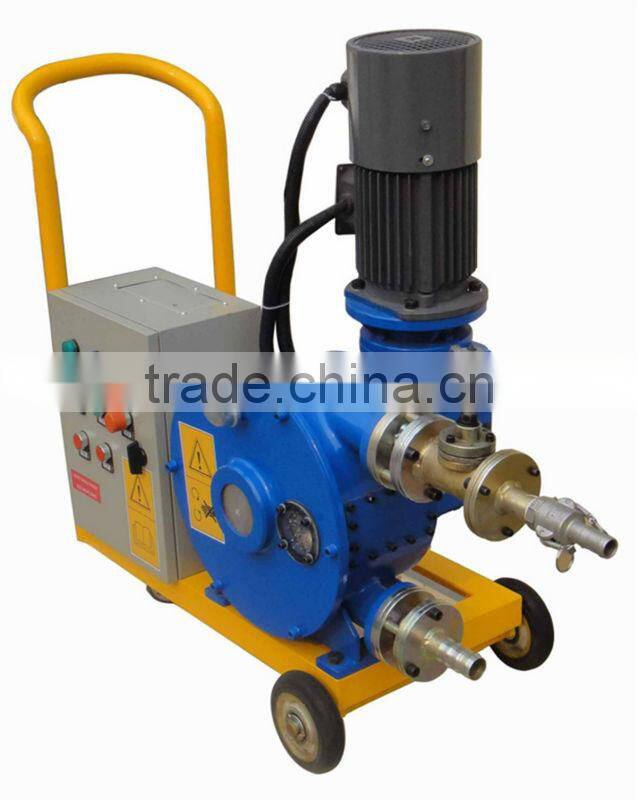

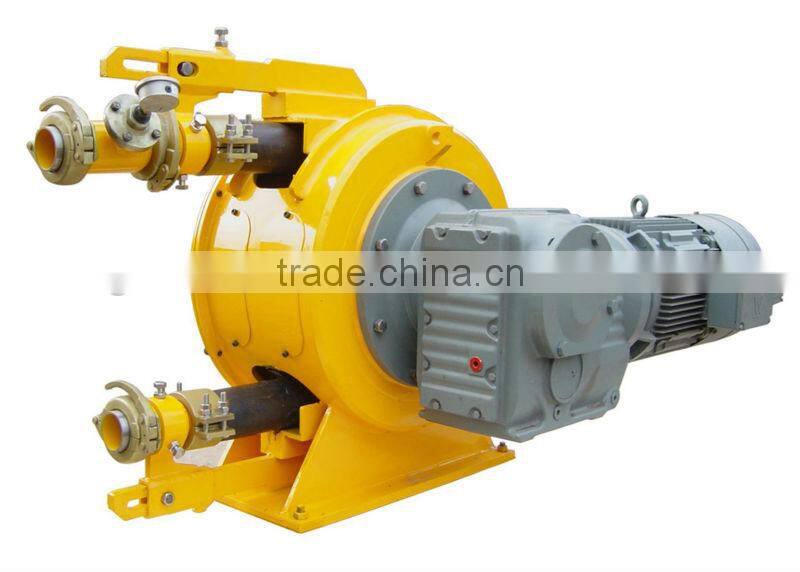

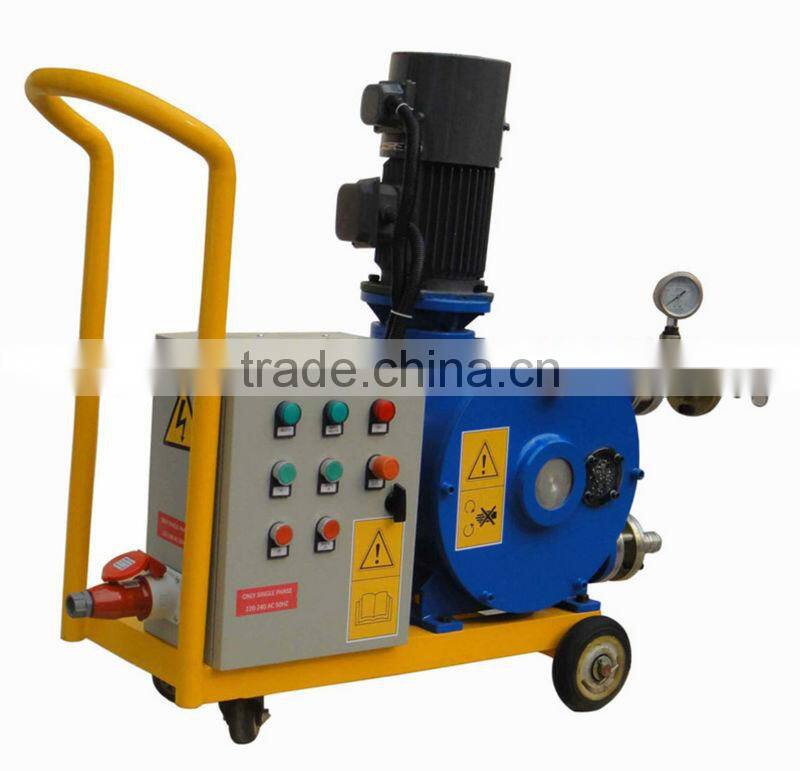

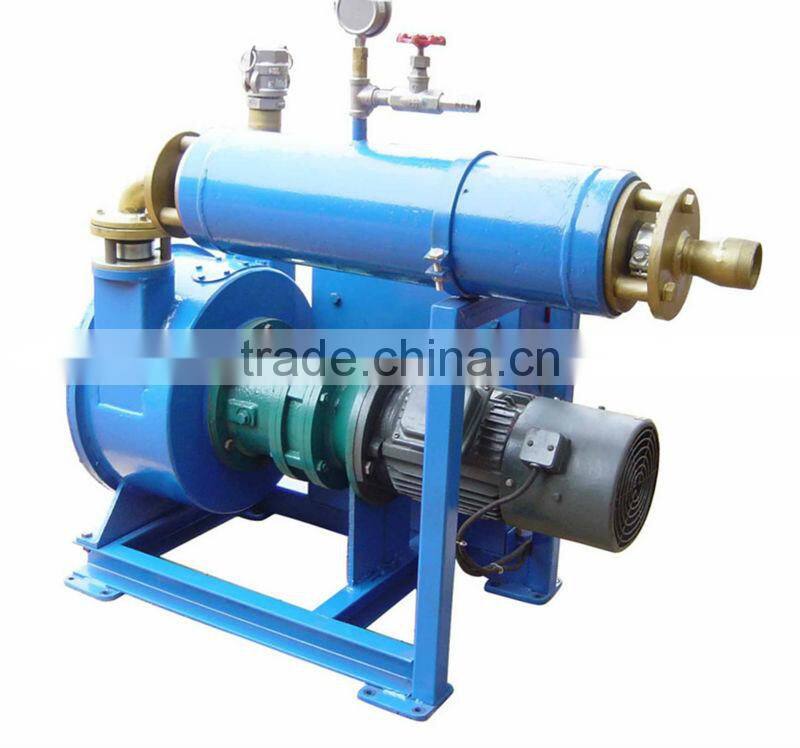

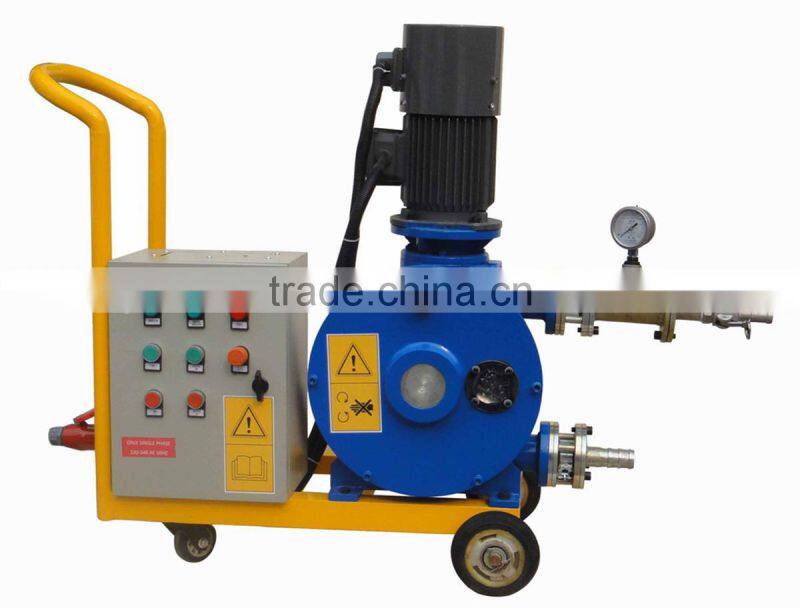

GH Series Industrial Mini Hose Peristaltic Squeeze Pump for customer
Description

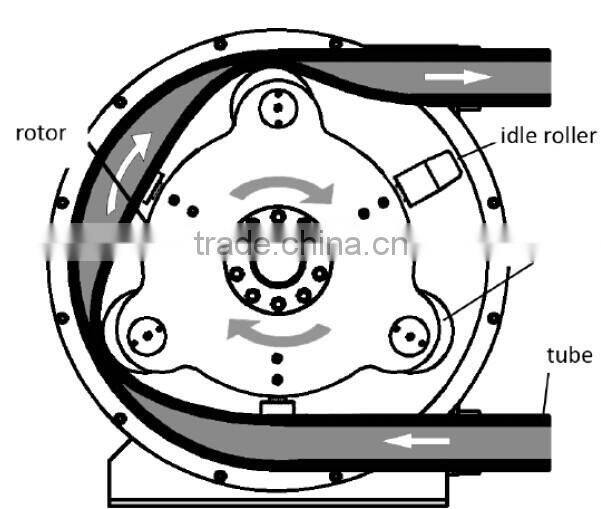

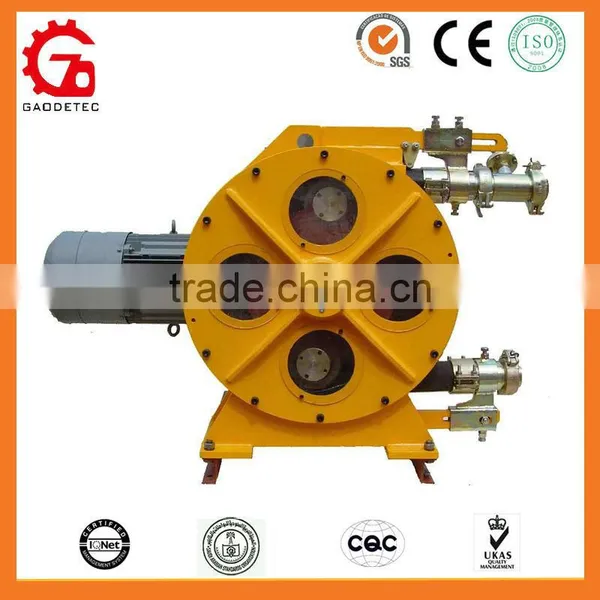

GEC GH series heavy-duty industries peristaltic pump (squeeze pump) is a kind of hose pump, which is suitable for handling aggressive, high viscosity, high density products, such as
abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar, liquid
accelerator, etc. and then also is used widely for dosing pump with 1% repeat precision.

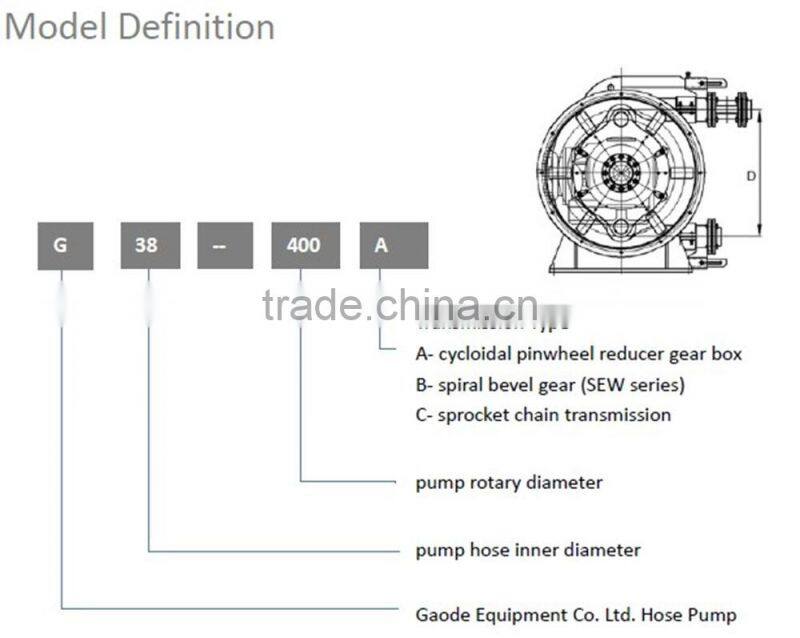

GH series peristaltic pumps working pressure from 0.6-3 Mpa, out put from 0.01-50 m3/h, which includes GH10, GH15, GH25, GH32, GH38, GH50, GH65, GH76, and GH100 series peristaltic pump. We can design the suitable hose pump according to the requirements of customer, For more detailed information, please see the specification.
Feature
·Reversibility
·Sealessness and valveless
·Abrasion resistance
·Self priming with high suction
·Peristaltic hose is the only consumption part

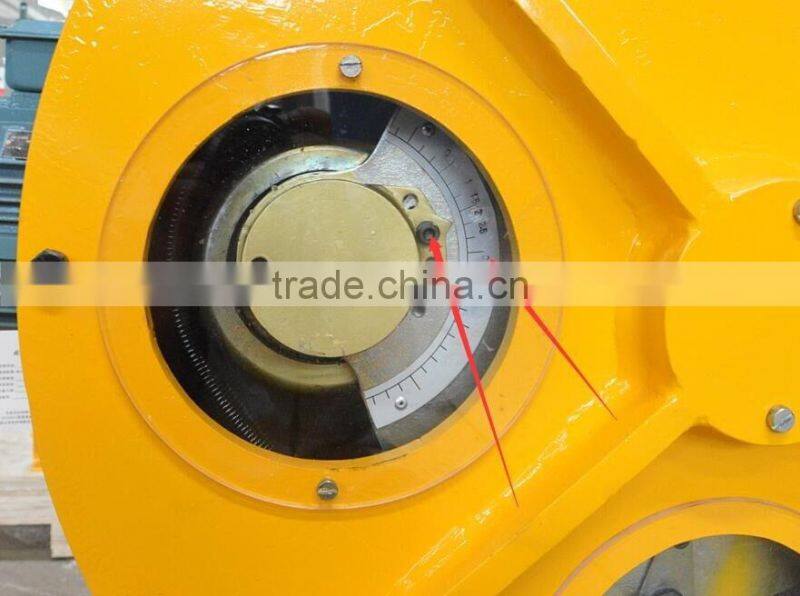

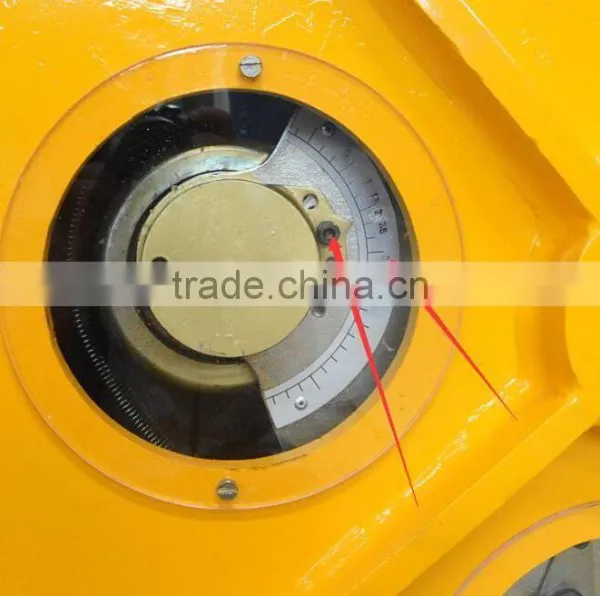

· Equipped with adjustable pointer using for adjusting tha gap of the hose.
GH series hose pump is equipped with adjustable point, which is convenient and accurate for user to adjust the hose gap controlling the flow rate. Besides the adjustable point is fixed on the hose pump by bolts, and it doesn't loose in the use.

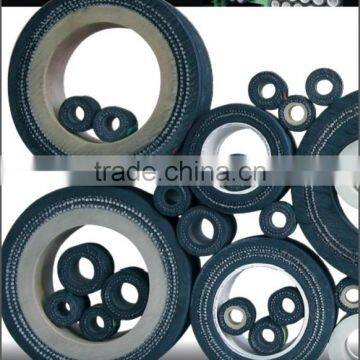

Structure
1 Nature rubber outer layer
2 Nylon reinforcement layer
3 Inner liner material available in various chemically resistant rubber
Technical Description
Pump mode | Output | Pressure | Hose ID | Rev. | Max. | Max. | Motor Power |
GH10 | 60 | 0.6 | 10 | 45 | 2 | 2 | 0.37 |
GH10B | 100 | 0.6 | 10 | 80 | 2 | 2 | 0.37 |
GH15 | 210 | 0.6 | 15 | 45 | 2 | 2 | 0.55 |
GH15B | 300 | 0.6 | 15 | 75 | 2 | 2 | 0.55 |
GH25 | 800 | 1.5 | 25 | 50 | 3 | 3 | 1.1 |
GH25B | 1300 | 1.5 | 25 | 80 | 3 | 3 | 1.5 |
GH32 | 1300 | 1.5 | 32 | 50 | 3 | 4 | 2.2 |
GH32B | 1800 | 1.5 | 32 | 75 | 3 | 4 | 2.2 |
GH38 | 2000 | 1.5 | 38 | 40 | 5 | 4 | 2.2 |
GH38B | 2700 | 1.5 | 38 | 55 | 5 | 4 | 3.0 |
GH38C | 3500 | 1.5 | 38 | 70 | 5 | 4 | 4.0 |
GH50-558 | 4200 | 1.5 | 51 | 35 | 6 | 5 | 4.0 |
GH50-558B | 5400 | 1.5 | 51 | 45 | 6 | 5 | 5.5 |
GH50-680 | 6300 | 1.5 | 51 | 35 | 6 | 5 | 7.5 |
GH50-680B | 8000 | 1.5 | 51 | 45 | 6 | 5 | 7.5 |
GH65-680 | 9200 | 1.2 | 64 | 40 | 8 | 5 | 7.5 |
GH65-680B | 12000 | 1.5 | 64 | 45 | 8 | 5 | 11.0 |
GH65-770 | 13500 | 1.2 | 64 | 45 | 8 | 5 | 11.0 |
GH65-770B | 16500 | 1.0 | 64 | 55 | 8 | 5 | 11.0 |
GH76-770 | 18000 | 1.0 | 76 | 45 | 10 | 5 | 11.0 |
GH76-770B | 22000 | 1.0 | 76 | 55 | 10 | 5 | 15.0 |
GH76-915 | 24000 | 1.0 | 76 | 50 | 10 | 5 | 15.0 |
GH76-915B | 28000 | 1.0 | 76 | 40 | 10 | 5 | 18.0 |
GH100 | 33500 | 1.0 | 102 | 35 | 15 | 5 | 18.0 |
GH100B | 42000 | 0.75 | 102 | 45 | 15 | 5 | 18.0 |
Note:1,The pump can be produced according to customer's requirement.
2,The pump's output is metered by water.
