China Supplier High-pressure Jet Grouting Pumps for sale
Description of High-pressure Jet Grouting Pumps:
GEC Hydraulic drive grouting pumps are a universal high-pressure grouting pump .
GDH90 High Pressure Grouting Pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Features of High-presssure Jet Grouting Pumps:
1.Single piston with double-acting
2.Hydraulic drive
3.Compact structure
4.Ball valve
Technical Data of High-pressure Jet Grouting Pumps:
Specification: |
|
Item |
GDH90 |
Rated Output |
0-100 L/Min |
Rated Pressure |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
Stroke/Minute |
45 |
Inlet Dia. |
38mm |
Outlet Dia. |
32mm |
Power Unit |
11kW |
Transmission |
Hydraulic drive |
Chassis |
Skid |
Weight |
580Kg |
Overall Dimension |
1505x770x1110mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | |
You also have the following option
Specification: |
|
Item |
GDH70 |
Rated Output |
0-70 L/Min |
Rated Pressure |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
Stroke/Minute |
31 |
Inlet Dia. |
38mm |
Outlet Dia. |
32mm |
Power Unit |
7.5kW |
Transmission |
Hydraulic drive |
Chassis |
Skid |
Weight |
450Kg |
Overall Dimension |
1505x770x1110mm |

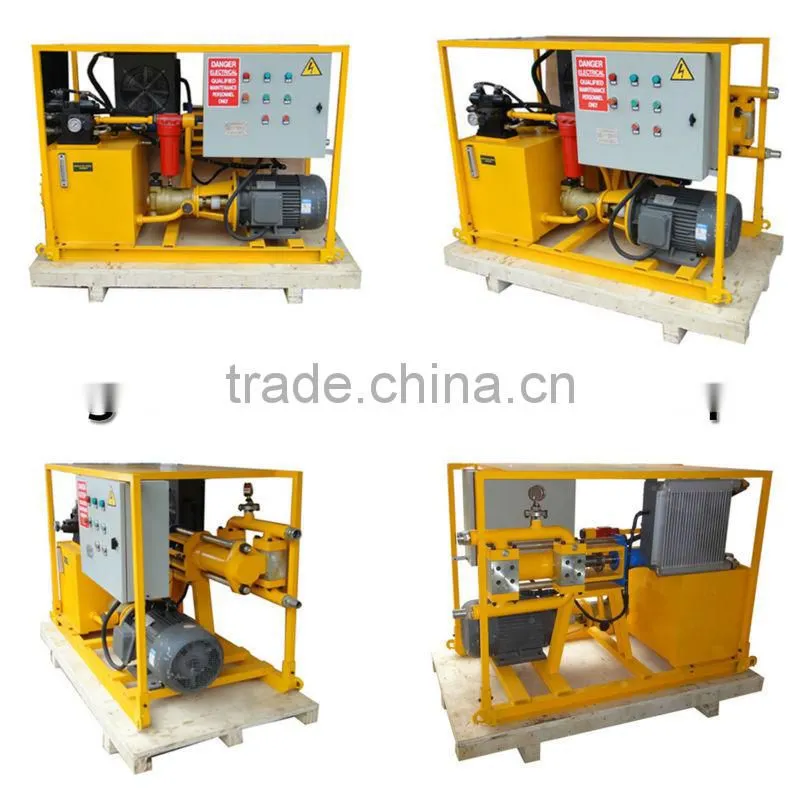

Photoes:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

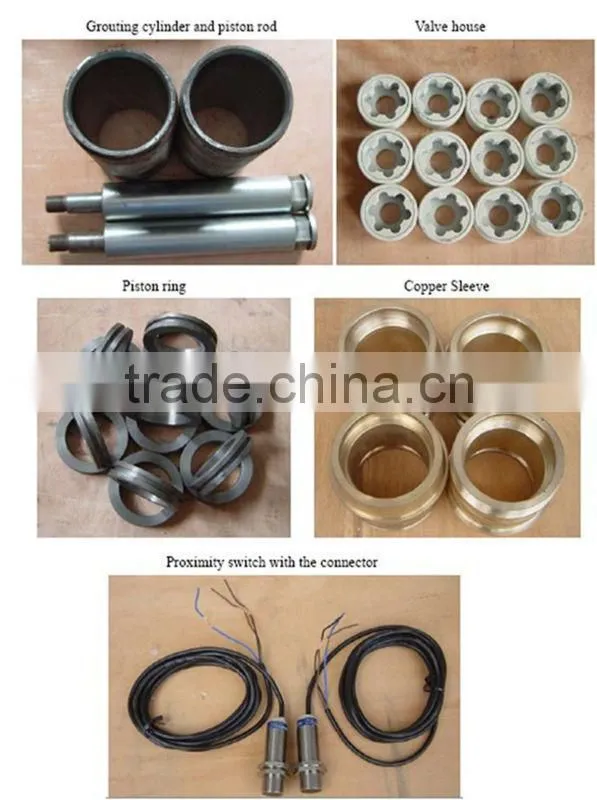

Spare parts:
Certification of our company:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
