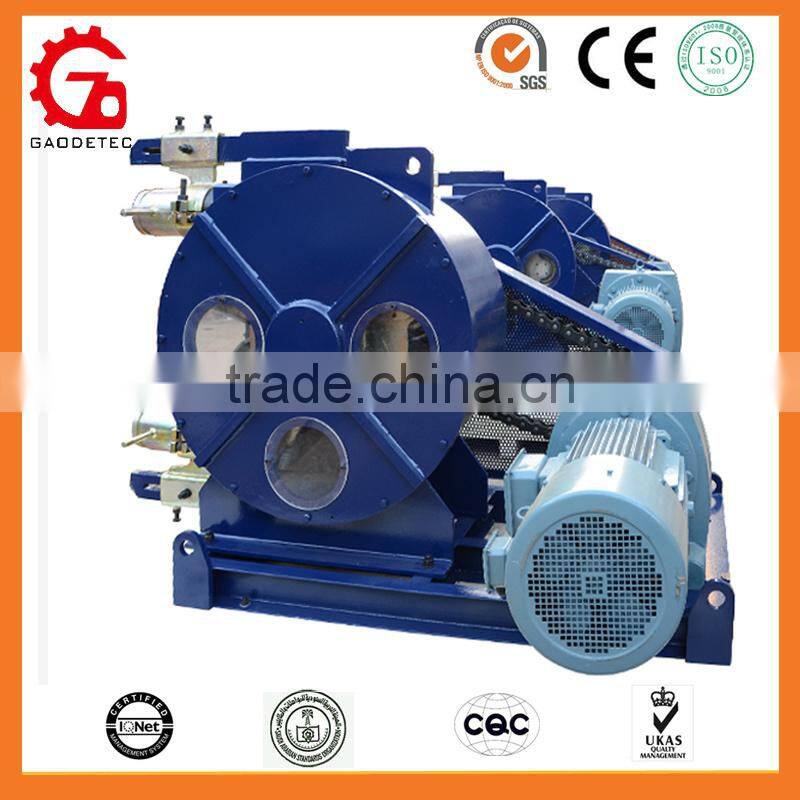

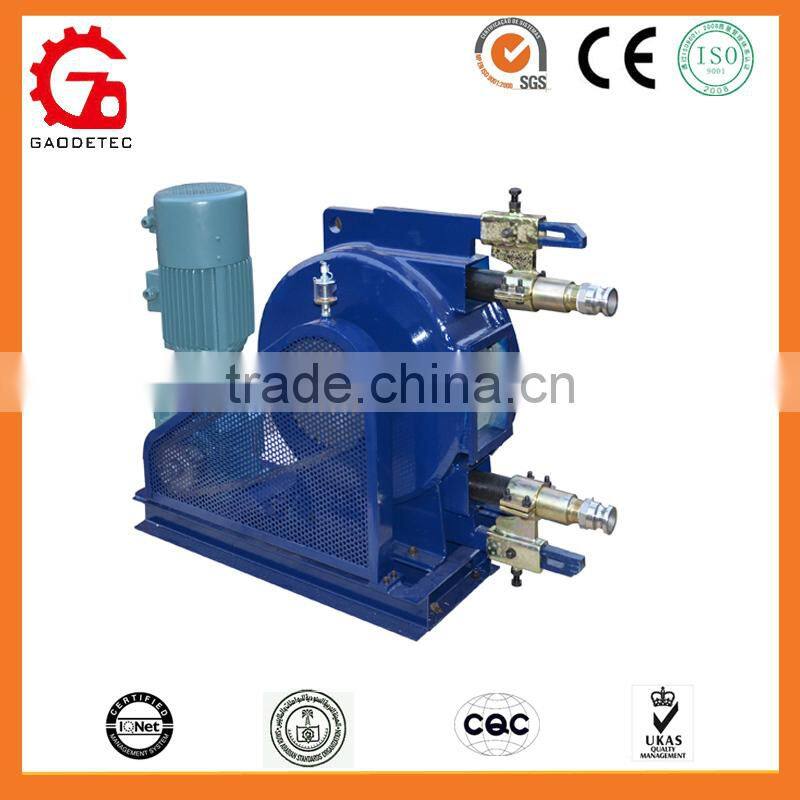

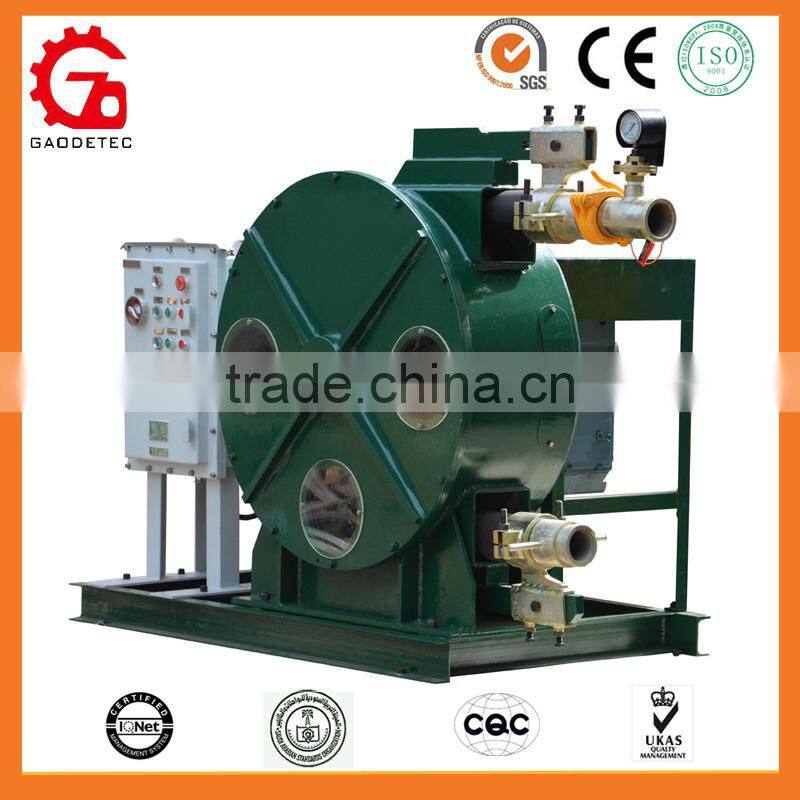

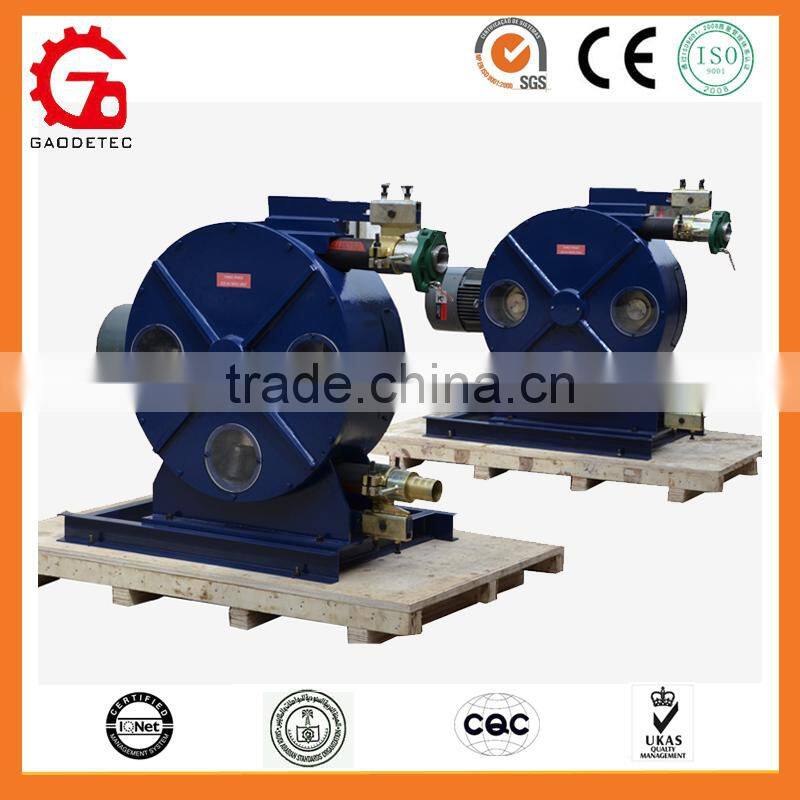

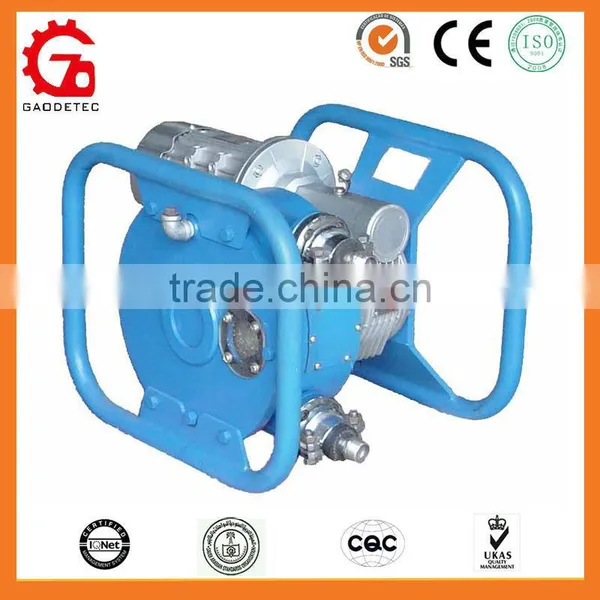

Concrete hose squeeze peristaltic pump for industry applcation
Description:

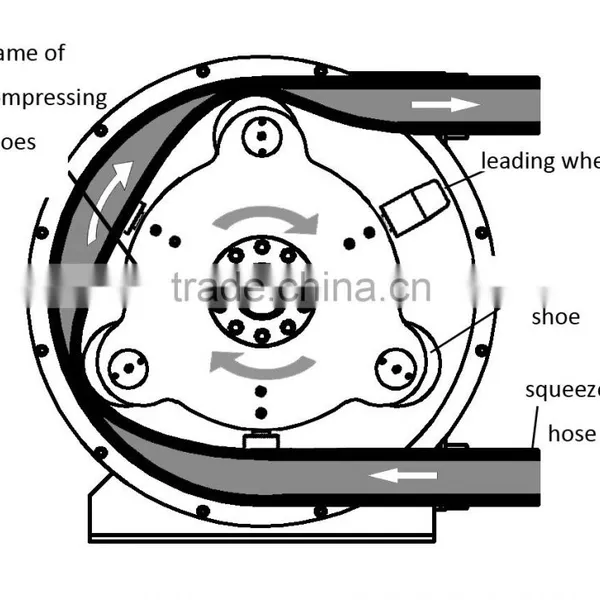

GEC GH series heavy-duty industries hose pump is a kind of peristaltic pump, which is
suitable for handling aggressive, high viscosity, high density products, such as
abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar, liquid
accelerator, etc. also is used for dosing pump with 1% repeat precision.
GH series hose pumps include GH10-190, GH15-200, GH25-265, GH32-330, GH38-430, GH50-558(680), GH65-680, GH76-770(915), and GH100-915 peristaltic pump. The working pressure is from 0.6 Mpa to 3 Mpa, the output is from 0.01 m3/h to 50 m3/h. For more detailed information, please see the specification kindly.
Product Feature:
·Reversibility
·Sealessness and valveless
·Abrasion resistance
·Self priming with high suction
·Peristaltic hose is the only consumption part

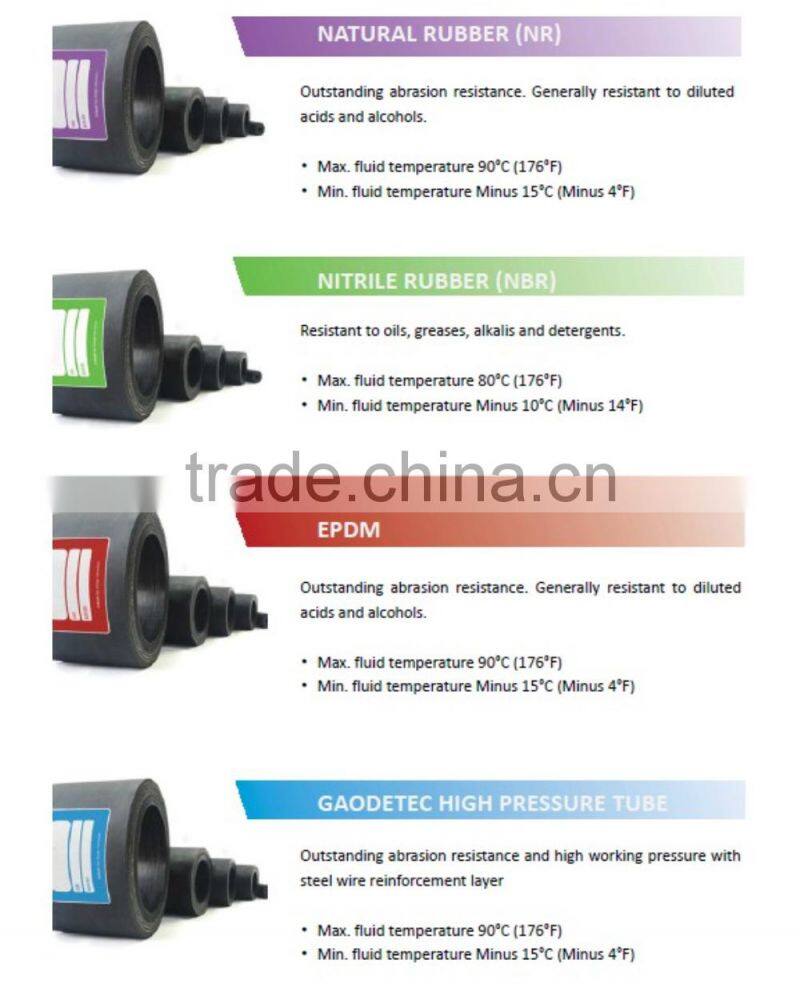

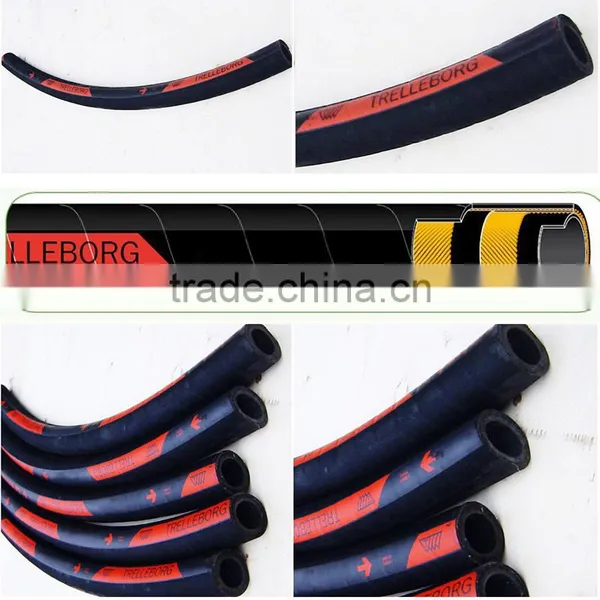

Structure
1 Nature rubber outer layer
2 Nylon reinforcement layer
3 Inner liner material available in various chemically resistant rubber
Technical Description
Pump mode | Output | Pressure | Hose ID | Rev. | Max. | Max. | Motor Power |
GH10 | 60 | 0.6 | 10 | 45 | 2 | 2 | 0.37 |
GH10B | 100 | 0.6 | 10 | 80 | 2 | 2 | 0.37 |
GH15 | 210 | 0.6 | 15 | 45 | 2 | 2 | 0.55 |
GH15B | 300 | 0.6 | 15 | 75 | 2 | 2 | 0.55 |
GH25 | 800 | 1.5 | 25 | 50 | 3 | 3 | 1.1 |
GH25B | 1300 | 1.5 | 25 | 80 | 3 | 3 | 1.5 |
GH32 | 1300 | 1.5 | 32 | 50 | 3 | 4 | 2.2 |
GH32B | 1800 | 1.5 | 32 | 75 | 3 | 4 | 2.2 |
GH38 | 2000 | 1.5 | 38 | 40 | 5 | 4 | 2.2 |
GH38B | 2700 | 1.5 | 38 | 55 | 5 | 4 | 3.0 |
GH38C | 3500 | 1.5 | 38 | 70 | 5 | 4 | 4.0 |
GH50-558 | 4200 | 1.5 | 51 | 35 | 6 | 5 | 4.0 |
GH50-558B | 5400 | 1.5 | 51 | 45 | 6 | 5 | 5.5 |
GH50-680 | 6300 | 1.5 | 51 | 35 | 6 | 5 | 7.5 |
GH50-680B | 8000 | 1.5 | 51 | 45 | 6 | 5 | 7.5 |
GH65-680 | 9200 | 1.2 | 64 | 40 | 8 | 5 | 7.5 |
GH65-680B | 12000 | 1.5 | 64 | 45 | 8 | 5 | 11.0 |
GH65-770 | 13500 | 1.2 | 64 | 45 | 8 | 5 | 11.0 |
GH65-770B | 16500 | 1.0 | 64 | 55 | 8 | 5 | 11.0 |
GH76-770 | 18000 | 1.0 | 76 | 45 | 10 | 5 | 11.0 |
GH76-770B | 22000 | 1.0 | 76 | 55 | 10 | 5 | 15.0 |
GH76-915 | 24000 | 1.0 | 76 | 50 | 10 | 5 | 15.0 |
GH76-915B | 28000 | 1.0 | 76 | 40 | 10 | 5 | 18.0 |
GH100 | 33500 | 1.0 | 102 | 35 | 15 | 5 | 18.0 |
GH100B | 42000 | 0.75 | 102 | 45 | 15 | 5 | 18.0 |
Note:1,The pump can be produced according to customer's requirement.
2,The pump's output is metered by water.
The Explanation of Model
