Hot Sell with Electric DriveOutput 7m3/h Dry and Wet Shotcrete Machine
Description:

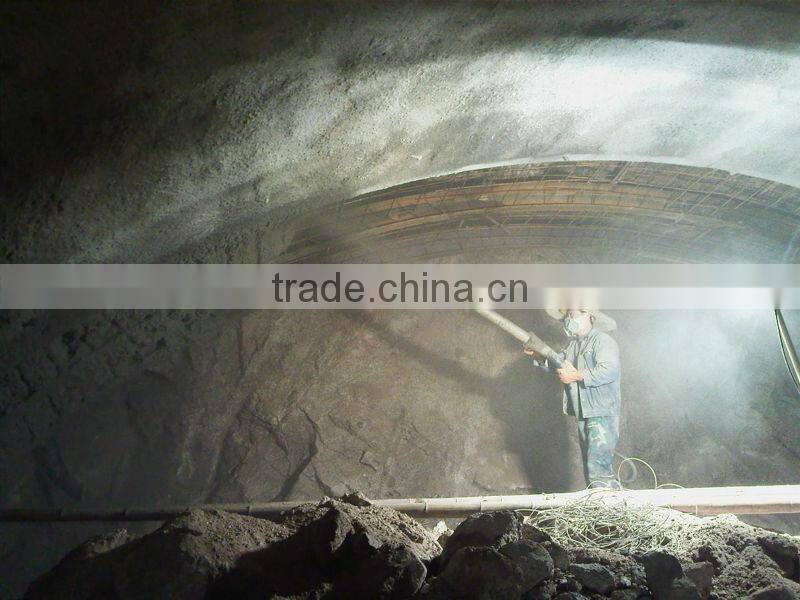

GPS-7 multi-function wet spraying machine mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on.
It’s adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.
Features:
1, Wet spraying machine has stepless speed change. The conveying output is 0-7 cubic meters / hour.
2, The machine has hydraulic power. The export is connected with high pressure hose. The nozzle is connected with a small 10 cubic meters of air compressors to achieve wet spraying. This changed the traditional use of large 20 cubic meters of air compressor.
3, Compared with rotary pneumatic wet spraying machine, this machine has a smaller size, superior performance, lower maintenance costs, easier to operation, better flexibility, and widely range of applications
Technical Data:
GPS-7 electric motor drive
Parameter | Unit | Data | |
Productivity | m3/h | 7 | |
Max. particle size | mm | 15 | |
Fineness modulus of aggregate |
| ≥2.5 | |
Dosage of liquid accelerator | % | 3.5 | |
Hose diameter | mm | 51 (2″) | |
Concrete slump | cm | 8~15 | |
Systematic wind pressure | MPa | ≥0.5 | |
Pump outlet pressure | MPa | 6 | |
Wind consumption | m3/min | ≤6 | |
Max. conveying distance | Horizontal | m | 300 |
Vertical | m | 80 | |
Dust alongside machine | mg/m3 | <6 | |
Rebound(Under standard technology) | % | Average≤15 | |
Motor power | kW | 11/15 | |
Gauge | mm | 600.762.900 | |
Overall dimension(Tyre type)(L×W×H) | mm | 2500×1010×1450 | |
Weight | kg | 960 | |
Note: It’s optional for tyre type and track type walking structure.
You also have other option
GPS-15 dry abd wet shotcrete machine
Name | Unit | Spec. |
Max. output | m3/h | 15 |
Max. pressure | Mpa | 10 |
Distributing valve | “S”valve | |
Concrete cylinder(cylinder bore×stroke) | mm | Φ160×800 |
Hopper capacity | L | 400 |
Hopper filling height | mm | 1200 |
Outlet diameter | mm | 125 |
Max. rotating speed | r/min | 1500 |
Main oil pump output | ml/r | 45 |
Max. pressure of hydraulic system | MPa | 28 |
Accumulator pressure | MPa | 10 |
Cooling way |
| Air cooling, water cooling |
Dimension | mm | 4500×1650×2300 |
Weight | kg | 2350 |
A complete set of GPS-7 shotcrete machine
No. | Name | Model | Unit | Qty. |
1 | High pressure conveying hose | 2"×20M | pcs | 1 |
2 | reducer | 3"-2" | pcs | 1 |
3 | High pressure conveying elbow | 3"×90° | pcs | 2 |
4 | High pressure conveying pipe clamp | 3" | pcs | 3 |
5 | High pressure conveying pipe clamp | 2″ | pcs | 2 |
6 | Nozzle assy | 2″ | set | 1 |
7 | High pressure air hose | 1”X25M | pcs | 1 |
8 | Hose for additive | 30M | pcs | 1 |

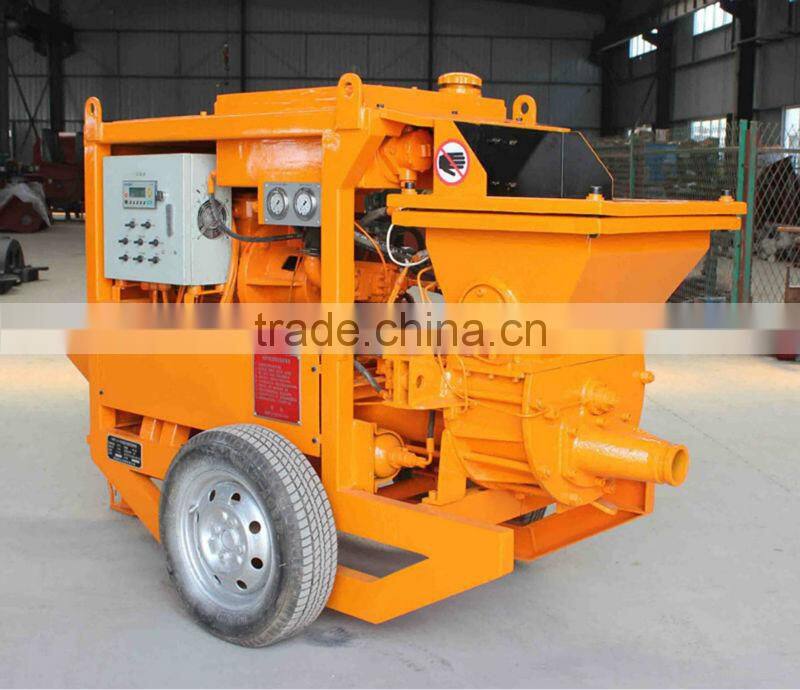

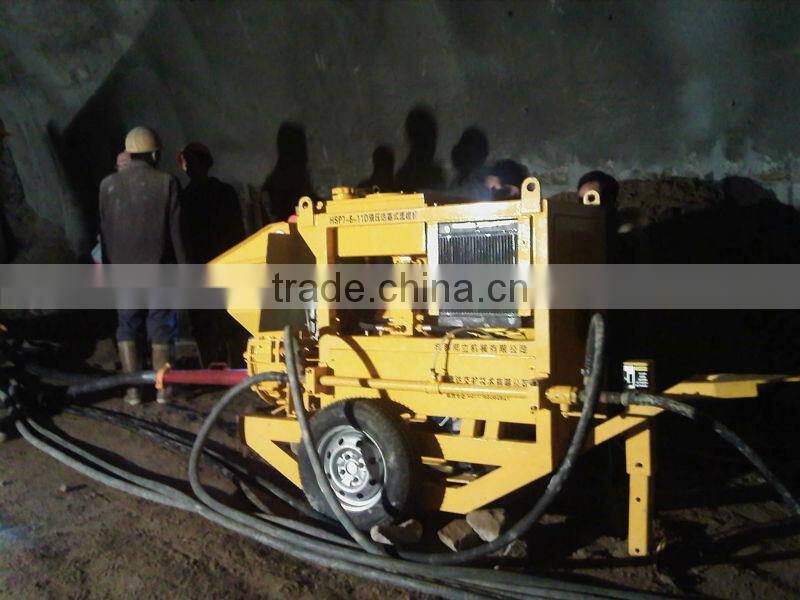

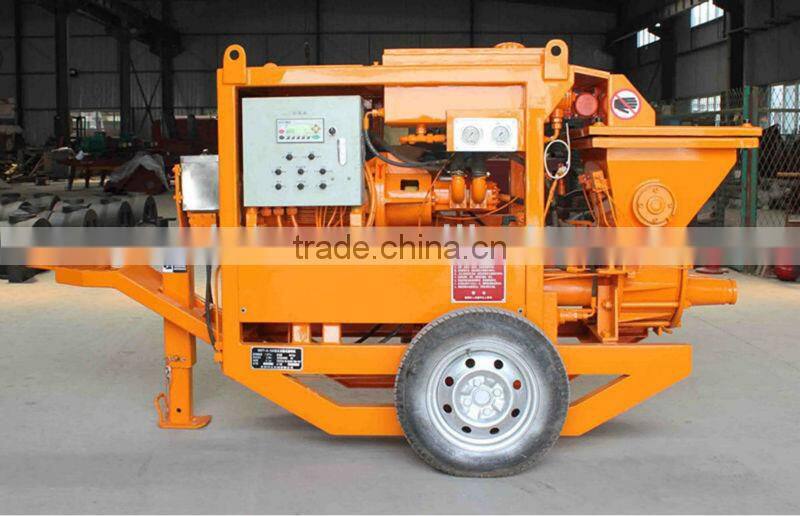

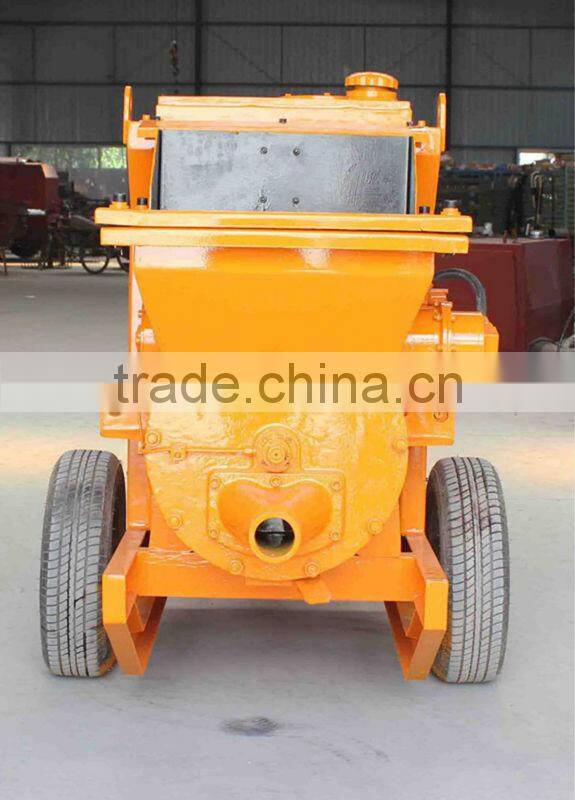

Photoes

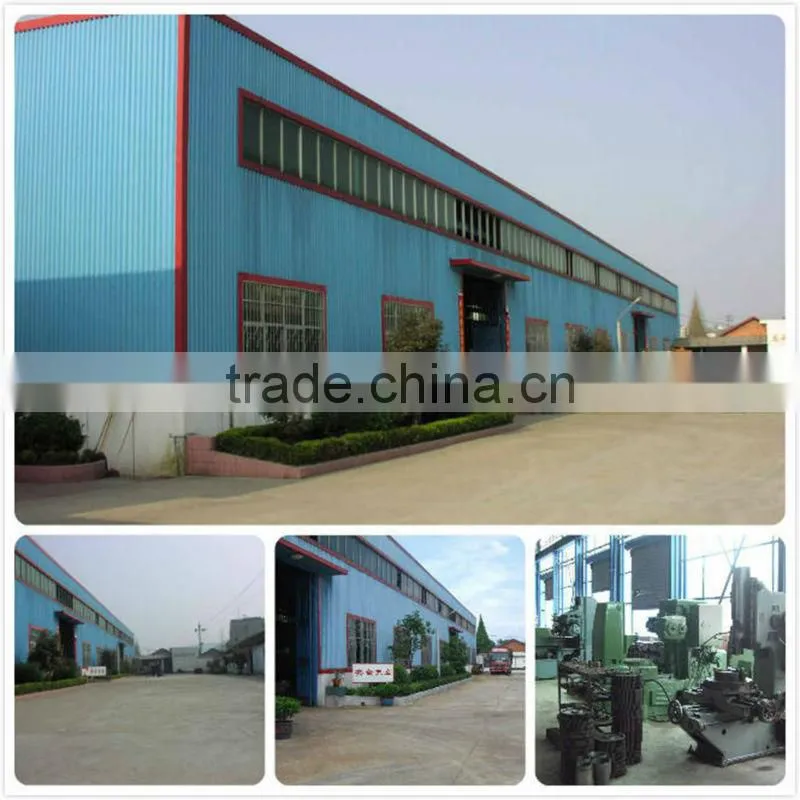

Factory:

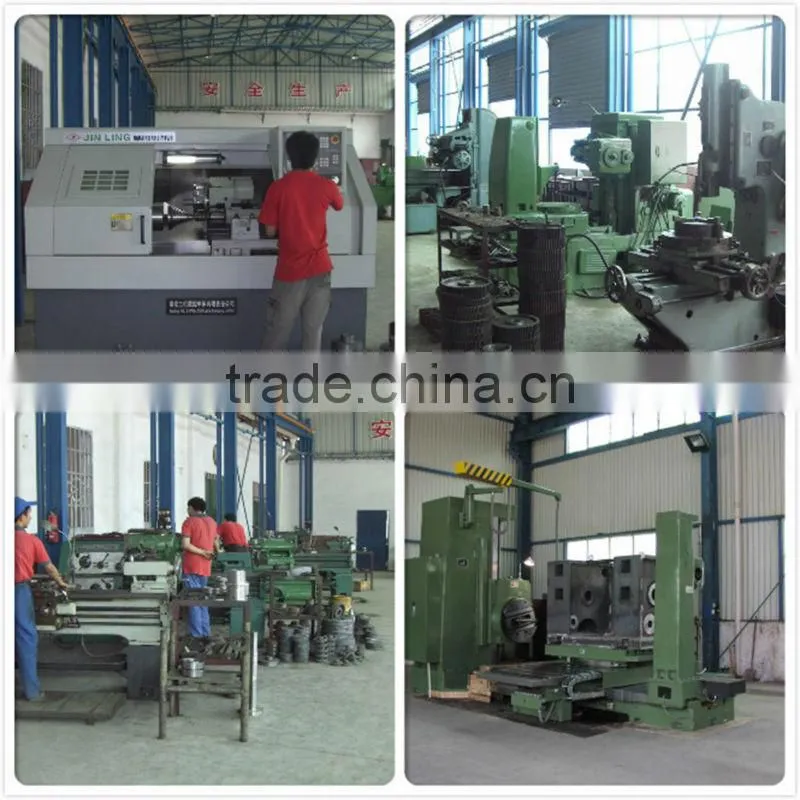

Workshop:
Certification of our company:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
