Air Motor Drive Dry Mix Mini Concrete Spraying Machine
Choose GEC,choose high quality!

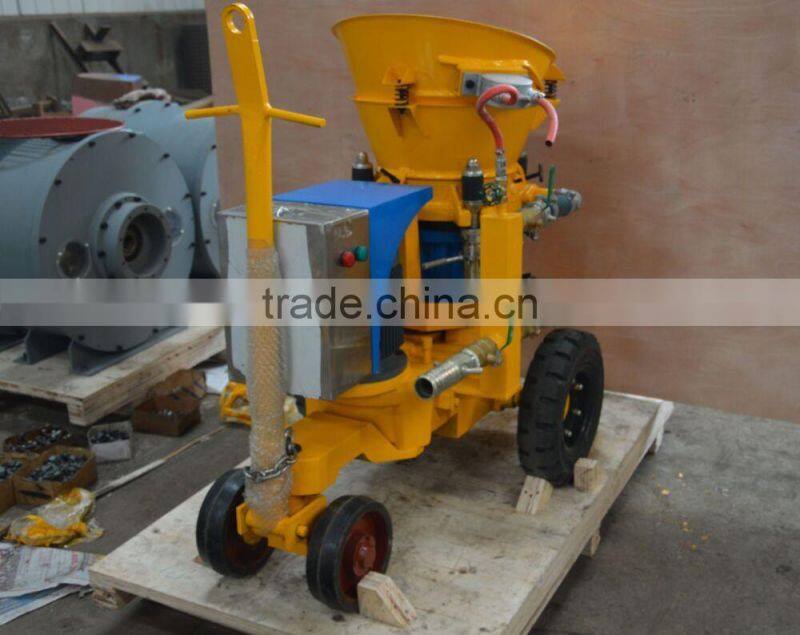

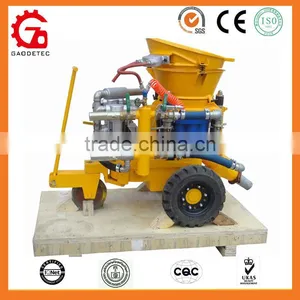

Small Sized Air Motor Drive Dry Mix Mini Concrete Spraying Machine
Description:
GZ-3 Shotcrete machine /Concrete Spraying Machine/Gunite machine is small-sized shotcrete
machine for the dry spraying process.

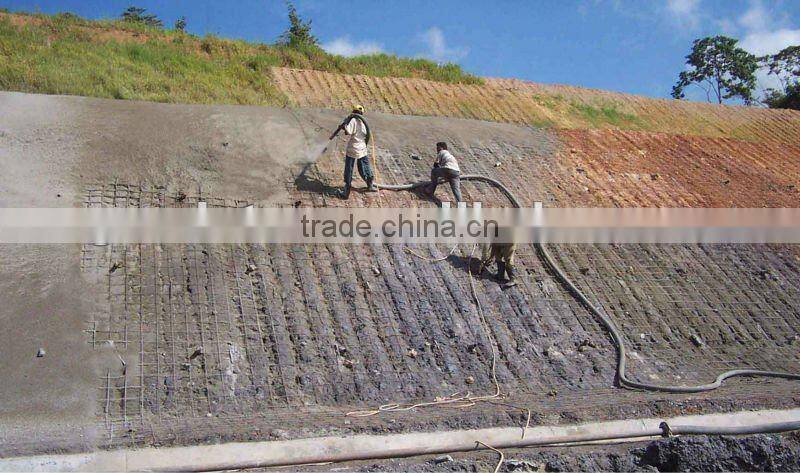

GZ-3 gunite machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
GZ-3 gunite machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
Technical parameters:
Air Motor Driven:
Output Capacity | 1.5-3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Air Motor Air Pressure | 0.5MPa(71PSI) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Air Motor Type | TMH3.2 |
Air Motor Air Consumption | 4.8m3/min(171CFM) |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg(947lbs) |
Electric Motor Driven:
Output Capacity | 3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ38/Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Motor Power | 3kW(4hp),IP55 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg |
Diesel driven:
Rated Output | 2-3 m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1: 3~5 |
Max. Aggregate Size | Φ 10 mm |
Conveying Hose Inner Diameter | 38/51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m 3 /min(180-215CFM |
Diesel Engine | 10hp,2200rpm |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Material Charging Height | 0.9m |
Rotor Speed | 9-13r/min |
Overall Dimension(L× W× H) | 1.8× 0.8× 1.2m |
Net Weight | 480kg |

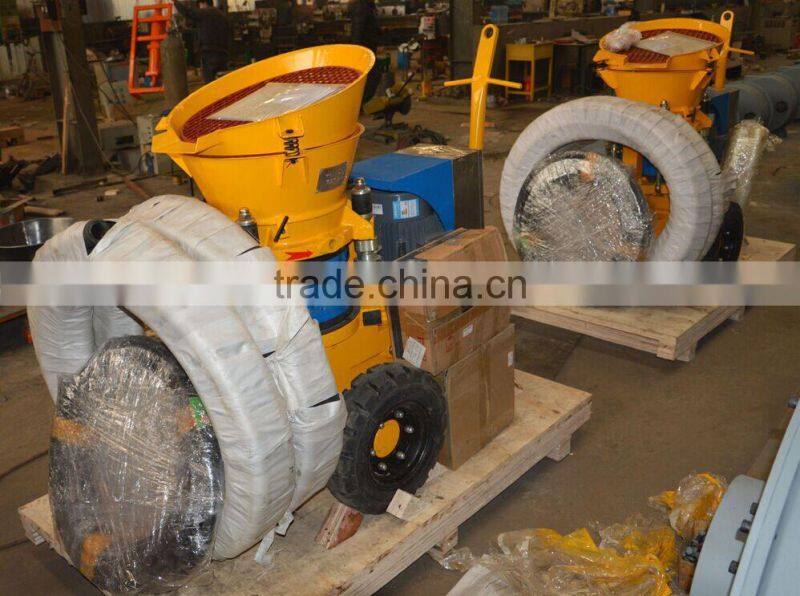

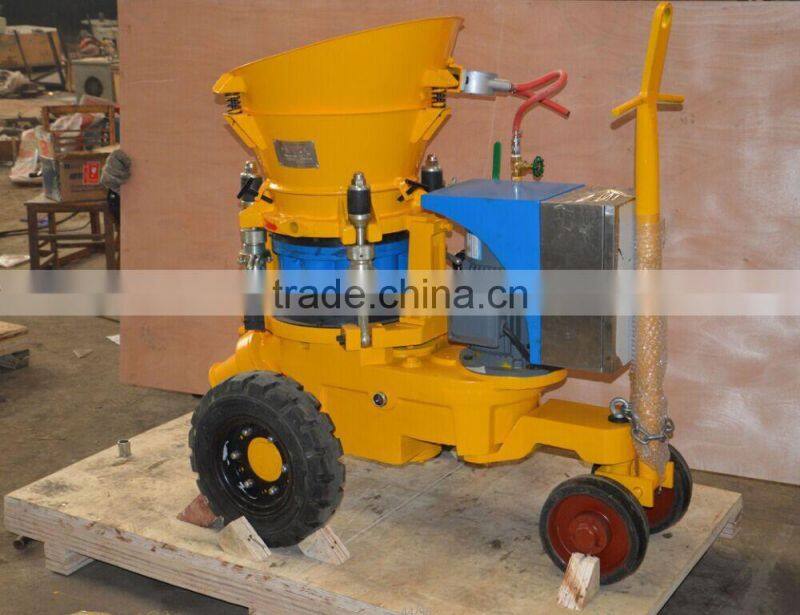

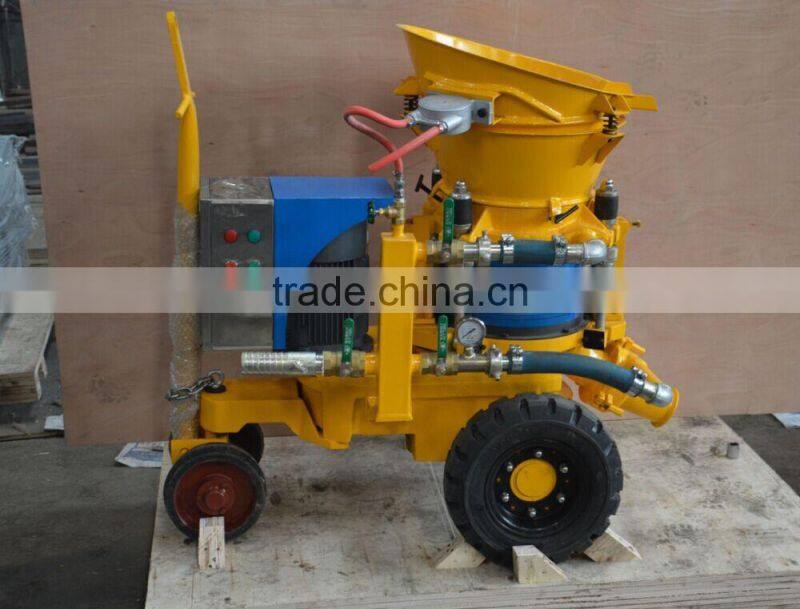

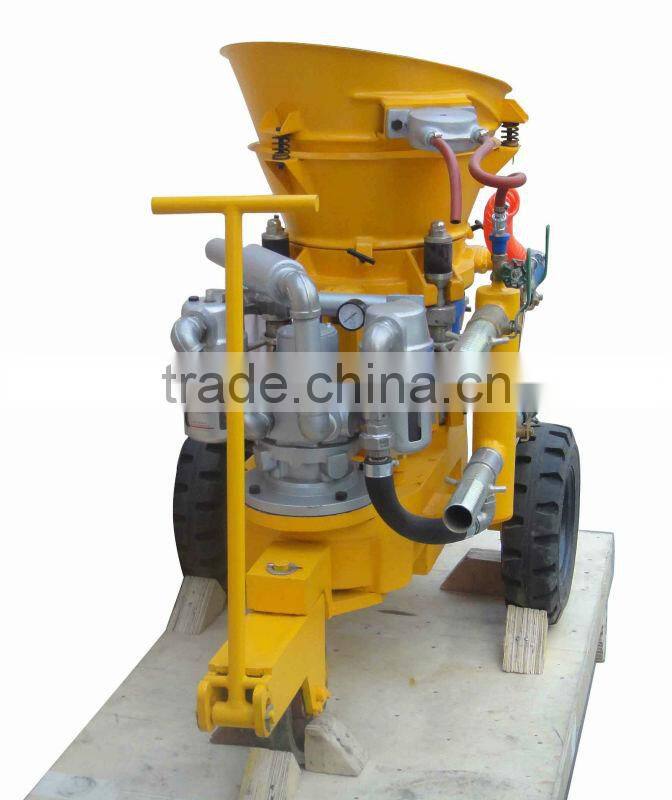

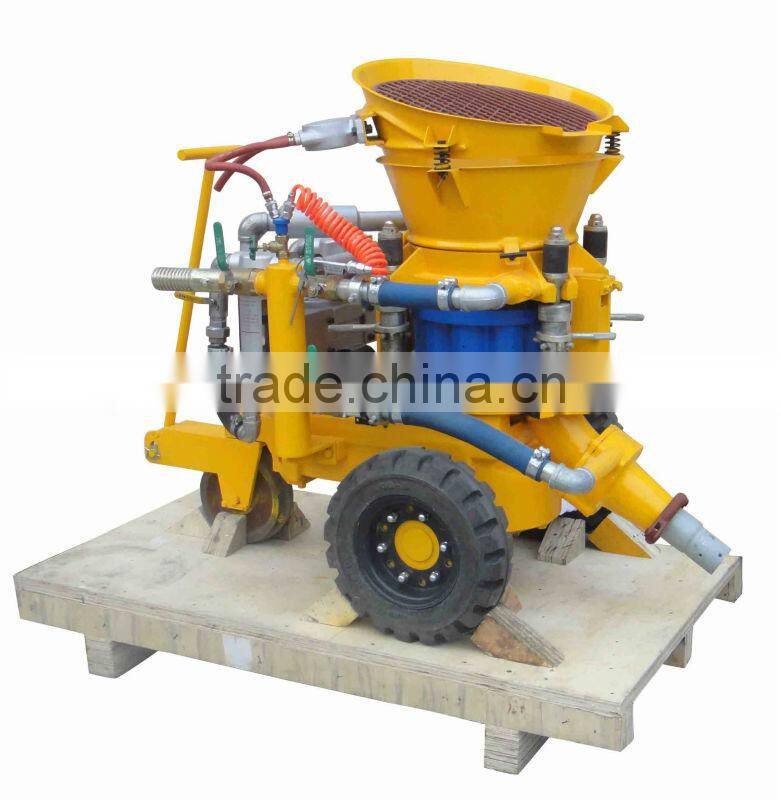

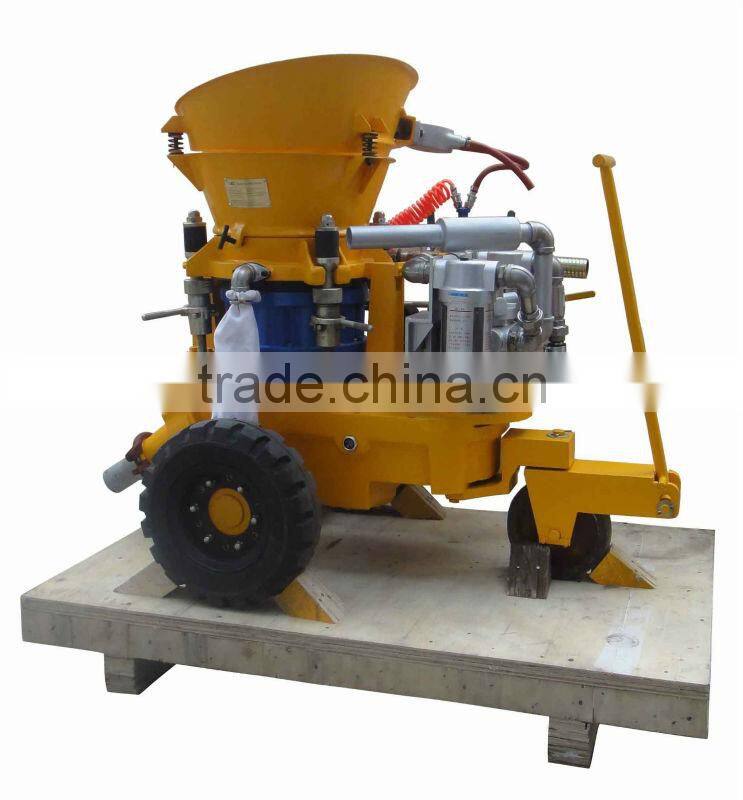

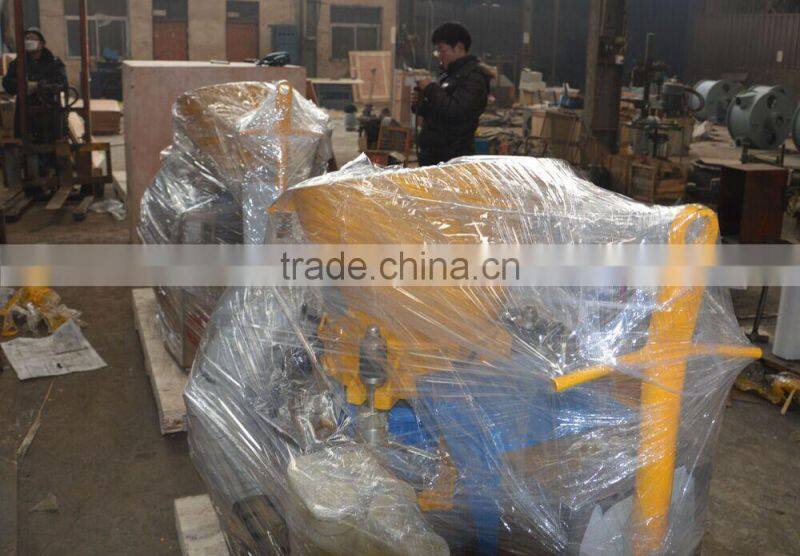

Pictures:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
