Home > Products > Show Display > With Electric Drive(Output 5m3/h) Dry And Wet Shotcreting Machine

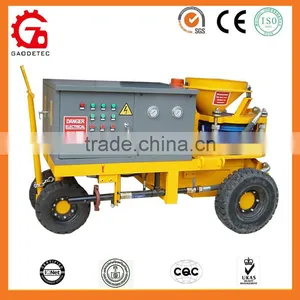

With Electric Drive(Output 5m3/h) Dry And Wet Shotcreting Machine

FOB Price

US$ 2,565 - 5,665 / Set

1 Set(Min. Order)

Port Shanghai Tianjin or Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Max. Conveying Distance	35m
Max Aggregate Size	dia.15mm	Hose Inner Diameter	51 mm
Air Consumption	22m3/min	Place of Origin	Henan, China
Brand Name	GEC dry and wet shotcreting machine	Model Number	GSZ3000
Voltage	380v, 50hz, 3 phase	Power(W)	7.5kw(10hp)
Dimension(LWH)	20509501180mm	Weight	1200kg
Certification	CE,ISO9001	Warranty	12months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Choose GEC,choose high quality!

with Electric Drive(Output 5m3/h) Dry and Wet Shotcreting Machine

Product Description

Description:

GSZ3000E gunite machine is a universal concrete spraying machine for the processing of wet or dry mix.

The machine is suitable either for manual spraying or by means of a robotic arm.

GSZ3000E is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

Basic: Electric drive can be combined with tyre chassis.

Extended (optional):

Air motor drive combined with Skid or Rail-wheel

Specification:

GSZ3000 electric motor drive

Specification (with Electric motor drive):
Rated Output	5m3 /h
Max. Horizontal Conveying Distance	35m
Max. Aggregate Size	15mm
Concrete Slump	8 -15cm
Conveying Hose Inner Diameter	51/ 64mm
Operating air Pressure	0.3-0.6MPa (43-86PSI)
Air Consumption	10~ 12m3 /min(357-430CFM)
Main Motor Power	7.5kW(10hp)
Dosing Pump:	BRJ15
Dosing Pump Rated Pressure	0.6MPa(86PSI)
Dosing Pump Output	17.5 -88L /h
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height	1.17m
Rotor Speed	11r/min
Overall Dimension(L × W × H)	2.05× 0.95× 1.18m
Net Weight	1200kg

You also have other option:

GSZ3000 air motor drive

Rated output	5m³/h
Max. horizontal conveying distance	35m
Max. aggregate size	Dia.15mm
Concrete slump	8~15cm
Conveying hose	Dia.50/65mm
Operating air pressure	0.2~0.6MPa
Air consumption	22m³/min (12+10)
Loading height	1.17m
Rotor Speed	11r/min
Rebound	≤10 %
Air motor power	8kW
Dosing pump model	BHA530 Dosing pump
Dosing pump rated pressure	0.5MPa
Dosing pump output	0~100L/h
Overall dimension(L×W×H)	1950×1050×1360mm 1950×1050×1360mm
Weight	1200Kg

A complete set of GSZ3000E shotcrete machine

No.	Description	Quantity	Unit	Remarks
1	Main Machine	1	set
2	Nozzle Assy.	1	set
3	Conveying Hose, ID64mm, 50ft.Length	1	piece
4	Rubber Hose Joint	3	piece	Fitting
5	Quick Coupling	3	piece
6	Upper Sealing Plate	1	piece
7	Lower Sealing Plate	1	piece
8	Dosing pump tube	1	piece

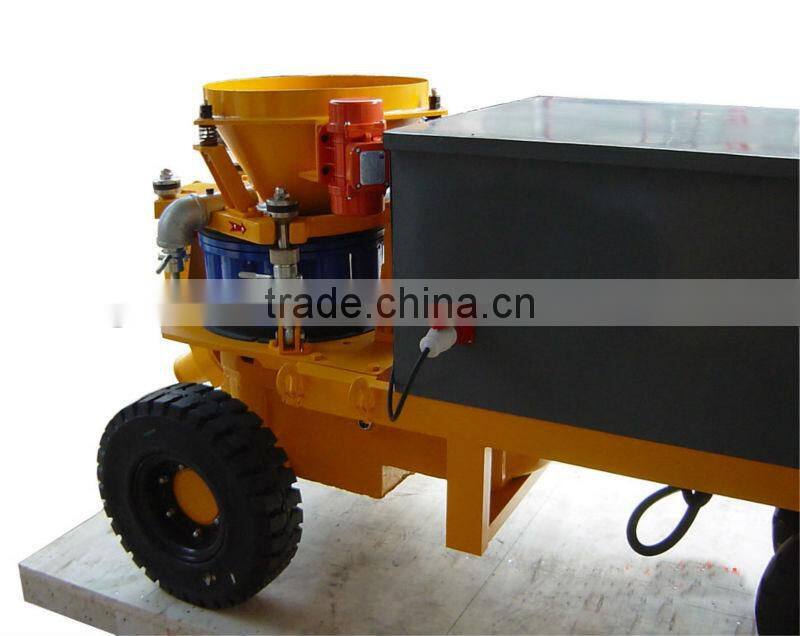

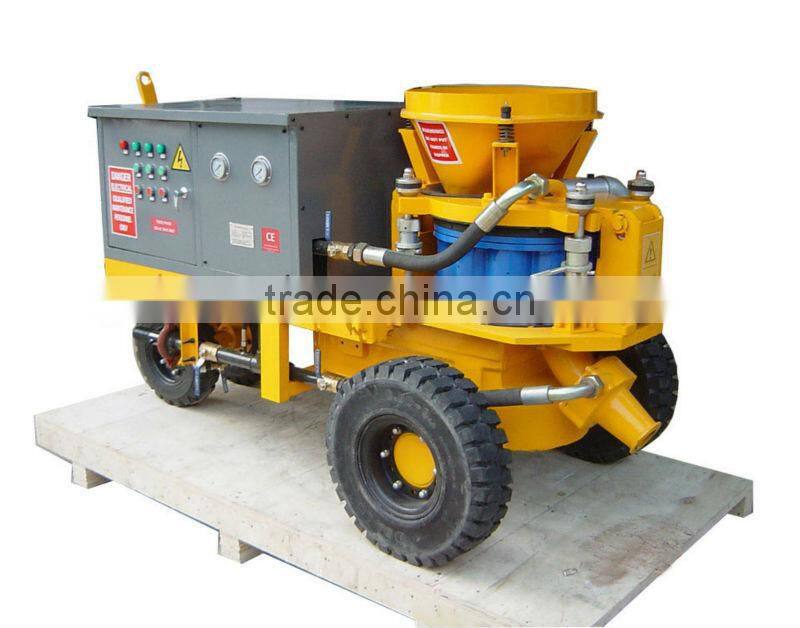

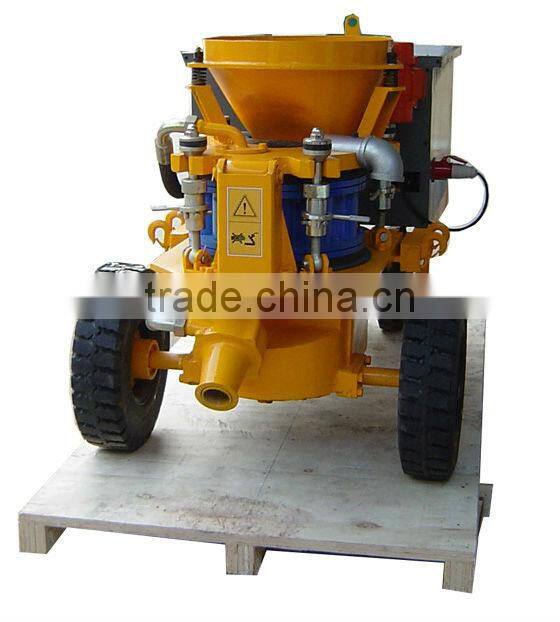

Detailed Images

Photoes

Application

Application at site

If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~

Certifications

Certification of our company:

Trade assurance advantages:

1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
