Choose GEC,choose high quality!

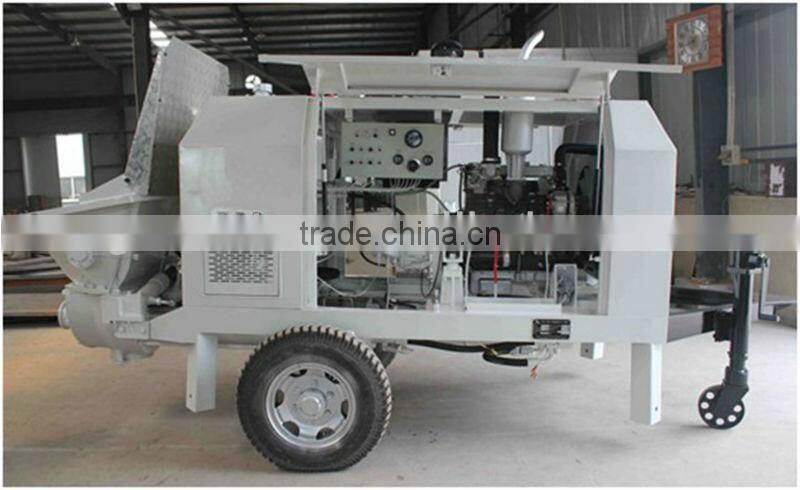

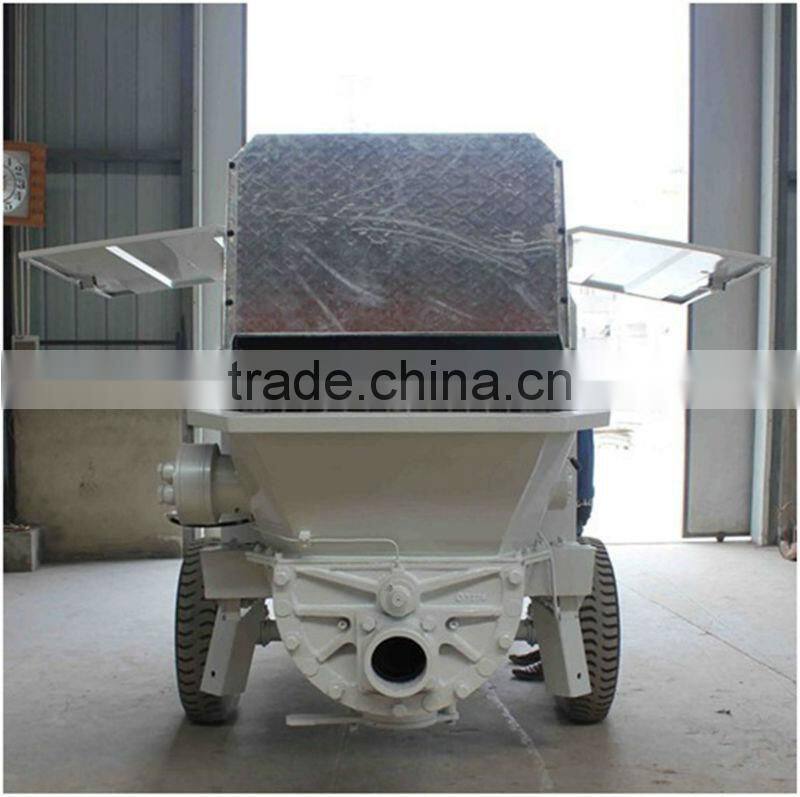

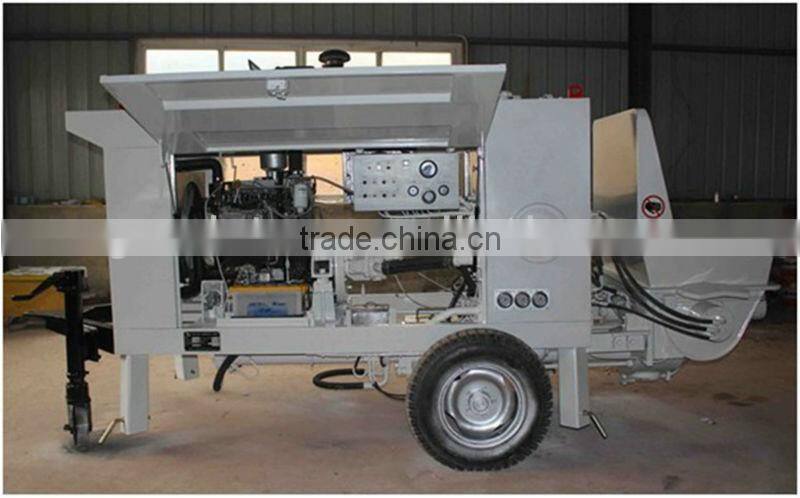

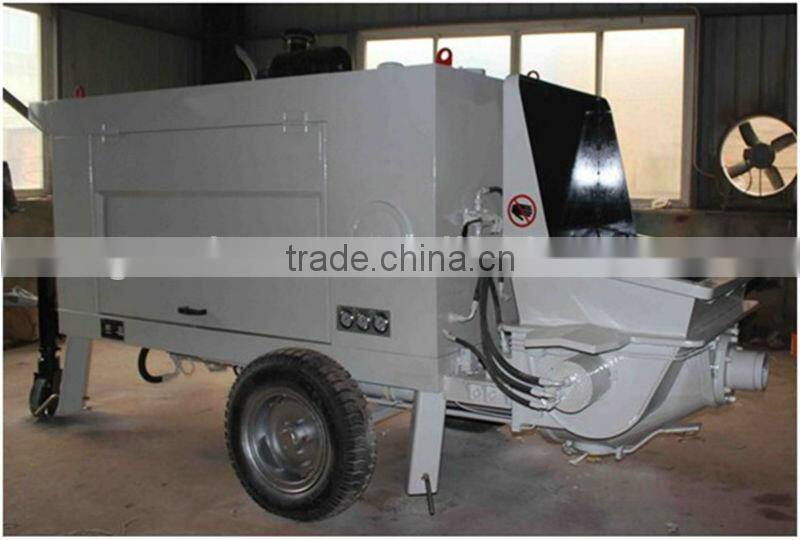

With Diesel Drive Output 15m3/h Dry and Wet Shotcrete Machine
GPS-15 multi-function wet spraying machine mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on.
It’s adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.
Features:
1.hopper 2.hydraulic oil tank
3.hydraulic system 4.electric box
5.shield 6.diesel engine
7.travelling device 8.frame
Technical Data:
GPS-15 wet shotcrete machine
Name | Unit | Spec. |
Max. output | m3/h | 15 |
Max. pressure | Mpa | 10 |
Distributing valve | “S”valve | |
Concrete cylinder(cylinder bore×stroke) | mm | Φ160×800 |
Hopper capacity | L | 400 |
Hopper filling height | mm | 1200 |
Outlet diameter | mm | 125 |
Max. rotating speed | r/min | 1500 |
Main oil pump output | ml/r | 45 |
Max. pressure of hydraulic system | MPa | 28 |
Accumulator pressure | MPa | 10 |
Cooling way |
| Air cooling, water cooling |
Dimension | mm | 4500×1650×2300 |
Weight | kg | 2350 |
A complete set of GPS-15 shotcrete machine
No. | Name | Model | Unit | Qty. |
1 | High pressure conveying hose | 2"×20M | pcs | 1 |
2 | reducer | 3"-2" | pcs | 1 |
3 | High pressure conveying elbow | 3"×90° | pcs | 2 |
4 | High pressure conveying pipe clamp | 3" | pcs | 3 |
5 | High pressure conveying pipe clamp | 2″ | pcs | 2 |
6 | Nozzle assy | 2″ | set | 1 |
7 | High pressure air hose | 1”X25M | pcs | 1 |
8 | Hose for additive | 30M | pcs | 1 |
Note: It’s optional for tyre type and track type walking structure.
You also have other option:
GPS-7 wet shotcrete machine
Parameter | Unit | Data | |
Productivity | m3/h | 7 | |
Max. particle size | mm | 15 | |
Fineness modulus of aggregate |
| ≥2.5 | |
Dosage of liquid accelerator | % | 3.5 | |
Hose diameter | mm | 51 (2″) | |
Concrete slump | cm | 8~15 | |
Systematic wind pressure | MPa | ≥0.5 | |
Pump outlet pressure | MPa | 6 | |
Wind consumption | m3/min | ≤6 | |
Max. conveying distance | Horizontal | m | 300 |
Vertical | m | 80 | |
Dust alongside machine | mg/m3 | <6 | |
Rebound(Under standard technology) | % | Average≤15 | |
Motor power | kW | 11/15 | |
Gauge | mm | 600.762.900 | |
Overall dimension(Tyre type)(L×W×H) | mm | 2500×1010×1450 | |
Weight | kg | 960 | |
Photoes:
Factory:
Certification of our company:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
