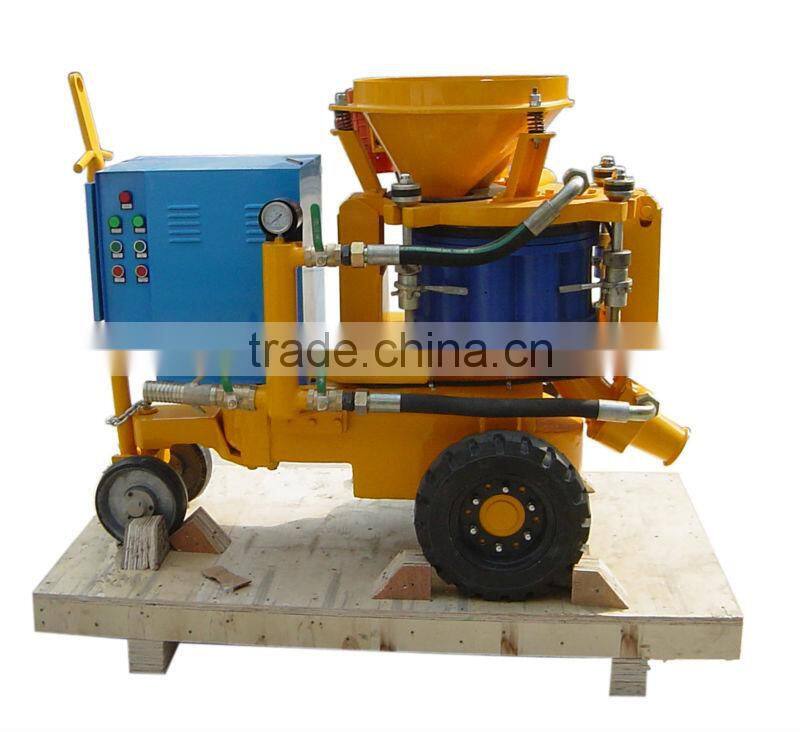

GZ-9E compact structure Electric Drive Dry-mix Concrete Spraying Machines
Description
GZ-9E is large-sized shotcrete machine for the spraying process
GZ-9E can be used for large-section tunnel building, mine, etc
GZ-9E is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
Specification:
Electric drive:
Output Capacity | 9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Electric Motor | 7.5kW,Y132M-4,IP55 |

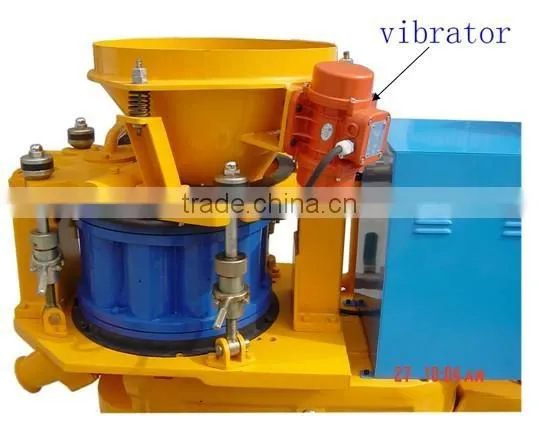

Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
Net Weight | 900kg |
You also have the following choice
Diesel drive:
Output Capacity | 6-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |
Diesel Engine | 20hp,2200rpm, Radiator Cooling |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
Net Weight | 950kg |
A complete set of GZ-9E shotcrete machine
No. | Description | Quantity | Unit | Remarks |
|
1 | GZ-9 Main Machine | 1 | set |
|
|
2 | Nozzle Assy. | 1 | set |
|
|
3 | Conveying Hose, ID64mm, 50ft.Length | 1 | piece |
|
|
4 | water hose with hose hoop | 1 | piece |
|
|
5 | Rubber Hose Joint | 3 | piece | Fitting |
|
6 | Quick Coupling | 3 | piece |
|
|
7 | Upper Sealing Plate | 1 | piece |
|
|
8 | Lower Sealing Plate | 1 | piece |
|
|

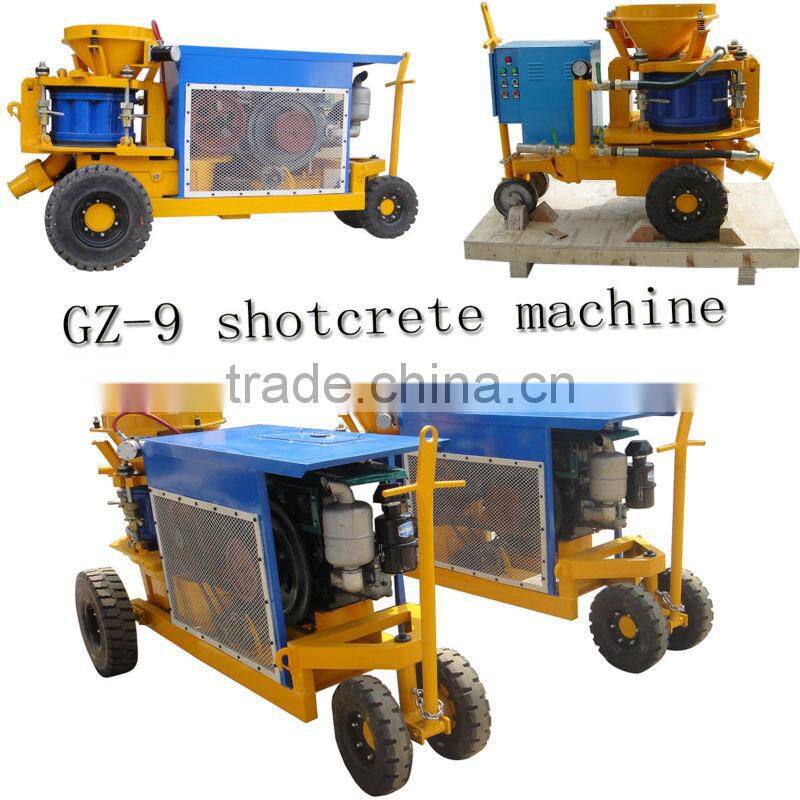

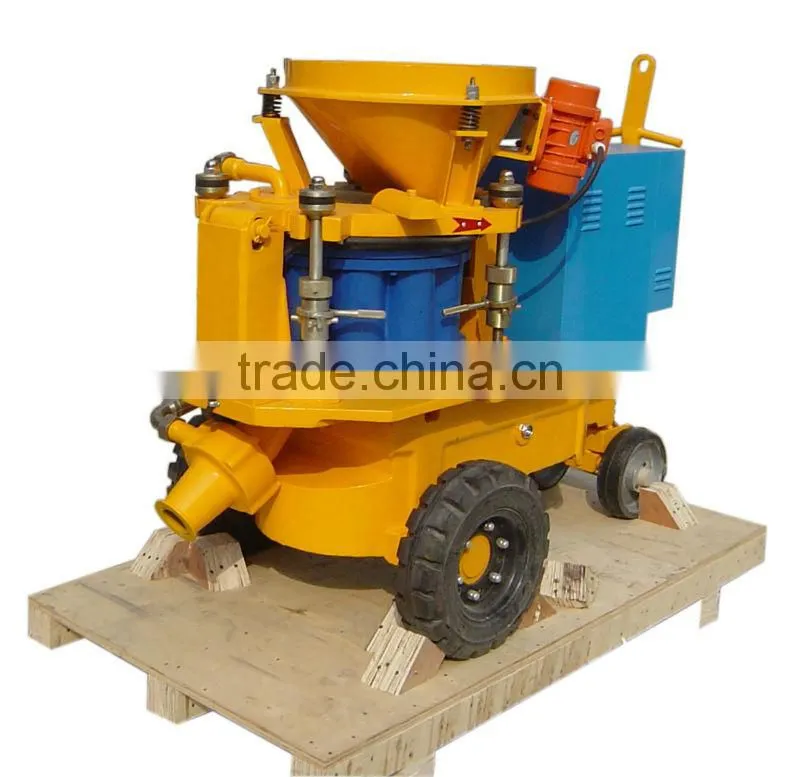

Photoes
Package:
Factory:
Certification of our company:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
