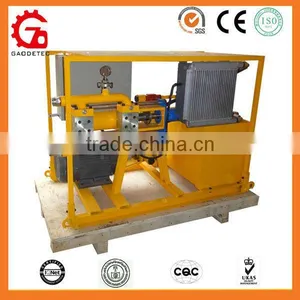

GEC Hydraulic Drive Jet Grouting Pumps With High Pressure
- Shanghai Tianjin or Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
OEM CE Air Motor Drive Dry Mix Small Sized Gunite Machines
-
Air Motor Drive Dry Mix Mini Concrete Spraying Machine
-
GZ-9E Compact Structure Electric Drive Dry-mix Concrete Spraying Machines
-
With Electric Drive(Output 5m3/h) Dry And Wet Shotcreting Machine
-
With Diesel Drive Output 15m3/h Dry And Wet Shotcrete Machine
-
OEM Supplier Small Sized Air Motor Drive Dry Mix Concrete Spraying Machine
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | GEC Jet Grouting Pumps | |
| Model Number | GDH70 | Power(W) | 7.5kw | |
| Weight | 450kg | Dimension(L*W*H) | 1505*770*1110mm | |
| Certification | CE,ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Choose GEC,choose high quality!

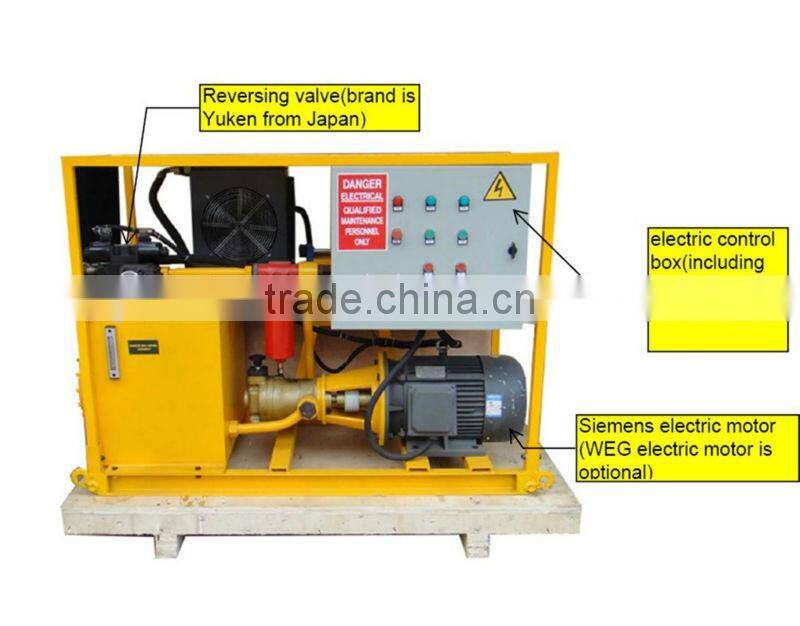

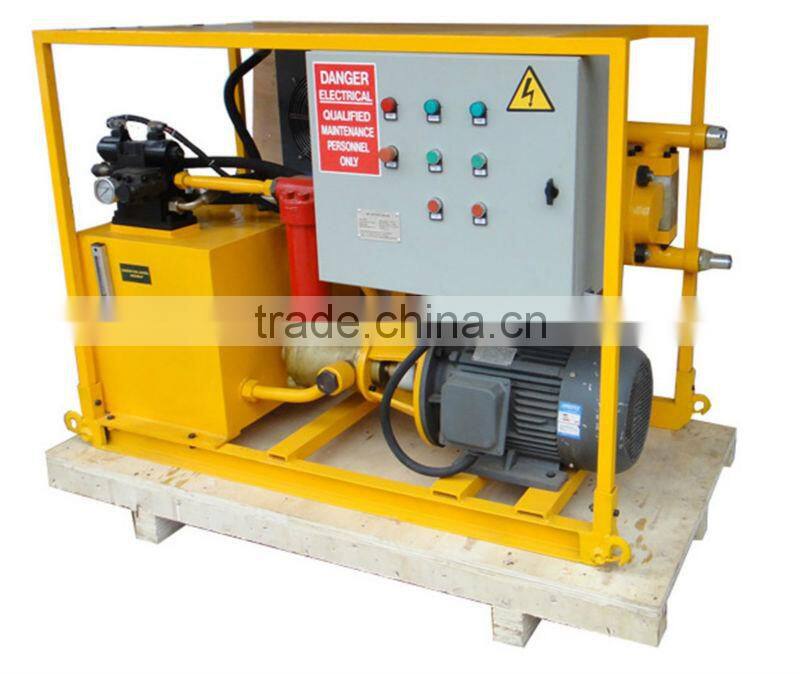

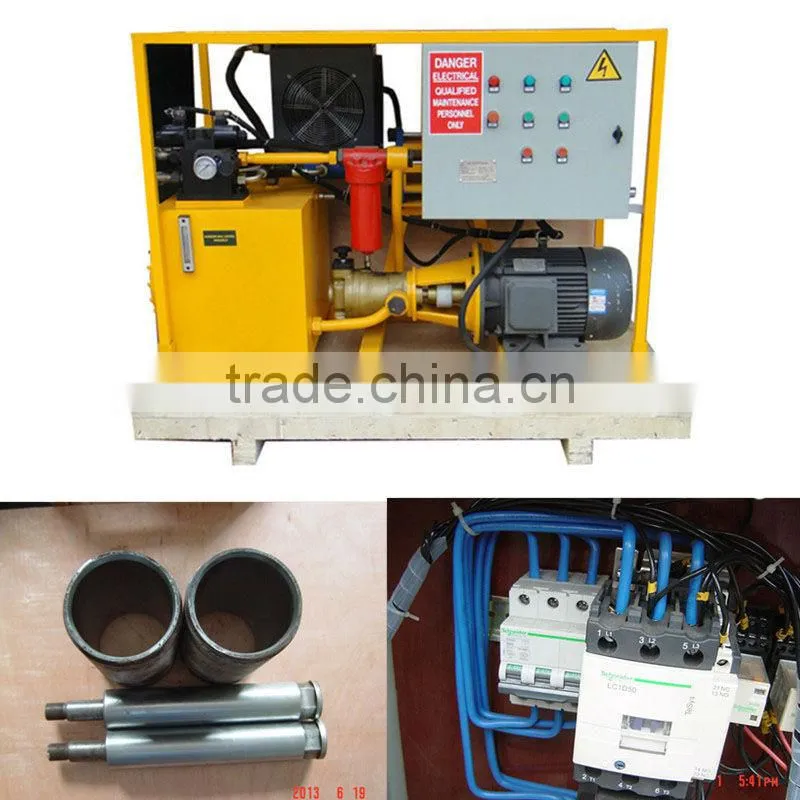

GEC Hydraulic drive Jet Grouting Pumps with high pressure
Description:
GEC Hydraulic drive grouting pumps are a universal high-pressure grouting pump .
GDH70 High Pressure Grouting Pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Features
1.Single piston with double-acting
2.Hydraulic drive
3.Compact structure
4.Ball valve
Technical Data
Specification: |
|
Item | GDH70 |
Rated Output | 0-70 L/Min |
Rated Pressure | 10MPa(1450PSI) |
Cylinder Dia. | 110mm |
Stroke/Minute | 31 |
Inlet Dia. | 38mm |
Outlet Dia. | 32mm |
Power Unit | 7.5kW |
Transmission | Hydraulic drive |
Chassis | Skid |
Weight | 450Kg |
Overall Dimension | 1505x770x1110mm |
You also have other choice
GDH90 Jet Grouting Pump with High-pressure Technical Data
Specification: |
|
Item | GDH90 |
Rated Output | 0-100 L/Min |
Rated Pressure | 10MPa(1450PSI) |
Cylinder Dia. | 110mm |
Stroke/Minute | 45 |
Inlet Dia. | 38mm |
Outlet Dia. | 32mm |
Power Unit | 11kW |
Transmission | Hydraulic drive |
Chassis | Skid |
Weight | 580Kg |
Overall Dimension | 1505x770x1110mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | |
