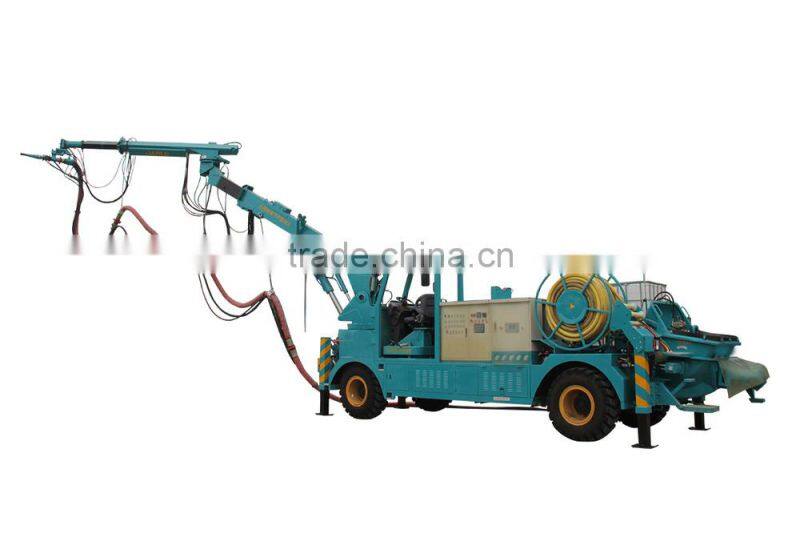

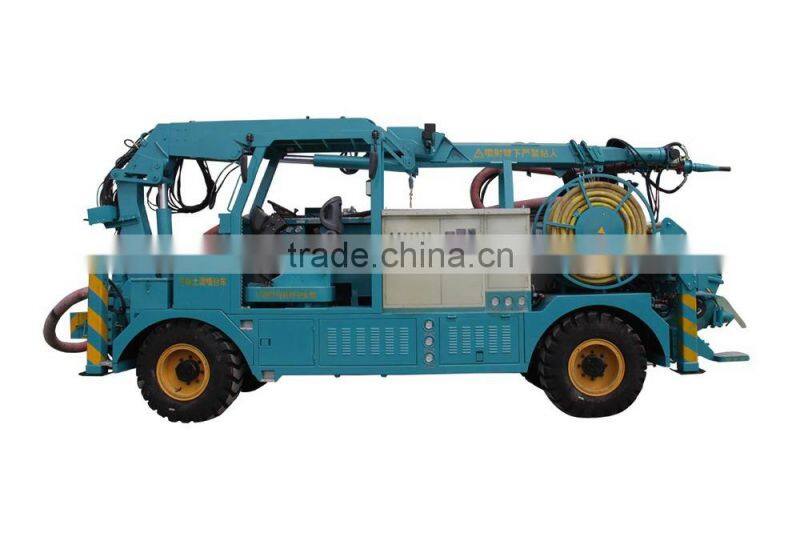

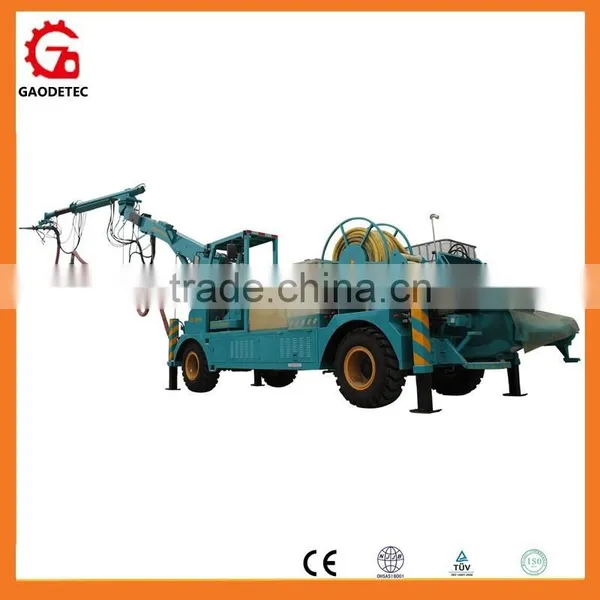

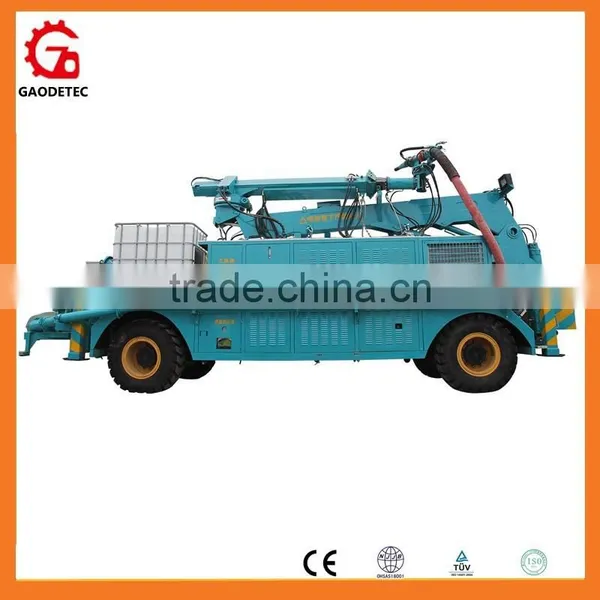

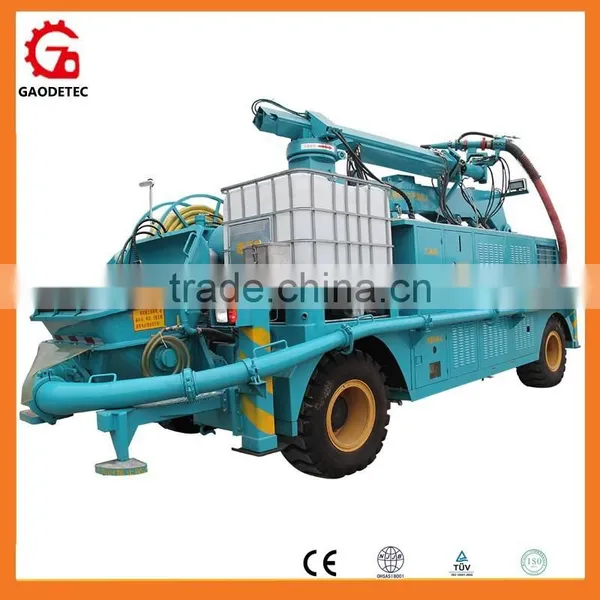

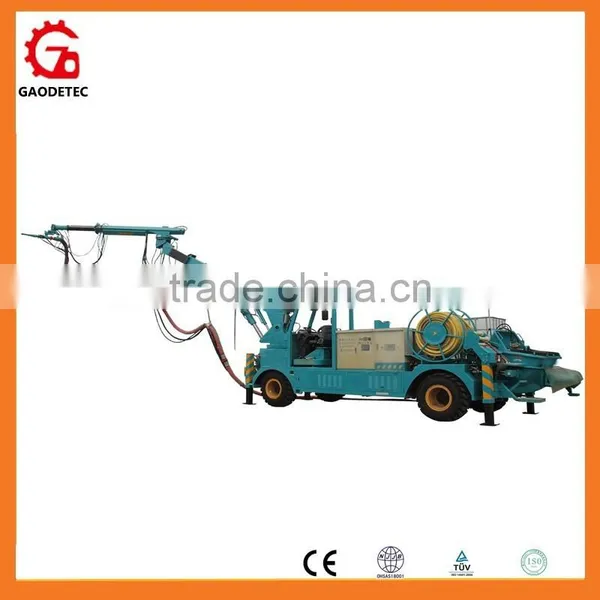

HSC-3016 automatic tunnel construction robotic arm shotcrete equipment sprayer concrete spraying system

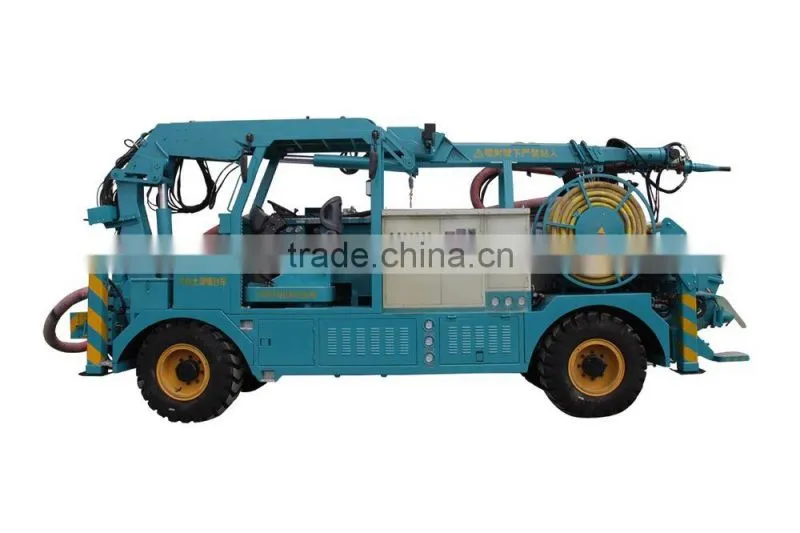

HSC-3016 automatic tunnel construction robotic arm shotcrete equipment concrete spraying system description:
The series wet shotcrete system equipments are high-end equipment with top design and manufacture. They have multi-function and can be applied widely.
The advantages of the equipments:

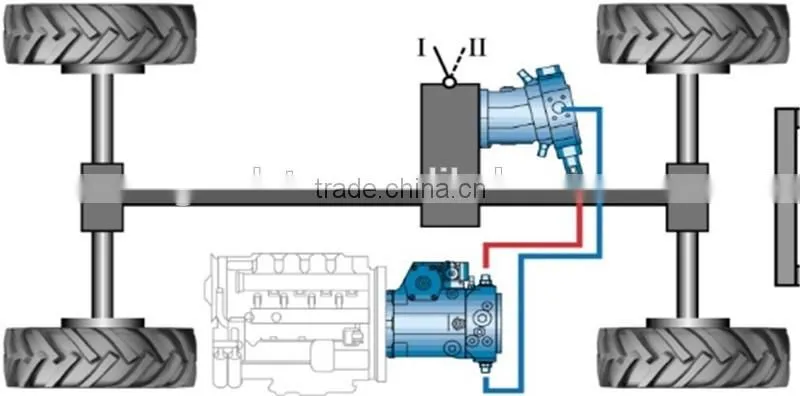

1. Hydrostatic running system, rigid chassis, wet mix braking system.
2. Four-wheel transmission, four-wheel steering, small turning radius, thus make a better operation.
3. Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.

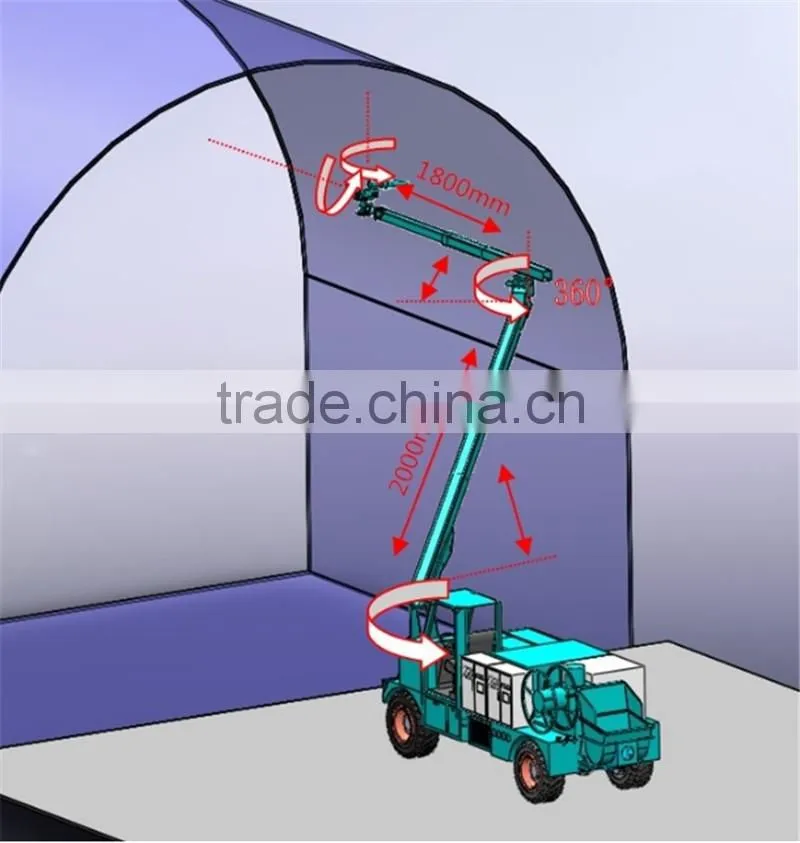

5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Electric motor and diesel two-motor drive.
7. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
8. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
9. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
10. All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
11. Diesel engine can make the spray arms move slowly in case the concrete solidification makes the equipment crash when electric power is off.

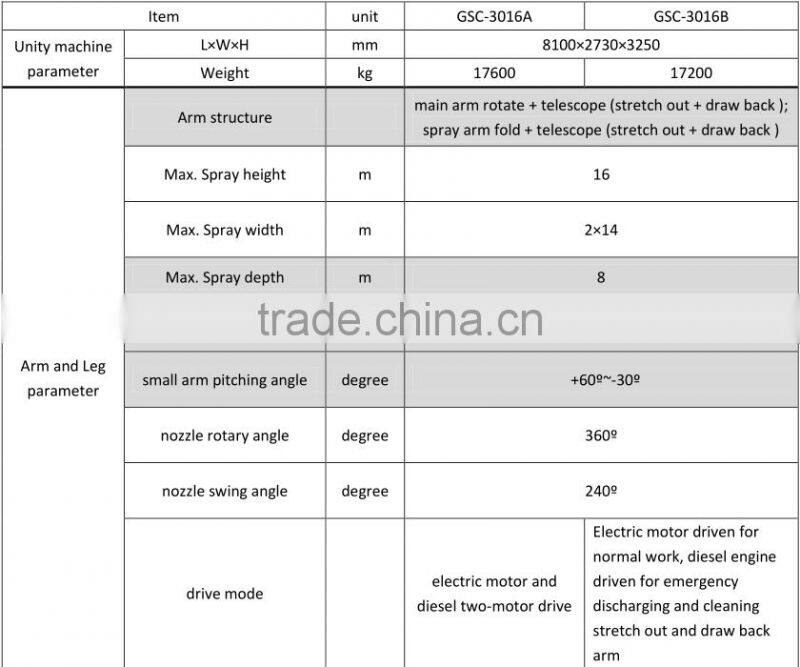

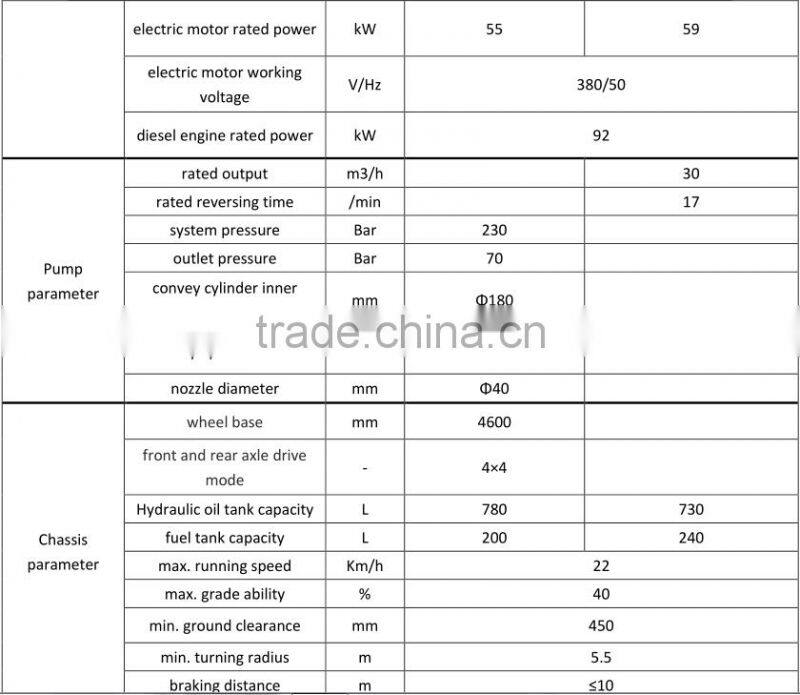

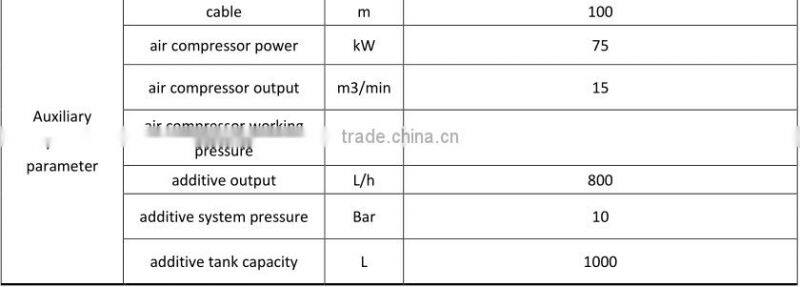

HSC-3016 automatic tunnel construction robotic arm shotcrete equipment concrete spraying system technical data:

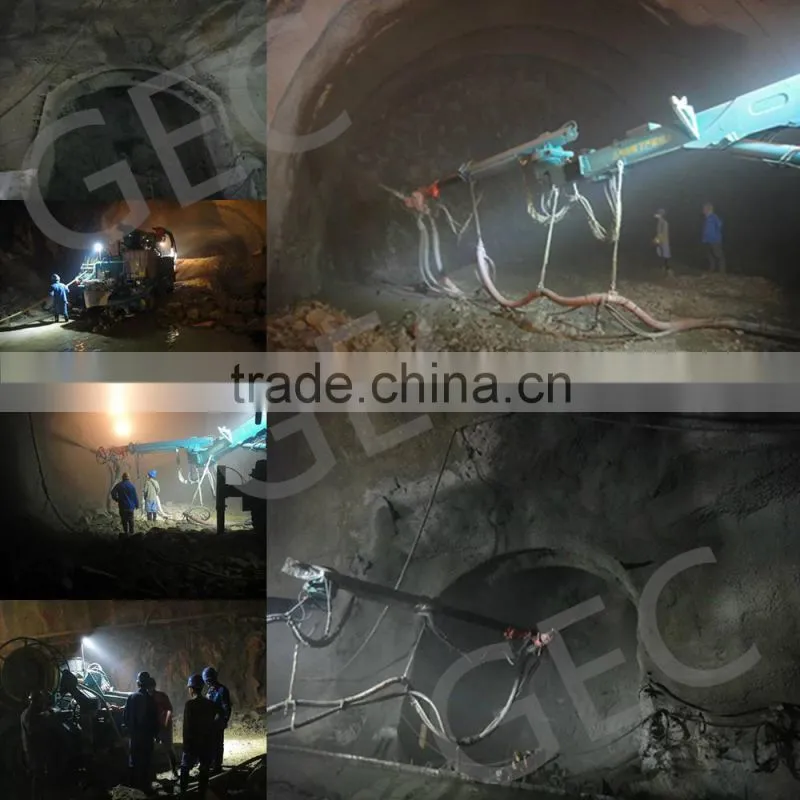

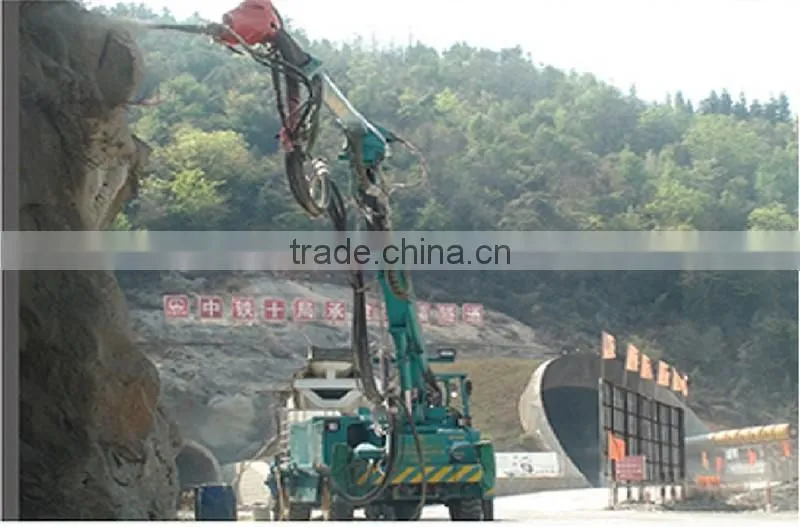

HSC-3016 automatic tunnel construction robotic arm shotcrete equipment concrete spraying system application:

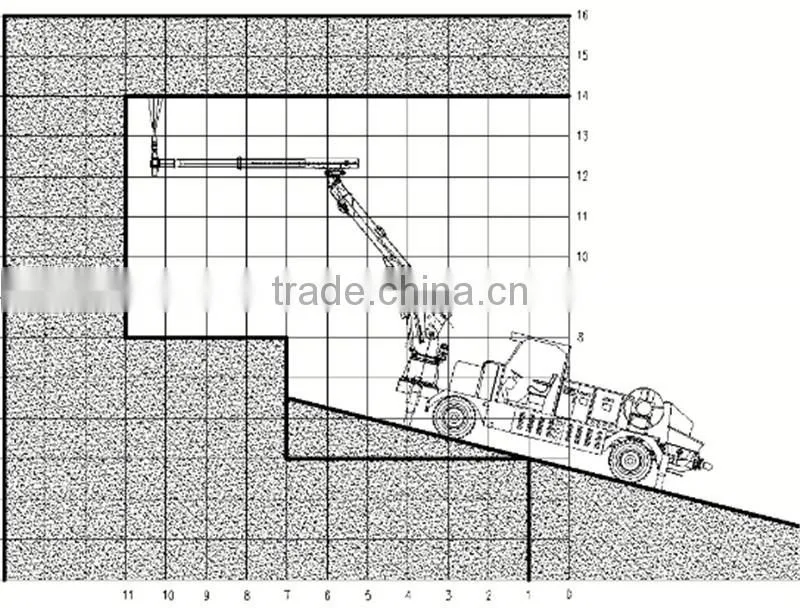

This equipment are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Factory
Certification of our company:

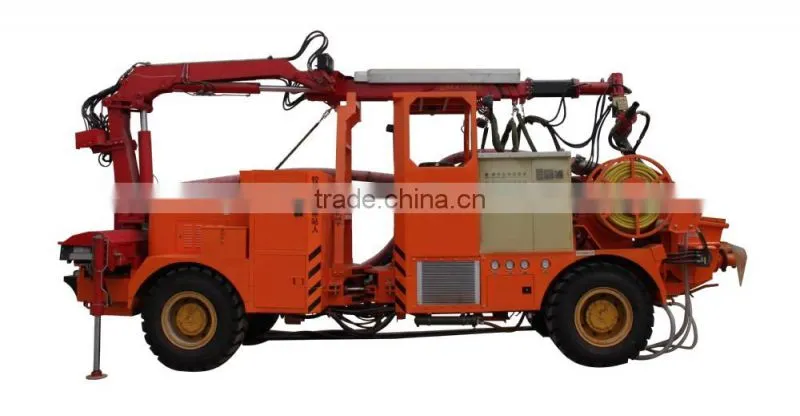

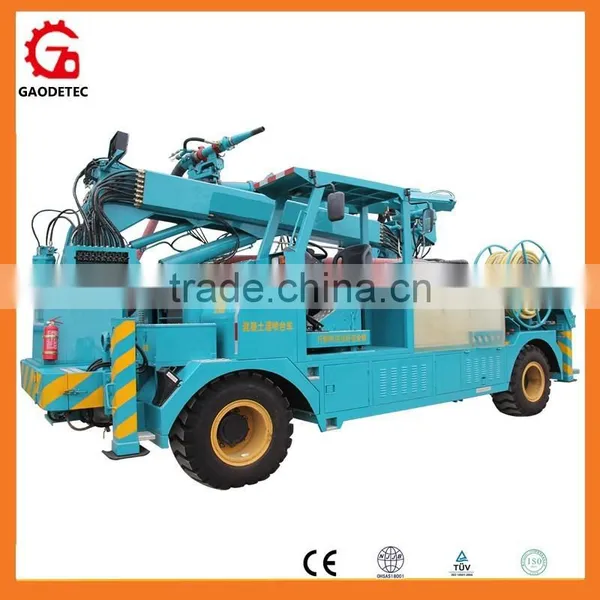

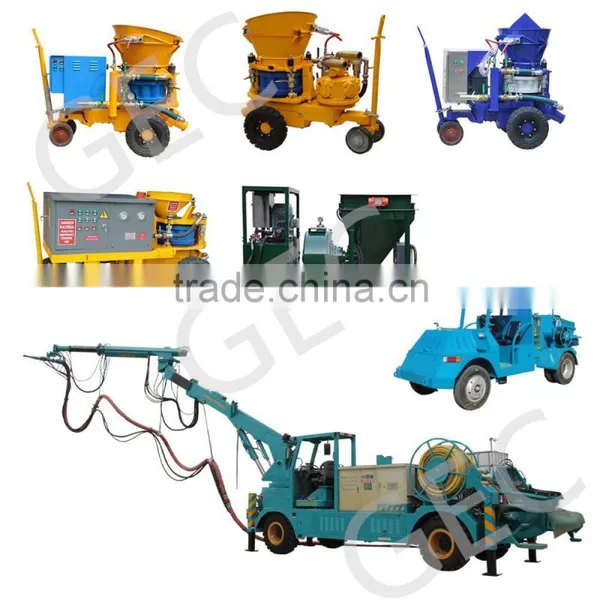

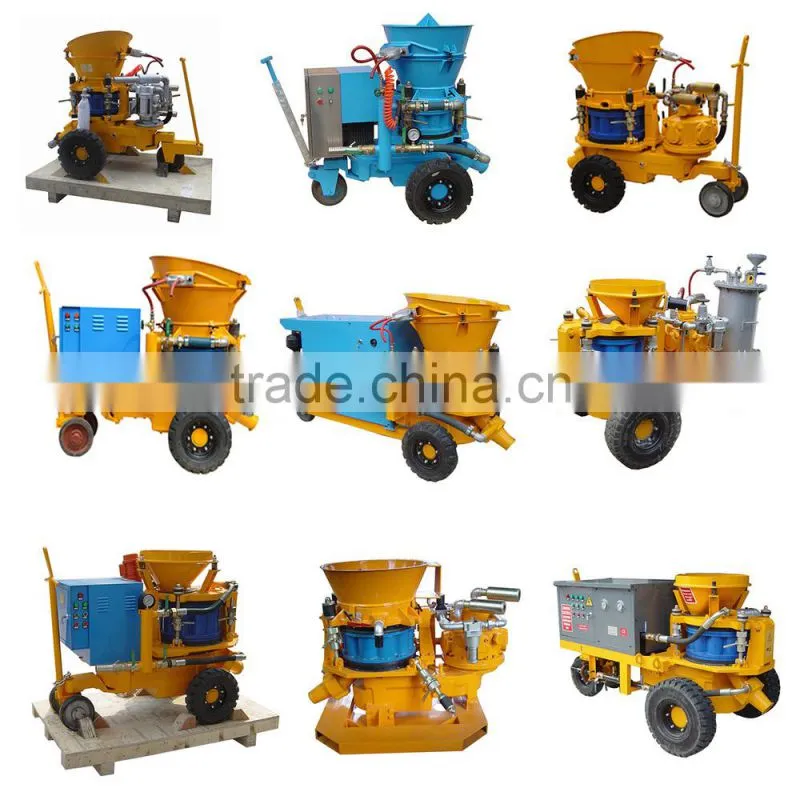

Other shotcrete equipment concrete spraying system:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
