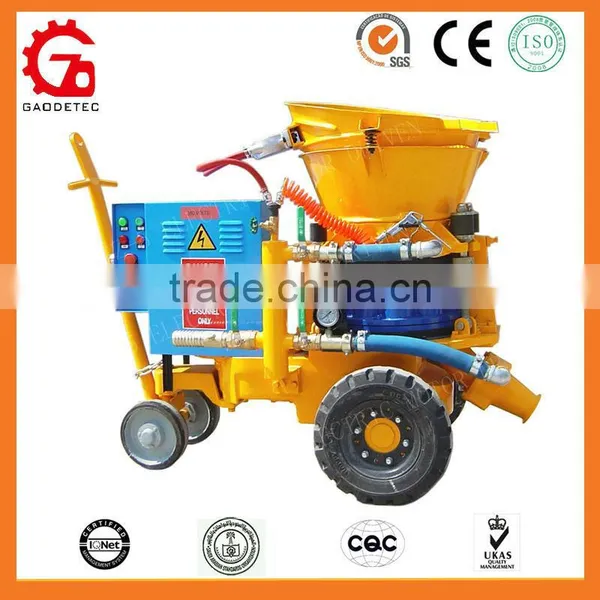

GZ-5 with CE ISO Output 5m3 | h Electric Motor Concrete Spraying Machine
GZ-5 shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And widely used by so many contractors.
Concrete Spraying Machine features:
1. Variable output with variable-frequency drive.

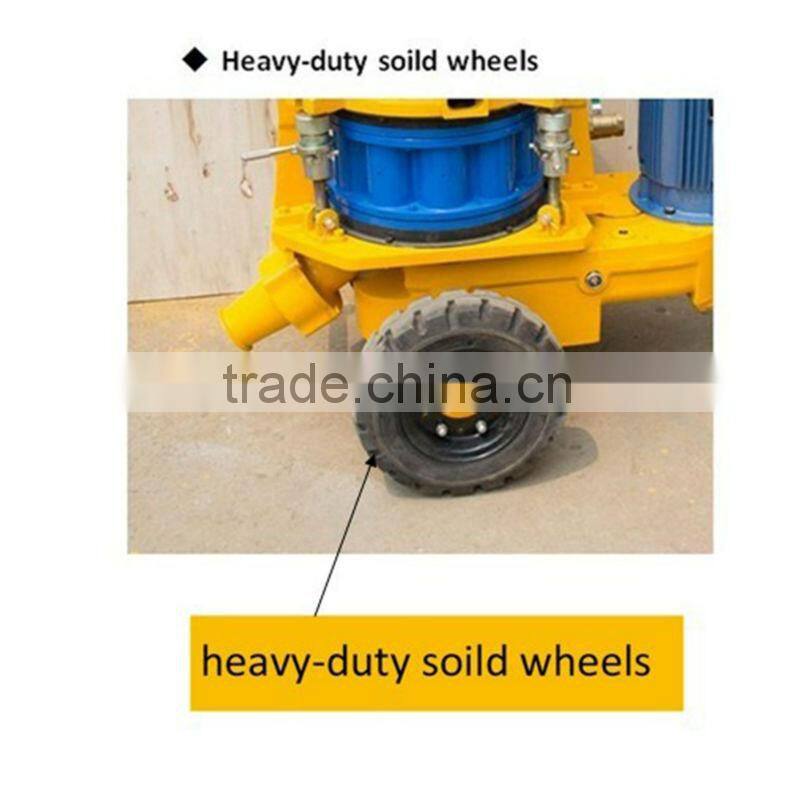

2. Heavy-duty solid wheels.
3. Coulping and clamp.
4. Light weight nozzle.

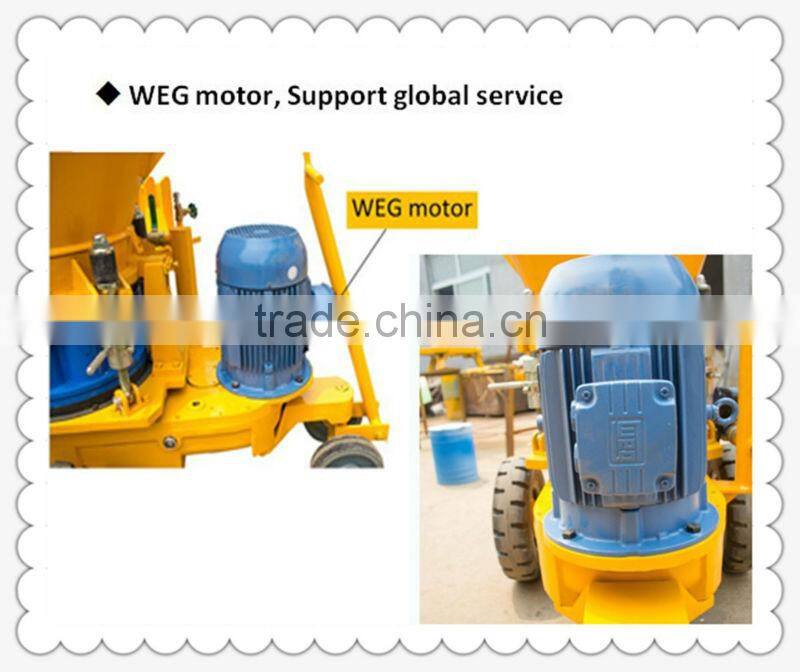

5. WEG motor, Support global service.
Concrete Spraying Machine main technical data:
Electric motor drive:
Electric Motor Type | WEG motor |
Rated Output | 5m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1:3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | 51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L* W*H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |

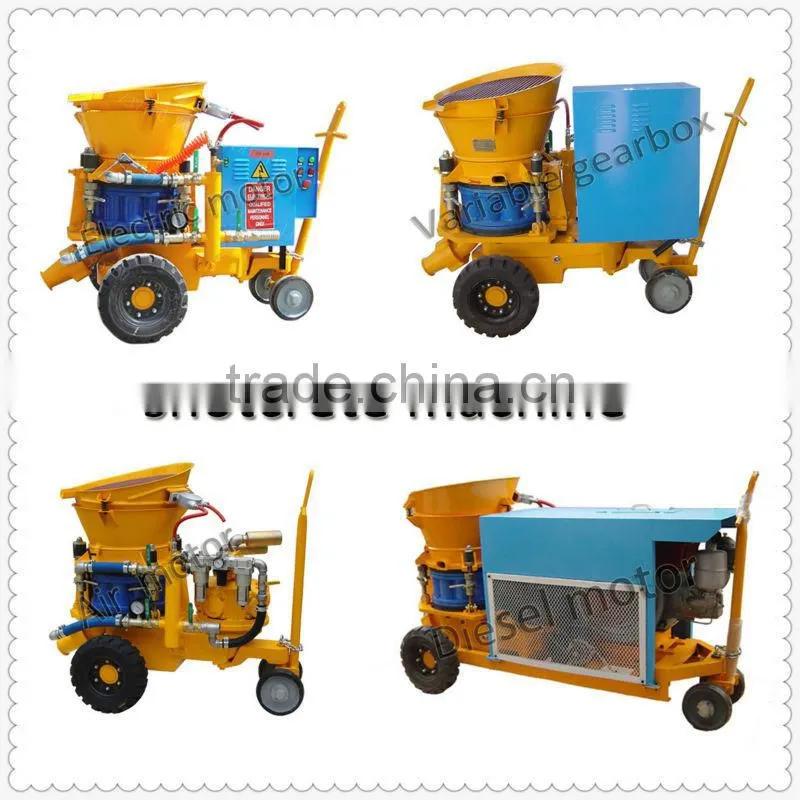

You also have the following option:
Air motor drive:
Output Capacity | 2.5-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ15 mm |
Conveying Hose Inner Diameter | Φ51 mm |
Conveying Pressure | 0.2-0.4MPa |
Air Consumption for conveying material | 7~8m3/min |
Air Motor Air Pressure | 0.5MPa |
Material Charging Height | 1.1m |
Rotor Speed | 11rpm |
Air Motor Type | TMH6A |
Air Motor Air Consumption | 7.5m3/min |
Overall Dimension(L*W*H) | 1.35×0.75×1.2m |
Net Weight | 720kg |
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L* W* H) | 2.2×0.96×1.2m |
Net Weight | 850kg |

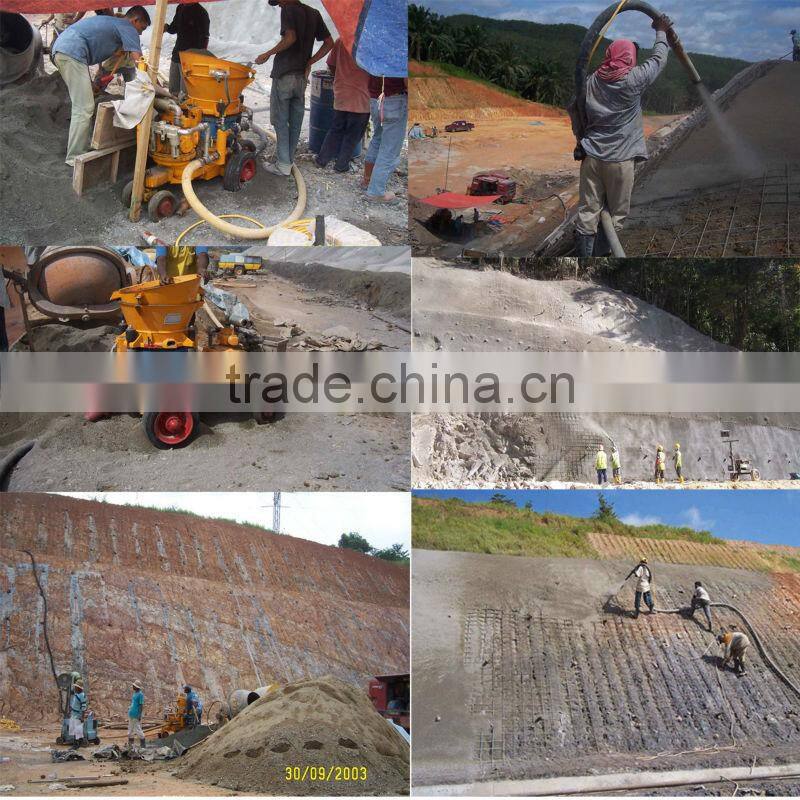

Concrete Spraying Machine Application:
1. Tunnel linings.
2. Mining operations.
3. Hydropower projects.
4. Hill side projects.
5. Swimming Pool.
6. Concrete repair.
7. Soil retention and retaining walls.
8. Underground excavation engineering etc.
