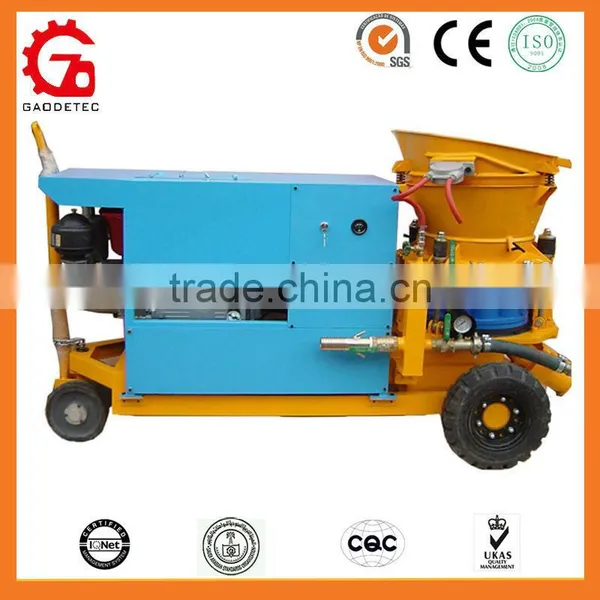

GZ-5 Diesel Drive Concrete Shotcrete Machine for Hydropower Projects with Output 5m3/h
GZ-5 shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And widely used by so many contractors.
GZ-5 Concrete shotcrete machine features:

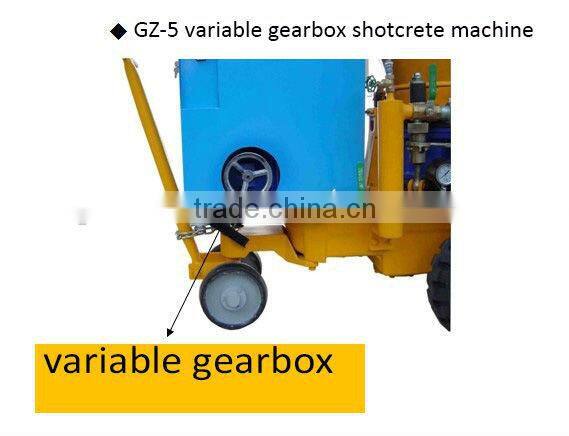

1. Variable output with variable-frequency drive.

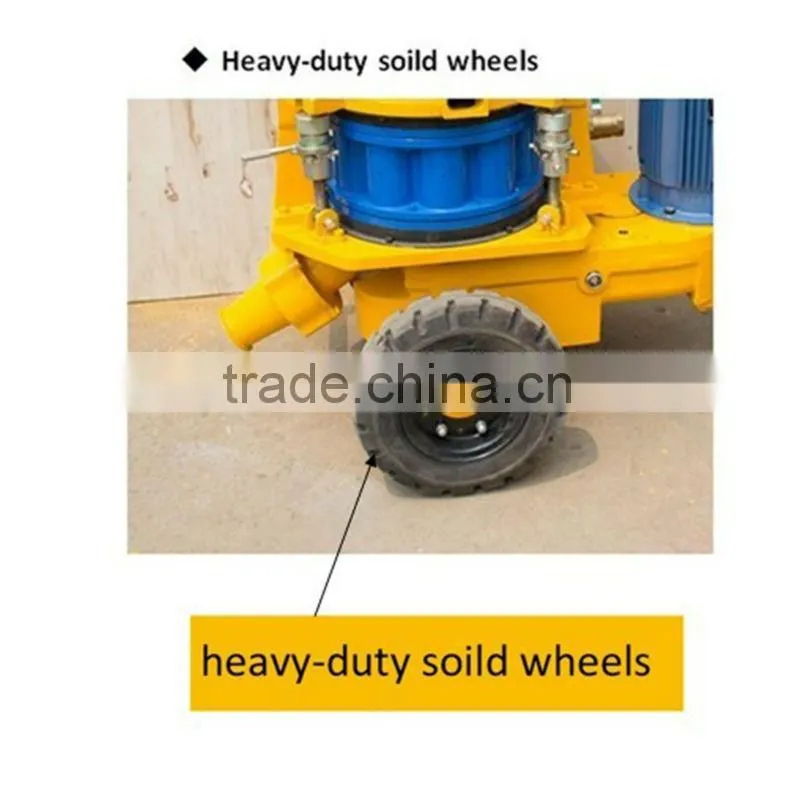

2. Heavy-duty solid wheels.
3. Coulping and clamp.
4. Light weight nozzle.

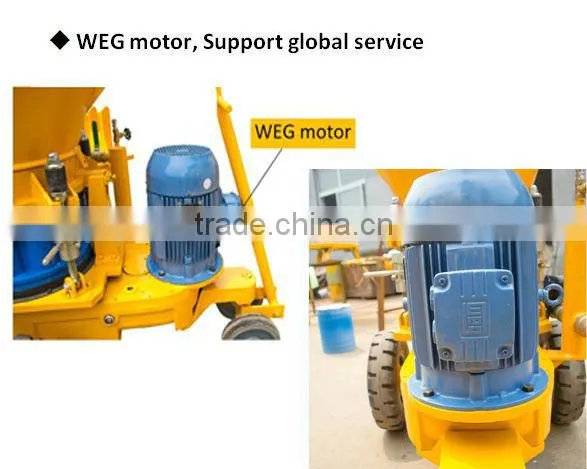

5. WEG motor, Support global service.
GZ-5 concrete shotcrete machine advantage:
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
GZ-5 concrete shotcrete machine main technical data:
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L* W* H) | 2.2×0.96×1.2m |
Net Weight | 850kg |

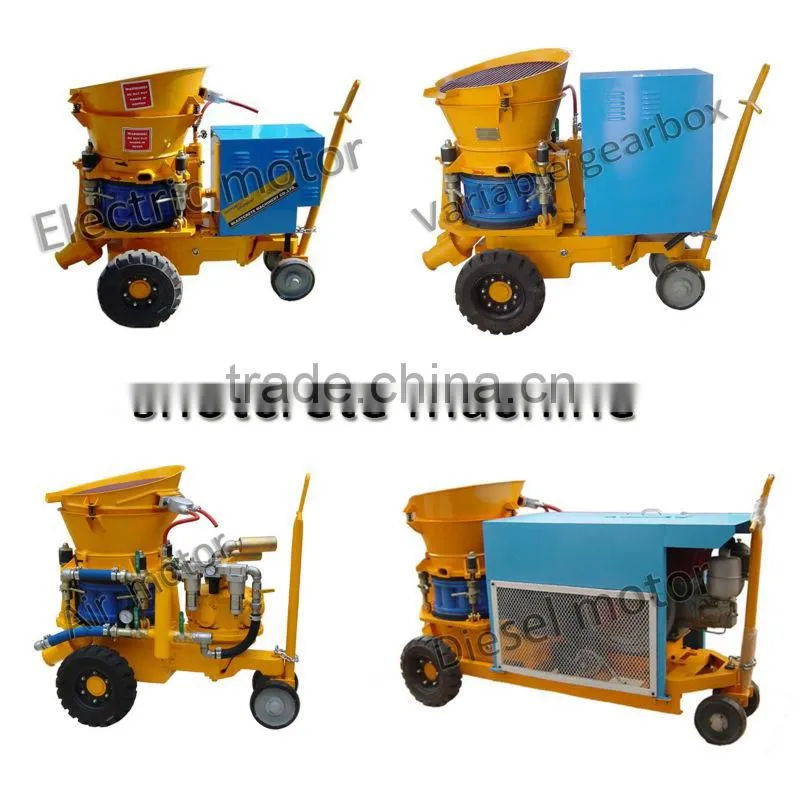

You also have the following option:
Electric motor drive:
Electric Motor Type | WEG motor |
Rated Output | 5m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1:3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | 51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L* W*H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |
Air motor drive:
Output Capacity | 2.5-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ15 mm |
Conveying Hose Inner Diameter | Φ51 mm |
Conveying Pressure | 0.2-0.4MPa |
Air Consumption for conveying material | 7~8m3/min |
Air Motor Air Pressure | 0.5MPa |
Material Charging Height | 1.1m |
Rotor Speed | 11rpm |
Air Motor Type | TMH6A |
Air Motor Air Consumption | 7.5m3/min |
Overall Dimension(L*W*H) | 1.35×0.75×1.2m |
Net Weight | 720kg |

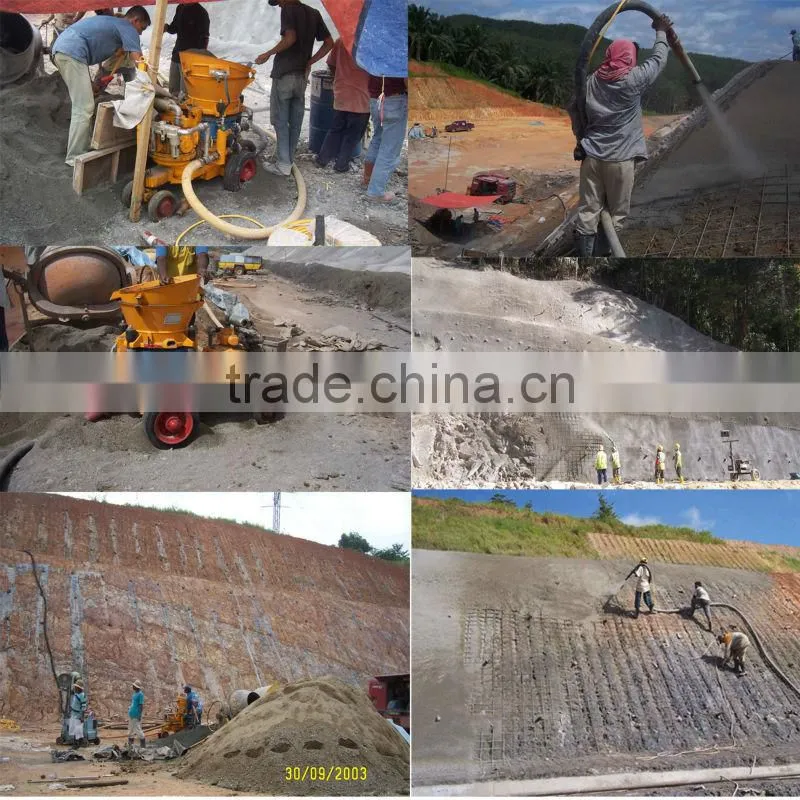

GZ-5 Concrete Shotcrete Machine Application:
1. Tunnel linings.
2. Mining operations.
3. Hydropower projects.
4. Hill side projects.
5. Swimming Pool.
6. Concrete repair.
7. Soil retention and retaining walls.
8. Underground excavation engineering etc.
