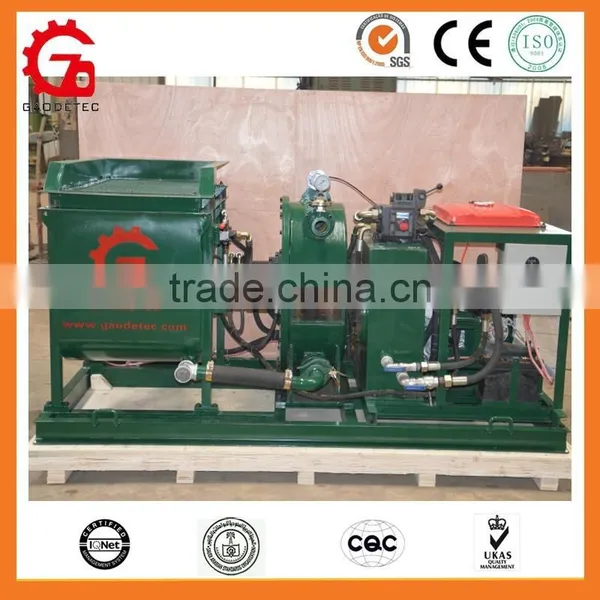

CE ISO certificates high quality gasoline concrete shotcrete pump
Description

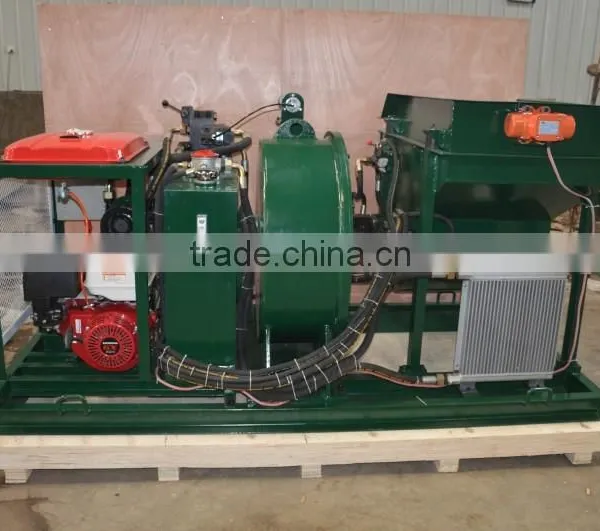

The GDS2000G is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.
Gasoline Engine Driven
Features
1. Highly-reliable direct drive planetary gearbox
2. Infinite speed variation
3. Specially hopper/ agitator stir design
4. Honda GX390 and GX630 gasoline engine for option
5. Easily operating on site work
6. Standard spare part supply
Datasheet
Item | Description |
Working Pressure | 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output | 6-8m3/h |
Max. Aggregate | 10mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 50mm |
Squeeze pump | GH50-680 |
Power | Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure) |
Hopper volume: | 240 Liter |
Hopper rated rev. | 76r/min |
Oil tank | 130 Liter |
Requested air compressor | 6m3/min, 0.6Mpa Pressure |
Vertical Conveying Distance | 15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance | 40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Weight | 900kg |
Overall Dimension | 2350x1250x1450mm |
Note: the diesel engine or Electric motor is for optional.
List of parts in a complete of GDS2000 shotcrete pump:
No. | Description | Qty. | Unit | Remarks | |
1 | GDS2000 main machine | 1 | set |
| |
2 | conveying hose, ID50, L10m | 1 | pcs |
| |
3 | reducer 2'/1.5' | 1 | pcs |
| |
4 | 2’’ or 1.5’’shotcrete nozzle assy. | 1 | set |
| |
5 | 2’’ or 1.5’’ nozzle tip | 1 | pcs |
| |
6 | clamp | 2 | sets | One set ( one 1.5’’, one 2’’) | |
7 | clean ball | 2 | pcs | One set ( one 1.5’’, one 2’’) | |
8 | accessories | 1 | set | ||

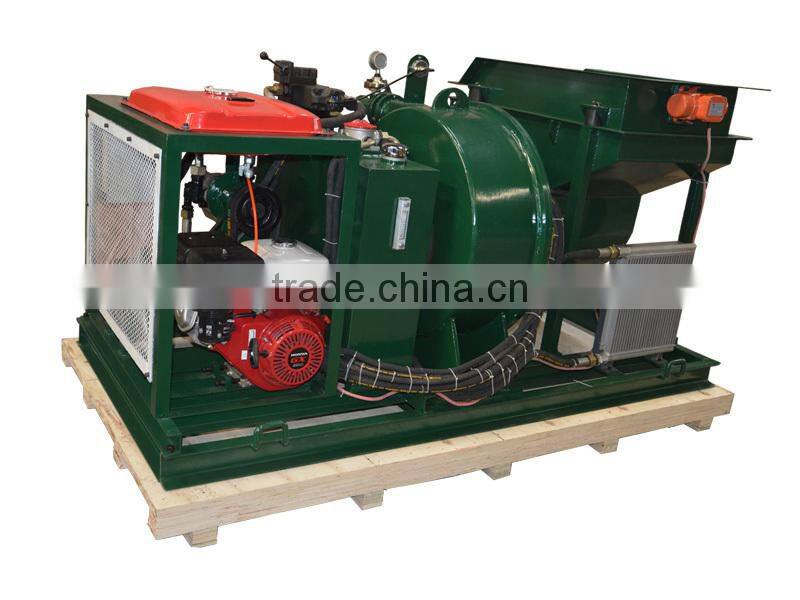

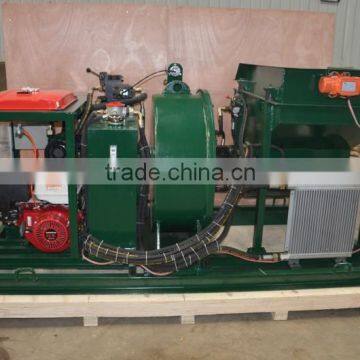

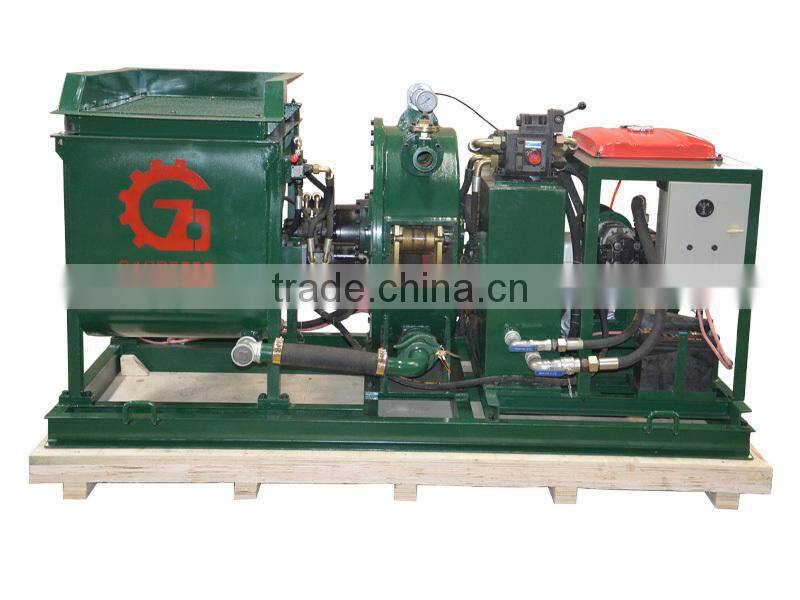

Details of GDS2000G Shotcrete Machine

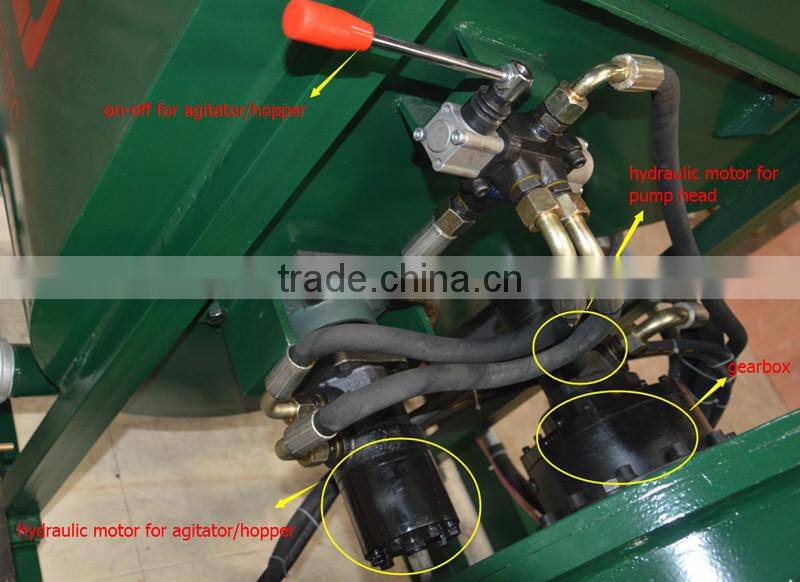

Hydraulic motor and gearbox

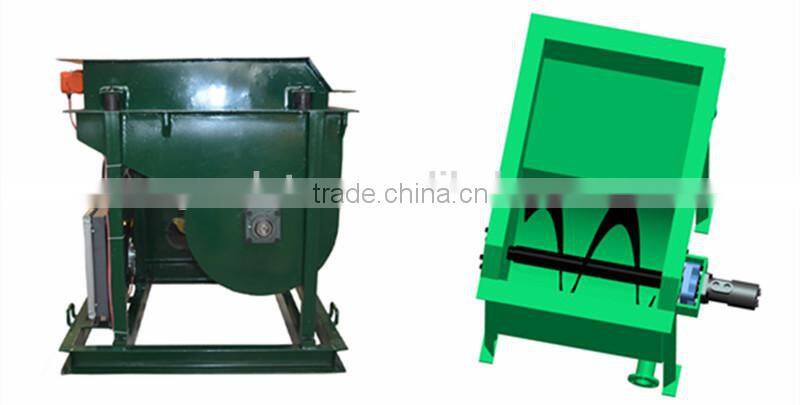

Hopper/ agitator stir design

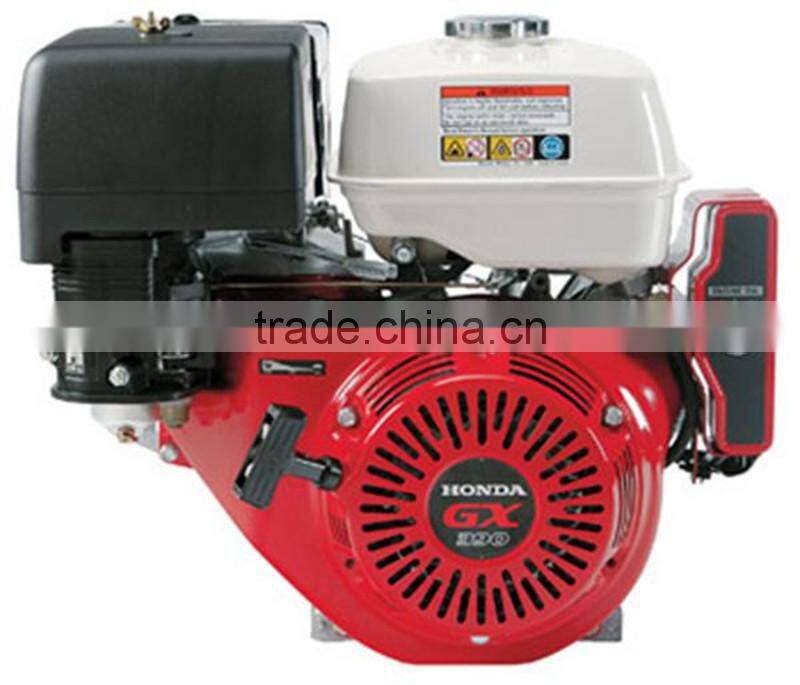

Honda GX390 or GX630 gasoline for option

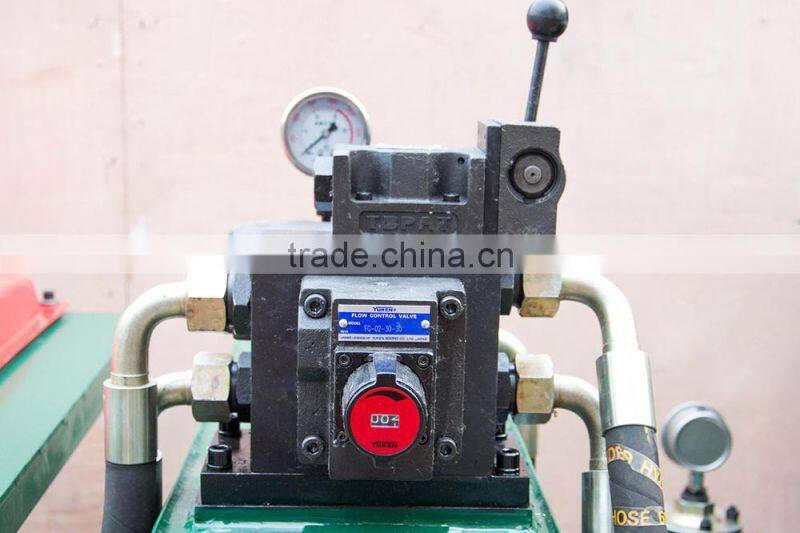

Yuken Hydraulic Valve

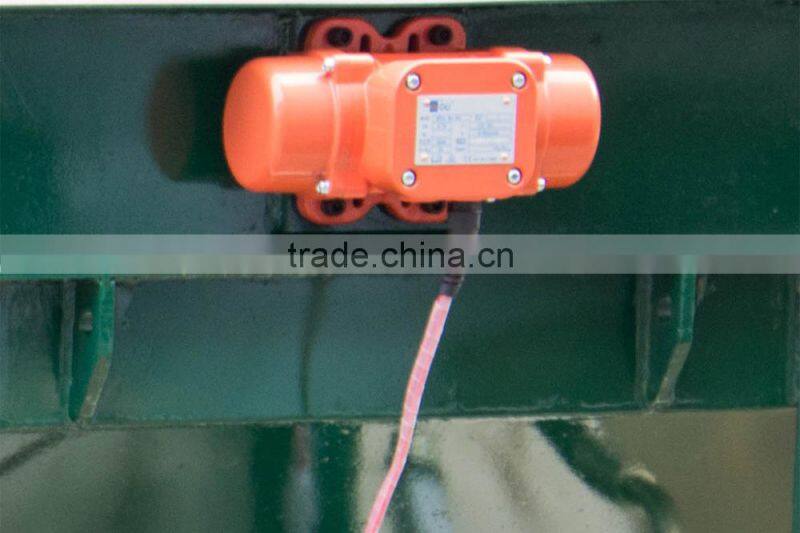

OLI Vibrator(DC)

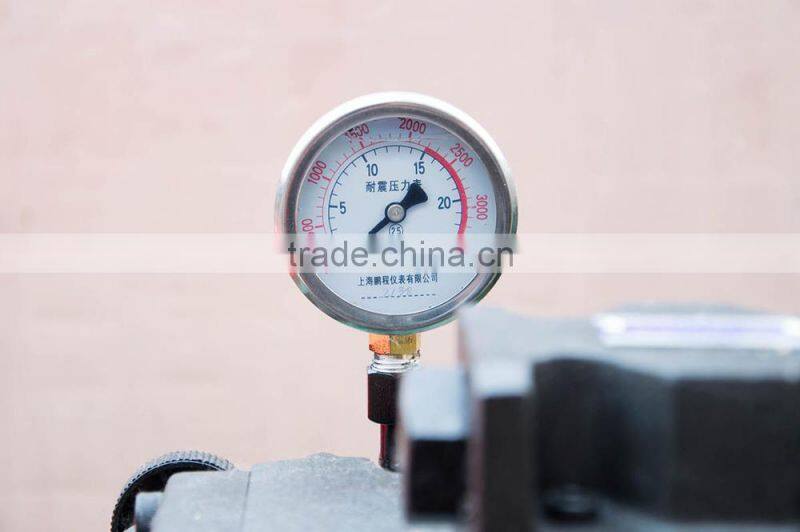

Shock Resistant Pressure Gauge

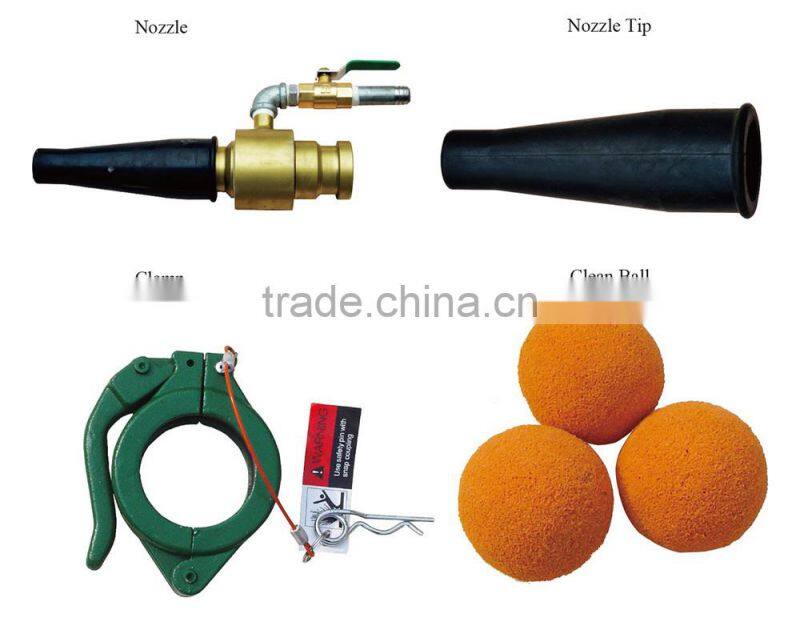

Accessories

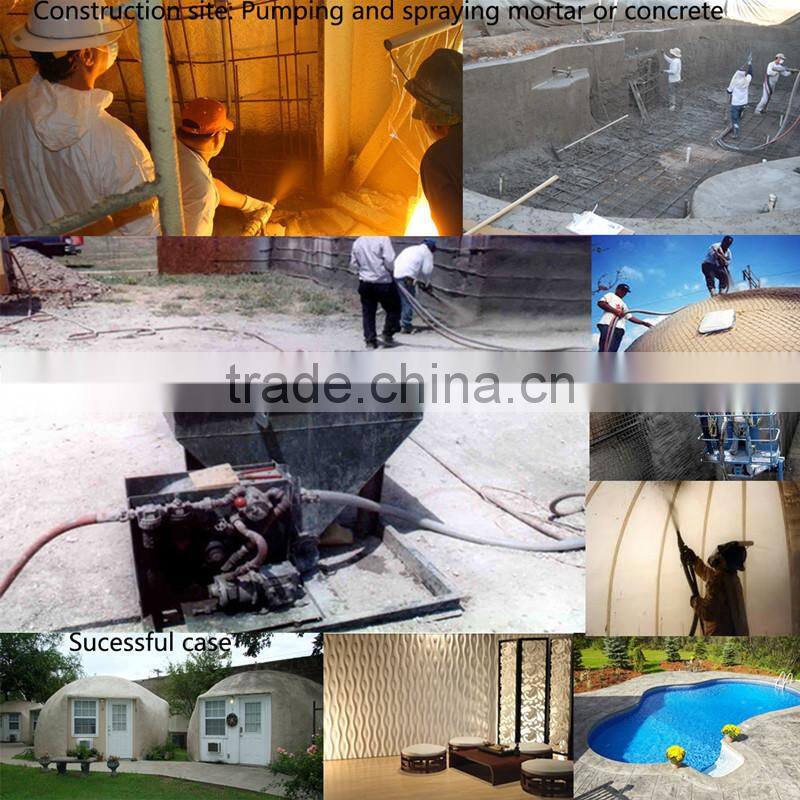

- For pumping/grouting/spraying mortar/plaster
- For pumping cellular light weight concrete
- For pumping of wet normal concrete, acceptable max. aggregate size is 10mm

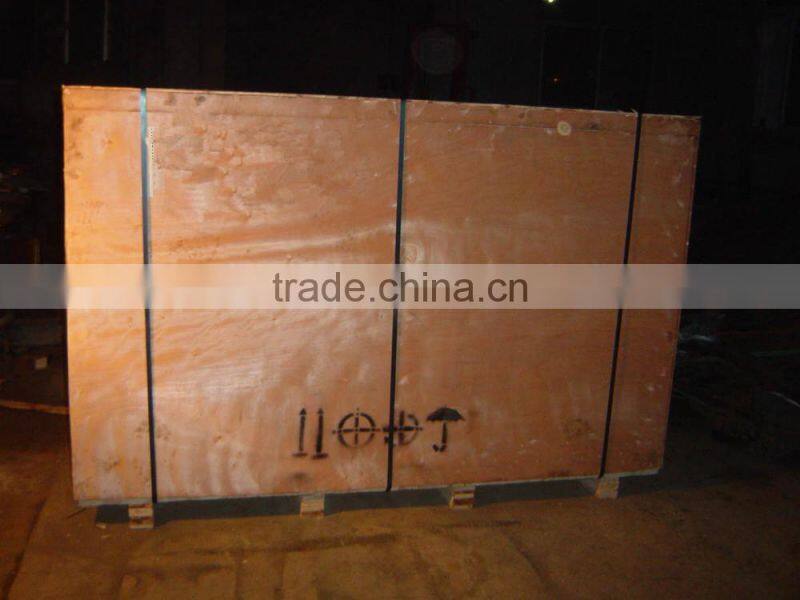

Export Packing
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
GDS1500G
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
