High Quality Reflective Thermoplastic Road Line Paint
Choose GEC,choose high quality!
High Quality Reflective Thermoplastic Road Line Paint description:

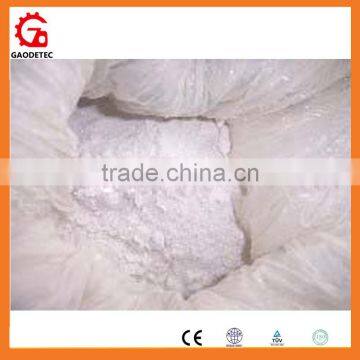

Thermoplastic road marking paint consists of petroleum resin, EVA, PE wax, fillers materials, which is solid powder condition at normal temperature. If it is heated to 100-200℃ by heat fusing pot under construction, it will appears flowage, coating.
The paint to the road surface will form hard film. It has full line type, strong wearing resistance and other characteristics. Sprinkling reflecting glass micro-beads on the surface under construction, it has good reflecting effect at night. It is widely applied in highway and road. According to the environment used and the different construction requirements , we can supply different types of paint for our customer option.
Features:
Strong adhesion strength:Resin content is reasonable, and it was added special rubber elastomer in the primer, so it has strong adhesion strength. If the construction technique is reasonable, there is no peeling off.
Good cracking resistance: Thermoplastic line-marking is easy to form crack because of the temperature variation of thermoplastic line-marking. Adding enough EVA to the paint can prevent cracking.
Bright color: The paint adopts the color of the highest level with reasonable proportion, so it has good weather resiatance and will not change color if longterm exposure.
High usage ratio: The major feature of point is low density ,big volume and high usage ratio.
Good dirt resistance: The dosage and quality of PE wax are the key point of impacting the dirt resistance. PE wax of Exxon is our first choice for many years.
Notice:
1. Ensure that the construction ground is clean and dry, it is suggested that the construction temperature is above 0 degree (low temperature, please increase appropriately material temperature).
2. Paint melting, temperature should be controlled between 180-200 degree. By fully mixing evenly, discharging after heat preservation 3 to 5 minutes, which can fully reflect the characteristics of thermoplastic paint.
3. Bottom oil processing should be full, coating line until the bottom of the oil dry fully . In regard to the new cement road surface, as far as possible begin to construct after three months delay or the second bottom oil processing, otherwise it will appeared line peels off.
4. In the construction of the road traffic is heavy, after coating base oils ,please place the warning cap, prevent the wheel rolling from taking away the bottom oil away and leaving the dust. Otherwise it easily appear some line peels off.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Technical parameter:
GD320 ISO hand push road markingmachine
Coating capacity | 100KG |
Glass bead tank capacity | 10KG |
Marking width | 150,80,100,120,150,180,200,230,300,400,450mm,change shoe of different scales according to the project |
Marking thickness | 1.0-3.0mm, adjustable |
Heating temperature | 180-210°C |
Heating method | petroleum liquefied gas |
Dimension | 1320*850*100mm |
Weight | 135KG |
Driver / roll booster
Why walk while you can seat? Use vehicle booster connect the road marking machine, the work efficiency improve 2-3 times
Features:
- High work efficiency
- Connect conveniently
- Has search light system, it is convenient for work in the evening.
- Easy Operate.
Application:
Mainly matched with hand push road marking machine
Brief introduction:
Hand-push thermoplastic road marking machine is key equipment of hot melt index line construction, and it finishes the index line construction cooperating with thermoplastic kettle.
GD320 ISO CE OEM Good Quality Hand-push thermoplastic road marking machine absorbs advanced technology.This machine adopts specially designed high precision alloy steel shoe to ensure index line’s even edge, head, thickness and tidy lines.
The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.
Main components
Our components well-made, each component are used the highest specification, each process are subject to strigent monitoring, the quality reach to international standerds.
Alloy Steel Shoe:
Indes line width 50mm 80mm 100mm,120,150mm,180mm,200mm,230mm,300mm,400mm,450mm, you can change shoe of different scales according to the project requirement
Working site
Suitable for highway,street, factories, car parks, community , airport, etc
Other type
Thermoplastic Paint Pre-heater
1) Pre-heater and thermoplastic road marking machine relationship
Thermoplastic Paint Pre-heater is always matched with thermoplastic marking machine, is main equipment for thermoplastic paint lines marking construction.
Thermoplastic Paint Pre-heater is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work.
