2016 Hot Sale Road Marking Paint
Choose GEC,choose high quality!
High Quality Road Marking Paint
Description:
Thermoplastic road marking paint consists of petroleum resin, EVA, PE wax, fillers materials, which is solid powder condition at normal temperature. If it is heated to 100-200℃ by heat fusing pot under construction, it will appears flowage, coating.

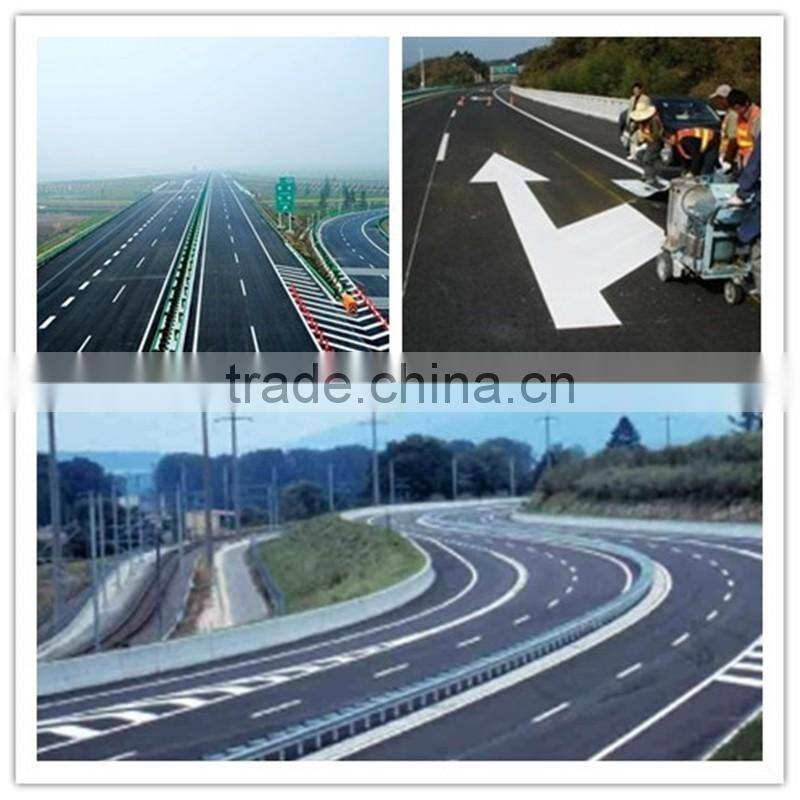

The paint to the road surface will form hard film. It has full line type, strong wearing resistance and other characteristics. Sprinkling reflecting glass micro-beads on the surface under construction, it has good reflecting effect at night. It is widely applied in highway and road. According to the environment used and the different construction requirements , we can supply different types of paint for our customer option.
Features:
Strong adhesion strength:Resin content is reasonable, and it was added special rubber elastomer in the primer, so it has strong adhesion strength. If the construction technique is reasonable, there is no peeling off.
Good cracking resistance: Thermoplastic line-marking is easy to form crack because of the temperature variation of thermoplastic line-marking. Adding enough EVA to the paint can prevent cracking.
Bright color: The paint adopts the color of the highest level with reasonable proportion, so it has good weather resiatance and will not change color if longterm exposure.
High usage ratio: The major feature of point is low density ,big volume and high usage ratio.
Good dirt resistance: The dosage and quality of PE wax are the key point of impacting the dirt resistance. PE wax of Exxon is our first choice for many years.
Technical data
| Color | White or yellow, also have red, blue, green, black etc. color for option |
| Density | 2.01g/cm3 |
| Compression strength | 21.9Mpa |
| Softening temperature | 1090C |
| Wet film thickness | 1800-2000um |
| Dry film thickness | 1800-2000um |
| blass beadSs content | 0%, 10%, 20% |
| Dosage | theory 0.25m2/kg, 250m2/ton |
| The surface drying time | usually 3 min, total about need 10min to completely dry |
Notice:
1. Ensure that the construction ground is clean and dry, it is suggested that the construction temperature is above 0 degree (low temperature, please increase appropriately material temperature).
2. Paint melting, temperature should be controlled between 180-200 degree. By fully mixing evenly, discharging after heat preservation 3 to 5 minutes, which can fully reflect the characteristics of thermoplastic paint.
3. Bottom oil processing should be full, coating line until the bottom of the oil dry fully . In regard to the new cement road surface, as far as possible begin to construct after three months delay or the second bottom oil processing, otherwise it will appeared line peels off.
4. In the construction of the road traffic is heavy, after coating base oils ,please place the warning cap, prevent the wheel rolling from taking away the bottom oil away and leaving the dust. Otherwise it easily appear some line peels off.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Technical parameter:
GD320 ISO hand push road markingmachine
Driver / roll booster
Why walk while you can seat? Use vehicle booster connect the road marking machine, the work efficiency improve 2-3 times
Features:
- High work efficiency
- Connect conveniently
- Has search light system, it is convenient for work in the evening.
- Easy Operate.
Mainly matched with hand push road marking machine
Working site
Suitable for highway,street, factories, car parks, community , airport, etc
Other type
Thermoplastic Paint Pre-heater
1) Pre-heater and thermoplastic road marking machine relationship
Thermoplastic Paint Pre-heater is always matched with thermoplastic marking machine, is main equipment for thermoplastic paint lines marking construction.
Thermoplastic Paint Pre-heater is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work.
Our Service
Why Us?
* Professional engineers team and Rich manufacturing experience
* Prompt reply and Timely delivery
* High quality & Competitive price
Any interests about these listed road marking machines and materials, please feel free to send us inquiry or call us directly, we will be there to serve your needs timely.
Sincerely hope to establish good business relations with you, our distinguished client !
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
