Home > Products > Road Marking Equipments > 2016 New road marking removal machine
2016 New road marking removal machine
- 10000 Set / Sets per Month
- Shanghai Qingdao or other ports
- T/T L/C D/P D/A Credit Card PayPal
- Thermoplastic Road Marking Line Removal Machine
- 11HP honda engine thermoplastic road marking remover
- Gasoline drive Old line thermoplastic road marking removal machine
- 2016 New design with high performance thermoplastic road marking cleaning machine
- road line removal machine road sign removal machine
- traffic paint removal or road thermoplastic removal scarifier
Product Details
Condition: | New | Brand Name: | GEC | Model Number: | GD D-390 |
Dimension(L*W*H): | 1000*640*920mm | Weight: | 250kg | Certification: | CE ISO |
Warranty: | one year, 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Choose GEC, choose high quality!
GD D-390 removal road marking machine
Description:
D-390 road marking removal machine is used to eliminate damaged, crazing and discolored special hardware of marking index line. Engine drives the burnishing head remove at top speed, burnishing head grinds in with the jut of road under the function of revolving centrifugal force, and thus marking is cleaned clear.
Features:
- Honda GX390 or PERICOM
- Pneumatic tyre: shock absorption
- With brake system
- Blade with long life: 20000m2
- Good burnishing performance, fast speed and easy operation and maintenance.
Application:
The machine mainly used to eliminate damaged, crazing and discolored special hardware of marking index line.
Technical data:
Type | GD D-390 |
Removal line width | 225mm |
Removal line height | Can adjust according to the ground condition, usually less than 3mm |
Engine | HONDA GX390 or PERICOM 16PS |
Power | 13HP or 16PS |
Rotate speed | 3600rpm |
Fuel consumption | 230g/h |
Blade Qty. | 78 pieces |
Blade material |

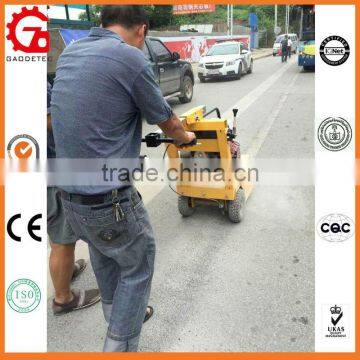

Pictures in different angles and detailed parts:
Applications:
the package size is:1200*840*1120mm, usually we choose plywood box package, if need, we can according to your demands to make the package.
If have any idea, we have professional technical department, can accoding to your demands to design the machine. Such as we according to customer's demands to redesign our GD320S self-propelled thermoplastic road marking machine with petroleum gas heating system to diesel heating method. Please check the following picture for reference.
1. Q: What's the removal width?
A: 225mm
2. Q: What's the removal depth?
A: Can adjust according to the ground condition, usually less than 3mm
3. Q: Which kind of the blade material?
4. Q: How many blades in the machine?
A: 78 pieces
5. Q: What's the removal speed?
A: 1000m2/day
6. Q: What's brand of the engine?
A: HONDA GX390 or PERICOM
7. Q: What about the removal performance?
A: please check the compared picture for reference
Contact Us
- Zhengzhou Gaode Equipment Co., Ltd.
- Contact nameJessica Liu
- Phone86-371-55951210
- AddressNo.9, Building 14, Yard No.4, Fengqing Road, Jinshui District, Zhengzhou, Henan China Zhengzhou,Henan
- High performance with famous brand gasoline engine road line remover
- Hot sales New GD 390 High- power Road surface asphalt road milling machine
- Hot sales New GD390 High power Road Pavement surface Cleaning Equipment
- traffic paint removal or road thermoplastic removal machine
- 2016 New design with high performance road paint remover
- Hot sales New GD 390 Honda gasoline engine Road marking line removing machine
- Honda gasoline engine GD390 High- power the pavement and zebra crossing removal machine
- 2016 New road marking removal machine
- High Speed Milling planning type road line remover
- High Speed Asphalt Concrete Milling machine for removing road line
- High Speed portable Milling machine for Asphalt Concrete Pavement
- Honda gasoline engine pavement milling machine,concrete removal machine
