GD320S diesel engine Self propelled thermoplastic road painting machine
- 10000 Set / Sets per Month
- Shanghai Qingdao or other
- T/T L/C D/P D/A Credit Card PayPal
- Thermoplastic Road Marking Machine Thermoplastic Line TATU Road Marking Machine For Sale
- TT-C02-RG300 Driving Type Road Making Machine
- TE-700 Driving Type thermoplastic Road Marking Machine
- Engine Walk-up Cold Spray Automatic Cold Paint And Thermoplastic Road Marking Machines Price For Sale
- Airless Line Striper Road Surface Line Marking Machine
- High Quality Parking Lot Striping Machine Hand-Pushed Paint Road Marking Machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | GEC road lining machine |
Model Number: | GD320S | Dimension(L*W*H): | 1320*820*1000mm | Weight: | 150kg |
Features: | Self propelled | Certification: | ISO CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

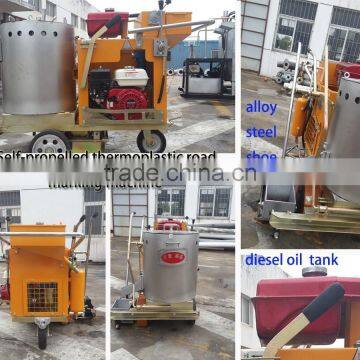

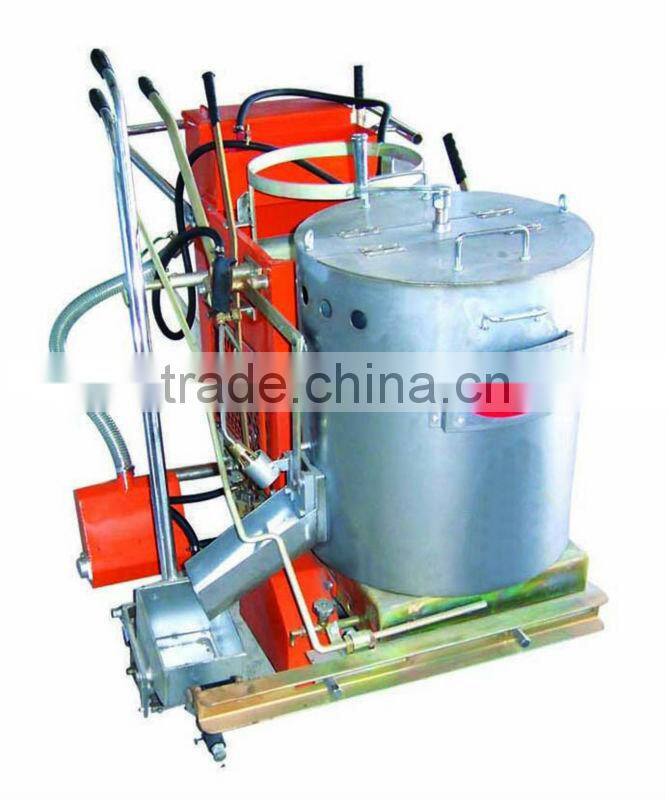

GD320S diesel engine Self propelled thermoplastic road painting machine
Choose GEC, choose high quality!
GD320S diesel engine Self propelled thermoplastic road painting machine :
GD320S Self propelled thermoplastic road lining machine adopt Germany intelligent programming controller and Humanized control panel, and match with stepless walking system, which improve the working efficiency.

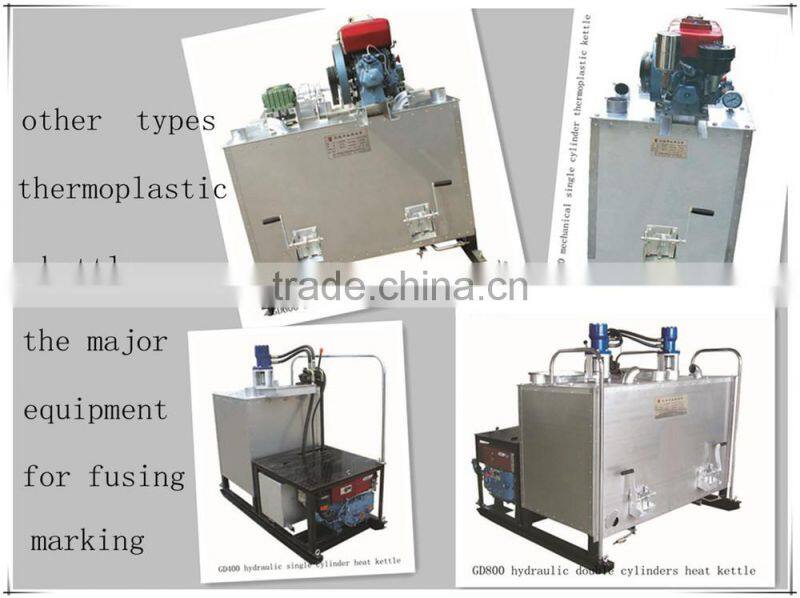

It’s the main equipment for thermoplastic road line marking work, marking line when work with thermoplastic hot melt kettle. This machine adopts specially designed high precision cast iron marking bucket to ensure index line’s even edge, head, thickness and tidy lines.
The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.
GD320S Self propelled thermoplastic road lining machine parameter:
Walk drive mode | Automatic oil and infinitely variable speed |
Walk speed | >400m/h |
Max. Gradeability degree | 15° |
Coating capacity | 100KG,two-layer stainless steel holding and heating tank, inserting manual agitating device, demountable device |
Glass bead tank capacity | 10KG/box |
Glass bead broadcasting machine | Synchronizing interface broadcasting, equipped with speeder |
Shoe | Made by high-precision ultrathin materials, drag structure, standard positioning 150mm |
Grounding knife | Hard alloy, equipped with eccentric sleeve, index line’s thickness can be adjusted from 1mm to 2.5mm |
Rubber tire | Lead alloy wheel nave, made by heat resisting rubber, tail pulley equipped with localizer which make the machine walk directly |
Marking width | 100,150,200,250,300,400,450mm,change shoe of different scales according to the project |
Heating method | petroleum liquefied gas |
Dimension | 1320*820*1000mm |
Weight | 150KG |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
]
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
