GD1200 CE OEM Hydraulic paint melting machinery and road line marking machine
Thermoplastic road marking machine is mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.
Technical parameter:
Coating capacity | 100KG |
Glass bead tank capacity | 10KG |
Marking width | 150,80,100,120,150,180,200,230,300,400,450mm,change shoe of different scales according to the project |
Marking thickness | 1.0-3.0mm, adjustable |
Heating temperature | 180-210°C |
Heating method | petroleum liquefied gas |
Dimension | 1320*850*100mm |
Weight | 135KG |
Hot melt kettles description:
GD1200 double cylinder thermoplastic thermoplastic hot melt kettles is the major equipment for hot melt spraying construction.
Hydraulic driving system and stepless speed changing with strong torque are adopted. The equipment boots efficient fusing, forward and reverse stir, simple operation and easy maintenance.
Special design of heating system, stainless steel material, and high carbon steel pot bottom, imported efficient stoves are adopted, it saves energy and time.
Hot melt kettles main technical parameter:
Dimension: 1900*1700*1700mm
Coating capacity: 2*600L
Drive mode: Oil pressure
Engine: 15PS diesel engine
Furnace: Imported
Heating system: Petroleum gas (50kg/jar recommended)
Hot melt kettles features:
1.Engine: 15PS water-cooled electric start up diesel engine
2.Hydraulic driving system: integrated multiples hydraulic control valve, forward and reverse stir and stepless speed changing.
3.Hydraulic motor: Model BM
4.Cubage of hydraulic gasoline box: 70L
5.Kettle cylinder: capacity:600L*2
6.Structure: Frame structure, insulation is fixed between liner and ektexine
7.Heating system: petroleum dry gas (50 kg jar commended) and imported highly efficient four ring burner / direct injection stove
8.Safety facility: flooding facility of overload is designed for it to prevent maloperation

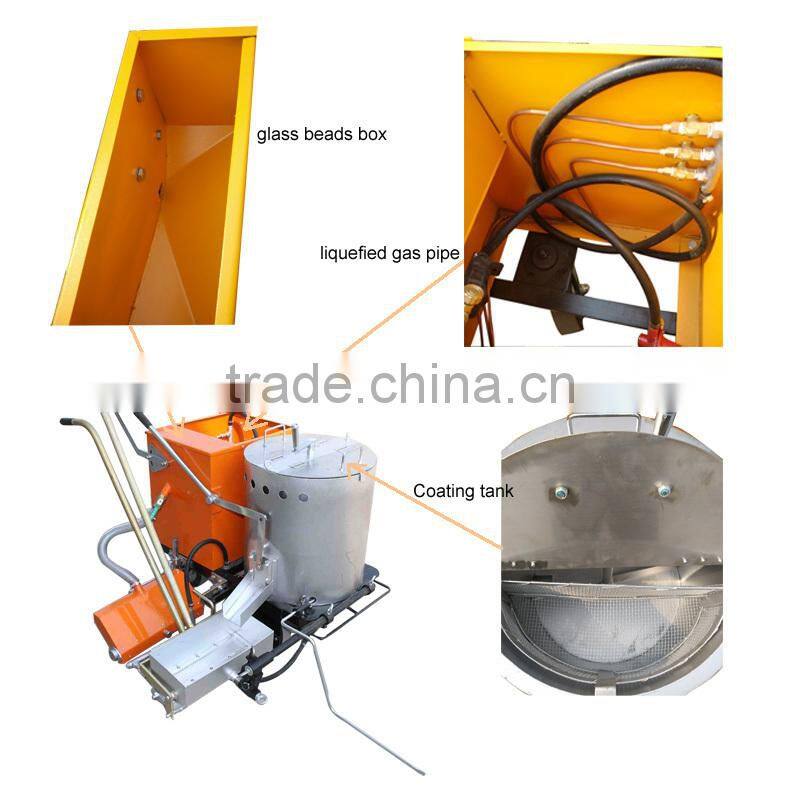

Detailed parts:
Application:

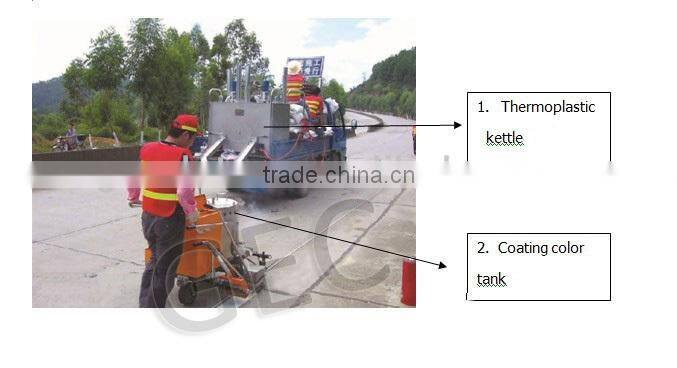

Thermoplastic road marking machine and thermoplastic heat kettle are key equipments of thermoplastic index line construction. They are finishe the construction togrther.
Working room:
Application:
Delivery goods:
We also can accord your demands design the road marking machines,please feel free to contact kevin lu. Skype: zhenhuazgz328
