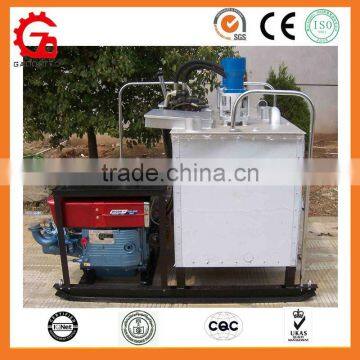

GD800 Hydraulic Double Cylinder Thermoplastic Hot Melt Kettle

US$ 980 - 7,550 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

GEC

Contact Supplier Request Quote Chat Now

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao or other required ports

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name GEC

Model Number GD800

Dimension(L*W*H) 1800*1500*1600mm

Weight 800kg

Features hydraculic

Certification ISO CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Choose GEC,choose high quality!

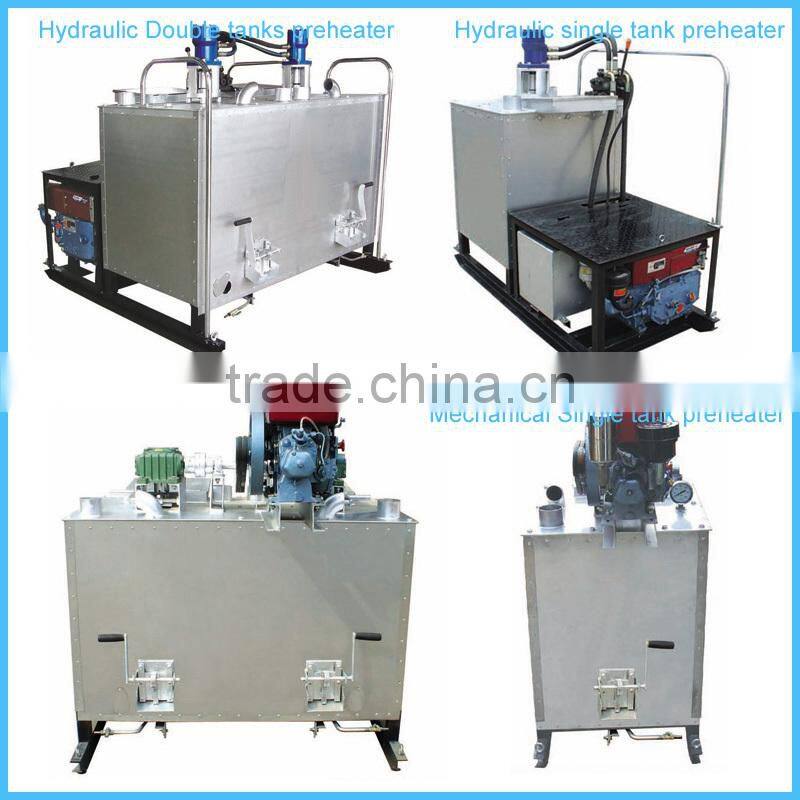

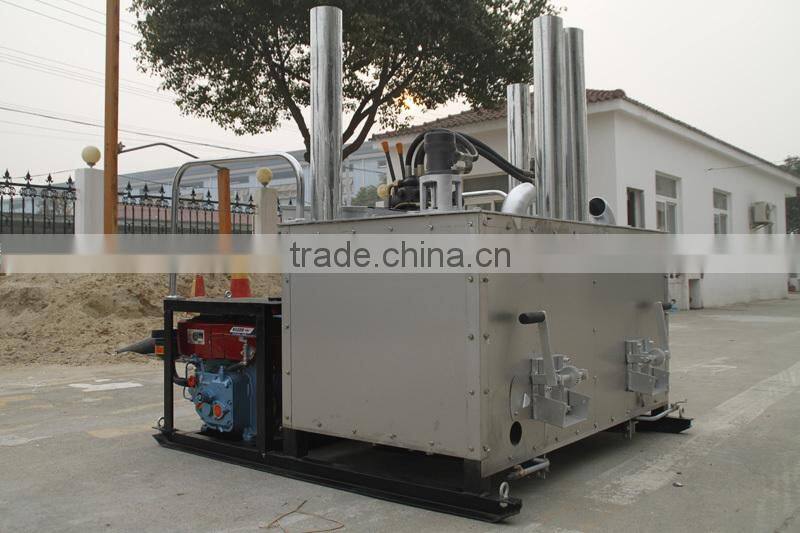

GD800 Hydraulic double cylinder thermoplastic hot melt kettle

Thermoplastic hot melt kettle Description:

GD800 double cylinder thermoplastic hot melt kettle is the major equipment for hot melt spraying construction. Hydraulic driving system and stepless speed changing with strong torque are adopted.

The equipment boots efficient fusing, forward and reverse stir, simple operation and easy maintenance. Special design of heating system, stainless steel material, and high carbon steel pot bottom, imported efficient stoves are adopted, it saves energy and time.

Thermoplastic hot melt kettle Main technical parameter:

Dimension: 1800*1500*1600mm

Coating capacity: 2*400L

Drive mode: Oil pressure

Engine: 15PS diesel engine

Furnace: Imported

Heating system: Petroleum gas (50kg/jar recommended)

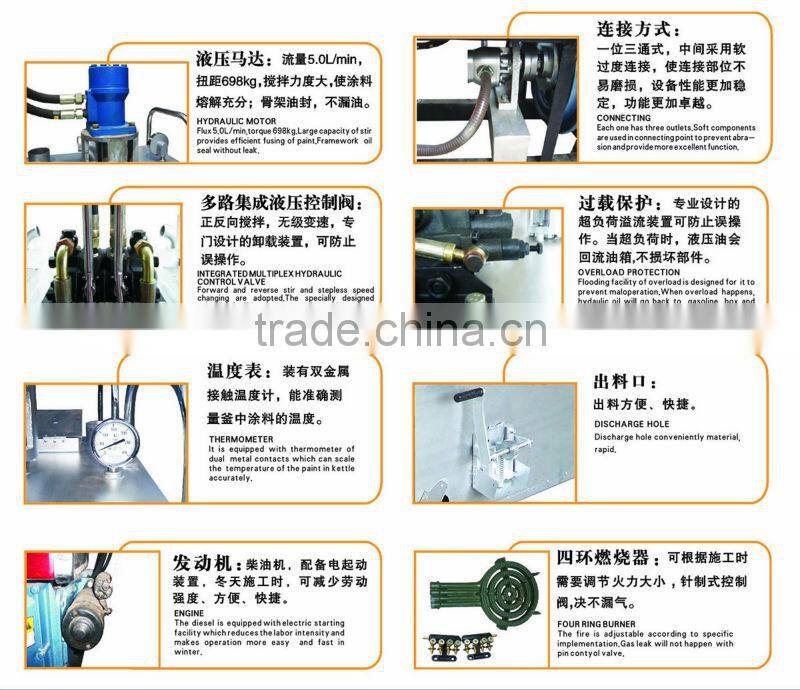

Thermoplastic hot melt kettle Features:

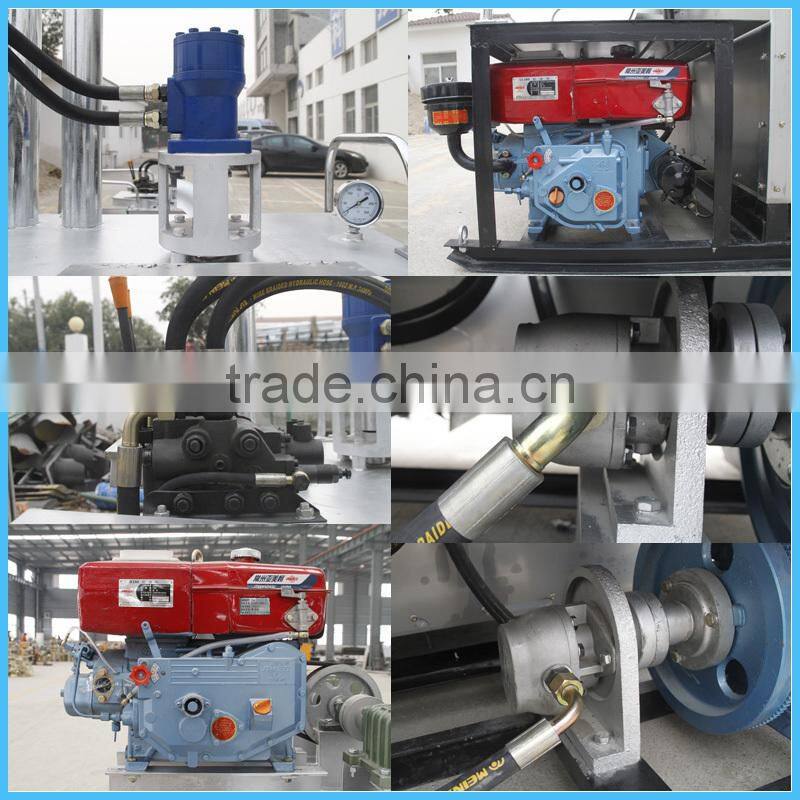

Engine: 15PS water-cooled electric start up diesel engine
Hydraulic driving system: integrated multiples hydraulic control valve, forward and reverse stir and stepless speed changing.
Hydraulic motor: Model BM
Cubage of hydraulic gasoline box: 70L
Kettle cylinder: capacity:400L*2
Structure: Frame structure, insulation is fixed between liner and ektexine

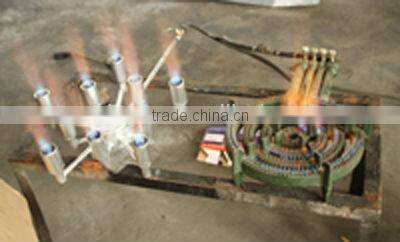

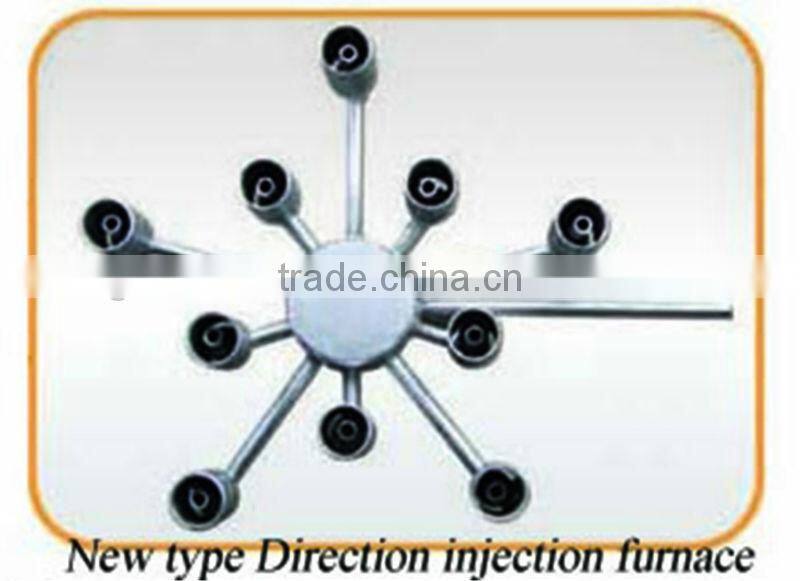

Heating system: petroleum dry gas (50 kg jar commended) and imported highly efficient four ring burner / direct injection stove
Safety facility: flooding facility of overload is designed for it to prevent maloperation

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Application
