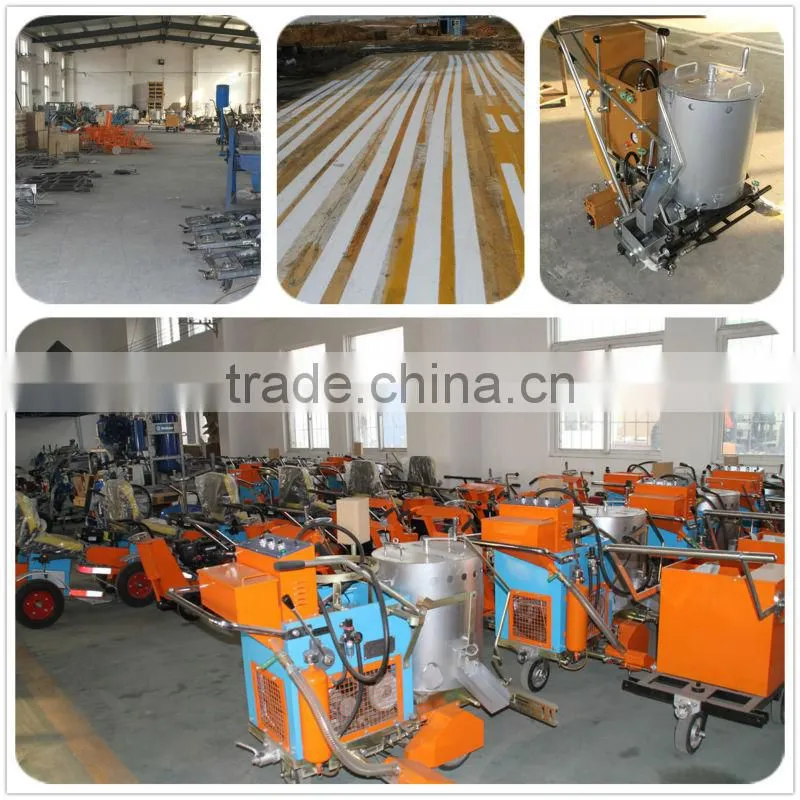

GD ISO OEM self-propelled automatic convex road marking machines
- 10000 Set / Sets per Month
- Shanghai Qingdao or other required ports
- T/T L/C D/P D/A Credit Card PayPal
- Thermoplastic Road Marking Machine Thermoplastic Line TATU Road Marking Machine For Sale
- TT-C02-RG300 Driving Type Road Making Machine
- TE-700 Driving Type thermoplastic Road Marking Machine
- Engine Walk-up Cold Spray Automatic Cold Paint And Thermoplastic Road Marking Machines Price For Sale
- Airless Line Striper Road Surface Line Marking Machine
- High Quality Parking Lot Striping Machine Hand-Pushed Paint Road Marking Machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | GEC vibration road marking machine |
Model Number: | GD | Dimension(L*W*H): | 1360*900*1100mm | Weight: | 265kg |
Features: | vibration marking machine | Certification: | ISO CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Choose GEC, choose high quality!

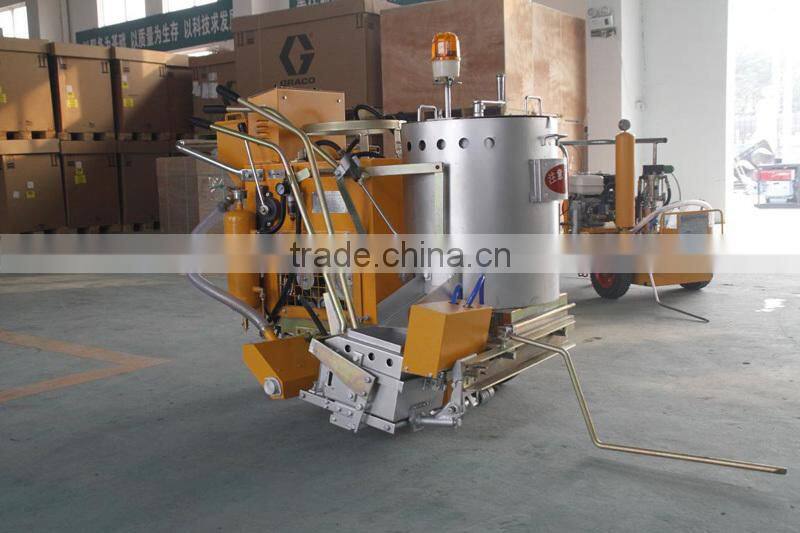

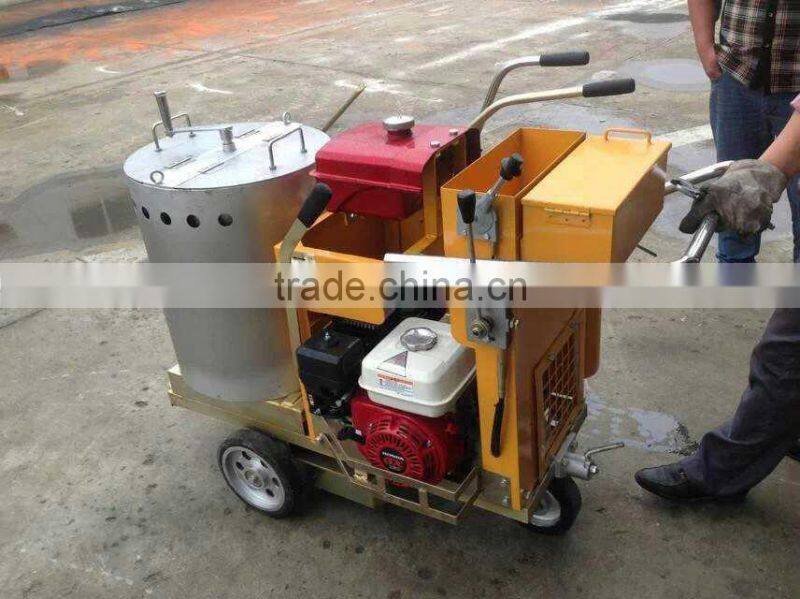

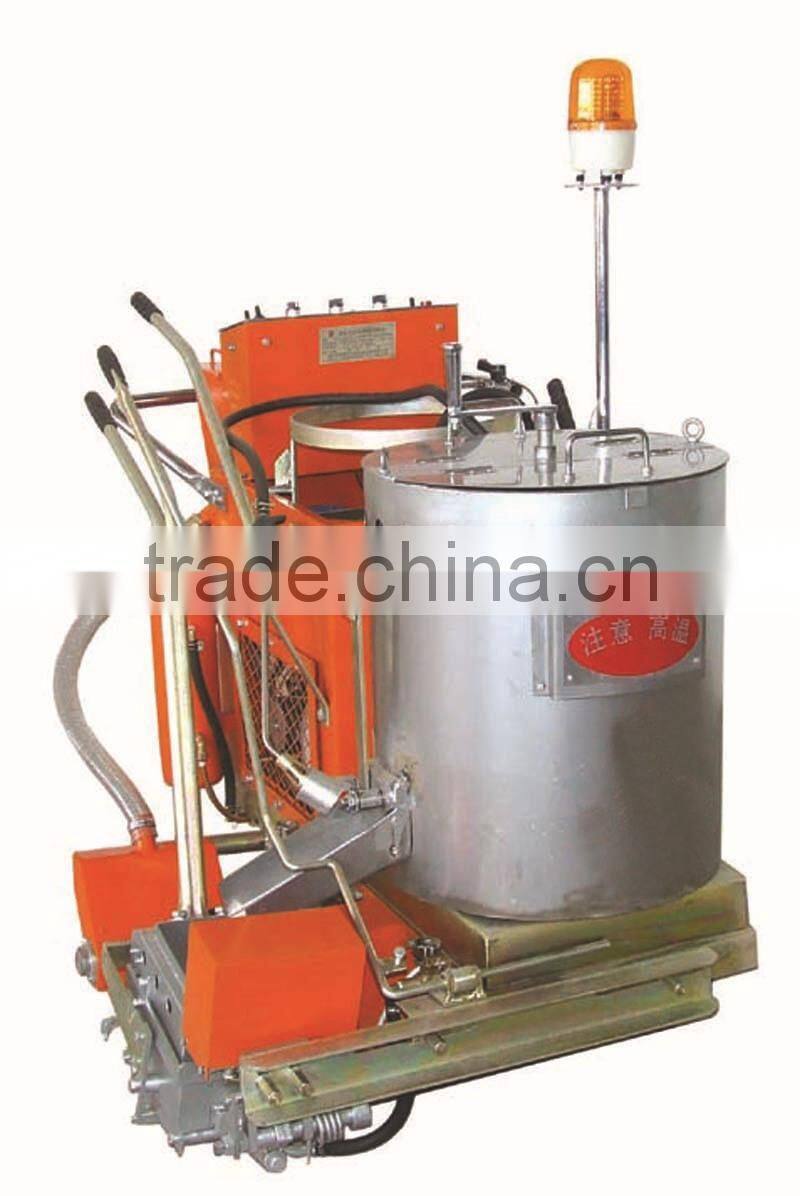

GD ISO OEM self-propelled automatic convex road marking machines
Brief introduction:

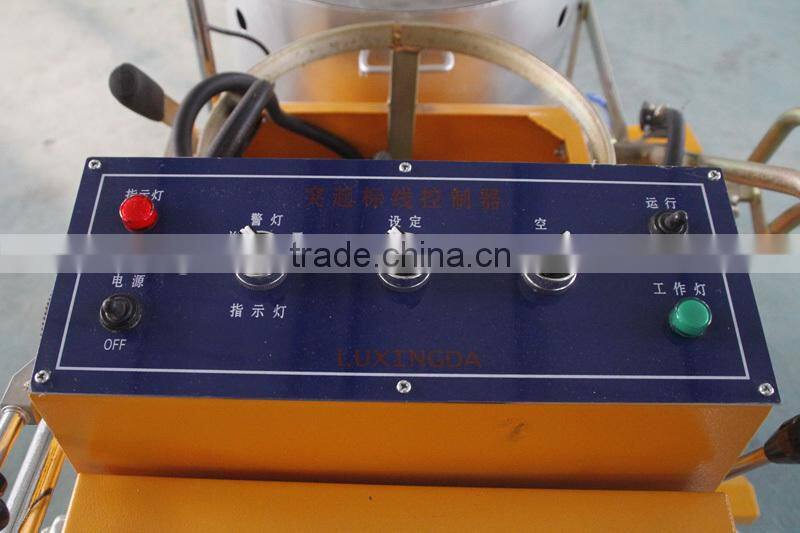

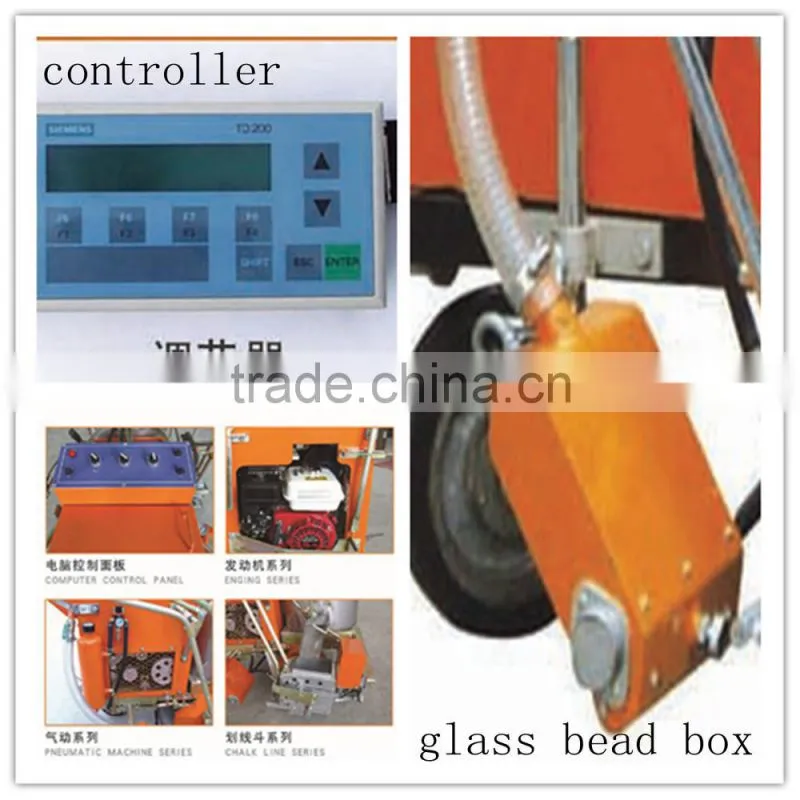

GD convex marking machine adopts the programmable microcomputer control technology from Siemens, through Omron’s sensor passes on the accurate signal to the Microcomputer, then through the computer give order to the pneumatic cylinder, then realize the prominent marking and primer marking at the same time for just once.
It also equipped with stepless speed changing system, it greatly promotes the construction efficiency and makes the marking accurately fit the shape height and space; Pneumatic cylinder from Comazzi and electronic valve ensure the long time working in high temperature. The equipment has simple operation and high efficiency etc.
Technical parameter:
Coat capacity | 120kg (60L) |
Glass bead capacity | 10kg |
Engine | Honda liquid engine, OHV4 stoke |
Engine power | 163cc, 5.5hp |
Fuel | Gasoline or liquid gas |
Walk drive mode | Automatic oil and infinitely variable speed |
Walk speed | ≥400m/h |
Max. Gradeability degree | 15° |

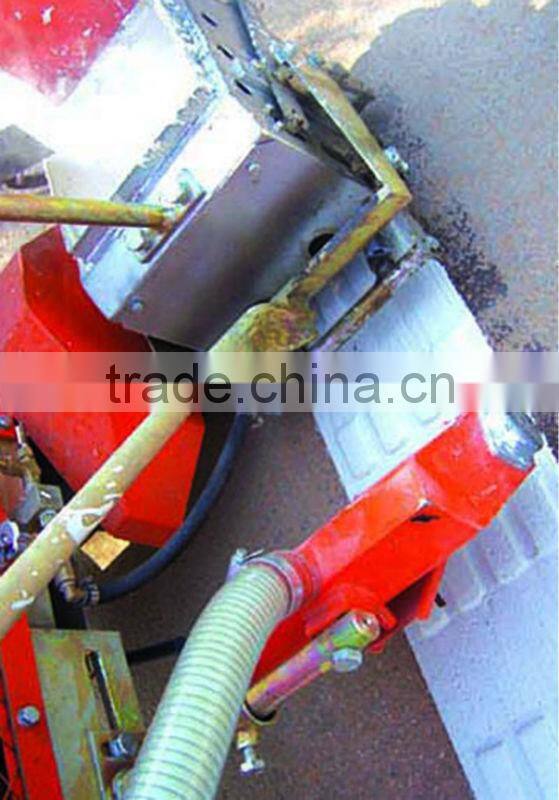

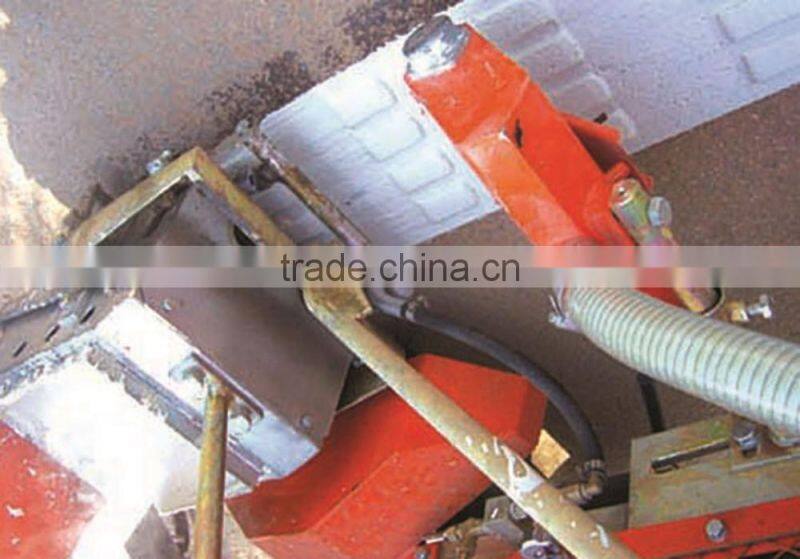

Height of projection | 3-5mm |
Width of marking | 150/200/300mm |
Dimension | 1360*900*1100mm |
Weight | 265kg |
Vibration road marking machine Recommended working place:
1. Express way: edge line of the express way, diversion line, decelerating line near the toll booth and turns in the road
2. City road: edge line of the city road, double yellow line, cross road, sharp turn, entrance and exit of ramp, decelerating line in front of the gates of schools, enterprises and institutions.
3. National roads, provincial and country roads: continuous declivity slope section, sharp turn preparation section, decelerating line before divaricating road, edge line and single yellow line in all sections.
Vibration road marking machine Fixing features:
1. Compulsory deceleration: remind the driver to slow down in dangerous section such as turn and slopes.
2. Reminding by shakes: remind and warn the drivers who drive in fatigue or absent minded.
3. Mark driving safe with clearer visuality.
4. Anti-slippery: Magnify the friction with road and slow down the vehicle.
