GEC senior self-propelled Thermoplastic Vibration Road Marking Machine
Brief introduction:
GD senior self-propelled vibration road marking machine adopts the programmable microcomputer control technology from Siemens, through Omron’s sensor passes on the accurate signal to the Microcomputer, then through the computer give order to the pneumatic cylinder, then realize the prominent marking and primer marking at the same time for just once.
It also equipped with stepless speed changing system, it greatly promotes the construction efficiency and makes the marking accurately fit the shape height and space; Pneumatic cylinder from Comazzi and electronic valve ensure the long time working in high temperature. The equipment has simple operation and high efficiency etc.
Features:
1. computer motherboards (SIEMENS Germany)
2. show controller (SIEMENS Germany)
3. main driving box of hydraulic movement (EATON USA)
4. gasoline (HONDA Japan)
5. pneumatic engine (Italy)
6. electronic valve (Italy)
7. rotary encoder (Japan)
8. The wheels adopted pure rubber materials
Technical parameter:
Coat capacity | 120kg (60L) |
Glass bead capacity | 10kg |
Engine | Honda liquid engine, OHV4 stoke |
Engine power | 163cc, 5.5hp |
Fuel | Gasoline or liquid gas |
Walk drive mode | Automatic oil and infinitely variable speed |
Walk speed | ≥400m/h |
Max. Gradeability degree | 15° |
Height of projection | 3-5mm |
Width of marking | 150/200/300mm |
Dimension | 1360*900*1100mm |
Weight | 265kg |
Recommended working place:
1. Express way: edge line of the express way, diversion line, decelerating line near the toll booth and turns in the road.
2. City road: edge line of the city road, double yellow line, cross road, sharp turn, entrance and exit of ramp, decelerating
line in front of the gates of schools, enterprises and institutions.
3. National roads, provincial and country roads: continuous declivity slope section, sharp turn preparation section, decelerating
line before divaricating road, edge line and single yellow line in all sections.
Vibration road marking machine Fixing features:
1. Compulsory deceleration: remind the driver to slow down in dangerous section such as turn and slopes.
2. Reminding by shakes: remind and warn the drivers who drive in fatigue or absent minded.
3. Glistening in rainy days: Mark driving safe with clearer visuality.
4. Anti-slippery: Magnify the friction with road and slow down the vehicle.
Pictures:

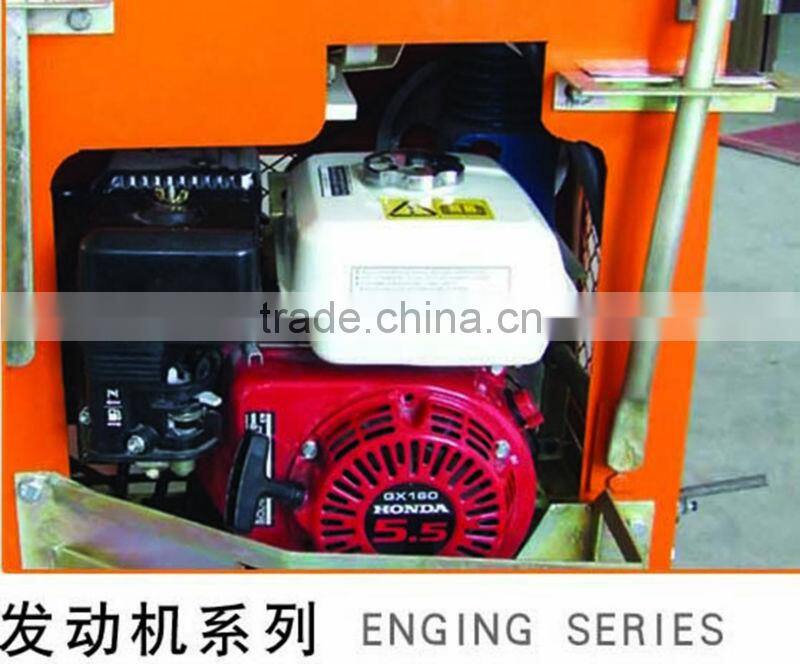

Detailed and spare parts:

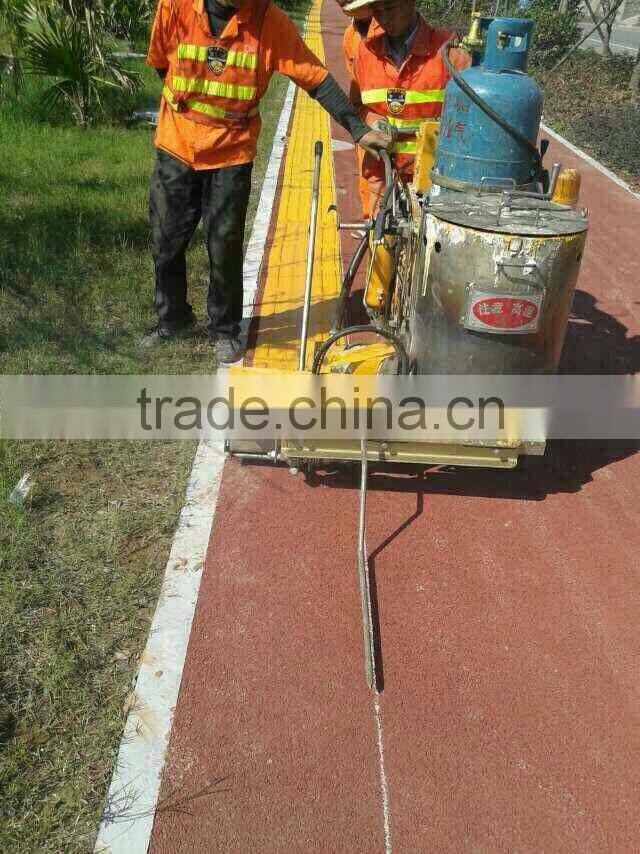

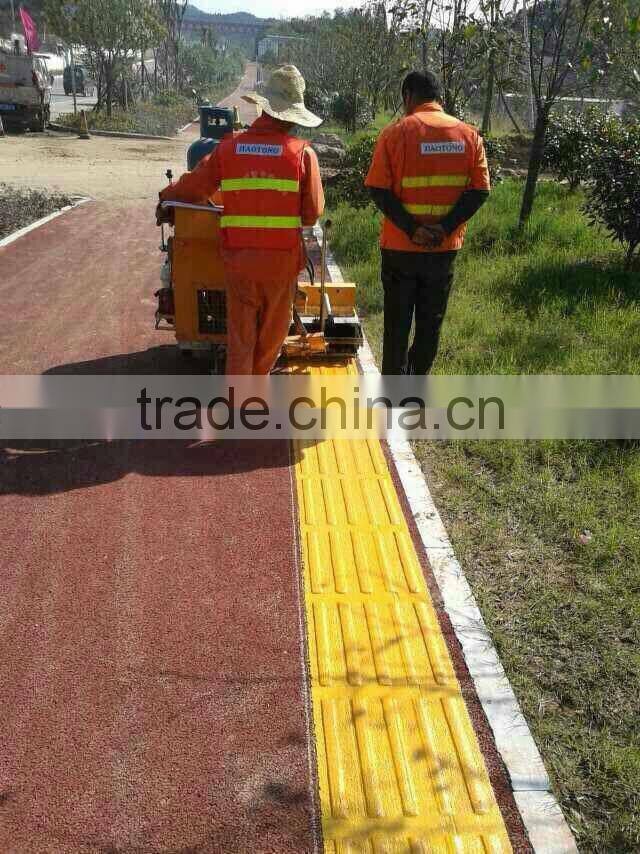

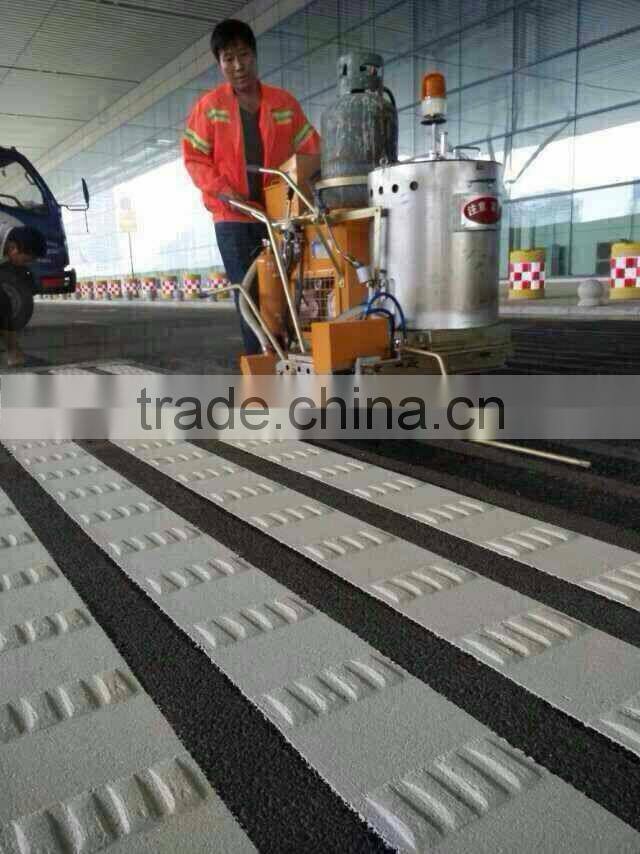

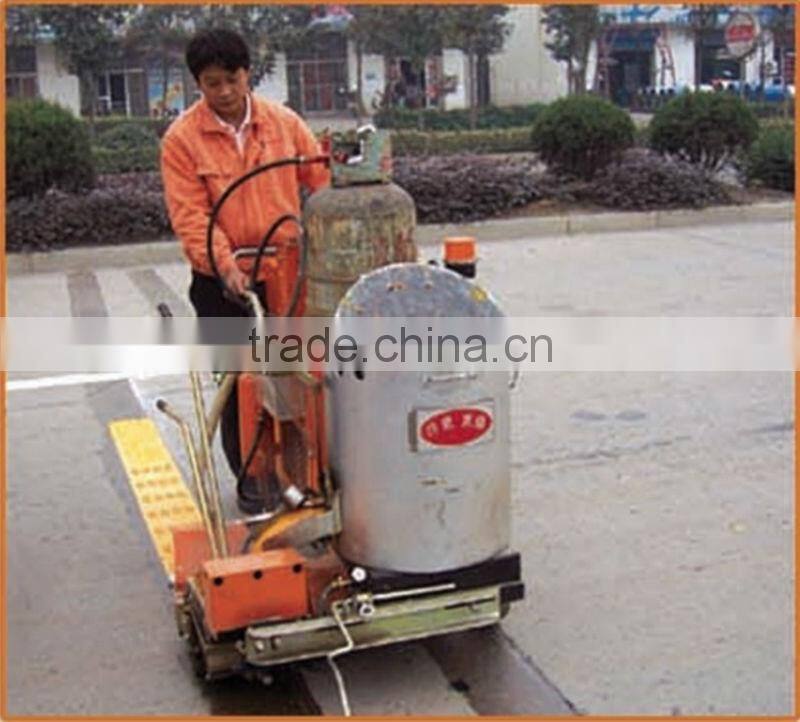

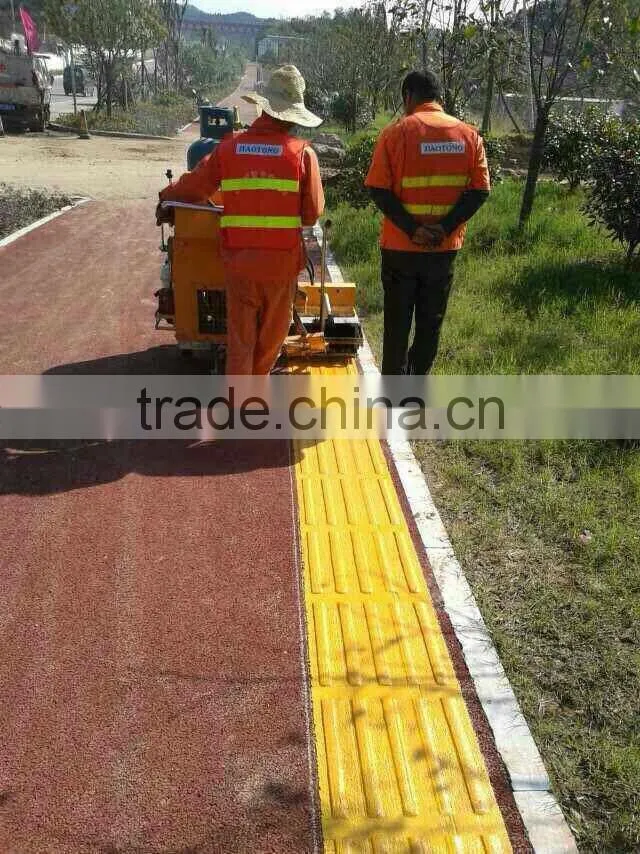

Working performance:

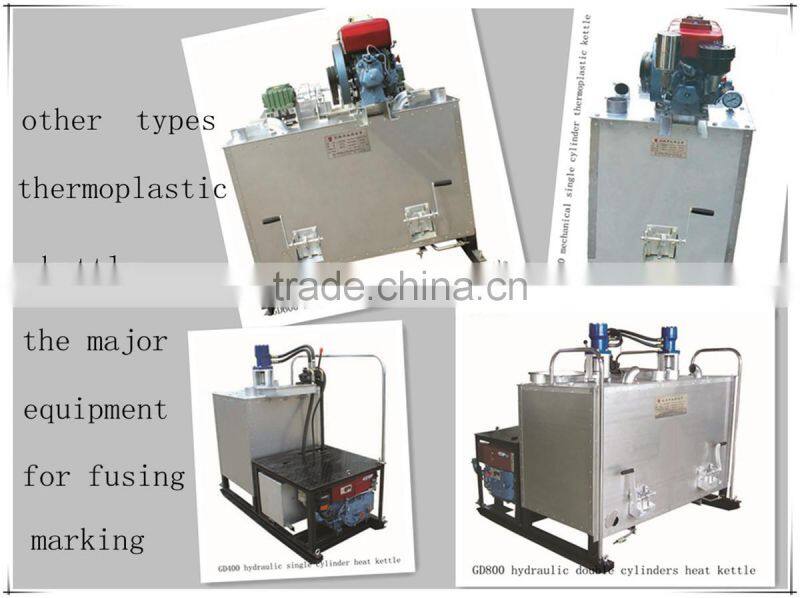

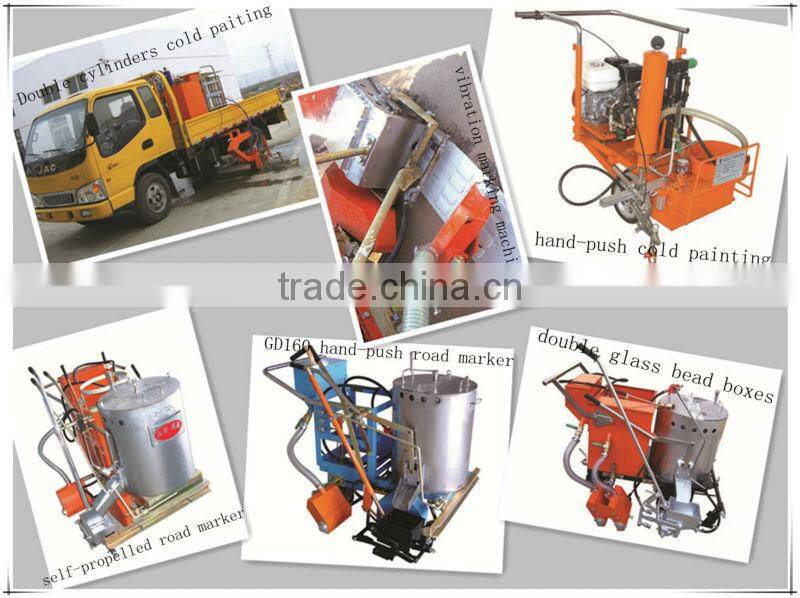

Other related products:
Working room:
Delivery goods:
We also can offer special certification
We also can accord your demands design the road marking machines, please feel free to contact kevin lu. Skype: zhenhuazgz328
