China Manufacturer Professional Plaster Shotcrete Pump With Hydraulic Motor And Gearbox
- Shanghai Qingdao or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
GPS7/8-15E Convey Spray And Grout Small Concrete Hydraulic Mortar Pump
-
GMP50/40 Electric or Diesel Mortar Spray Pump Plastering Machines
-
ISO Supplier GMP40/10-H Hose Peristaltic Mortar Plastering Pump
-
China Made Electric Piston Cement Mortar Plastering Machine for Wall
-
GDS1500 Wall Spray Cement Hydraulic Plastering Machine
-
GMP50/40 Steady Performance Cement Mortar Spray Machine
Product Details
| Condition | New | Max. Conveying Distance | 30m(vertical); 80m(horizontal) | |
| Max Aggregate Size | 10 mm | Hose Inner Diameter | 50 mm | |
| Air Consumption | 6m3/min, 0.6MPa | Place of Origin | Henan, China | |
| Brand Name | GEC | Model Number | GDS2000G | |
| Voltage | 3 phase, 380v,50HZ | Power(W) | 20hp | |
| Dimension(L*W*H) | 2350*1250*1450mm | Weight | 900kg | |
| Certification | ISO,CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Choose GEC,choose high quality!
China manufacturer professional plaster shotcrete pump with hydraulic motor and gearbox
Description

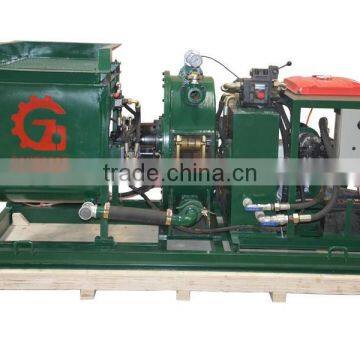

The GDS2000G is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.
Features
1. Highly-reliable direct drive planetary gearbox
2. Infinite speed variation
3. Specially hopper/ agitator stir design

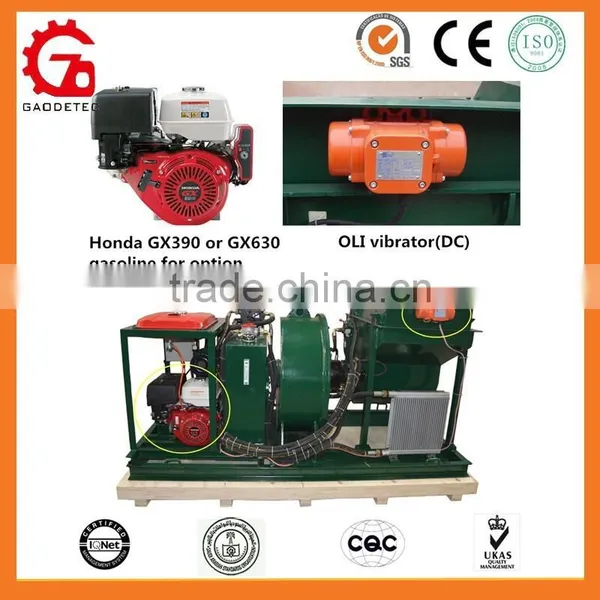

4. Honda GX390 and GX630 gasoline engine for option
5. Easily operating on site work
6. Standard spare part supply
Datasheet
Item | Description |
Working Pressure | 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output | 6-8m3/h |
Max. Aggregate | 10mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 50mm |
Squeeze pump | GH50-680 |
Power | Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure) |
Hopper volume: | 240 Liter |
Hopper rated rev. | 76r/min |
Oil tank | 130 Liter |
Requested air compressor | 6m3/min, 0.6Mpa Pressure |
Vertical Conveying Distance | 15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance | 40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Weight | 900kg |
Overall Dimension | 2350x1250x1450mm |
Note: the diesel engine or Electric motor is for optional.
List of parts in a complete of GDS2000 shotcrete pump:
No. | Description | Qty. | Unit | Remarks | |
1 | GDS2000 main machine | 1 | set |
| |
2 | conveying hose, ID50, L10m | 1 | pcs |
| |
3 | reducer 2'/1.5' | 1 | pcs |
| |
4 | 2’’ or 1.5’’shotcrete nozzle assy. | 1 | set |
| |
5 | 2’’ or 1.5’’ nozzle tip | 1 | pcs |
| |
6 | clamp | 2 | sets | One set ( one 1.5’’, one 2’’) | |
7 | clean ball | 2 | pcs | One set ( one 1.5’’, one 2’’) | |
8 | accessories | 1 | set | ||
Details of GDS2000G Shotcrete Machine
Hopper/ agitator stir design
Accessories:
Squeeze hose/tube, Trelleborg hose and Chinese hose for option
- For pumping/grouting/spraying mortar/plaster
- For pumping cellular light weight concrete
- For pumping of wet normal concrete, acceptable max. aggregate size is 10mm
Export Packing
Certification of our company:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
GDS1500E (electric engine driven)
GDS1500D (diesel engine driven)
GDS1500G (gasoline engine driven)
GPS-7(Electric Drive Output 7m3/h Dry and Wet Shotcrete Machine)
GPS-15 concrete conveying pump
