GMP50/40 electric or diesel mortar spray pump plastering machines
- 10000 Set / Sets per Month
- Qingdao Shanghai or Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ISO supplier GMP40/10-H hose peristaltic mortar plastering pump
-
China made electric piston cement mortar plastering machine for wall
-
GDS1500 wall spray cement hydraulic plastering machine
-
GMP50/40 steady performance cement mortar spray machine
-
Chinese manufacture small portable electric cement pump for wall
-
Continuous spray flow GMP40/10-H hose peristaltic mortar spraying pump
Product Details
| Condition | New | Application | mortar spray machine | |
| Place of Origin | Henan, China | Brand Name | GEC | |
| Model Number | GMP50/40 | Dimension(L*W*H) | 1715x1024x900mm | |
| Weight | 450kg | Certification | ISO CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

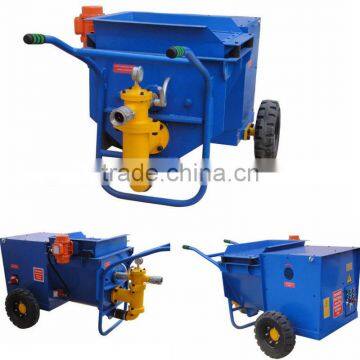

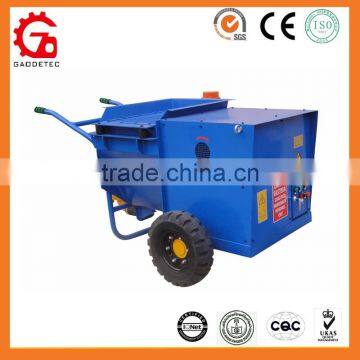

GMP50/40 electric or diesel mortar spray pump plastering machines
GMP50/40 electric or diesel mortar spray pump plastering machines is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this machine is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water). And it is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.
Electric drive:
GMP50/40 electric or diesel mortar spray pump plastering machines features:
Single piston with single-acting.
Ball valve
Mechanical transmission
Integrate pump head and hopper
Prevent eduction and deposition together with the paddle agitating
GMP50/40 electric or diesel mortar spray pump plastering machines Technical data:
Rated Output | 50L/min |
Rated Pressure | 4MPa(40bar/580PSI) |
Cylinder Dia. | 90mm |
Piston Stroke | 85mm |
Stroke/Minute | 95/min |
Inlet diameter | 75mm |
Outlet diameter | 50mm |
Max. Aggregate size | 5mm |
Water cement ratio | 1: 3 |
Power unit | 5.5KW(Electric), 10hp(Diesel) |
10hp(Diesel)Chassis | Skid or Tyre |
Weight | 450kg |
Overall Dimensions | 1715x1024x900(mm) |

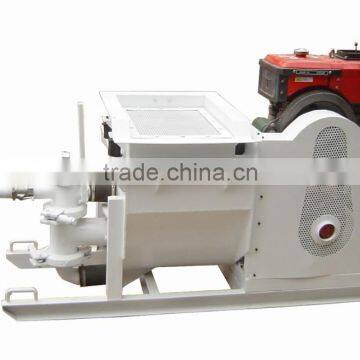

Diesel engine GMP50/40 electric or diesel mortar spray pump plastering machines
Other electric or diesel mortar spray pump plastering machines :
GMP40/10-H :
GDS1500:
GDS2000:
GPS7/8-15E:
GMP50/40 electric or diesel mortar spray pump plastering machines Package:
GMP50/40 electric or diesel mortar spray pump plastering machines Application:
Workshop:
Customers:
Certificate:
If have any interests, just send us inquiry for more details!
