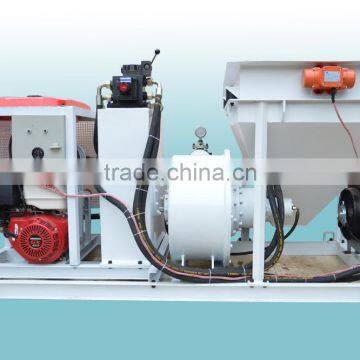

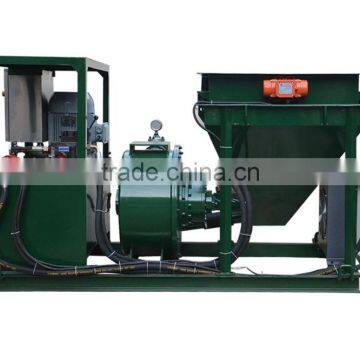

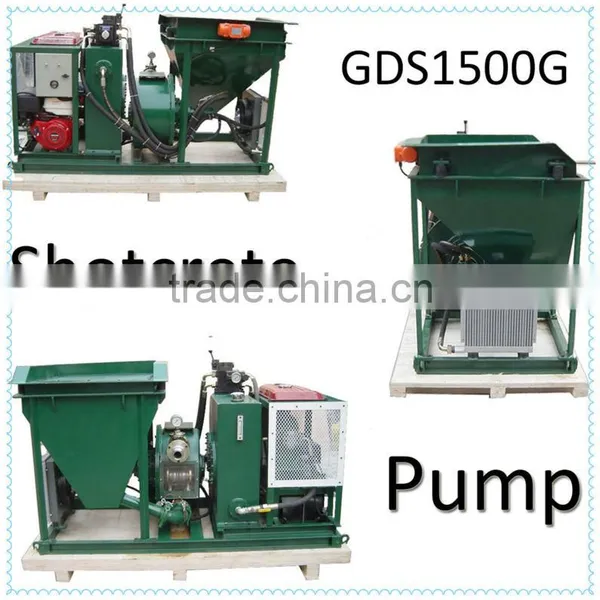

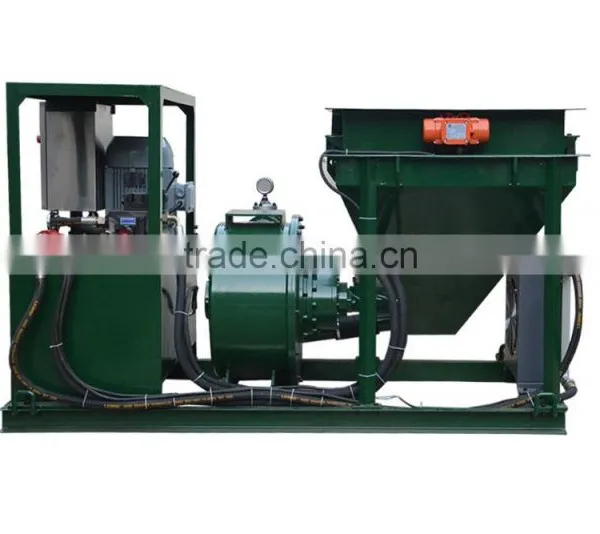

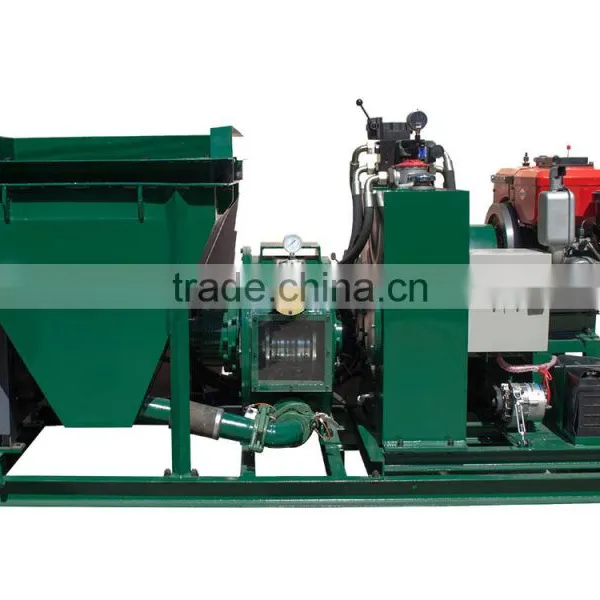

GDS1500 wall spray cement hydraulic plastering machine
1. GDS1500 wall spray cement hydraulic plastering machine Description
The GDS1500 wall spray cement hydraulic plastering machine is a gasoline-powered lightweight small shotcrete pump run by a highly-reliable direct drive planetary gearbox
and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

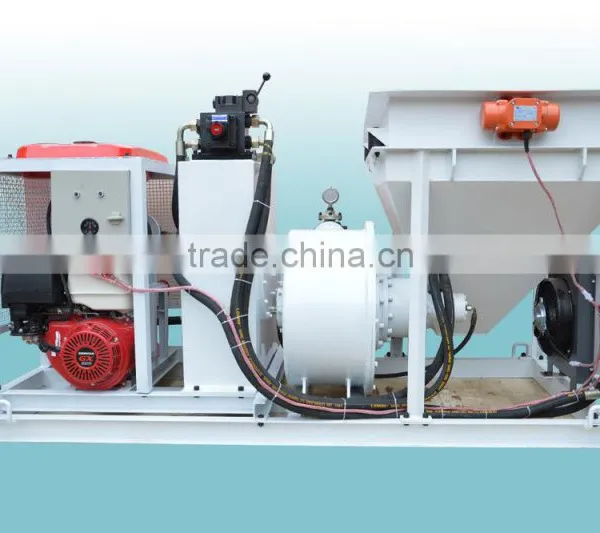

The GDS1500 wall spray cement hydraulic plastering machine Direct Drive uses a Honda GX390 power pack, is skid mounted.
2. GDS1500 wall spray cement hydraulic plastering machine Feature description
1) highly-reliable direct drive planetary gearbox
2) infinite speed variation
3) Easily operating on site work
4) Standard spare part supply
5) Skid mounted, transportable on a trailer
6) Power , compact and reliable
3. GDS1500 wall spray cement hydraulic plastering machine Technical Data Sheet
Item | Description |
Pressure | 1.5 Mpa |
Output | 1.5-3m3/h |
Max. Aggregate | 8mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 38mm |
Squeeze pump | GH50-455 |
Power | Honda GX390 Gasoline engine |
Overall Dimension | 1900x850x1250mm |
Hopper volume: | 200 Liter |
Oil tank | 120 Liter |
Weight | 610kg |
Requested air compressor | 3m3/min, 0.5Mpa Pressure |

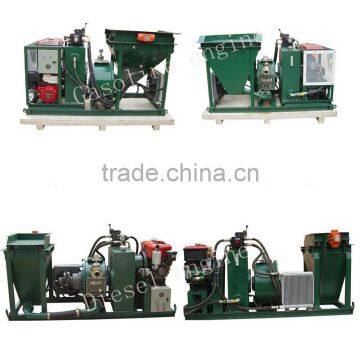

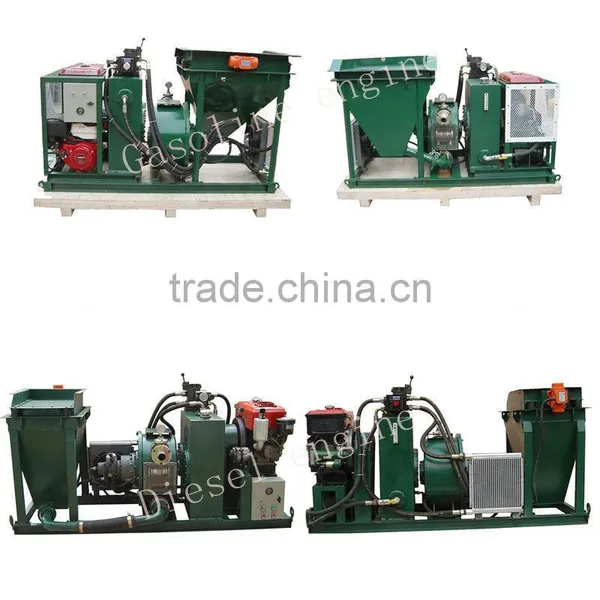

Note: the Diesel engine or Electric motor is optional.
Application :
1. Building dome, swimming pool etc. 2. Pump and spray normal concrete
3. Pump and spray mortar/ plaster 4. Pump and spray cellular light concrete

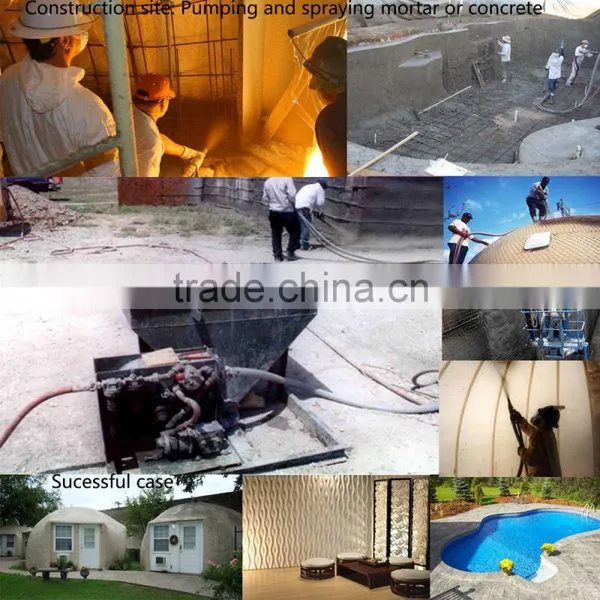

Applications Picture:
GMP50/40 wall spray cement plastering machine
GMP40/10-H wall spray cement plastering machine
Squeeze Peristaltic Hose Pump :
GDS1500 wall spray cement hydraulic plastering machine Package:
Workshop:
Customers:
Certificate:
