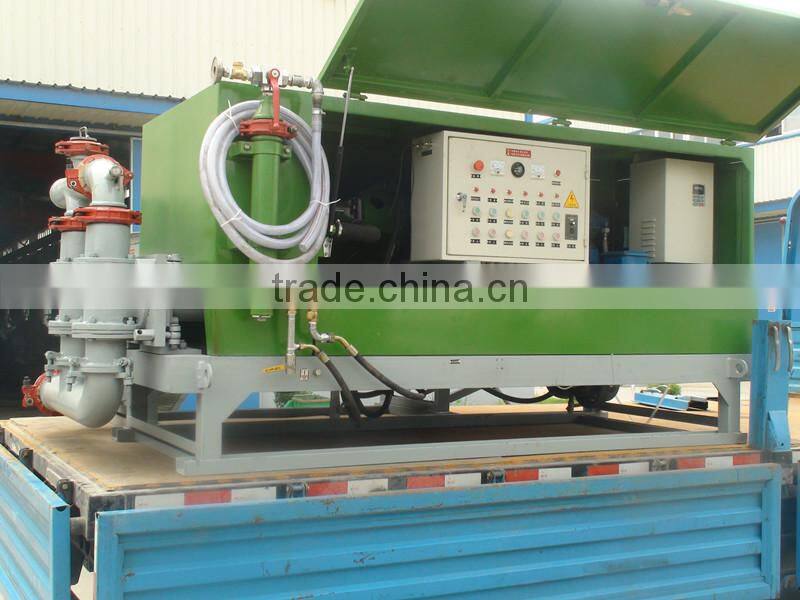

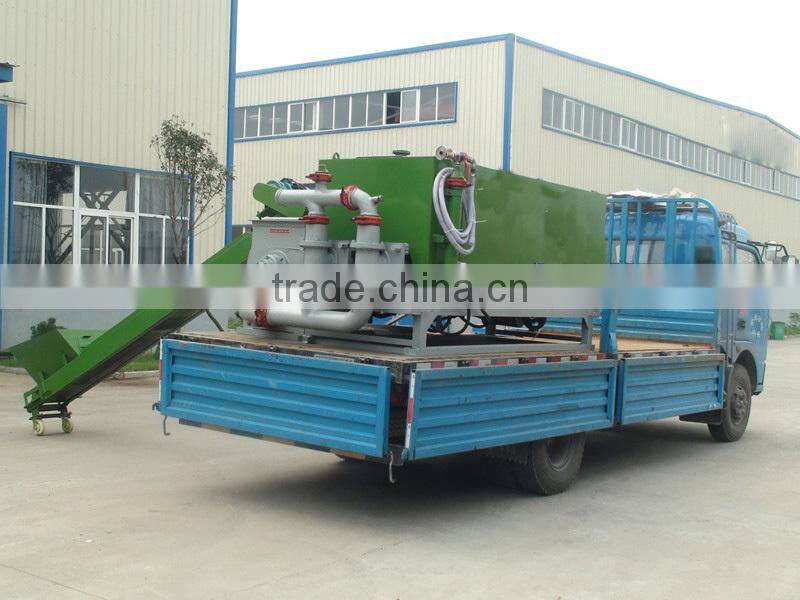

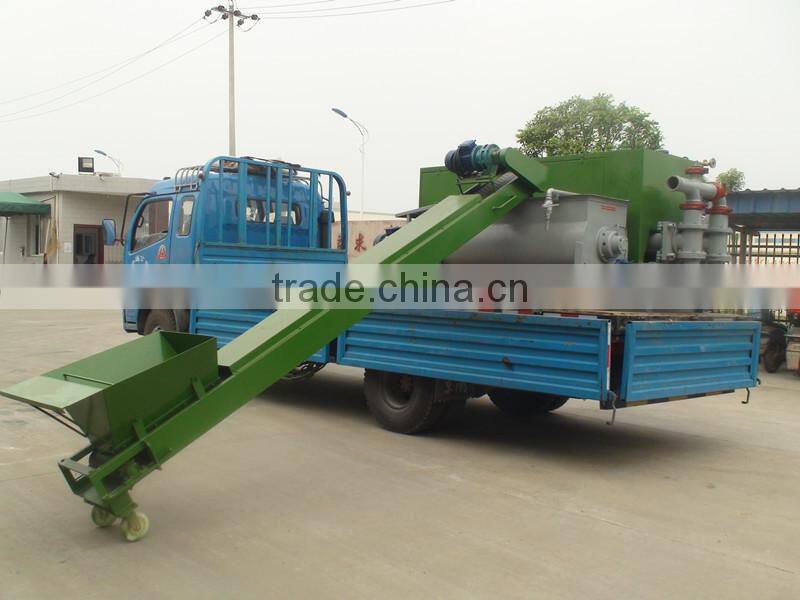

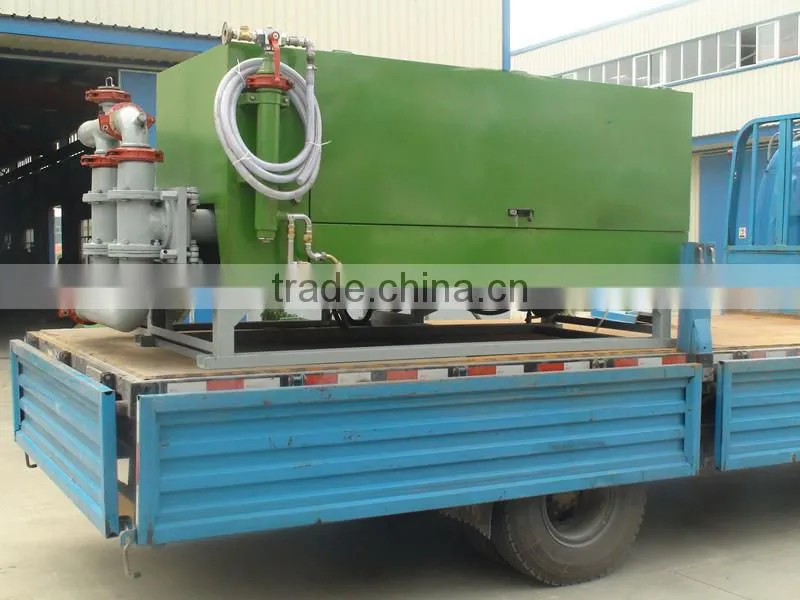

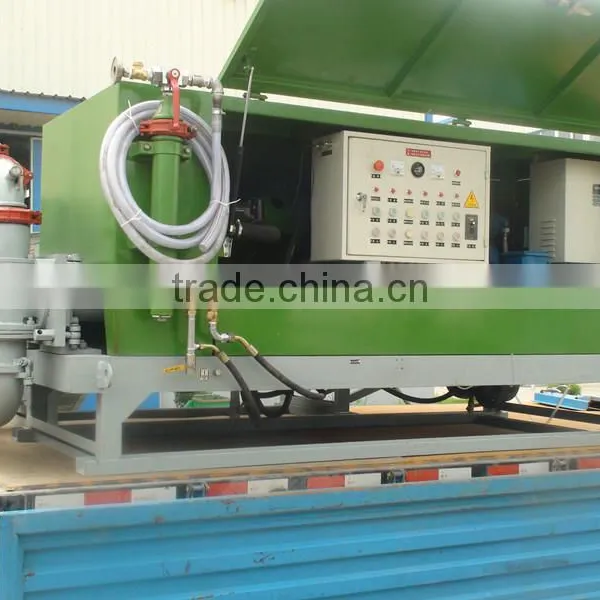

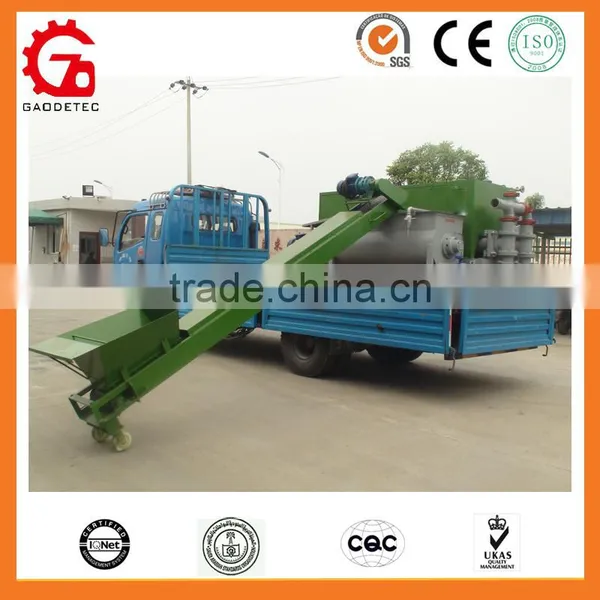

China professional henan supplier foam concrete machine for floor heating
Working principle:
GF35A foaming cement machine put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.
Features:
1. Adopting double cylinder hydraulic push mechanism to pump lightweight concrete, flux is stable, and wave is small.
2. Proportion of mixture is controlled automatically, so the density of lightweight concrete can be adjusted easily.
3. Adopting selected matching components, it also has reliable quality and good after-sales service.
4. We can also use good domestic foaming agent to reduce the construction cost.
5. With road wheel and universal wheel, the machine is flexible with moving and positioning.
6. Hydraulic system cooling use air cooling instead of water cooling, this make it more convenient as there’s no need to drain pipe.
7. Electrical appliance box is equipped with remote control handle; all functions can be operated by remote control handle.
8. It can be used in vehicle.
Technical data:
Model |
GF35A |
Max.Output |
35m3/h |
Max.Conveying Pressure |
4 MPa |
Max.Horizontal Transporting Range |
400 m |
Max. Vertical Transporting Height |
150 m |
Acceptable Max. Aggregates size |
8 mm |
Power |
34.5KW |
Dimension |
3800x1500x1500mm |
Weight |
1760kg |
Foam concrte pump:
Foam concrete mixer and feeder:
Foaming agent:
1. Applied for insulating layer in floor heating constructions:the surface will flow smooth naturally and is an essential advanced equipment for floor heating construction.
2. Applied for roof insulation constructions: the foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer.
3. Can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material.
4. Can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section.
5. Applied in freezing prevention and temperature maintenance of pipeline
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD49000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Squeeze type GF10 foam concrete machine:
GM2000 foam concrete mixer and GH76 foam concrete pump:
GF25 foam concrete machine:
GM2000 foam concrete mixer and GP30 foam concrete pump:
GW30B wire cutting machine:
