Light weight for CLC blocks plant Concrete Foam Machine
Introduction:
Light concrete foam machine is specially designed for Cellular light weight concrete, it force raw materials to mix fast and homogenously by the strong circular motion and impact.
An ideal Mixer for Cellular light weight concrete Due to its high automation, compact structure, reliable performance, easy operation, convenient maintenance etc.
Raw Material:
Cement+Flyash or Fine sand, Stone dust...+Foaming agent+water.
The application of foam concrete:
1. Make lightweight foam concrete blocks;
2. Precast wall panels;
3. Cast wall in construction site;
4. Roofing insulation and flooring insulation;
5. Gap filling;
6. Road base;
7. Leveling...

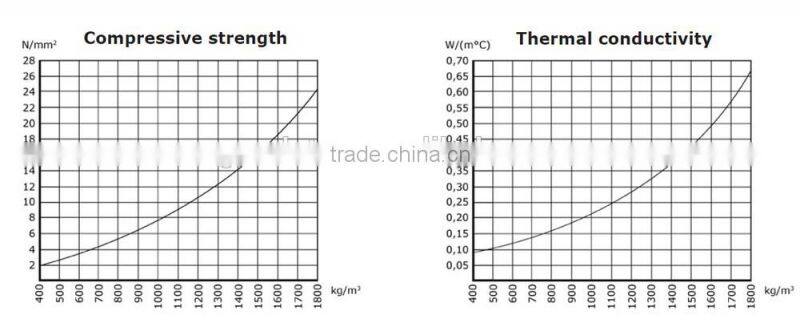

Foam concrete features:
Type of foam concrete |
Sort of foam concrete according to average density |
Non-autoclave foam concrete | |
| 28 day compressive strength | Thermal Conductivity | ||
| MPa** | W/mk | ||
| Heat-insulated | D400 | 1 | 0.1 |
| D500 | 1.4 | 0.12 | |
| Constructional-heat-insulated | D600 | 3.5 | 0.14 |
| D700 | 5 | 0.18 | |
| D800 | 7 | 0.21 | |
| D1000 | 10 | 0.24 | |
| Constructional | D1100 | 14 | 0.34 |
| D1200 | 17 |
0.38 |
|
Foam concrete in comparison with other materials:
Material |
Density, kg/m3 | Thermal Conductivity |
| W/mk | ||
| Marble | 2700 | 2.9 |
| Concrete | 2400 | 1.3 |
| Porous clay brick | 2000 | 0.8 |
| Foam concrete | 1200 | 0.38 |
| Foam concrete | 1000 | 0.23 |
| Foam concrete | 800 | 0.18 |
| Foam concrete | 600 | 0.14 |
| Foam concrete | 400 | 0.1 |
| Cork | 100 | 0.03 |
| Silicate cotton | 100 | 0.032 |
| Foamed polystyrene | 25 | 0.03 |
| Foamed polystyrene | 35 |
0.022 |
Foam concrete machine production line:

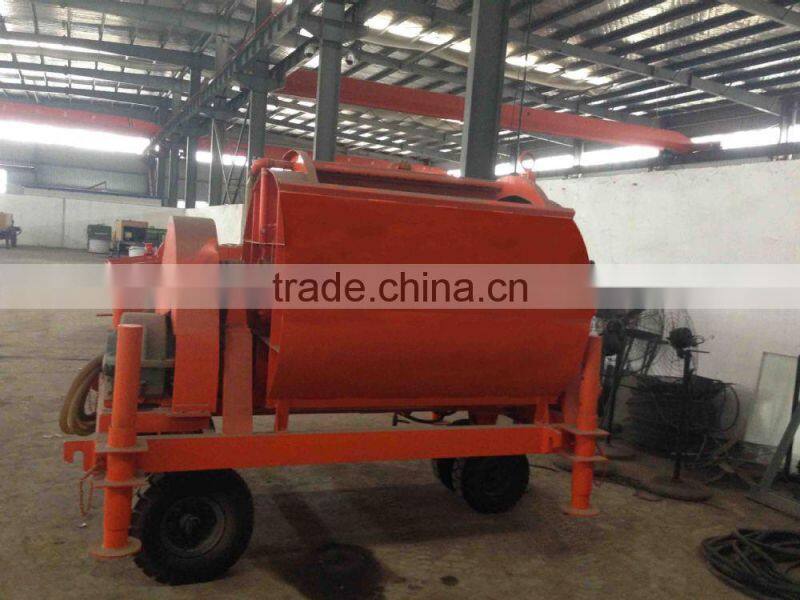

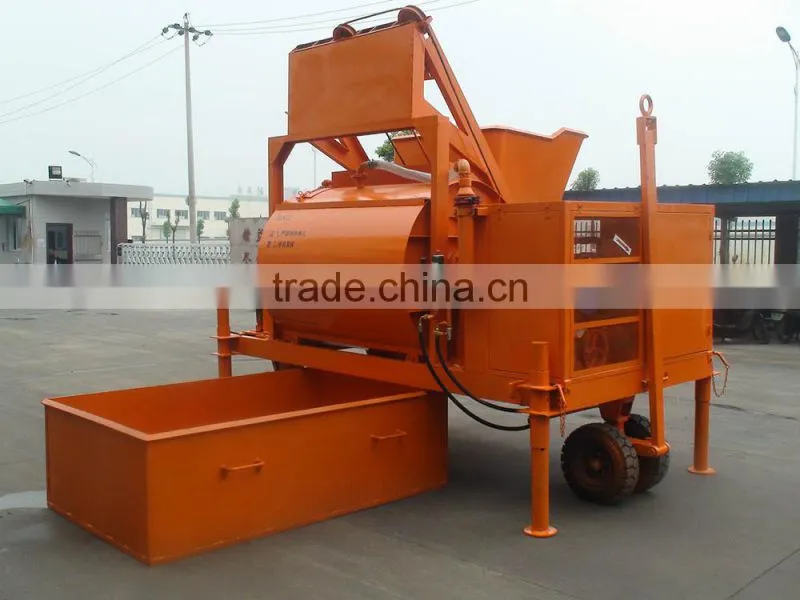

1. Foam concrete mixer GM2000:
GM2000 Concrete Foam mixer technology data :
| Model | GM2000 |
| Production Capacity | 15-20 m3/h |
| Output Volume | 1500 L |
| Material Input Volume | 2000 L |
| Main Shaft Revolution | 32 r/min |
| Hopper Lifting speed | 22 m/min |
| Mixing Motor | 11 kW |
| Winding Motor | 5.5 kW |
| Water Pump Motor | 1.1 kW |
| Vibrating Motor | 0.55 kW |
| Foaming System | 5.5 kW |
| Max. Moving Speed | 15 km/h |
| Total Weight | 3200 kg |
| Overall Dimension | 2600x2250x3000 mm |

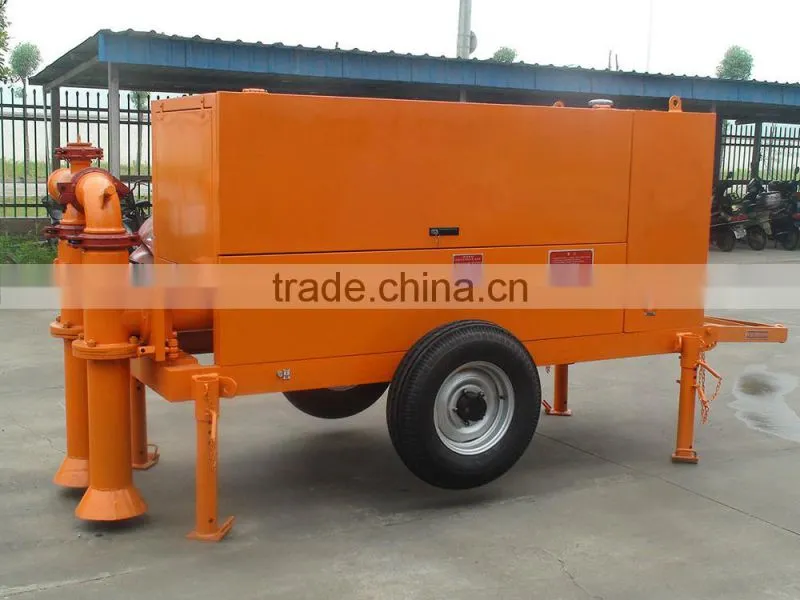

2.GP30 Foam concrete pump :
| Model | GP30 |
| Max.Output | 30 m^3/h |
| Max.Conveying Pressure | 8Mpa |
| Max.Horizontal Transporting Range | 600m |
| Max.Vertical Transporting Height | 200m |
| Max.Partice Size of Aggregates | 8mm |
| Cylinder Bore | 80mm |
| Delivery Cylinder Bore | 140mm |
| Max.Pressure of Hydraulic System | 24Mpa |
| Oil Pressure Box Volume | 200L |
| Motor Power | 30kw |
| Total Weight | 2200kg |
| Overall Dimension | 3100*920*1300mm |
| Dimension(mm) | 3900*1350*1450 |
| Overall weight(kg) | 1950 |
3.Foam concrete wire cutting machine :
Working flow of foam concrete and foam concrete block:
The brick made by our Manual Brick Making Machine :
Light in Weight : foam concrete are very lightweight with density ranging from 300 to 1600 Kg/m3. Three times less weight then clay or fly ash brocks.
Eco friendly : foam concrete are Environment-friendly. Foam concrete is eco- friendly material as fly ash and other industrial waste material are used in part of manufacturing blocks to protect the environment. The production process of foam concrete or its use does not release any harmful effluents to ground, water or air. Foam concrete, due to its low weight is ideal for making partitions. The use of foam concrete for this purpose will reduce the need for plywood partitions. This consequently will result in reduction in deforestation and will benefit environment.
Sound Insulation : Foam concrete are excellent for Sound insulation which keeps the house cool in Summer and warm in Winter saving energy/electricity for cooling and heating. It is possible to achieve even higher values depending upon the thickness of block.
Thermal Insulation : Thermal insulations as a 100mm thick foam concrete wall, the equivalent thickness of dense concrete wall would have to be more than 5 times thicker and ten times heavier.
Lower Water Absorption : The water absorption of this material in relatively lower than any other materials. This compares much better than concrete 50% and ordinary brick, which has water absorption of around 50% to 80%. The low water absorption property of these blocks will help to reduce the cracks in the walls.
Fire Protection : Foam concrete offers grate fire protection. With a just 100mm thickness of wall with density of 1000 kg/m3, offers fire endurance for heat transmission for 4 hours without releasing any oxic fumes during the fire. Fire rating of cellular concrete is far superior to that of brickwork or dense concrete.
Easy to Handling : Foam concrete blocks are easy and quick to install, thus minimizing construction costs. They require no minimal maintenance, which reduces long- term costs. Foam concrete blocks are saving in cement, sand, water, labour, energy and time.
Our factory:
Packaging:
Concrete Foam Machine contains a concrete mixer (2600*2250*3000mm ,Net weight 3200kg) and a concrete pump (3900*1350*1450mm ,Net weight 1950kg) .It usually shipped by a 40'' container .
Delivery:
