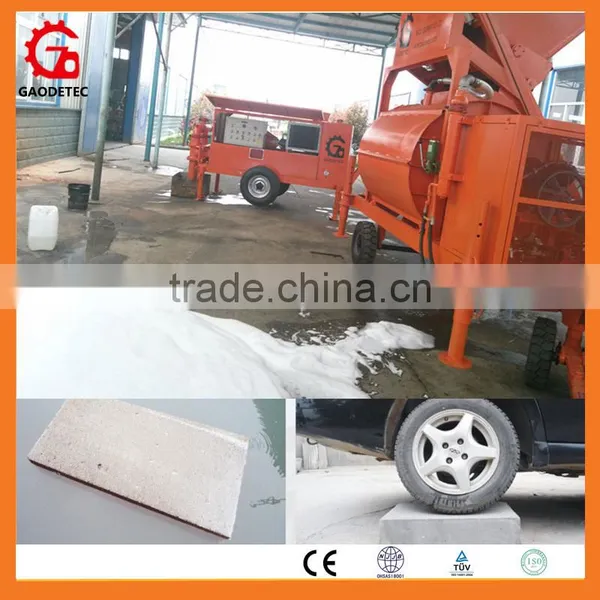

Top quality advanced lightweight concrete wall panel forming machine
- 10000 Set / Sets per Month
- Shanghai Qingdao or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Other, for cast-in-situ conrete wall | Brick Raw Material: | Concrete |
Processing: | Other, cast-in-situ conrete wall | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 30m3/time | Place of Origin: | Henan, China | Brand Name: | GEC |
Model Number: | GM2000&GP30 | Voltage: | 380V, or as your requirements | Power: | 22.75kw |
Dimension(L*W*H): | 2600*2250*3000mm | Certification: | ISO9001&CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Top quality advanced lightweight concrete wall panel forming machine
Choose GEC, Choose high quality
Model: GM2000&GP30
New building material foam concrete block featurs:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
Formula for the production of foam blocks in china:
Working Principle:
Cement foam machine put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.
Wording Video:
Main parts and technical data:

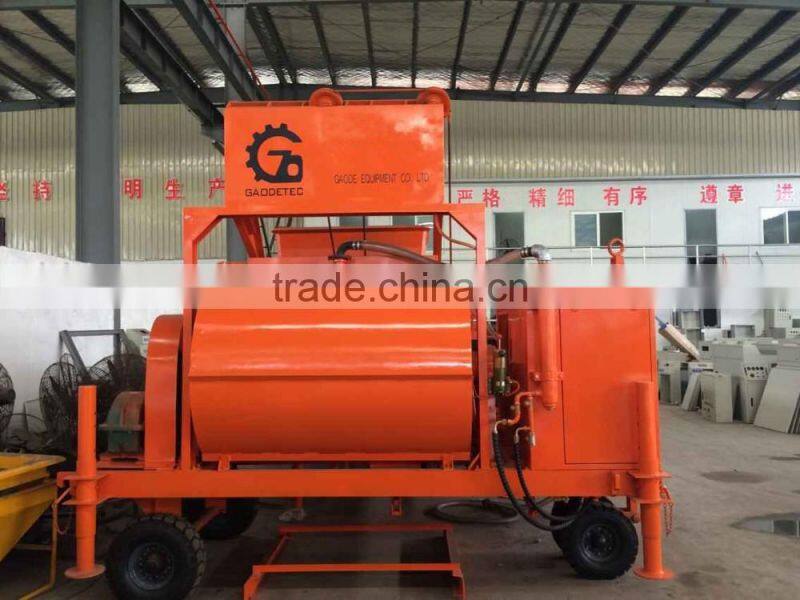

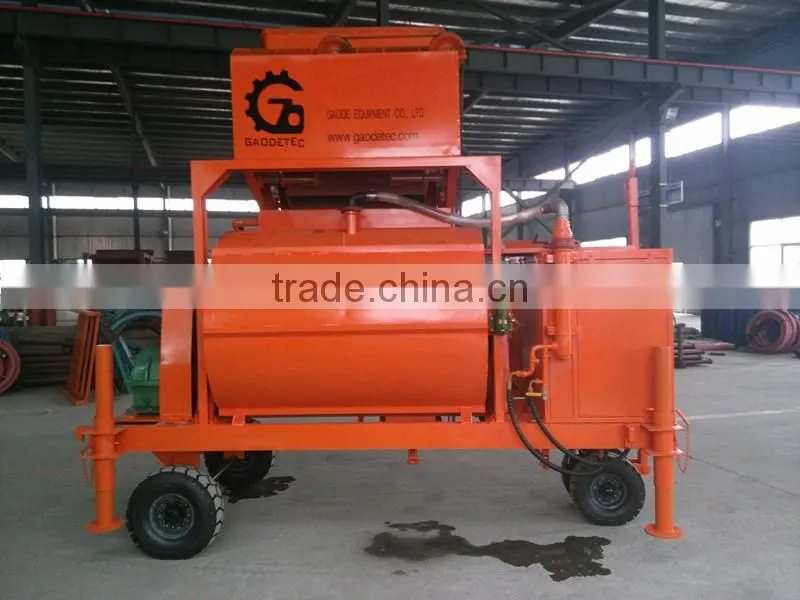

GM2000 concrete mixing machine:
Features:
1. The foam blending fast, blowing foam uniformly.
2. Without suspended matter, without the declining, it’s good for steady pouring.
3. Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability density.
4. No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.
5. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
6. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.
Technical data:
Model | GM2000 |
Production Capacity | 15-20 m3/h |
Effective tank Volume | 1500 L |
Mixer tank Volume | 2000 L |
Main Shaft Revolution | 32 r/min |
Hopper Lifting speed | 22 m/min |
Mixing Motor | 11 kW |
Winding Motor | 5.5 kW |
Water Pump Motor | 1.1 kW |
Vibrating Motor | 0.55 kW |
Foaming System | 5.5 kW |
Max. Moving Speed | 15 km/h |
Total Weight | 3200 kg |
Overall Dimension | 2600x2250x3000 mm |

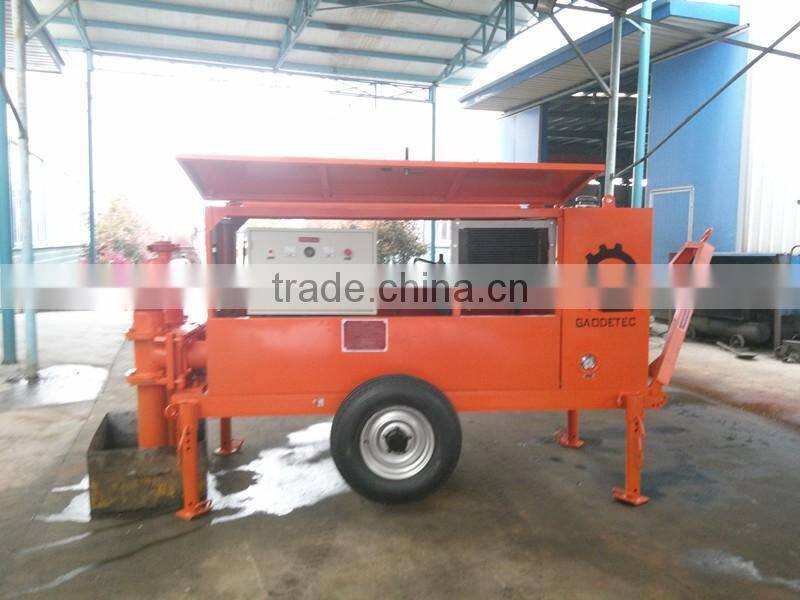

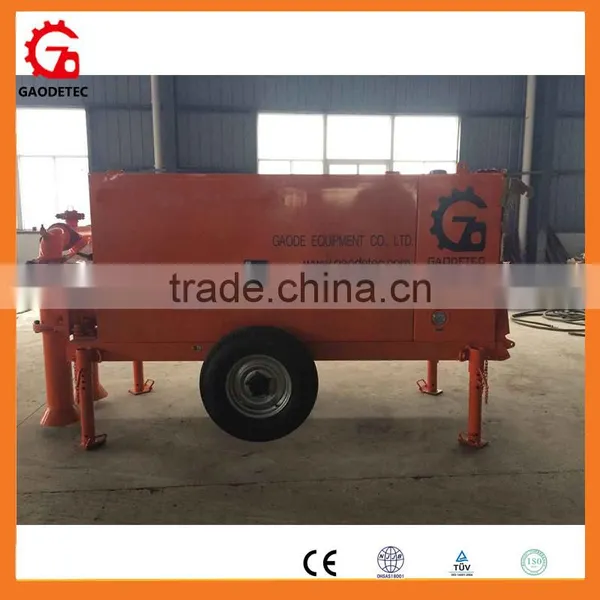

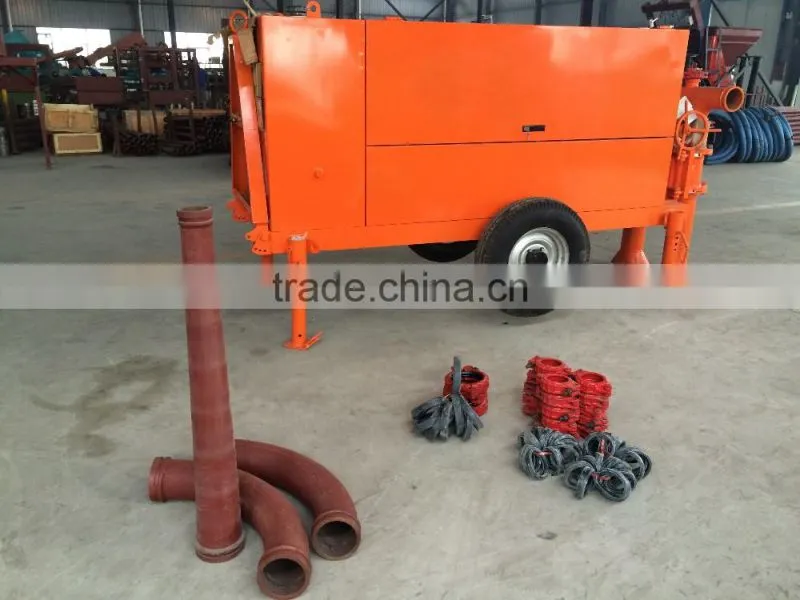

GP30 concrete pump :
Technical data:
Model | GP30 |
Max. Output | 30 m3/h |
Max. Conveying Pressure | 8 MPa |
Max. Horizontal Transporting Range | 600 m |
Max. Vertical Transporting Height | 200 m |
Max. Particle Size of Aggregates | 8 mm |
Cylinder Bore | 80 mm |
Delivery Cylinder Bore | 140 mm |
Max. Pressure of Hydraulic System | 24 MPa |
Oil Pressure Box Volume | 200 L |
Motor Power | 30 kW |
Total Weight | 2200 kg |
Overall Dimension | 3100x920 x1300mm |

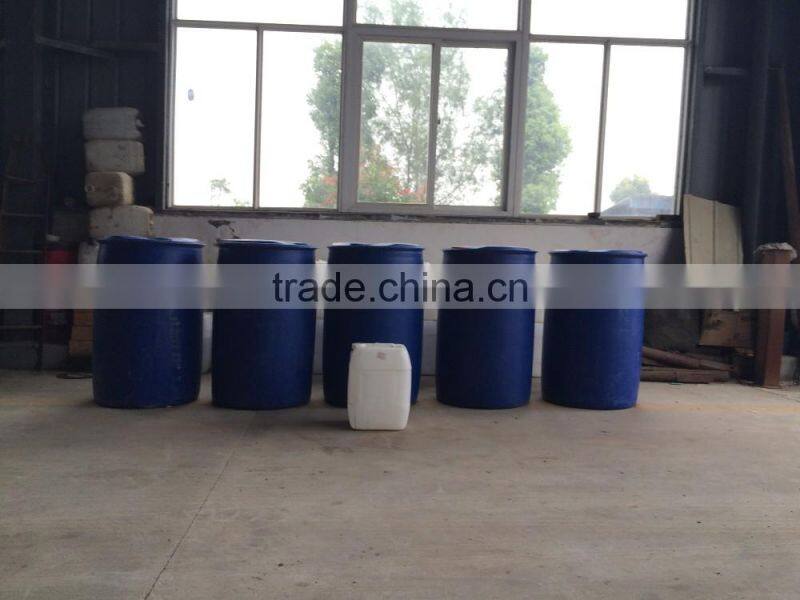

Foaming agent:
The foaming agent is a high-tech product, it has the characteristics as high expansion ratio, balanced density, foaming stability, and a long continuance, etc. Thus it is an environmental protective mighty foaming agent, which is nuisance-free and pollution-free.
Stencil/Formwork:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Note: The Foam concrete’s other application
- External wall thermal insulation
- Thermal insulation roofing
- Thermal flooring
- Upstandingbeam foundation ditches filling
- Sound insulation and fire protection walls
- Playground and track construction
- Sound insulation layer, tunnel lining filling
- Cellar, basement and arch filling
- Sewers and Drains filling
- Horizontal floor heightening
- Water tank and fuel tank building
- Platform filling and mending
- Garden and rockeries
- Foam concrete block
- Foamed concrete precasting ,hollow wallboard casting
We are professional manufacturer of foam concrete equipment in China, in order to recommend you more suitable machine, please help us clear about your requirement:

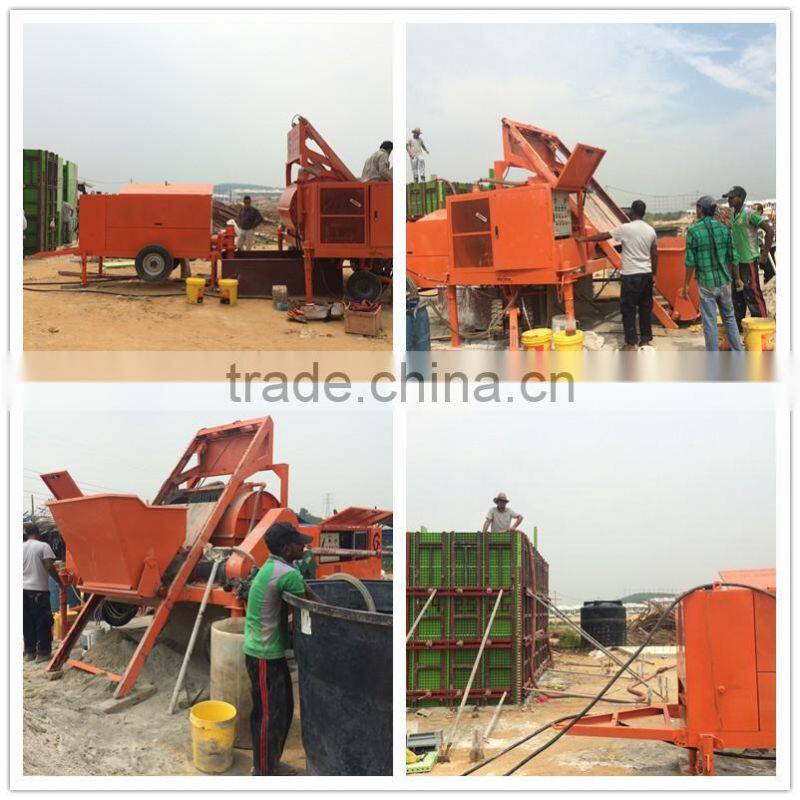

1. what is project will you do? for making foam concrete bricks, cast in situ walls, roof or floor insualtion?
2. what is production capacity do you want?
3. what is max.vertical and horizontal conveying distance?
4. what is your local voltage? in China, it is 3phase, 380V,50Hz.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
