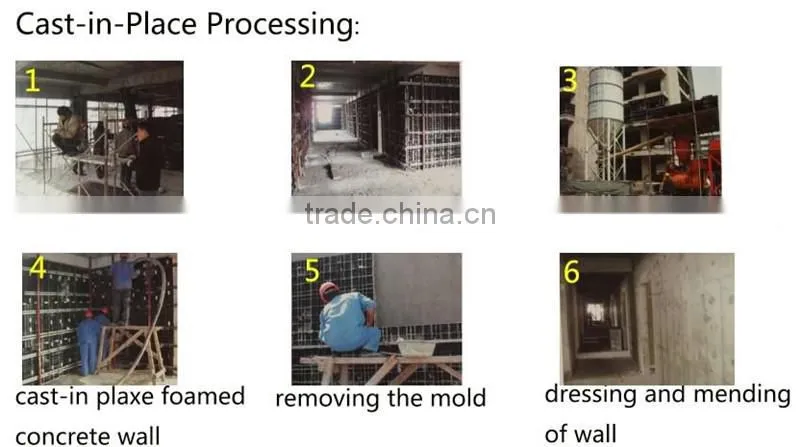

Good performance Foam Concrete Making Machine on cast-in-situ

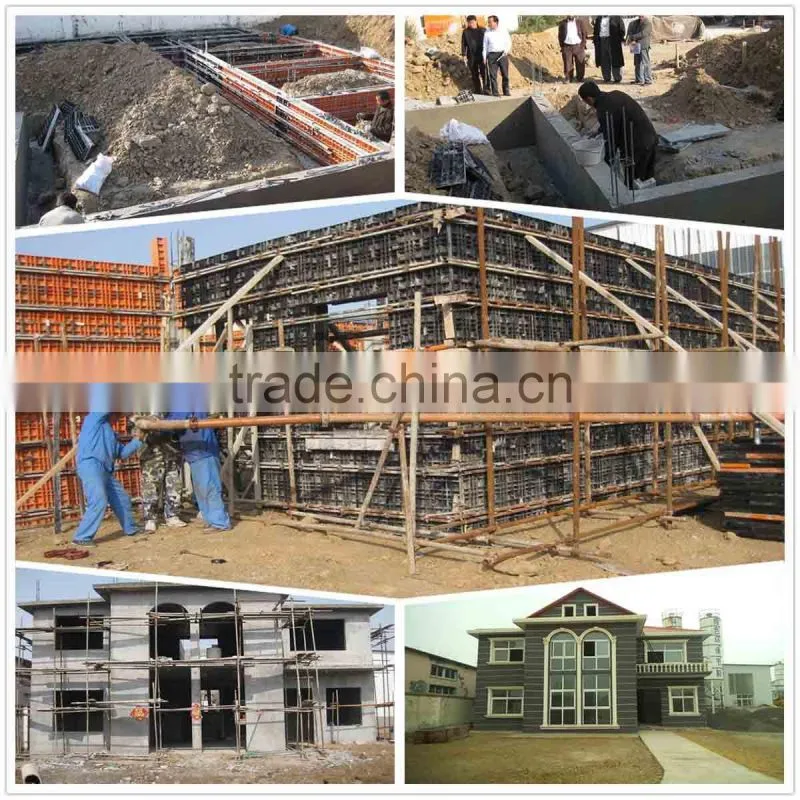

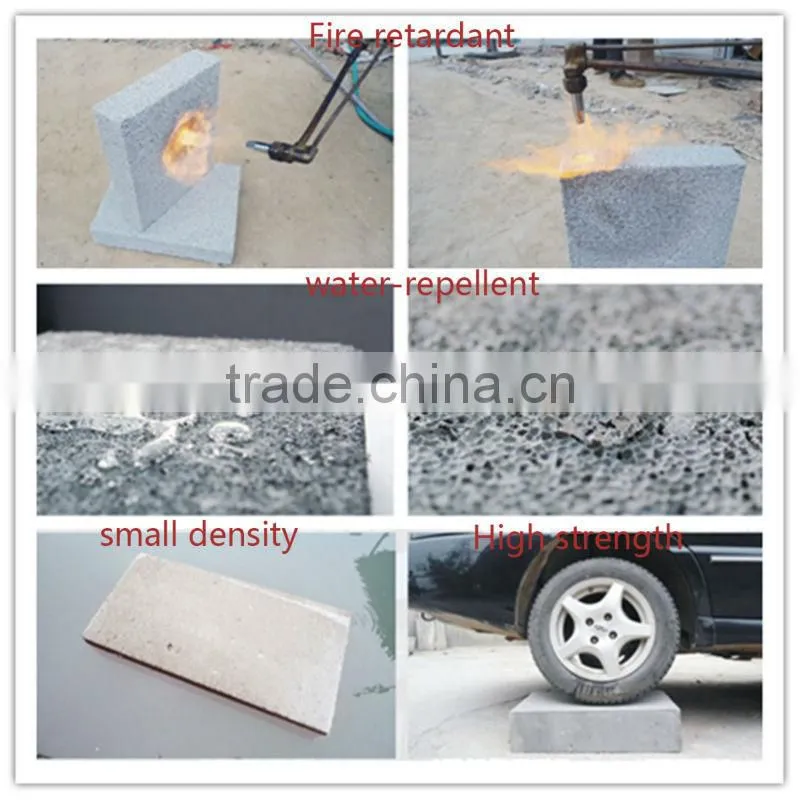

Features of casi-in-situ foamed concrete wall:
1. Lightweight: Dry bulk density 300 kg/m^3 -1500kg/m^3 , 1/8-1/2 as light as common concrete, imposing a minimum loading on the building, excellent in earthquake resistance.
2. High Compression Strength: compressive strength ranging from 0.6 MPa to 25 MPa, 4 times as traditional aerated concrete.
3. Thermal Insulation: Low thermal conductivity, good heat preservation and good thermal insulation.
4. Impermeability: Low water-intake rate and high impermeability.
5. Energy-saving: permanent measure of energy-saving, coming up to 65% of the requirement of the National Building Energy Saving specifications.
6. Labour-saving and Time-saving: Smooth and level in wall surface after solidification. The procedure of interior wall plastering can be omitted, direct roughening, paint filling, coating and wall bricking are practicable.
7. Close Associativity: The combination between cast-in-place and foundation architecture ensure fastness instead of generating common Faults of quality as hollowness, peeling, unevenness, collapse, crack, etc ., due to the main raw material of LP foamed concrete being cement .
8. Good Totality: one-off cast can well join such structures as cast cast-in-situfloor slab, mortar bed, column and beam bottom, etc.. Without producing cracks and interruptions.
9. High Durability: LP foamed concrete cast-in-situ of walls ensures the same warranty as the main construction .
10. Comprehensive Low Cost: LP foamed concrete proves the advantages of comprehensive low cost and high rate of progress compared with clay bricks, baking-free bricks and steaming-free aerated concrete blocks.

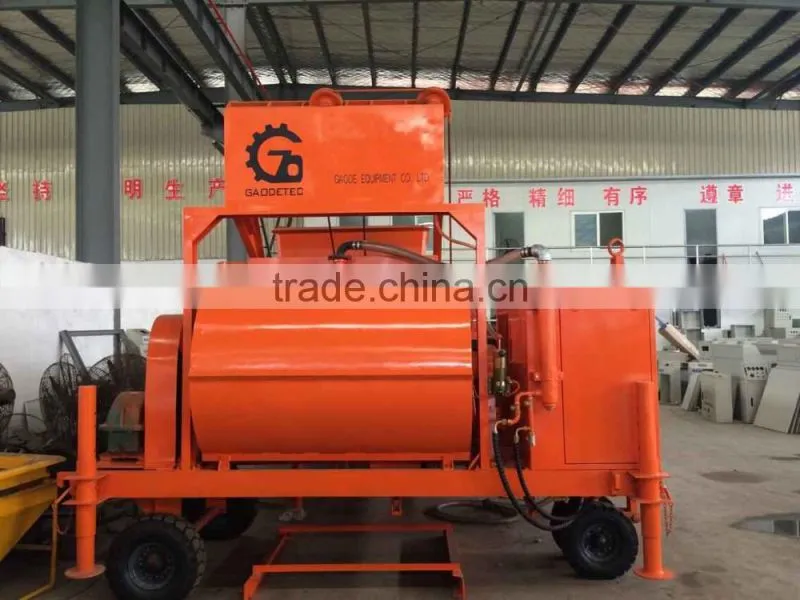

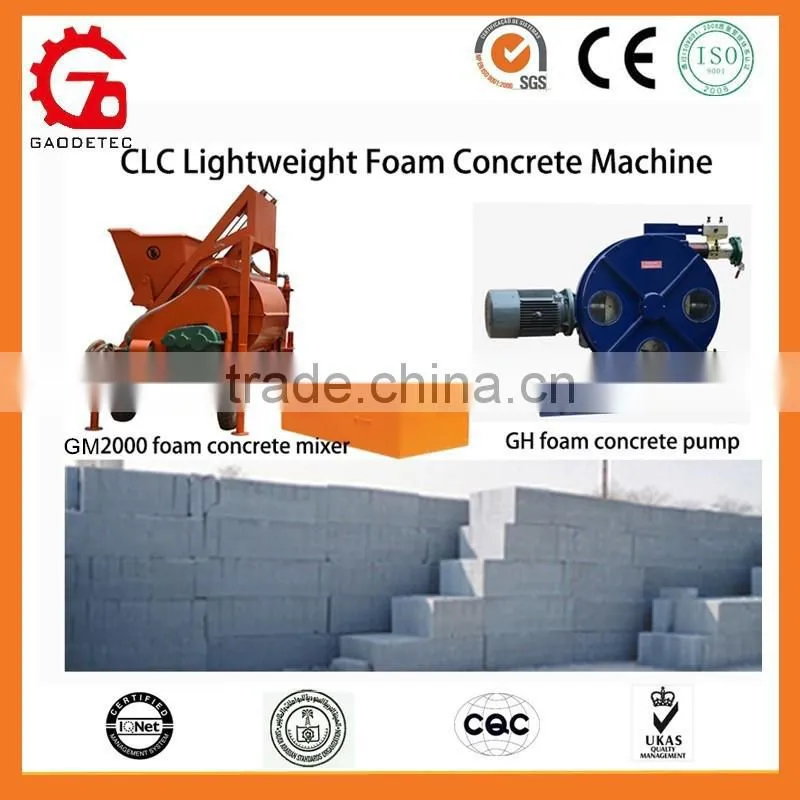

GM2000 Foam Concrete Machine
Features:
1. The foam blending fast, blowing foam uniformly.
2. Without suspended matter, without the declining, it’s good for steady pouring.
3. Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability density.
4. No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.
5. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
6. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.
Technolog data :
| Model | GM2000 |
| Production Capacity | 15-20 m3/h |
| Tank Volume | 2000 L |
| Main Shaft Revolution | 32 r/min |
| Hopper Lifting speed | 22 m/min |
| Mixing Motor | 11 kW |
| Winding Motor | 5.5 kW |
| Water Pump Motor | 1.1 kW |
| Vibrating Motor | 0.55 kW |
| Foaming System | 5.5 kW |
| Max. Moving Speed | 15 km/h |
| Total Weight | 3200 kg |
| Overall Dimension | 2600x2250x3000 mm |

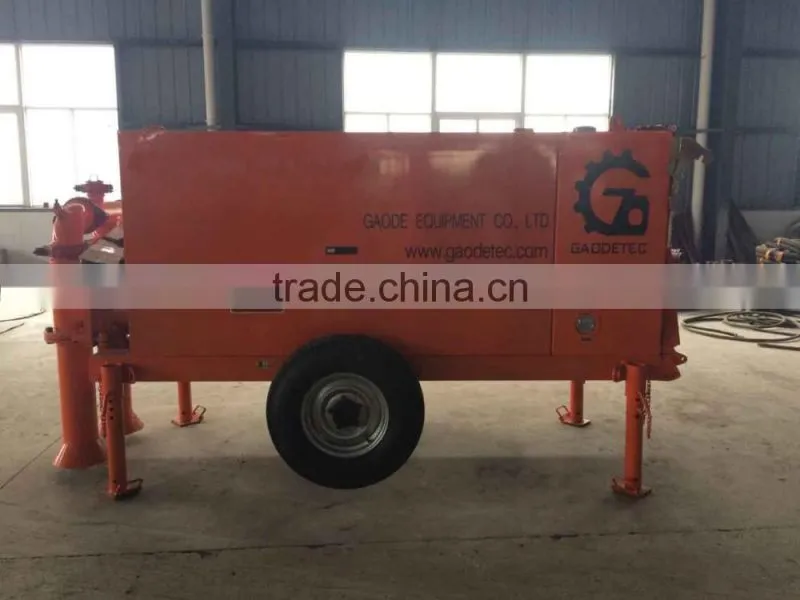

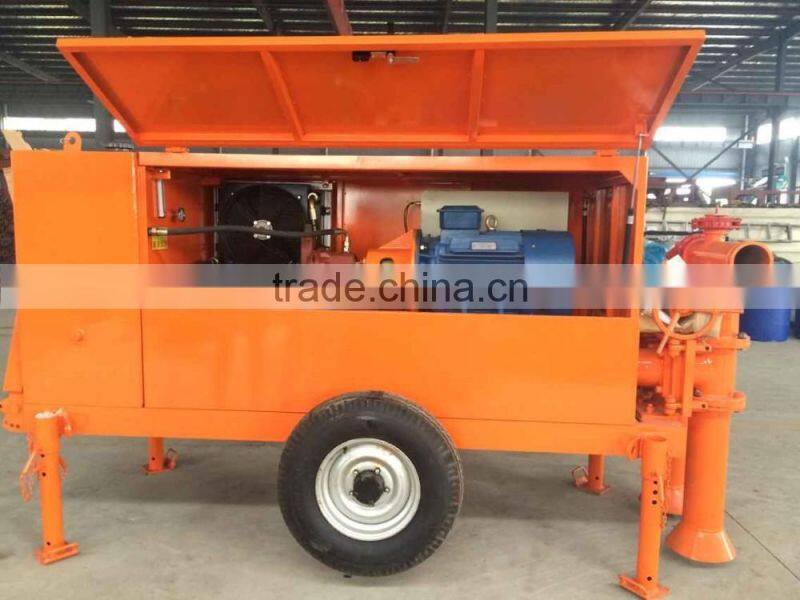

GP30 foam concrete pump
Technolog data :
| Model | GP30 |
| Max.Output | 30 m3/h |
| Max.Conveying Pressure | 8Mpa |
| Max.Horizontal Transporting Range | 600m |
| Max.Vertical Transporting Height | 200m |
| Max.Partice Size of Aggregates | 8mm |
| Cylinder Bore | 80mm |
| Delivery Cylinder Bore | 140mm |
| Max.Pressure of Hydraulic System | 24Mpa |
| Oil Pressure Box Volume | 200L |
| Motor Power | 30kw |
| Total Weight | 2200kg |
| Overall Dimension | 3100*920*1300mm |
| Dimension(mm) | 3900*1350*1450 |
| Overall weight(kg) | 1950 |

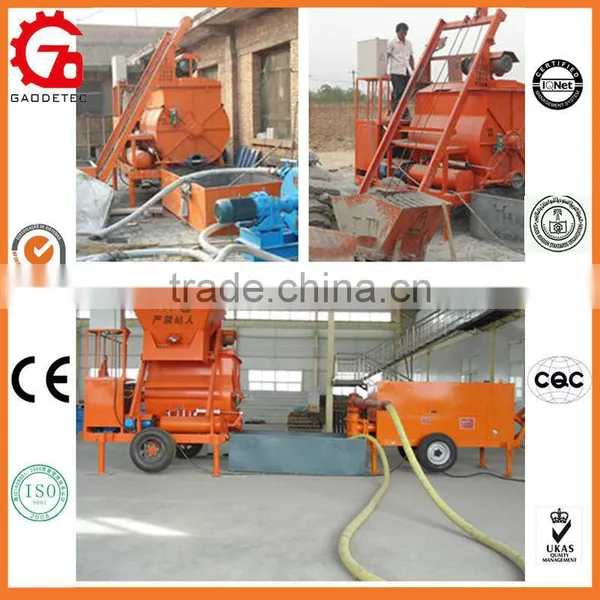

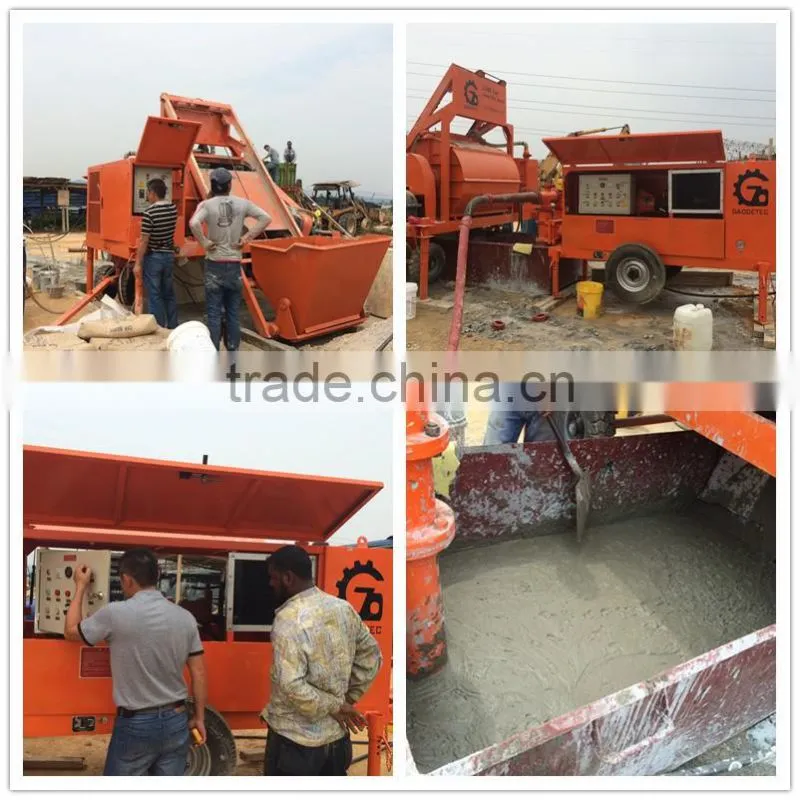

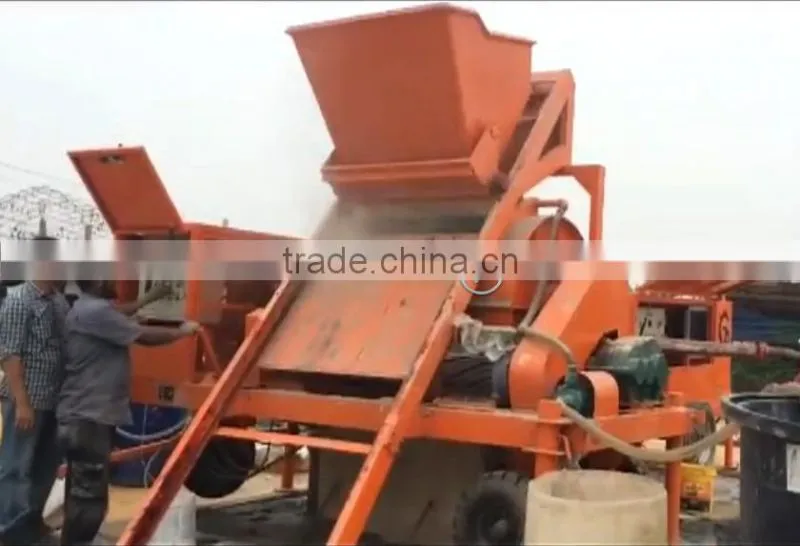

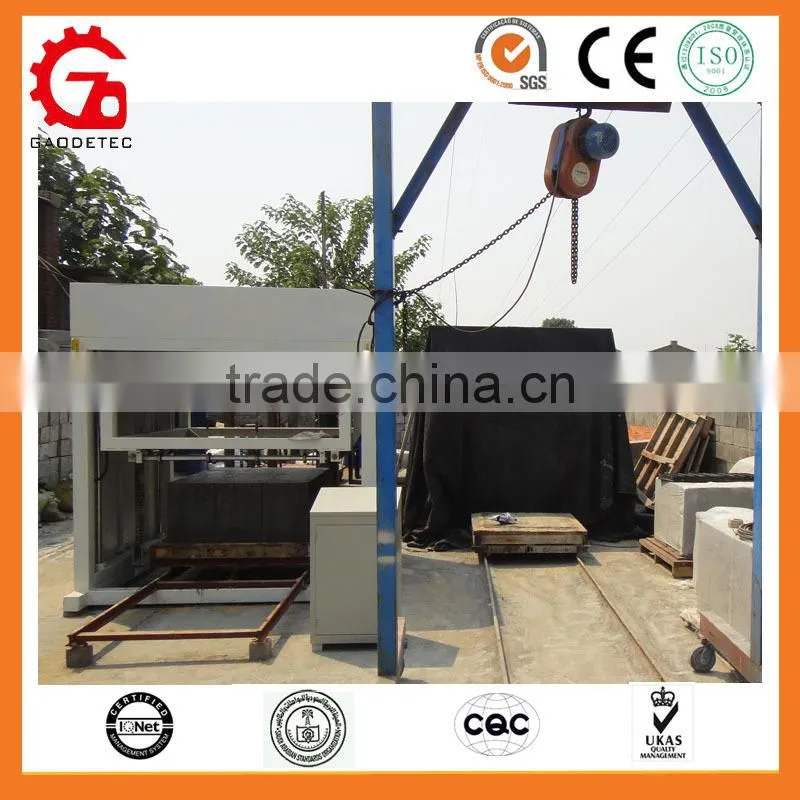

Worksite of Foam Concrete Block Making Machine :

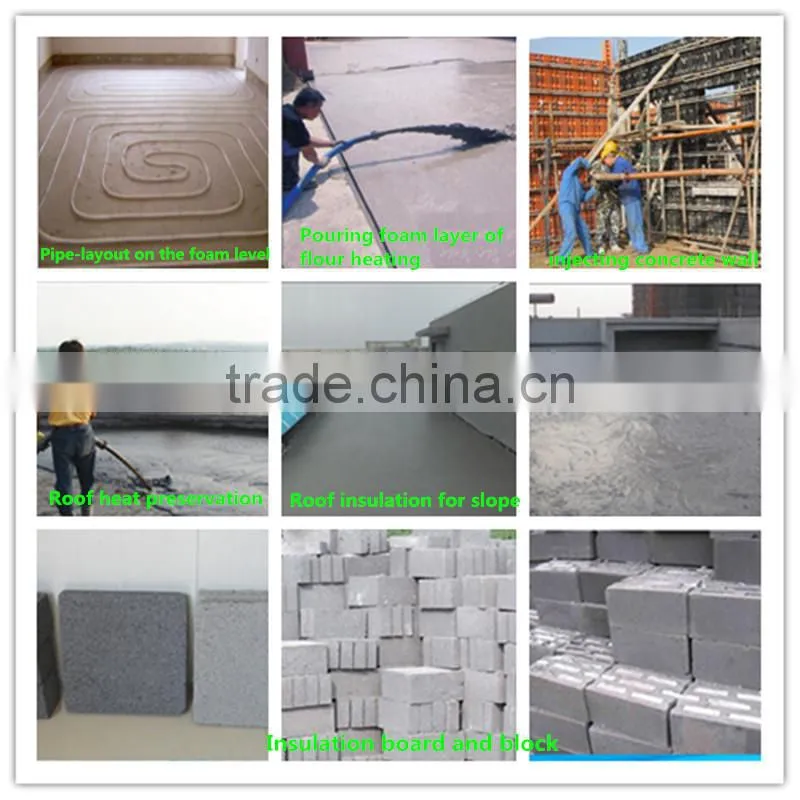

Note: The Foam concrete’s other application:
- External wall thermal insulation
- Thermal insulation roofing
- Thermal flooring
- Upstandingbeam foundation ditches filling
- Sound insulation and fire protection walls
- Playground and track construction
- Sound insulation layer, tunnel lining filling
- Cellar, basement and arch filling
- Sewers and Drains filling
- Horizontal floor heightening
- Water tank and fuel tank building
- Platform filling and mending
- Garden and rockeries

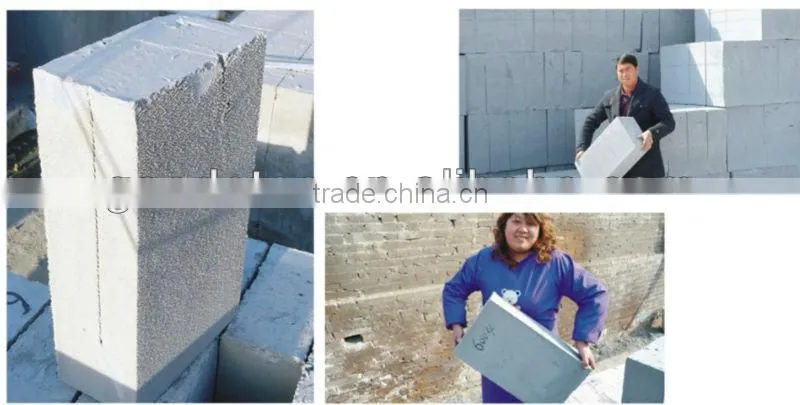

- Foam concrete block
- Foamed concrete precasting ,hollow wallboard casting
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD76000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Q: What is the advantage of your foam concrete machine compared with other machines?
A: 1. Our machine can make the foaming , mixer , pump together.
2. Our machine can automatically adjust the density.
3. Our foam concrete machine can easy to control and operate .
Q: What projects foam concrete machine can be used for?
A: Foam concrete machine can be used for making blocks/bricks, wall cast in-situ, roof insulation, void filling, trench reinstatement, bridge abutment work, and many others.
Q: What kinds of raw materials could be used?
A: For making CLC bricks/blocks, the materials are mainly cement, fly-ash/sand/stone powder(as option), foam agent, water and Polypropylene fiber, etc.
Q: Can i use Ceramisites?
A: Yes, you can. Ceramisites could be also as the raw materials, and it could enhance the compressive strength of the wall.
Q: Does the foam concrete mixing machine including foam generator?

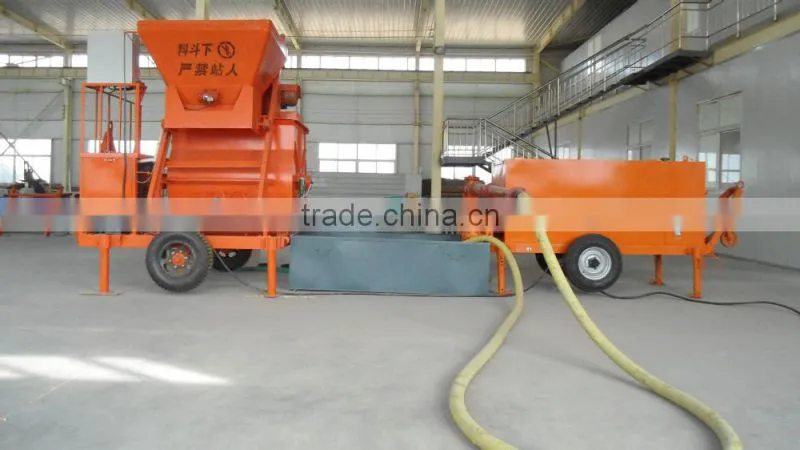

A: Yes, the foam concrete mixing machine mainly integrated foam generator system, mixing system, feeding hopper, water pump and control panel.
Q: what are the horizontal conveying distance and vertical conveying distance of your foam concrete pump?
A: We have GP30 foam concrete pump and GH series hose pump for option. Tell us your detailed demands and we would recommend the reasonable model and best quotation once get your information.
