Choose GEC, Choose high quality

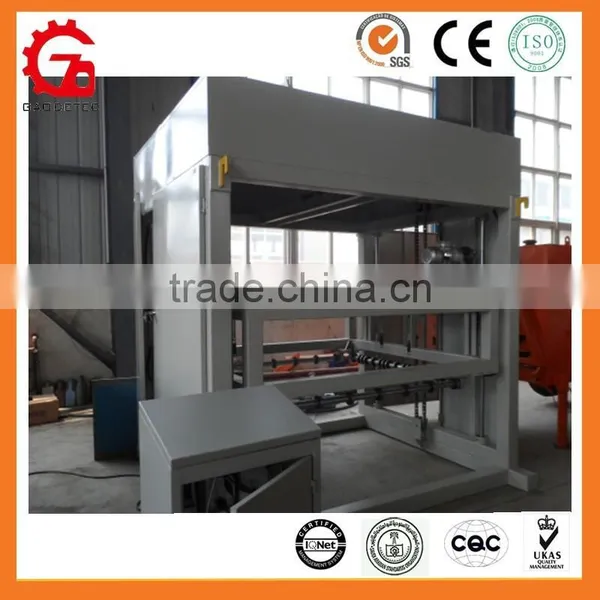

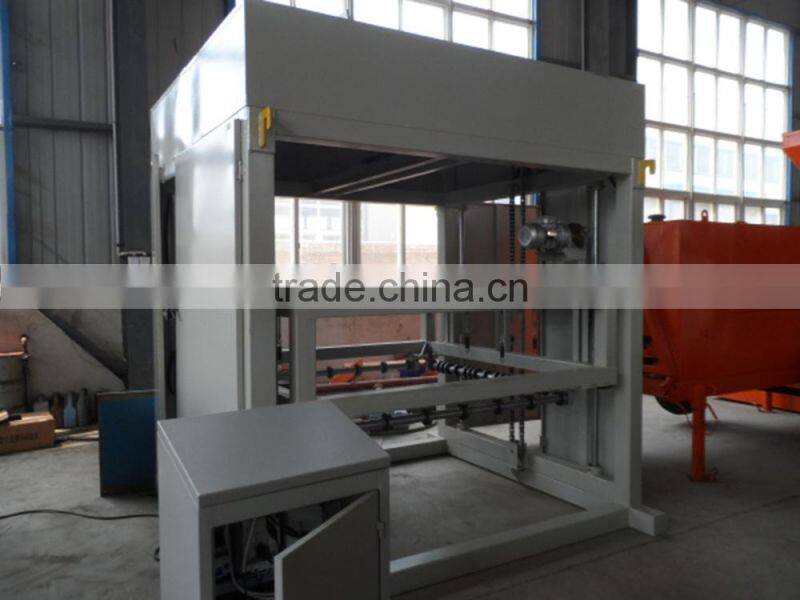

CLC foam concrete block wire cutting machine for sale
Model: GW 30B
Brief Instruction:
Wire Cutting Machine is a new product in the foam concrete plant, It is specially used to cut various foam concrete blocks. Easy operation, high efficiency.
Main performance:
1. The lifting motor adopt the standard automatically brake motor.
2. Lifting speed could be adjusted through the frequency converter.
3. The block size between 100-200-300-400-500-600-700-800-900-1000-1100-1200mm could be adjusted willfully.
4. All motors are equipped with speed reducers.
GW 30B New Wire Cutting Machine is improved on the basis of the GW 30A wire cutting machine, It is specially used to cut various foam concrete blocks.
New wire cutting machine special performances:
1. Six shafts equipped with bearings, reduce the friction, and increase the rope wire lifetime.
2. Both horizontal and vertical cutting are cutting both way, keep the blocks more stable, and get good shape blocks.
3. Lifting speed could be also adjusted under the chain drive and lifting motor, more stable.
4. Two cutting motors equipped on the cutting frame, save space, and make the structure more impact.
5. Steel doors instead of the guard grids, more easy for daily maintenance.
6. Add cover on the top of the cutting machine, make the cutter elegant appearance.
7. Improved the control panel too, it is available for 380V/50HZ~460V/50HZ.
A complete set of equipment for cutting foam block :
No. |
Name |
Qty. |
Unit |
Remarks |
1. |
Wire cutting machine |
1 |
set |
|
2. |
Hook |
20 |
pcs |
|
3. |
Spring |
20 |
pcs |
|
4. |
Steel wirerope |
500 |
m |
|
5. |
rail |
2 |
pcs |
6m/pc |
Technology data:
Name |
GW 30B Wire Cutting Machine |
||
Electric Motor (Kw) |
|
||
Effective hoisting height |
700mm |
||
|
1240*1240*225mm |
||
Net cutting size (L*W*H) |
1200*1200*600mm |
||
Cutting cycle |
60-180 seconds |
||
Overall dimension (L*W*H) |
2160*2060*2280mm |
||
Total weight |
1100kg |
Production capacity:
0.8643M^3 |
600*200*75mm |
96 pcs/mould |
0.8643M^3 |
600*200*100mm |
72 pcs/mould |
0.8643M^3 |
600*200*150mm |
48 pcs/mould |
0.8643M^3 |
600*200*200mm |
36 pcs/mould |
0.8643M^3 |
600*200*300mm |
24 pcs/mould |

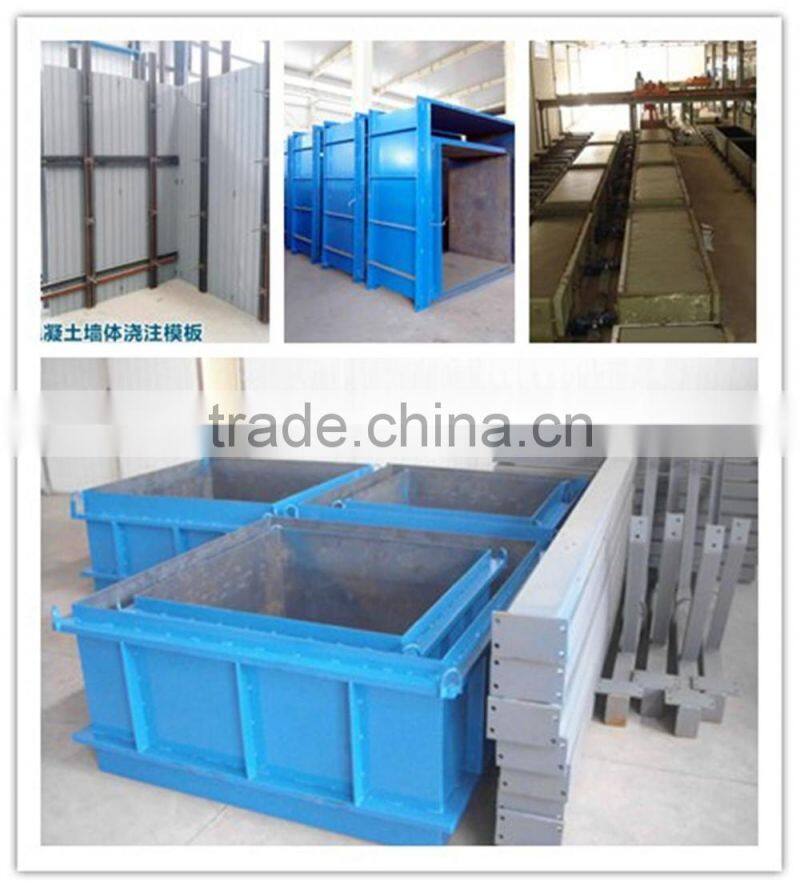

Mould:
The Mould include the PPC Frame and wooden plate trailer, Overall dimension (L*W*H): 1200*1200*600mm, can be customized according to your demands

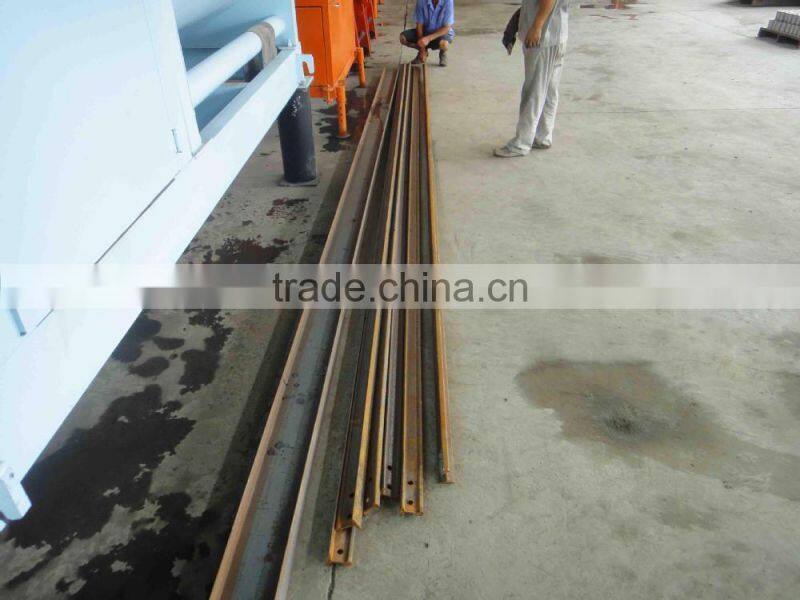

Rail:
Specificaton: 6m/pc

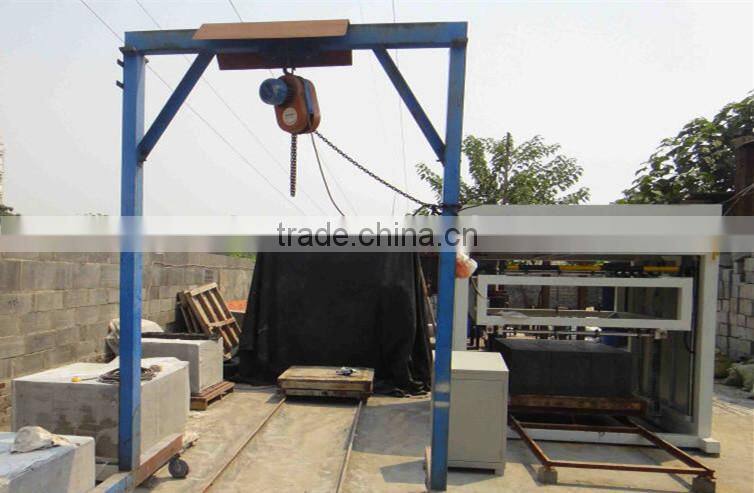

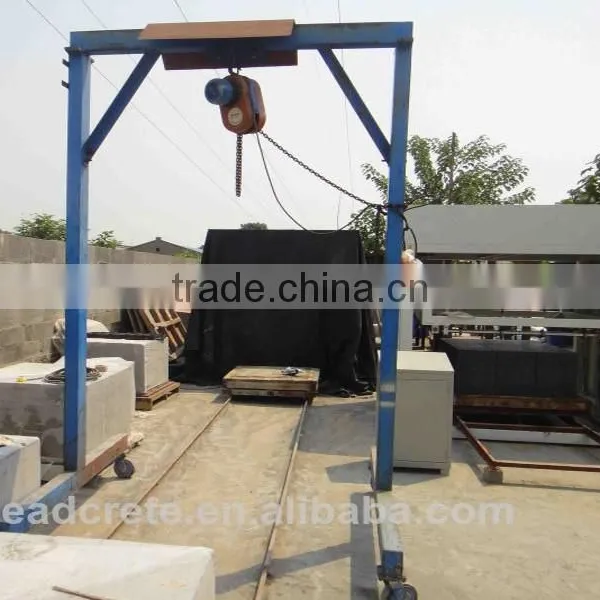

The working site of our clc block wire cutting machine :

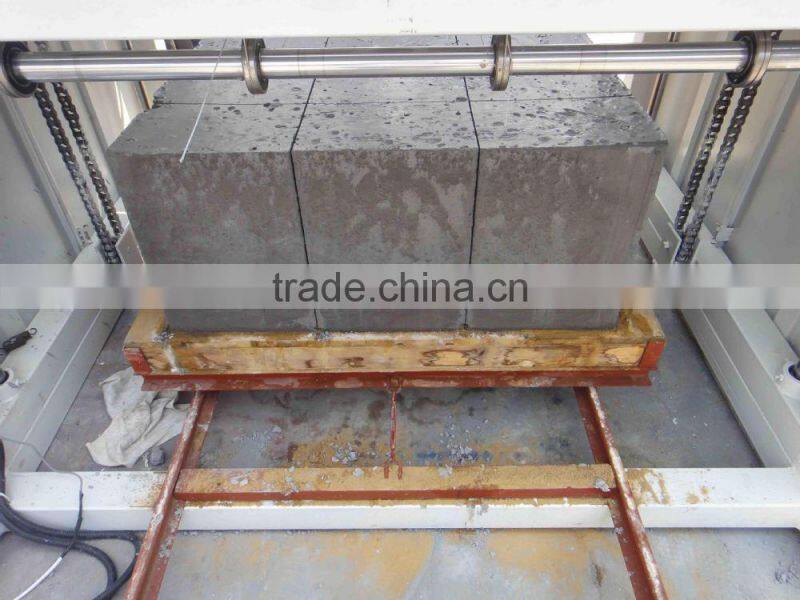

The brick made by our clc wire cutting machine:
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD46000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Gaode Equipment Co., Ltd, short name Gaodetec (GEC), is a manufacturing, technical service and trading company in cellular lightweight concrete field. We have worked in this field nearly 20 years, our machines mainly used for CLC blocks, wall cast in-situ, roof insulation etc. project. In past years, GEC CLC has been used produce over hundred thousand houses, apartments schools, hospitals, industrial and commercial buildings.
Factory:
Workshop:
FAQ:
Question 1: What is CLC?
CLC is cellular lightweight concrete. It is produced by initially making slurry of Cement, Sand (optional), Fly-Ash & Water, which is further mixed with the foam agent.
Its many uses for making blocks/bricks, wall cast in-situ, roof insulation, void filling, trench reinstatement, bridge abutment work, and many others. For more application, please see application
Question 2: What are the raw material?
For making CLC bricks/blocks, the material mainly is cement, fly-ash/sand, foam agent, water etc.
Question 3: For cutting blocks, saw blade cutting machine or wire cutting machine is better?
If use blade cutting machine:
a. Longer cutting time after pouring concrete
b. Need 2 machines for cutting in 2 directions
c. High blade consumption, especially if the sand in CLC is course or density is high
But if use our GW30B wire cutting machine, it will solves the above problems.
GM2000 foam concrete mixer and GH76 foam concrete pump
GM2000 foam concrete mixer and GP30 foam concrete pump
GF25 foam concrete machine
