High Performance Crawler Rock Drilling Machine
US$ 10 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sell Pneumactic Economical and Cheap DTH Coal Mine Well Drilling MachineUS$ 1,000 - 3,000MOQ: 1 Set -
GD Brand Man Portable Down-the-hole Hydraulic Hard Rock Mining Drilling RigUS$ 3,100 - 5,000MOQ: 1 Set
-
Economical and Cheap Mining and Quarry Used Borehole Drill Machine for SaleUS$ 3,600 - 5,000MOQ: 1 Set
-
GD Best Seller Quarry Blasting Small Portable Borehole Mining Hydraulic Hard Rock Drilling MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
SPT Series Tractor Mounted Deep Water Well Drilling MachineNegotiableMOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Pneumatic
Place of Origin
Henan, China
Brand Name
GEC
Model Number
KC-120 rock drilling machine
Usage
Ore
Voltage
Pneumatic
Power(W)
Pneumatic
Dimension(L*W*H)
6000*2425*1800mm
Weight
5000kg
Certification
ISO,CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

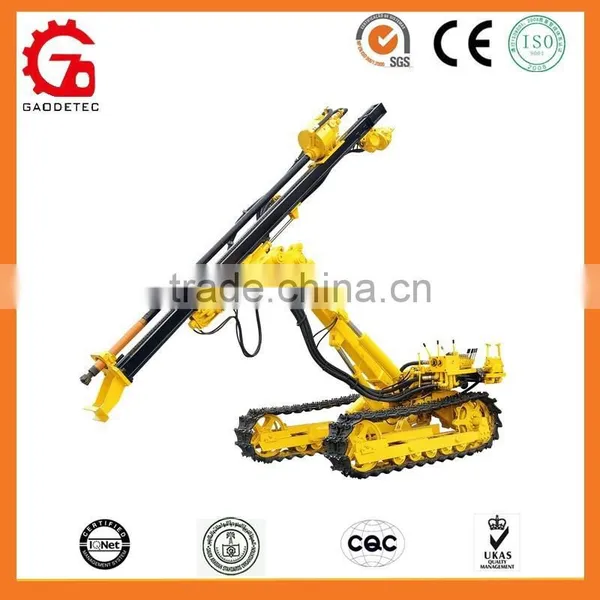

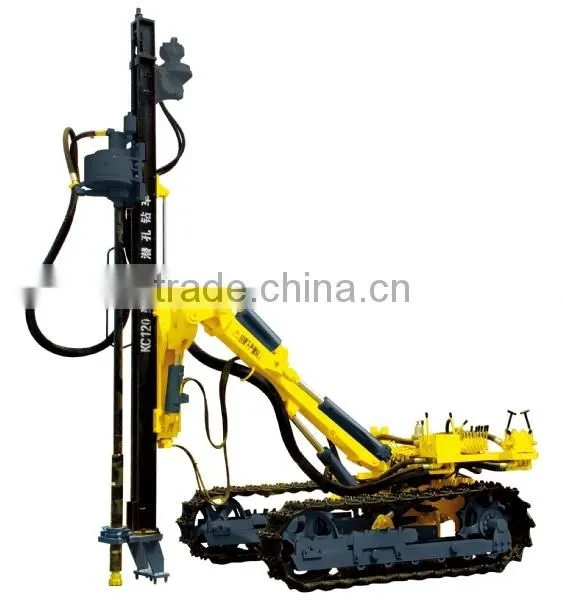

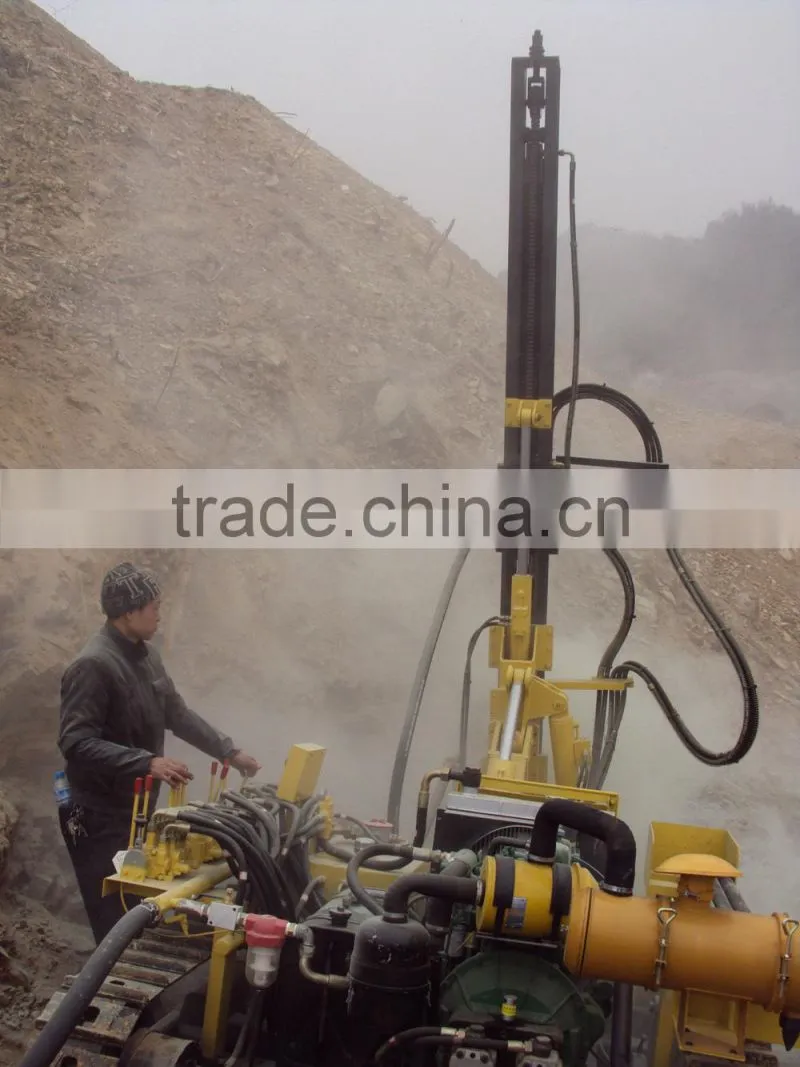

High performance crawler rock drilling machine
Product Description
Rock drilling machine Features:

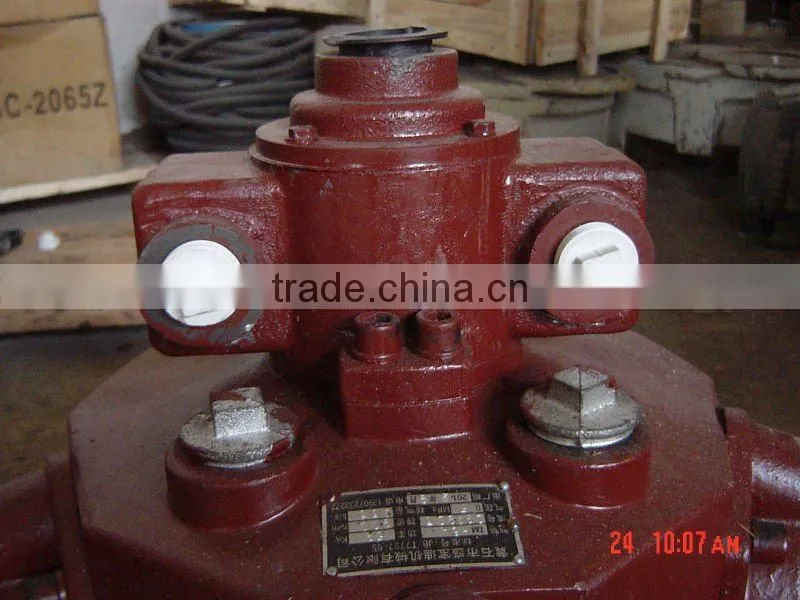

1.Easy maintenance hydraulic pump set. Air driven pump set.
2.Powerful feeding and rotating system

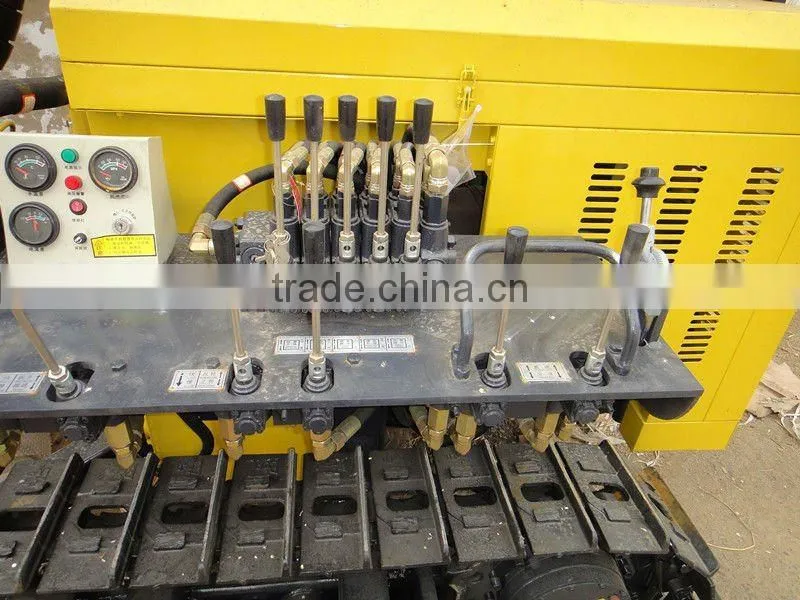

3.Centralized operating system
4.Safe and stable travelling system
Technical data:
| model | KC-120 |
| work pressure | 1.0-1.4Mpa |
| air consumption | ≥21m³/min |
| bore diameter | 105-120mm |
| bore depth | 25m |
| drilling hardness | f=6-20 |
| drill rod | 76mm*3m |
| lifting force | 13.6KN |
| climbing ability | 30° |
| traveling speed | 2.5km/h |
| rotating speed | 0-67rpm |
| ground clearance | 254mm |
| boom lift angle | -19°—+60° |
| boom slewing angle | ±45° |
| sliding guide slewing angle | -35°—50° |
| sliding guide tilt angle | 180° |
| feeding of sliding guide | 1200mm |
| dimensio | 6000*2425*1800mm |
| weight | 5600kg |

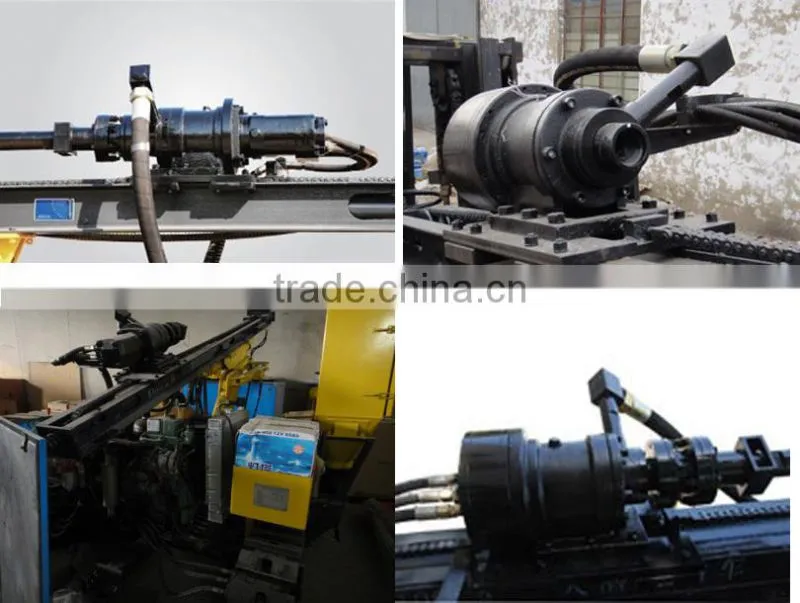

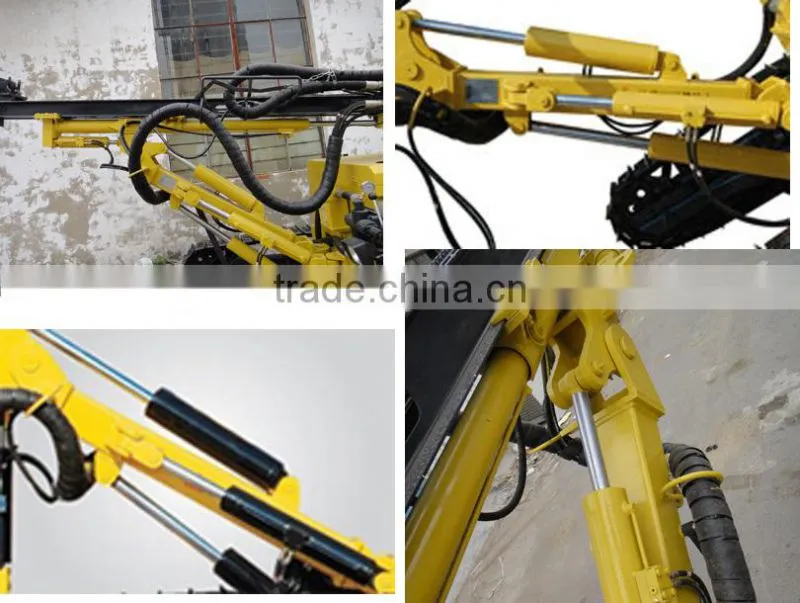

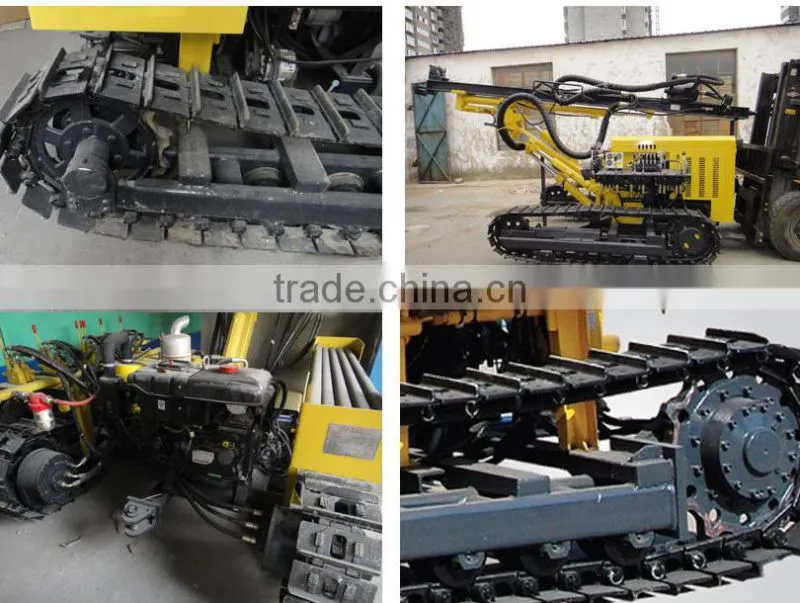

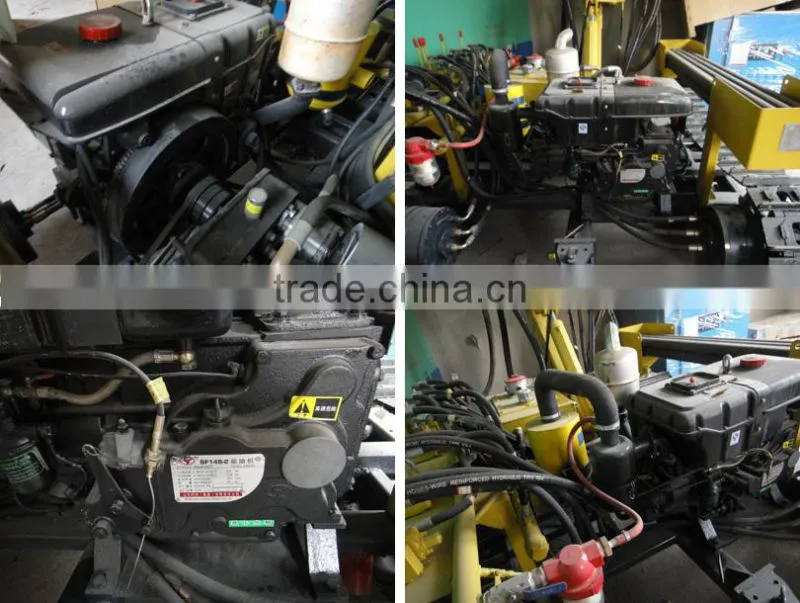

Detailed Images

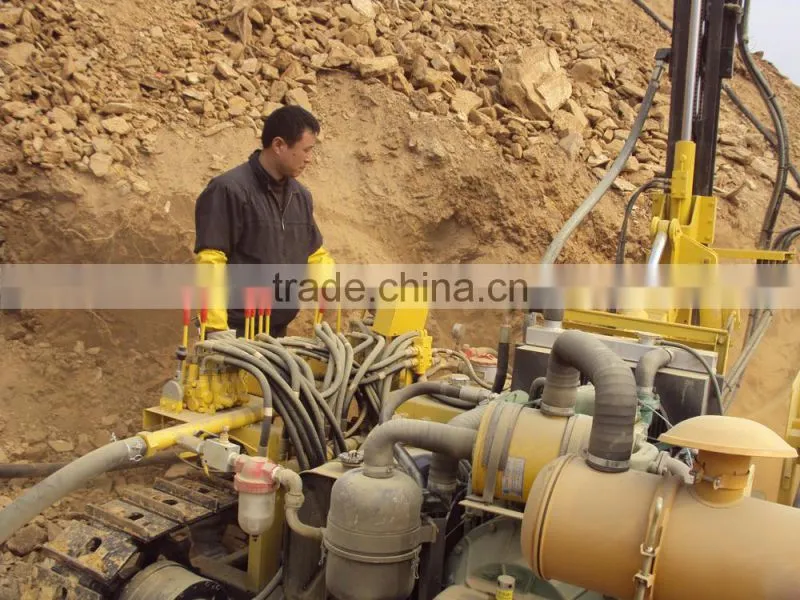

Application
Certifications
