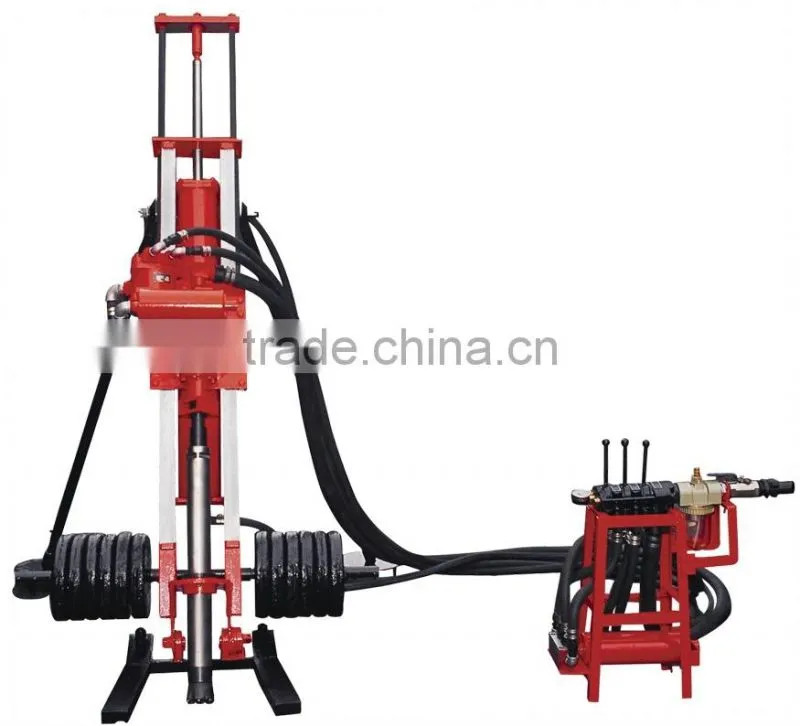

hot sell pneumactic Economical and cheap DTH coal mine well drilling machine
Feature:

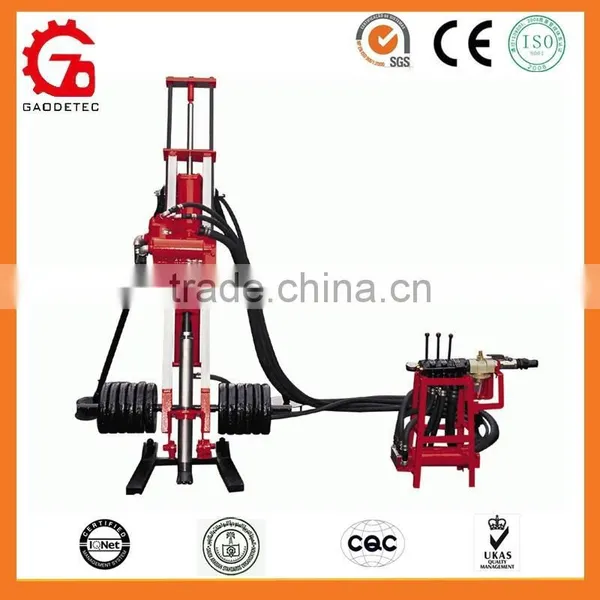

GEC100 best seller quarry blasting small portable borehole drilling machines is a convenient compact pneumactic down-the-hole(DTH) drill, it has many advantages,such as high efficiency,flexible movement, easy operation, low initial investment, and good economic benefits and so on.
Application:
GEC100 best seller quarry blasting small portable borehole drilling machines is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized mine, earth and rock engineering and so on.
Technical Parameter:
| model | GEC100 |
| bore diameter (mm) | 80-130mm |
| bore depth (m) | ≥20m |
| rock hardness | f=6-20 |
| pressure pressure | 5-7 bar |
| air consumption (m³/min) | ≥12m3/min |
| rotating speed (r/min) | 0-93rpm |
| Hammer | QCZ90 |
| max. lifting force (N) | 9600N |
| Bit | Φ90(76-130) |
| Rod | Φ60mm*1000mm |
| Drilling components | Standard(option) |
We also have portable pneumatic DTH drilling rig and pneumatic&hydraulic DTH drilling rig.
The power :1 Pneummactic ; 2 Electric&pneumatic ; 3 Hydraulic & pneumatic three type for your choose.
| Model |
hole diameter (mm) |
Hole depth (m) |
rotating speed (rpm) |
working pressure ( MPa ) |
Rod φ (mm) |
Air consumption (m3) |
Lift Power (N) |
power (KW) |
| GD70 | 60-80 | ≥15 | 0-125 | 0.5~0.7 | 40x1000 | ≥3.5 | 4000 | 3kW |
| GD100 | 80-100 | ≥20 | 0-62 | 0.5~0.7 | 60x1000 | ≥7 | 9600 | 4kW |
| GD100B | 80-100 | ≥20 | 0-84 | 0.5~0.7 | 60x1000 | ≥7 | 9600 | 4kW |
| GD120 | 80-100 | ≥20 | 0-62 | 0.5~0.7 | 60x1000 | ≥9 | 9600 | 5.5kW |
| GD120B | 80-120 | ≥20 | 0-78 | 0.7~1.0 | 60x1000 | ≥9 | 9600 | 5.5kW |
| GD145B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1000 | ≥12 | 12000 | 7.5kW |
| GD150B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥12 | 12000 | 7.5kW |
| GD155B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥12 | 12000 | 7.5kW |
| GD165B | 90-150 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥15 | 12000 | 11kW |
| GD165Z | 90-160 |
80 | 0-60 | 0.7~1.4 | 89×1.5 | 220-280L/S | 12000 |
8.8kW |
| GEC90 | 80-130 | ≥20 | 0-75 | 0.5~0.7 | 60x1000 | ≥ 6 | 15000 | Hydraulic |
| GEC100 | 80-130 | ≥20 | 0-93 | 0.5~0.7 | 60x1000 | ≥12 | 9600 | Pneumactic |
Advantages:
1. Propulsion, rotary and impact all powered by compressed air, the structure is simple, a single, convenient to move.
2.Have single, double top, top, bearing type selection of three kinds of supporting structure, can adapt to any geological .
3.Operator focus, convenient and quick operation.
4.Unique dual mufflers, good silencing effect, reduce the pollution of the environment drilling rig is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized
Drill parts:
Working site:
If the small protable Down-The-hole can't meet your requirement.we also have cralwler drill rig for your choose:
Packaging &shipping:
The information you may like to know before order:
1.Payment terms:
T/T 50% in advance ,the balance should be paid within 5days against the B/L date
2.Delivery time:
Within 20 days after receiving your advanced payment
3.Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4.Packaging:
1)Outside package:Standard export wooden cases
2)Inner package:Stretch film
5. HS CODE:
Air compressor:8414809090
Drill rig:8430310000
Contact:
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype:zhenhuazgz328
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD30000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
