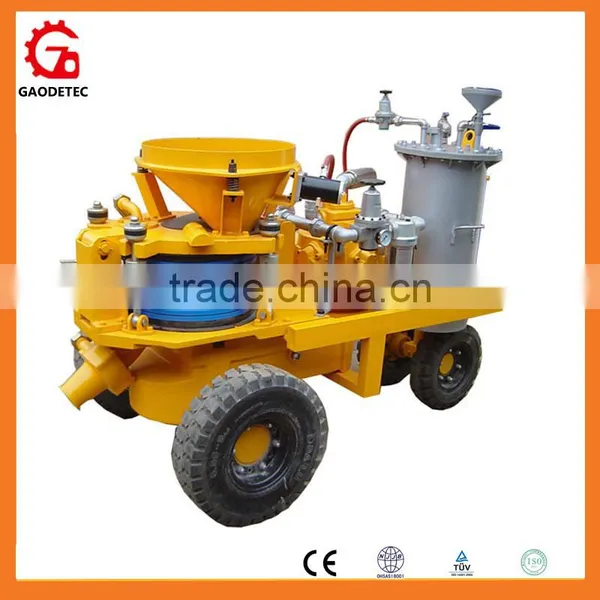

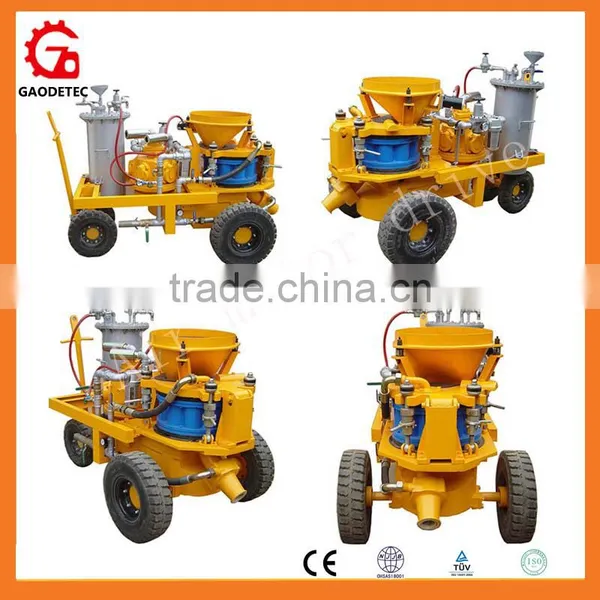

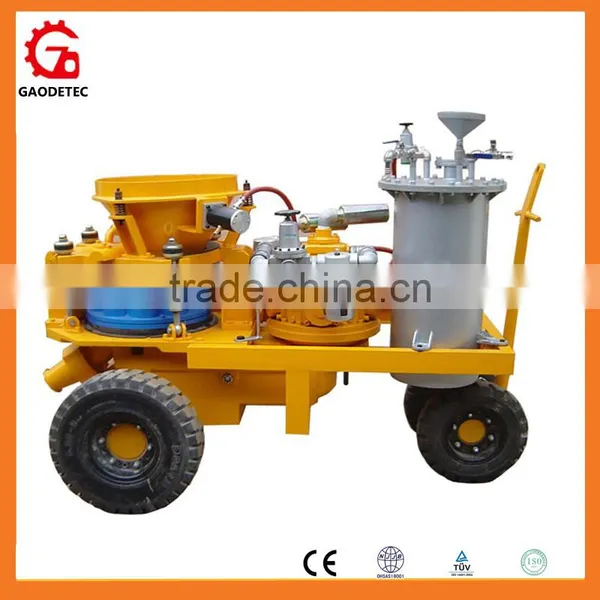

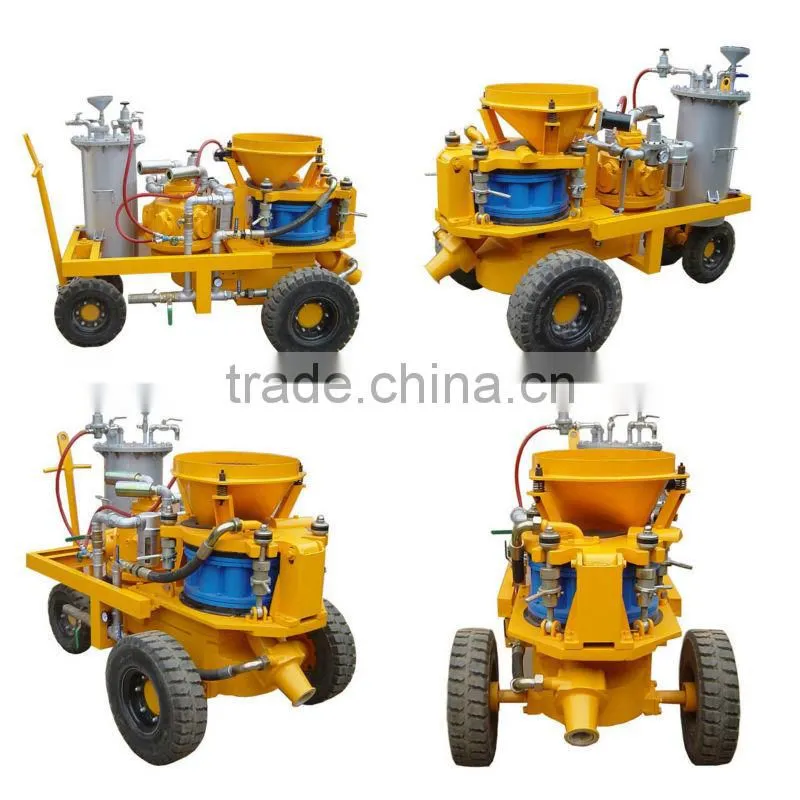

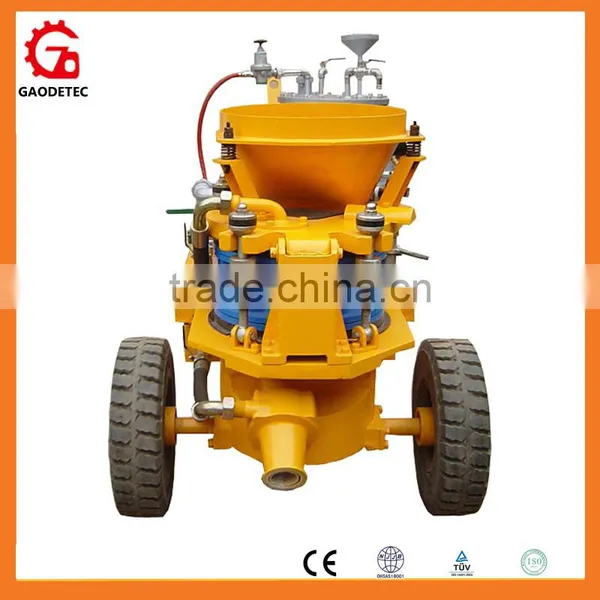

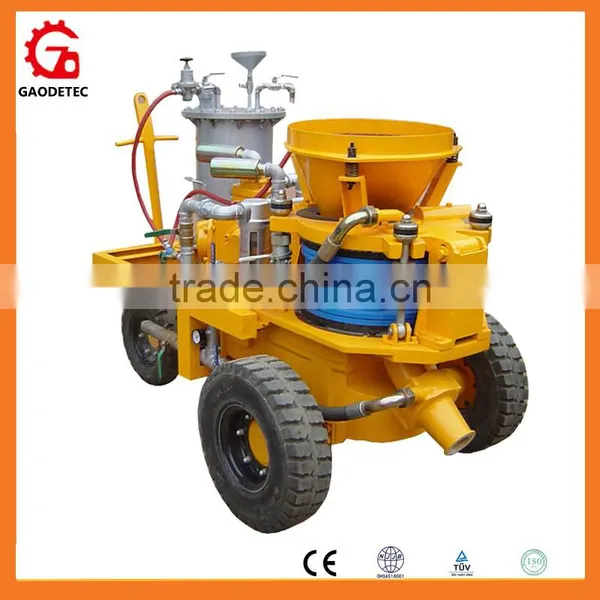

GSZ3000A ISO supplier anti-explosion full pneumatic wet shotcrete machine
1. GSZ3000A ISO supplier anti-explosion full pneumatic wet shotcrete machine description:
GSZ3000A wet shotcrete machine is a full pneumatic drive unit. And it mainly is used for wet spraying concrete. Its advantages are easy sealing, smooth stream and uniform spraying etc. It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc. It is widely used in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Due to its full pneumatic drive unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this wet shotcrete machine is perfect and specific option.
2. GSZ3000A ISO supplier anti-explosion full pneumatic wet shotcrete machine technical data :
Rated output |
5m3/h |
Max. horizontal conveying distance |
35m |
Max. aggregate size |
Dia.15mm |
Concrete slump |
8~15cm |
Conveying hose |
Dia.50/65mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
22m3/min (12+10) |
Loading height |
1.17m |
Rotor Rev. |
11r/min |
Rebound |
≤10 % |
Air motor power |
8kW |
Dosing pump model |
BHA530 Dosing pump |
Dosing pump rated pressure |
0.5MPa |
Dosing pump output |
0~100L/h |
Overall dimension(L×W×H) |
1950×1050×1360mm 1950×1050×1360mm |
Weight |
1200Kg |

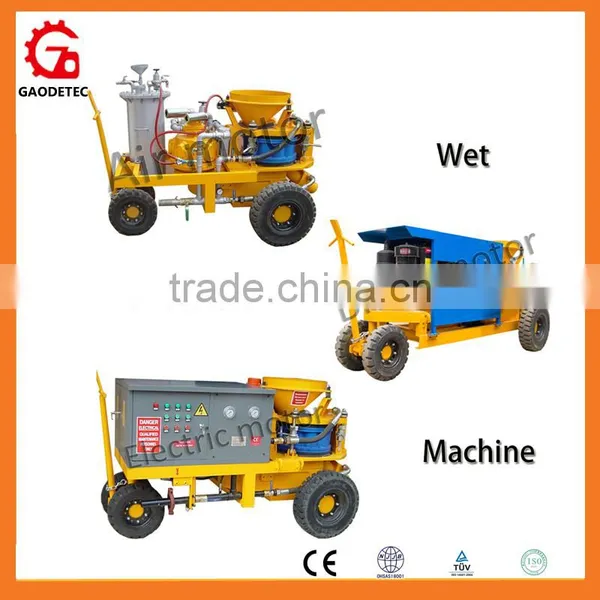

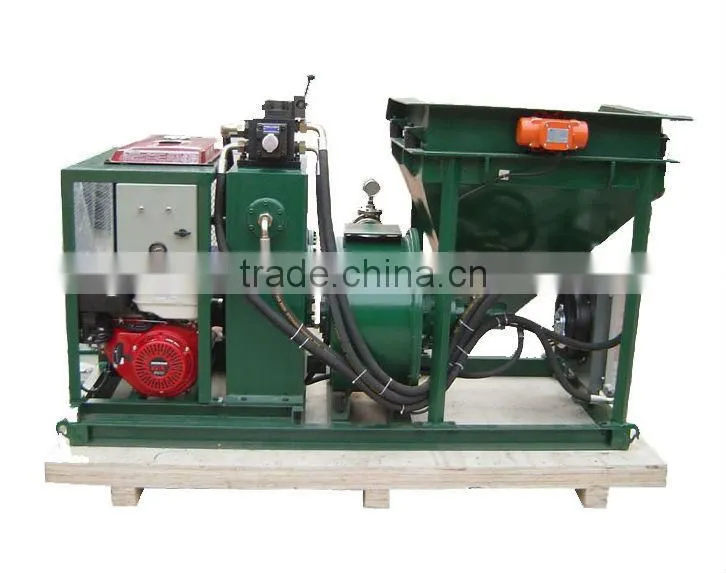

Other type wet shotcrete machine:
Spare parts:
Wet shotcrete machine Package:
Our shotcrete machine on the site
Workshop:
Certificate:
