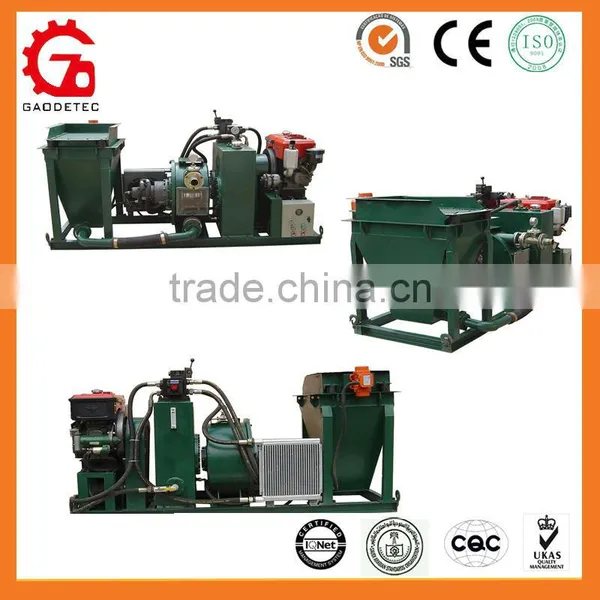

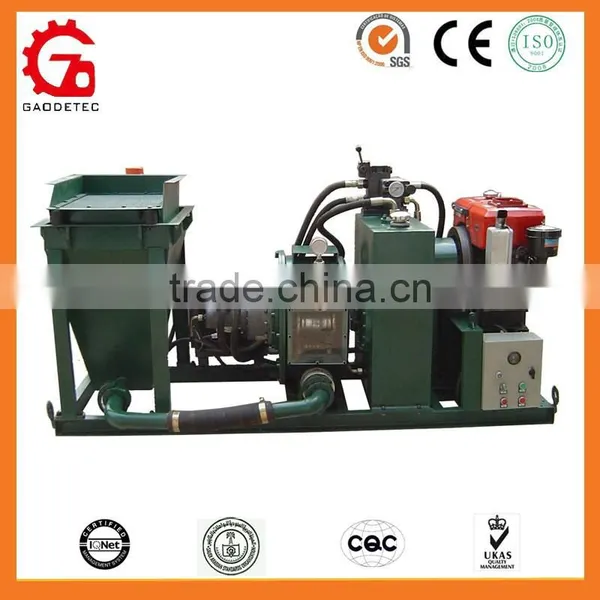

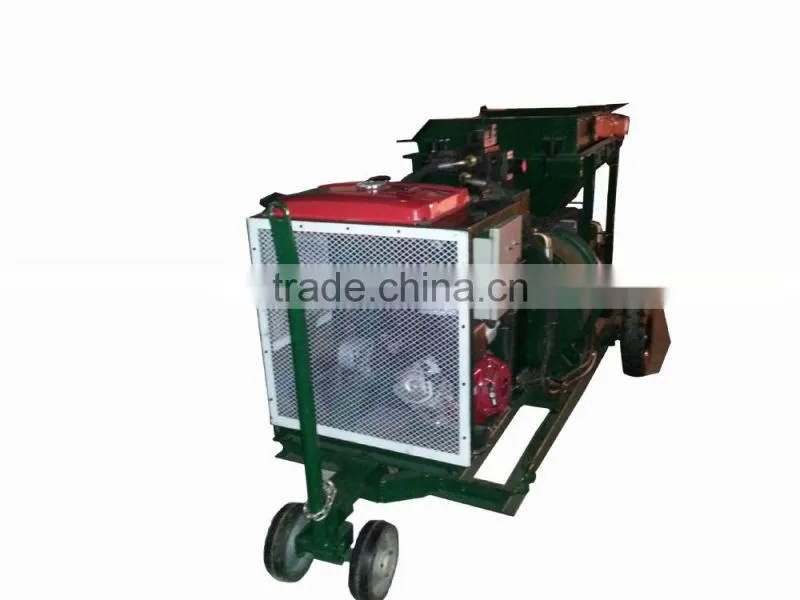

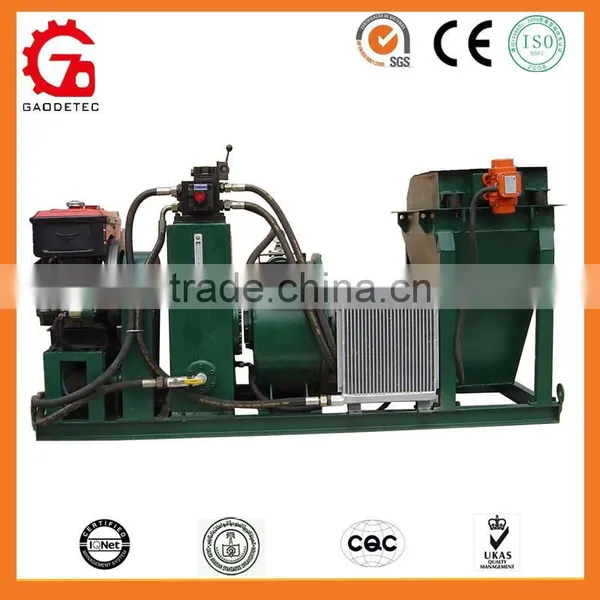

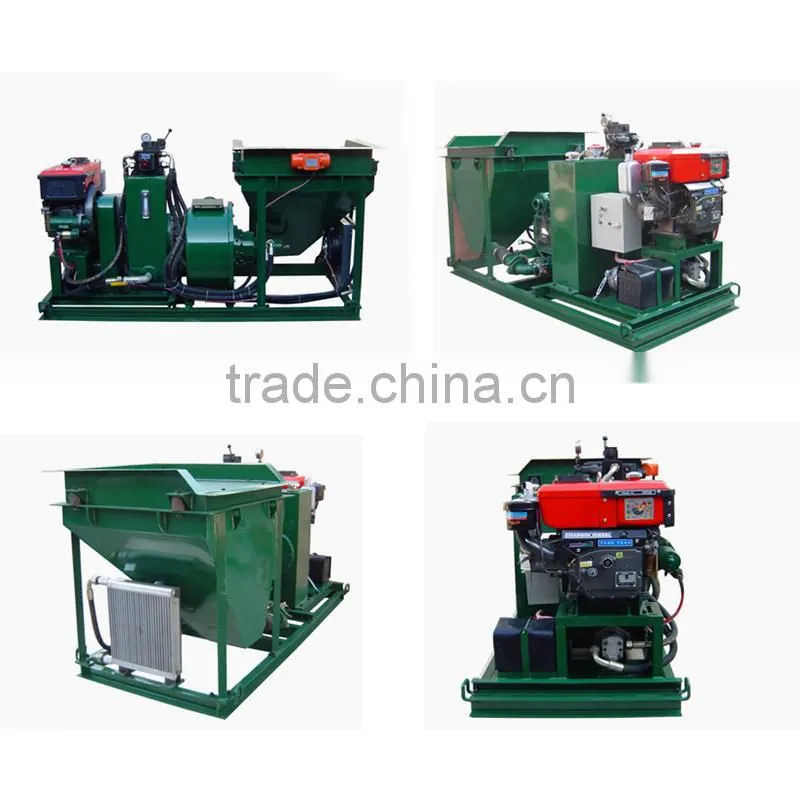

GDS1500D ISO OEM supplier shotcrete diesel concrete shotcrete pump
GDS1500D ISO OEM supplier shotcrete diesel concrete shotcrete pump description:
The GDS1500D diesel concrete shotcrete pump is a diesel-powered lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500D Direct Drive uses a 10hp diesel power pack, is skid mounted.
GDS1500D ISO OEM supplier shotcrete diesel concrete shotcrete pump Feature:
1) Highlyreliable direct drive planetary gearbox
2) Infinite speed variation
3) Easily operating on site work
4) Standard spare part supply
GDS1500D ISO OEM supplier shotcrete diesel concrete shotcrete pump technical data:
Item |
Description |
Working Pressure |
1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output |
1.5-3m3/h |
Max. Aggregate |
10mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
GH50-455 |
Power |
CFZ12 Diesel Engine, 10hp |
Overall Dimension |
2150x1100x1150mm |
Hopper volume: |
130 Liter |
Weight |
660kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
Vertical Conveying Distance |
15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance |
40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Note: the Gasoline engine or Electric motor is optional.

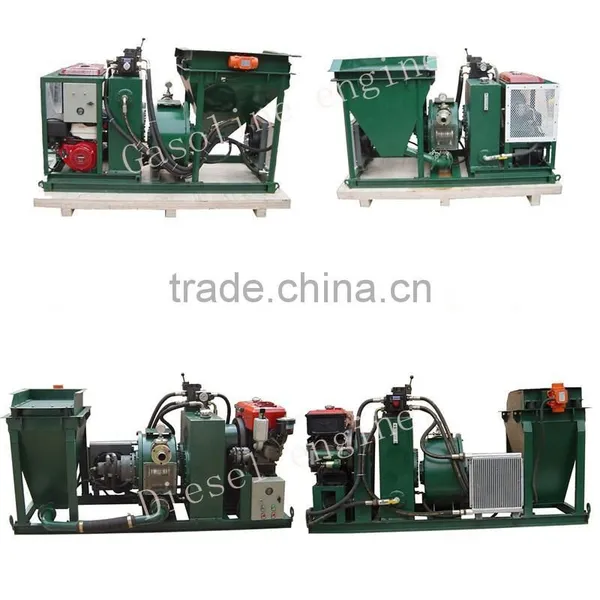

Other type of GDS1500 concrete shotcrete pump

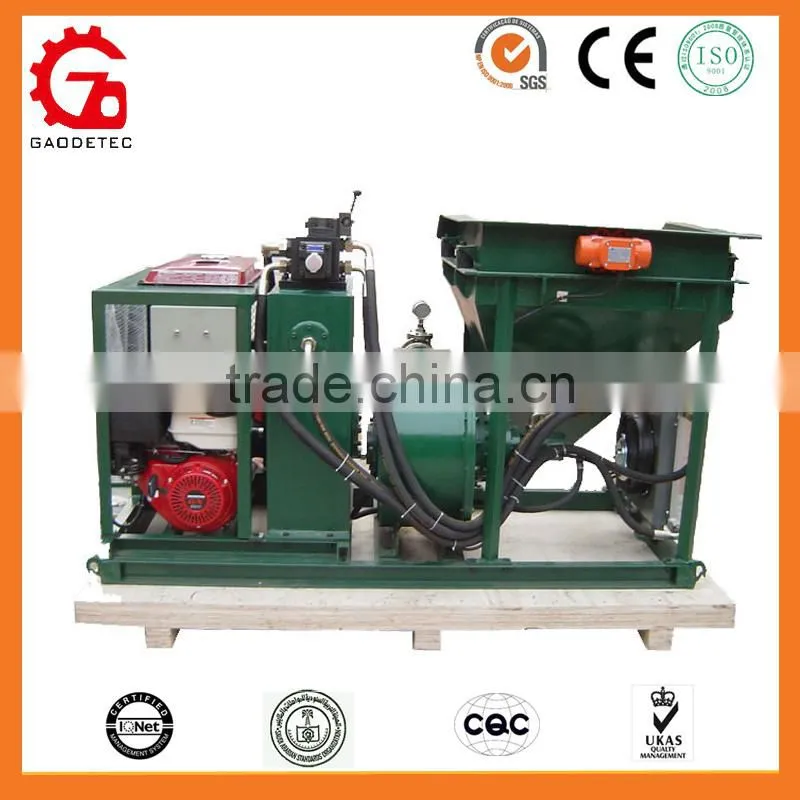

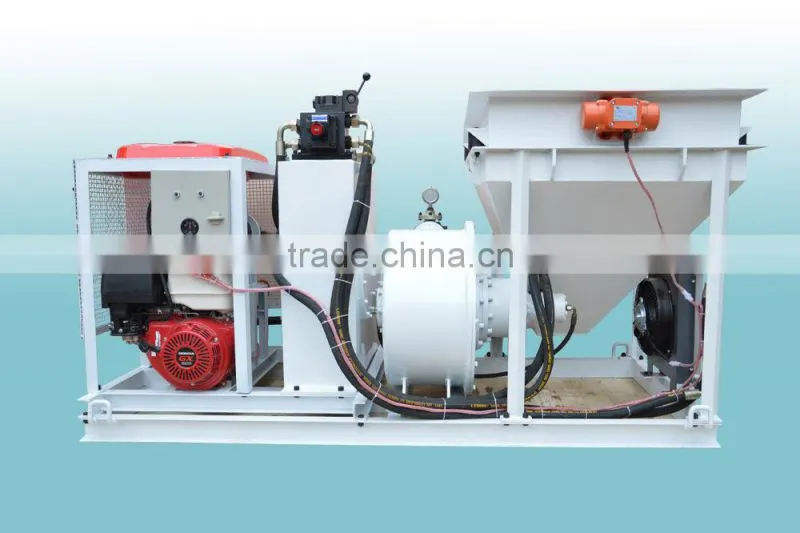

Gasoline engine type:

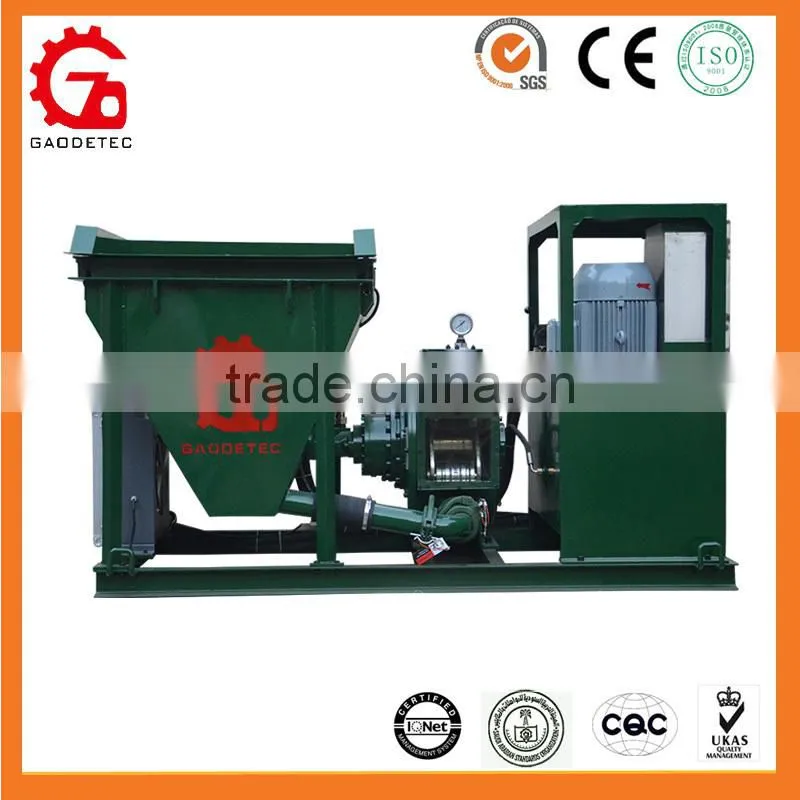

Electric motor type:

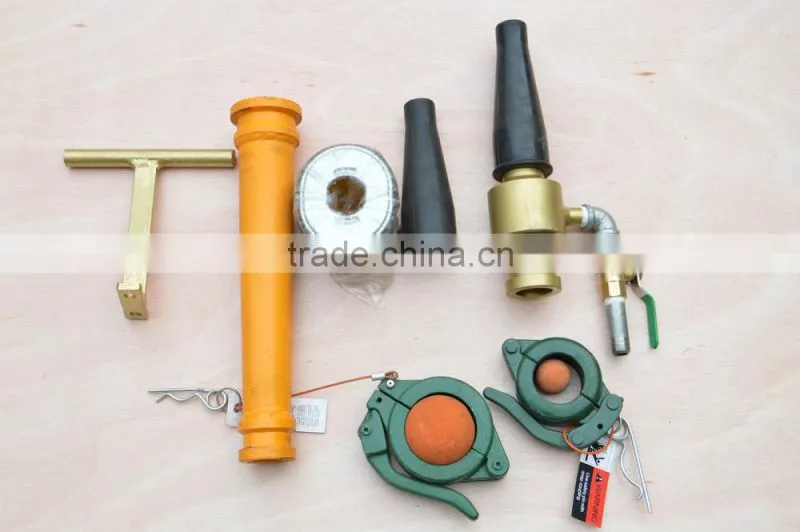

GDS1500D ISO OEM supplier shotcrete diesel concrete shotcrete pump parts:
GDS1500D ISO OEM supplier shotcrete diesel concrete shotcrete pump Package:
Workshop:
Certificate:
Bauma Booth:
Other customized type concrete shotcrete pump:
