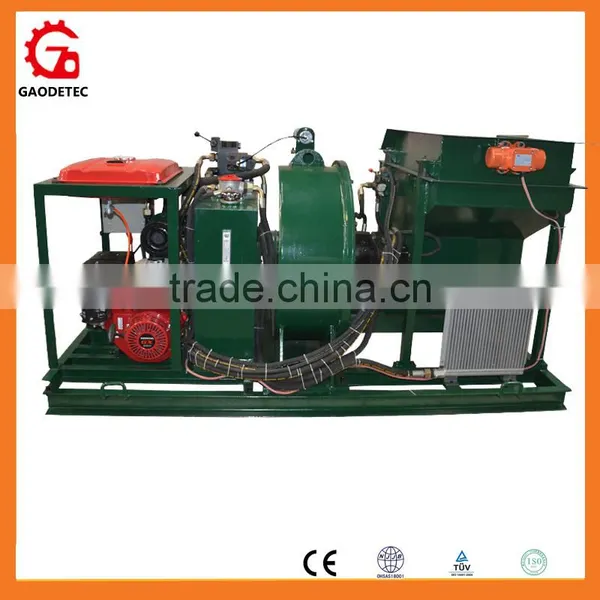

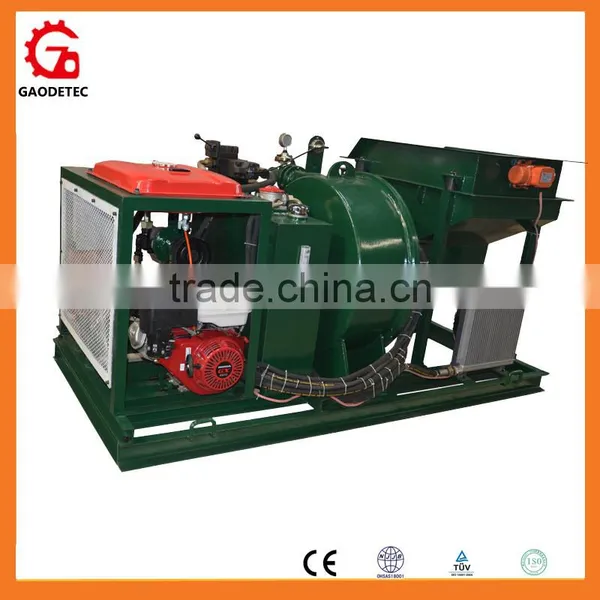

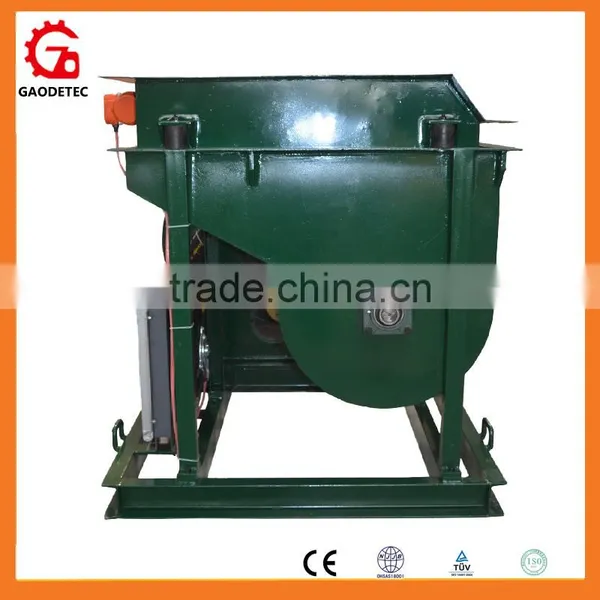

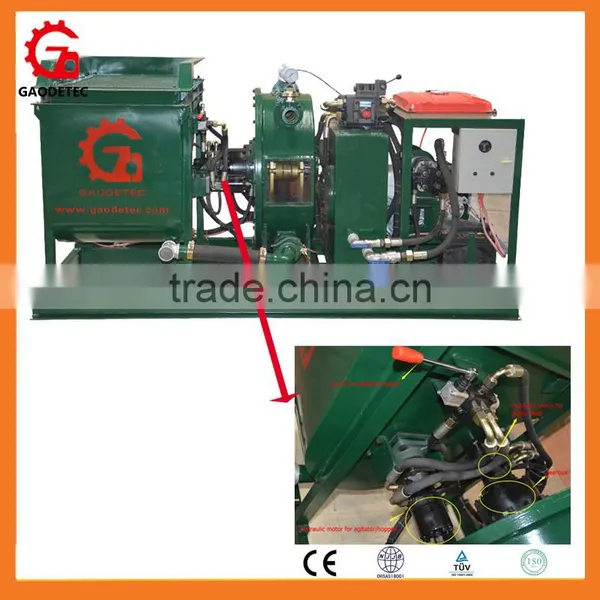

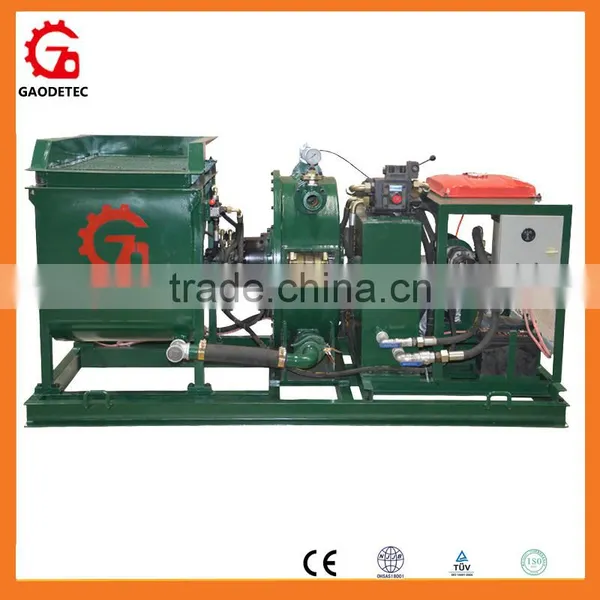

Cheapest GDS2000G Gasoline Engine Mortar Spraying Machine Shotcrete Pump

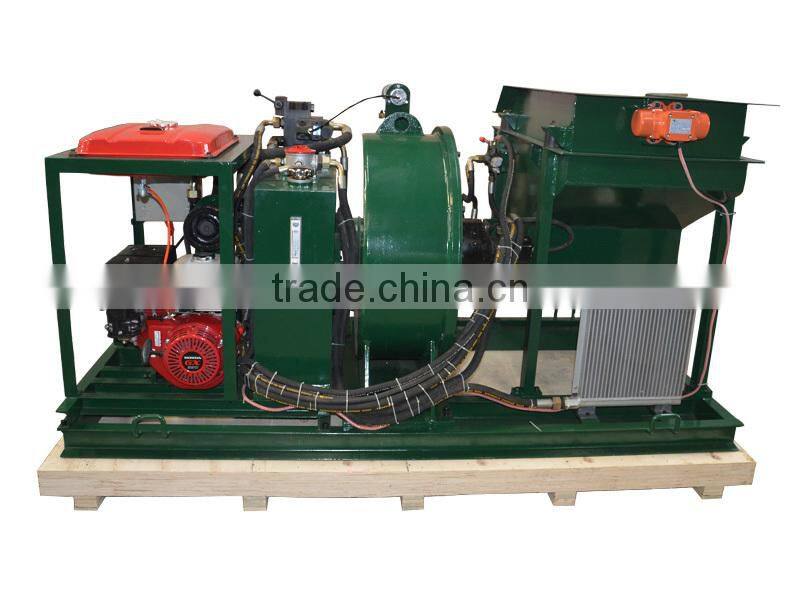

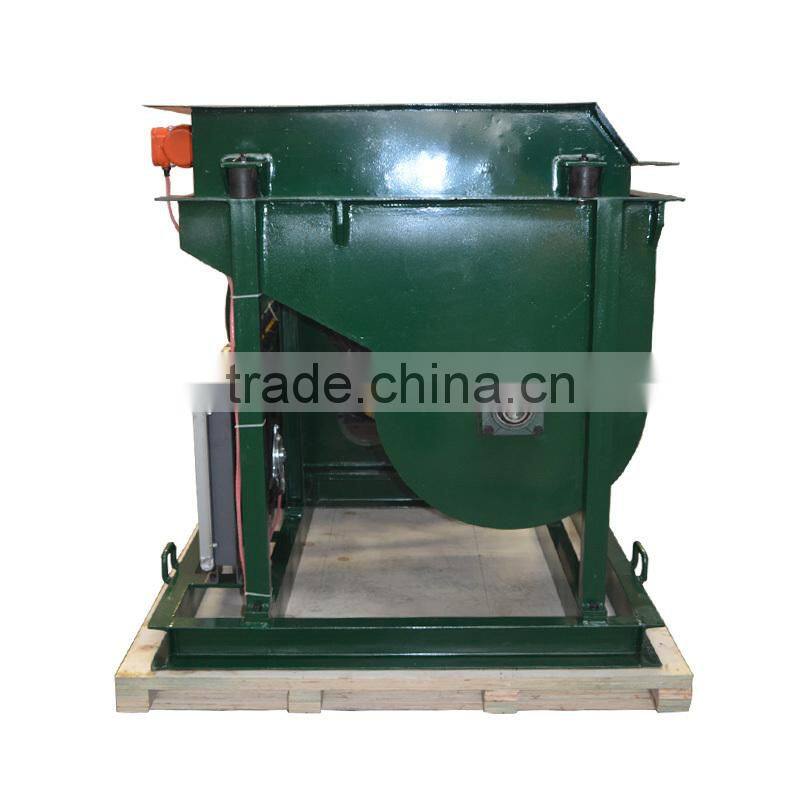

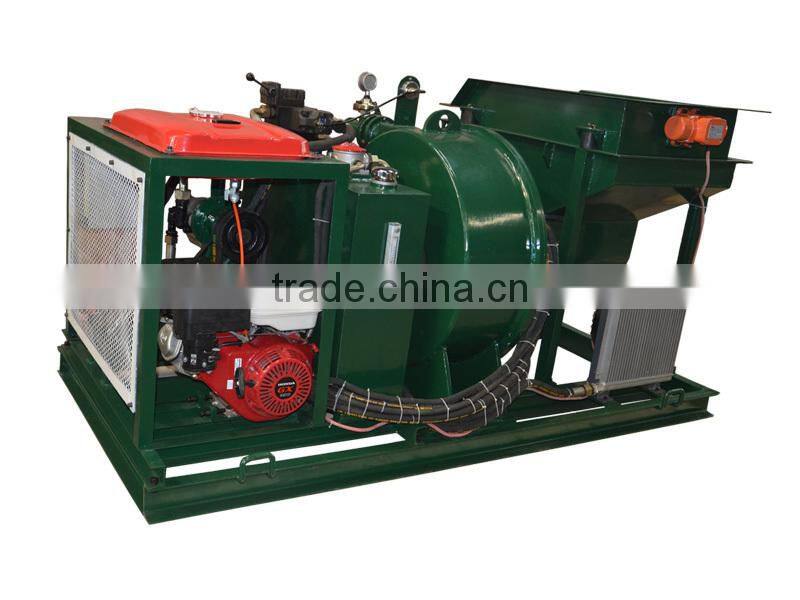

GDS2000G Gasoline Engine Mortar Spraying Machine Shotcrete Pump Description:
The GDS2000G is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.
GDS2000G Gasoline Engine Mortar Spraying Machine Shotcrete Pump Features:
1) Highly-reliable direct drive planetary gearbox
2) Infinite speed variation
3) Specially hopper/ agitator stir design

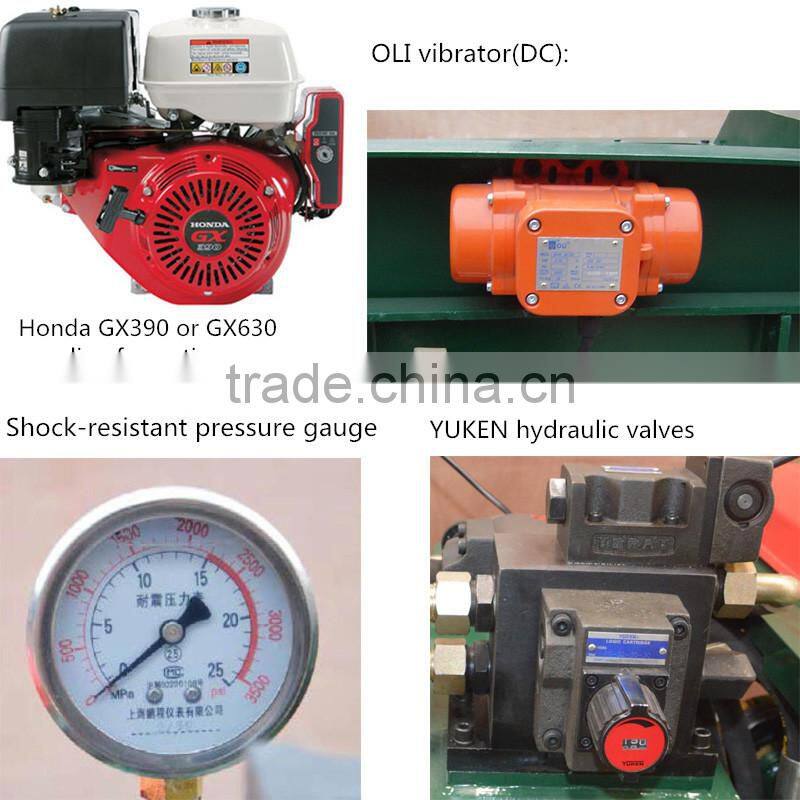

4) Honda GX390 and GX630 gasoline engine for option
5) Easily operating on site work
6) Standard spare part supply
GDS2000G Gasoline Engine Mortar Spraying Machine Shotcrete Pump Technical Data Sheet:
Item | Description |
Working Pressure | 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose) |
Output | 6-8m3/h |
Max. Aggregate | 10mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 50mm |
Squeeze pump | GH50-680 |
Power | Honda GX390 Gasoline Engine (low pressure) Honda GX630 Gasoline engine(high pressure) |
Hopper volume: | 240 Liter |
Hopper rated rev. | 76r/min |
Oil tank | 130 Liter |
Requested air compressor | 6m3/min, 0.6Mpa Pressure |
Vertical Conveying Distance | 15 m (Chinese Hose)/30 m (Trelleborg Hose) |
Horizontal Conveying Distance | 40 m (Chinese Hose)/80 m (Trelleborg Hose) |
Weight | 900kg |
Overall Dimension | 2350x1250x1450mm |
Note: the diesel engine or Electric motor is for optional.
GDS1500G Shotcrete Pump Technical Data:
Item | Description |
Pressure | 1.5 Mpa |
Output | 1.5-3m3/h |
Max. Aggregate | 8mm |
The Squeeze Hose | ID 50mm |
Conveying Hose | ID 38mm |
Squeeze pump | LH50-455 |
Power | Honda GX390 Gasoline engine |
Overall Dimension | 1900x850x1250mm |
Hopper volume: | 200 Liter |
Oil tank | 120 Liter |
Weight | 610kg |
Requested air compressor | 3m3/min, 0.5Mpa Pressure |
GDS2000G Gasoline Engine Mortar Spraying Machine Shotcrete Pump Application:
1. For pumping/grouting/spraying mortar/plaster
2. For pumping cellular light weight concrete
3. For pumping of wet normal concrete, acceptable max. aggregate size is 10mm
GDS1500E Shotcrete Pump :

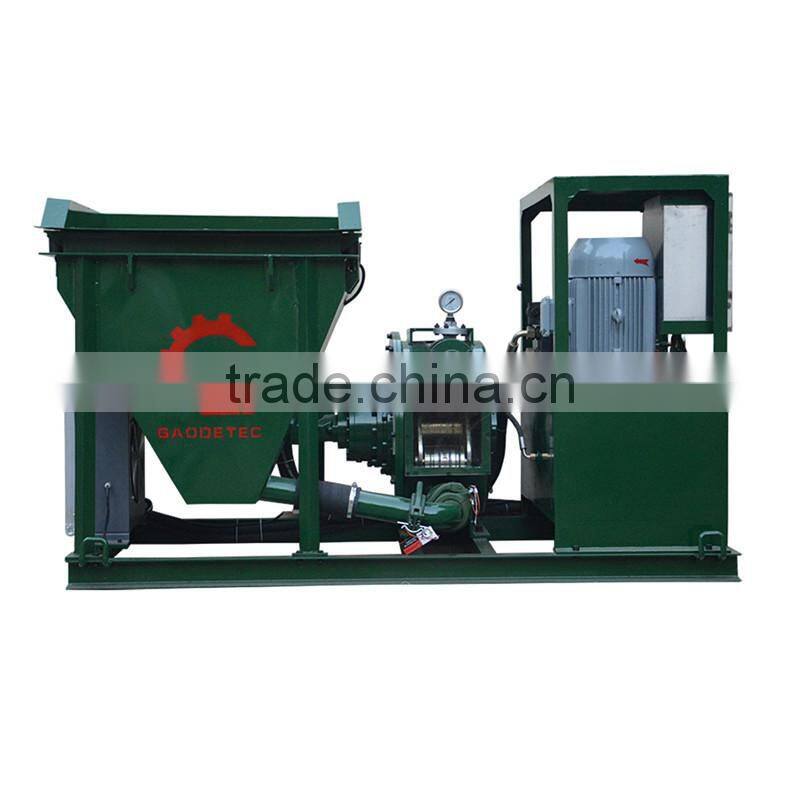

Hose Squeeze Peristaltic Pump Pictures:

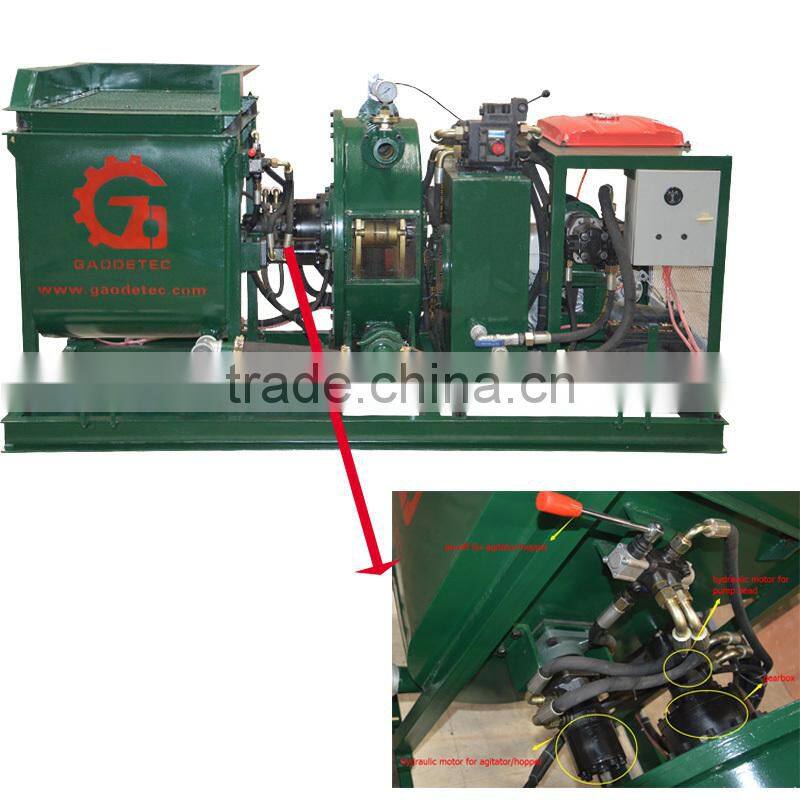

Concrete Spraying Machine (Shotcrete Machine ) Pictures:
