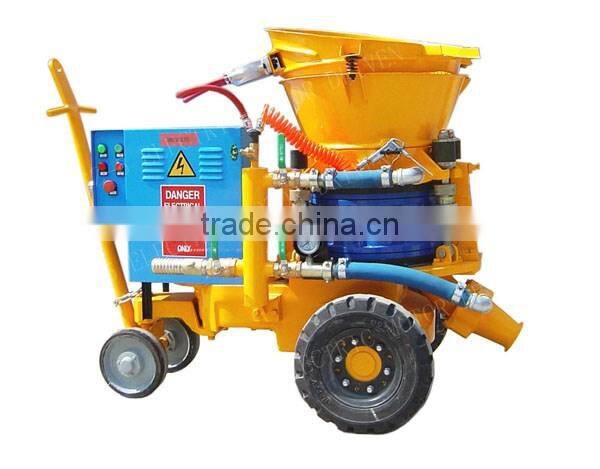

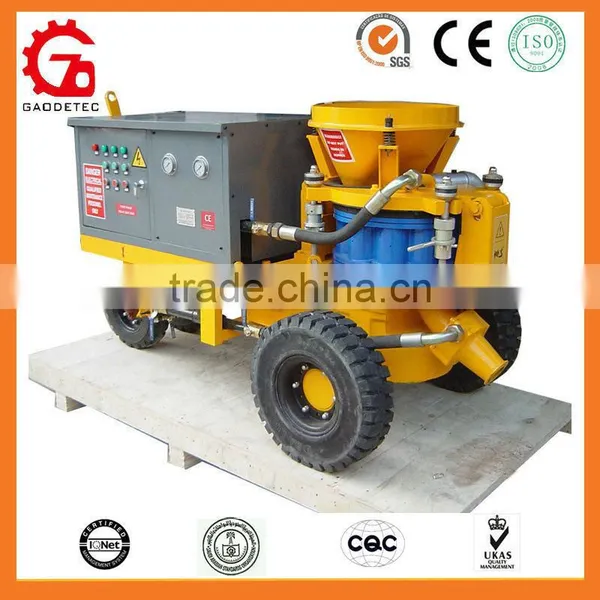

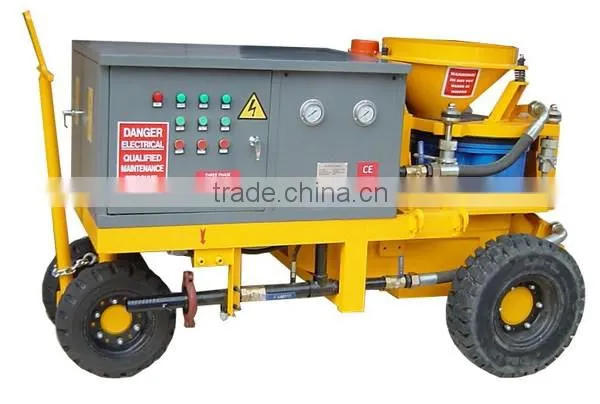

GSZ3000 high quality wet mix concrete shotcrete spraying gunite machine in India
GSZ3000 is a universal concrete spraying machine for the processing of wet mix. The machine is suitable either for manual spraying or by means of a robotic arm.

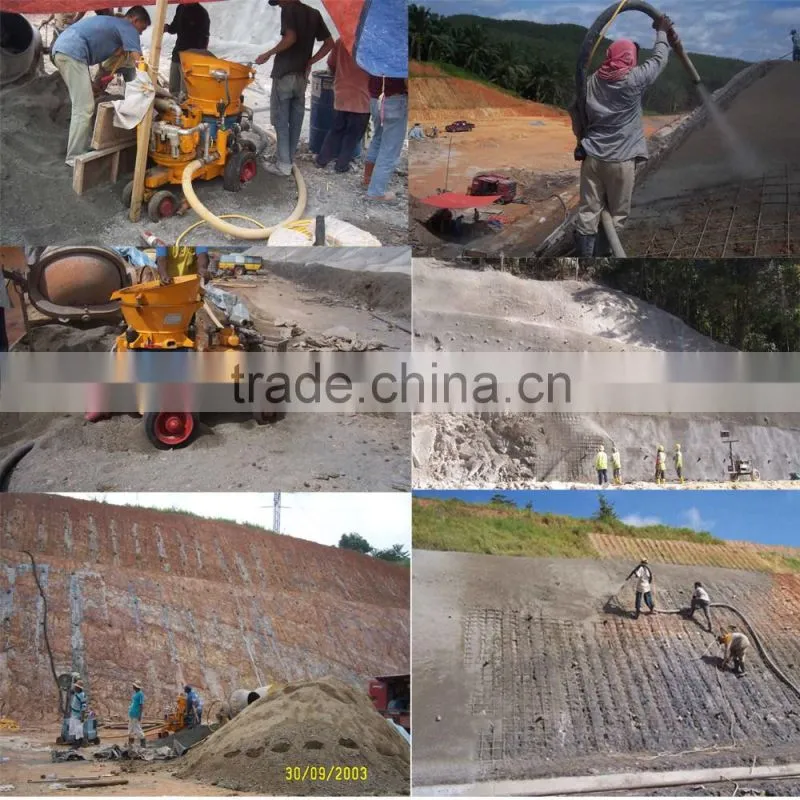

GSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined withthis machine.
Basic: electric drive can be combined with tyre chassis.
Extended (optional): air motor drive or diesel drive combined with skid or rail-wheel.

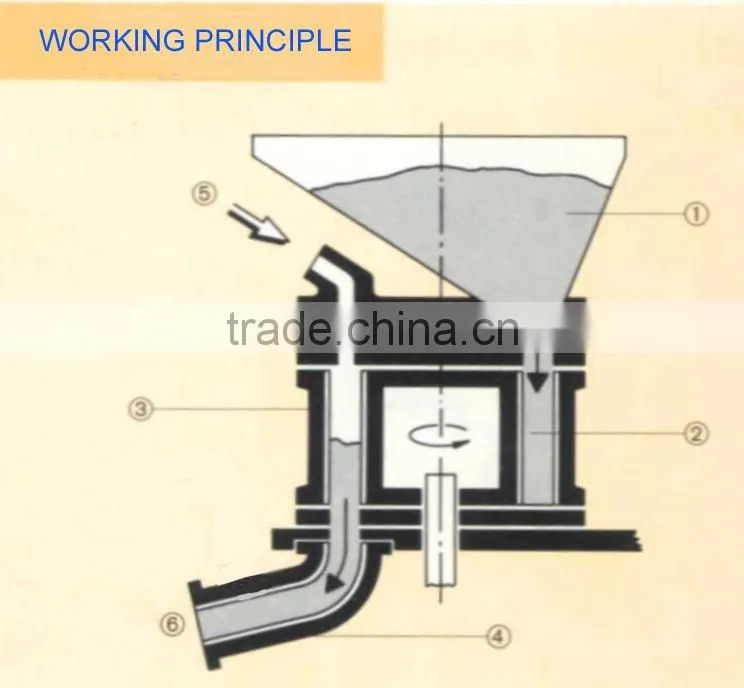

Production working principle
Specification (with electric motor)
Rated Output | 5m3 /h |
Max. Horizontal Conveying Distance | 35m(wet) 200m(dry) |
Max. Aggregate Size | 15mm |
Concrete Slump | 8 -15cm |
Conveying Hose Inner Diameter | 51/ 64mm |
Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
Air Consumption | 10~ 12m3 /min(357-430CFM) |
Main Motor Power | 7.5kW(10hp) |
Dosing Pump: | BRJ15 |
Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
Dosing Pump Output | 17.5 -88L /h |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.17m |
Rotor Speed | 11r/min |
Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
Net Weight | 1200kg |
Related production
Dry Mix Shotcrete Machine
Refractory Shotcrete Machine
GDS1500D Shotcrete Pump
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight;
2. Handling time for an order:
Based on order quantity, normally it takes 25 days for production after payment.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air;
Bulk order: we suggest by air or by sea;
4. Quality Control
We have our own experienced QC and ISO:9001.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded);
b. Technical Support will be available in any time;
