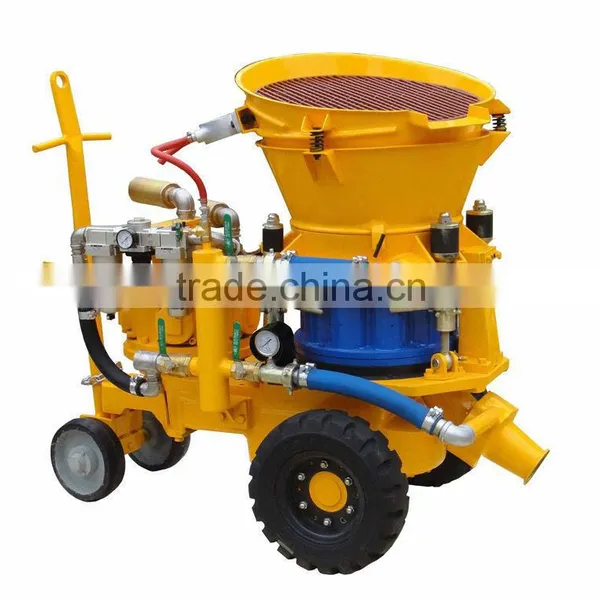

GZ-5A tunnel construction used spray gunite shot concrete machine
GZ-5A tunnel construction used spray gunite shot concrete machine
GZ-5 spray gunite shot concrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. GZ-5 spray gunite shot concrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
GZ-5 air motor drive dry spray concrete gunite machine is available in following versions:

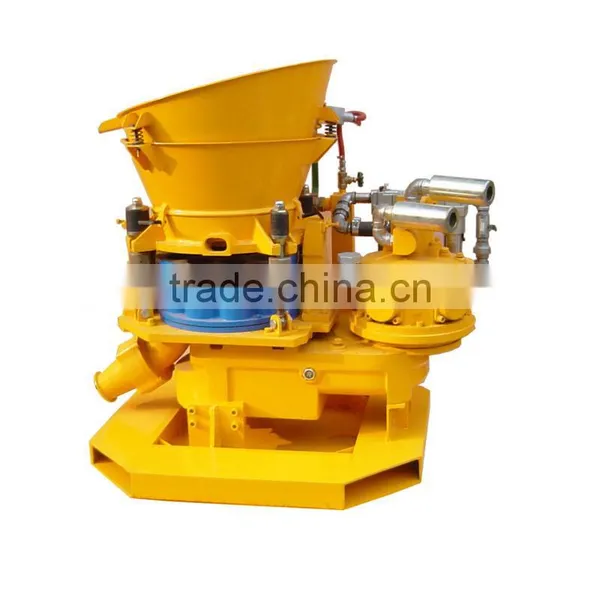

Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
GZ-5A tunnel construction used spray gunite shot concrete machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
GZ-5 tunnel construction used spray gunite shot concrete machine technical data:
Air motor drive:
Output Capacity |
2.5-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
Max. Aggregate Size |
Φ15 mm |
Conveying Hose Inner Diameter |
Φ51 mm |
Conveying Pressure |
0.2-0.4MPa |
Air Consumption for conveying material |
7~8m3/min |
Air Motor Air Pressure |
0.5MPa |
Material Charging Height |
1.1m |
Rotor Speed |
11rpm |
Air Motor Type |
GMH6A |
Air Motor Air Consumption |
7.5m3/min |
Overall Dimension(length×width×height) |
1.35×0.75×1.2m |
Net Weight |
720kg |
Electric motor drive:
Rated Output |
5m 3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤ 1.3~5 |
Water Cement Ratio |
< 0.4 |
Max. Aggregate Size |
Φ 15 mm |
Conveying Hose Inner Diameter |
Φ51mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
8~9m 3 /min(285-325CFM) |
Motor Power |
5.5kW(7.5hp) |
Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Overall Dimension(L× W× H) |
1.35× 0.75× 1.2m |
Net Weight |
720kg |
Diesel drive:
Output Capacity |
3-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Water cement ratio |
<0.4 |
Max. Aggregate Size |
Dia.15 mm |
Conveying Hose Inner Diameter |
Dia.51 mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
9m3/min(325CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Diesel Type |
CF1105M |
Power |
13kw/18hp |
Overall Dimension(L× W× H) |
2.2×0.96×1.2m |
Net Weight |
850kg |
Expanded dry spray gunite shot concrete machine according to the customers' request:
Package of spray gunite shot concrete machine:
Spray gunite shot concrete machine Application On sites:
Work place:

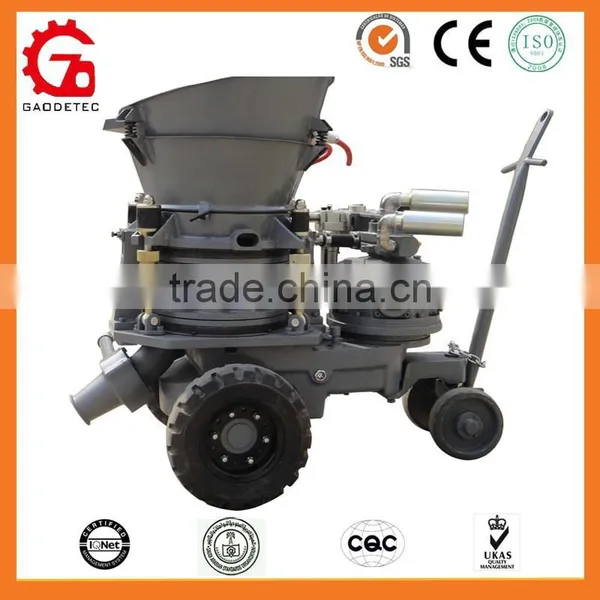

Gunite Machine Certificates:
CE AND ISO9001
