GZ-9 Output 9m3/h Diesel Drive Dry Mix Shotcrete Machine

GZ-9 Output 9m3/h Diesel Drive Dry Mix Shotcrete Machine thumbnail-1
GZ-9 Output 9m3/h Diesel Drive Dry Mix Shotcrete Machine photo-1
US$ 980 - 7,880 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
H200m V70m
Max Aggregate Size:
dia.20mm
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin or Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Max. Conveying Distance H200m V70m
Max Aggregate Size dia.20mm
Hose Inner Diameter 64 mm
Air Consumption 10-12 m3/min
Place of Origin Henan, China
Brand Name GEC
Model Number GZ-9D
Voltage Diesel
Power(W) Diesel
Dimension(L*W*H) 2660*1110*1500mm
Weight 950kg
Certification CE,ISO
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Choose GEC, choose high quality!

GZ-9 Output 9m3/h Diesel Drive dry mix Shotcrete Machine


Product Description

GZ-9 shotcrete machine is large-sized shotcrete machine for the processing of dry mix. And widely used by so many contractors.

  GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

Widely Application:

1. Tunnel building.

2. Mining operations.

3. Hydropower projects.

4. Hill side projects.

5. Swimming Pool.

6. Concrete repair.

7. Soil retention and retaining walls.

8. Underground excavation engineering etc.

Features:

1. Variable output with variable-frequency drive.

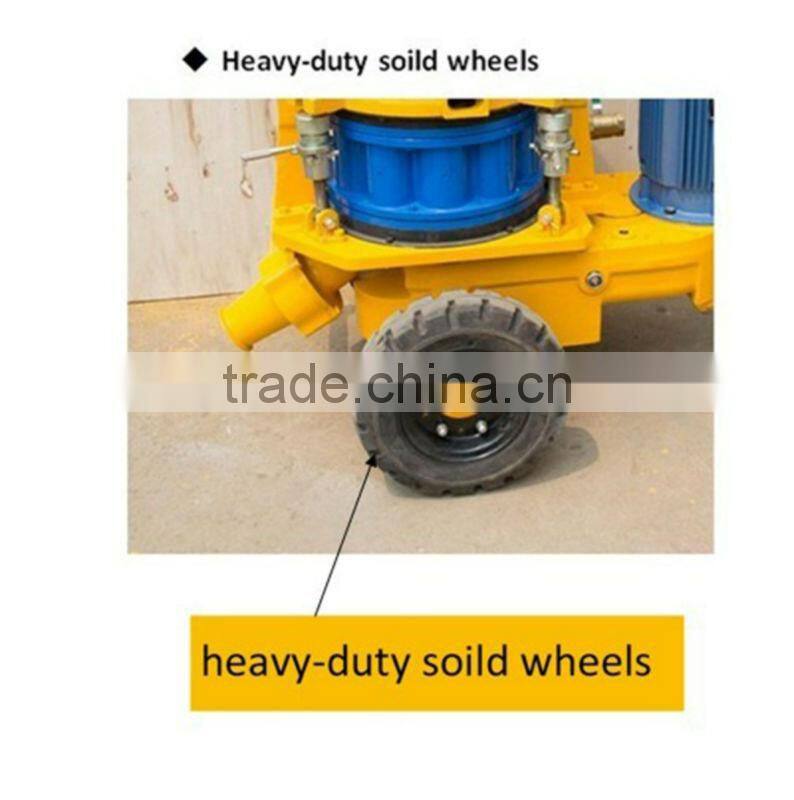

2. Heavy-duty solid wheels.

3. Coulping and clamp.

4. Light weight nozzle.



Advantage:

1. High quality, reliable performance.

2. Good seal performance, little dust.

3. Reasonable design, convenient to move.

4. Convenient operation and longevity of service.

5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as

    to reduce clearance and maintenance period.

6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and

     prolong consumption parts life.

8. Widely used in mining, tunnel, culvert, revetment etc.



GZ-9 diesel drive shotcrete machine main technical data:

Output Capacity

6-9m3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:4~5

Max. Aggregate Size

Dia.20 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

10~12m3/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

7.5-11r/min

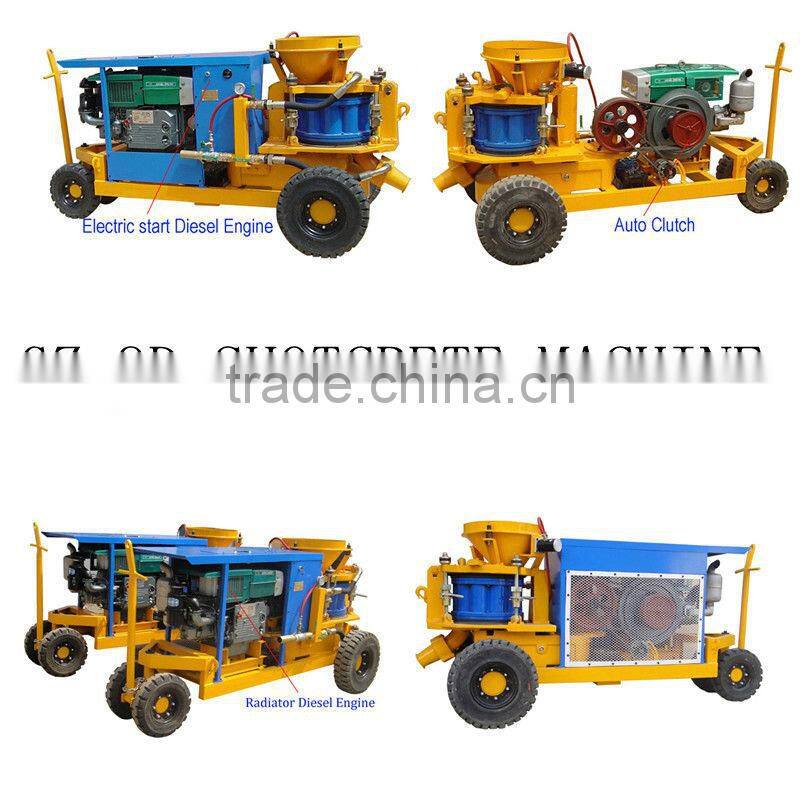

Diesel Engine

20hp,2200rpm, Radiator Cooling

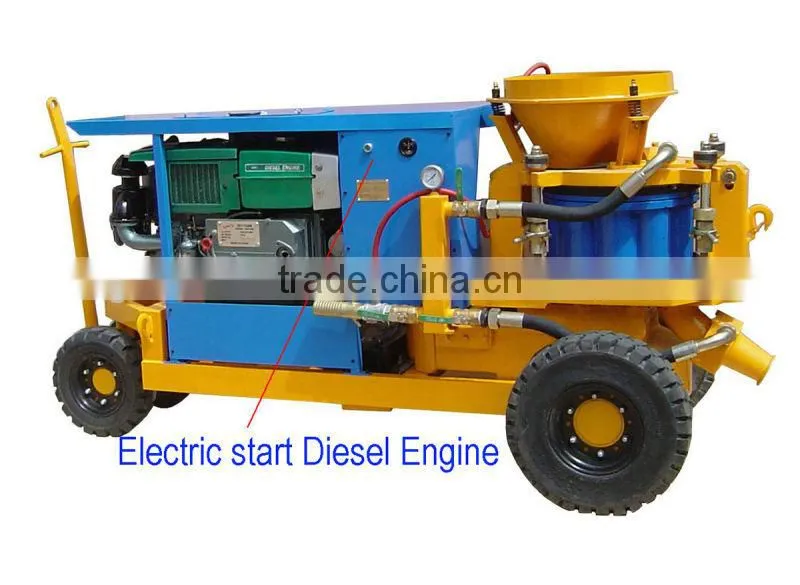

Diesel Engine Starting

Electric start

Clutch Type in Diesel Engine

Automatic Clutch

Air Vibrator

OR100,Oli

Overall Dimension(length×width×height)

2.66×1.11×1.50m

Net Weight

950kg

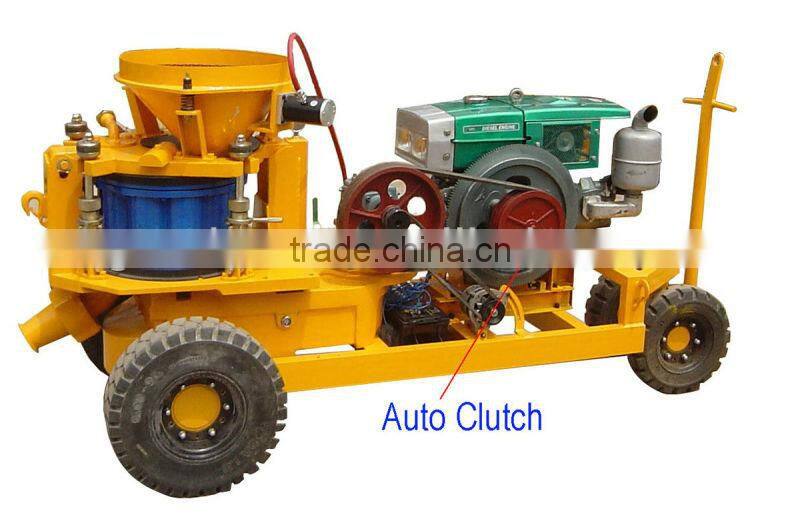

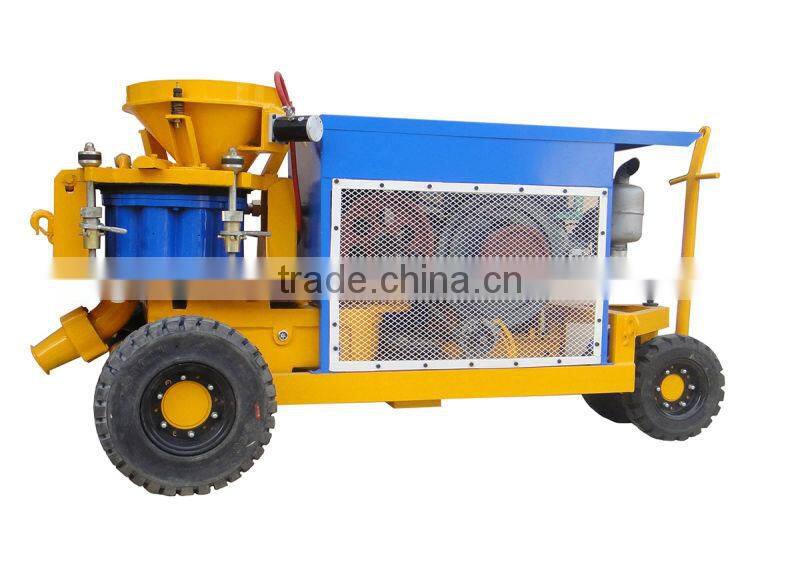

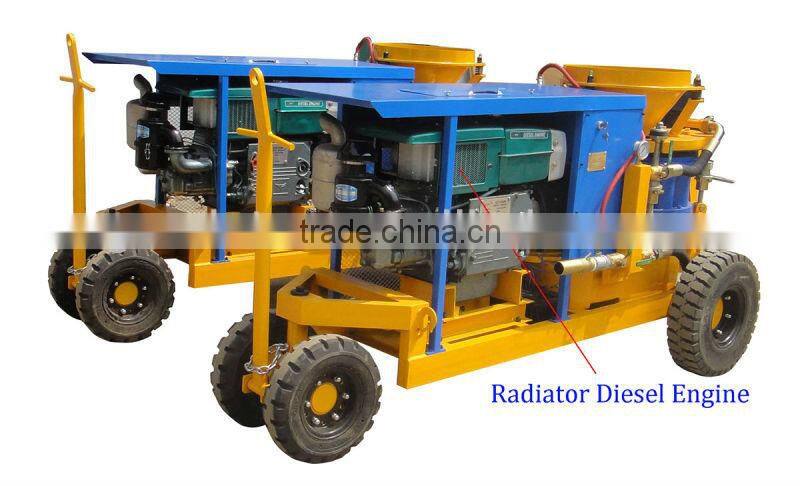

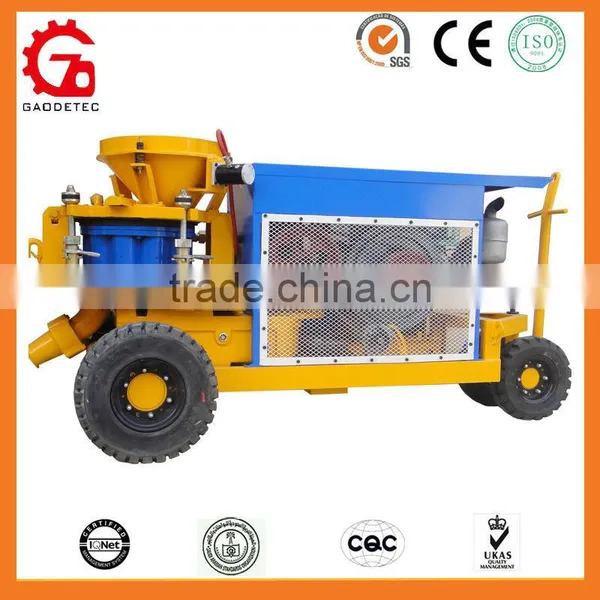

Diesel Drive shotcrete machine Pictures:

Detailed parts

GZ-9 output 9m3/h diesel drive dry mix shotcrete machineGZ-9 output 9m3/h diesel drive dry mix shotcrete machineGZ-9 output 9m3/h diesel drive dry mix shotcrete machine



GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

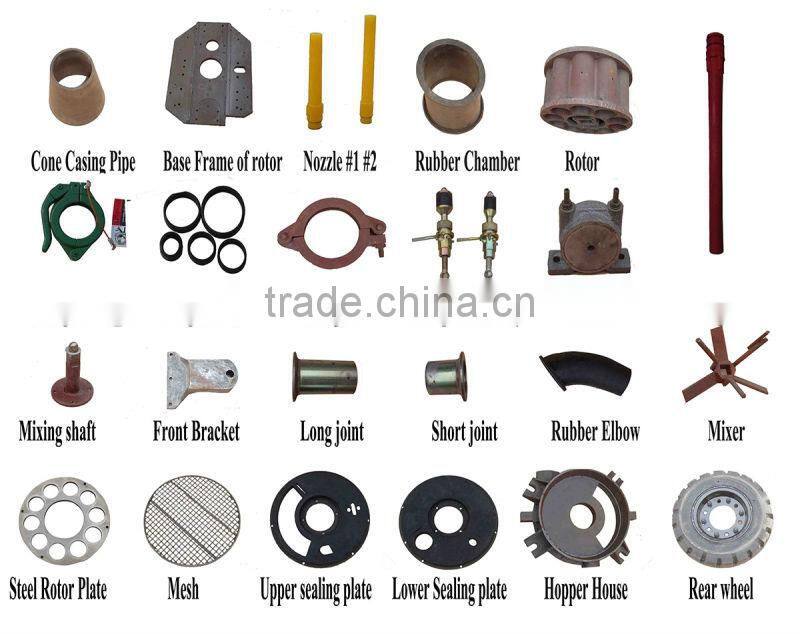

Spare parts:

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

Application

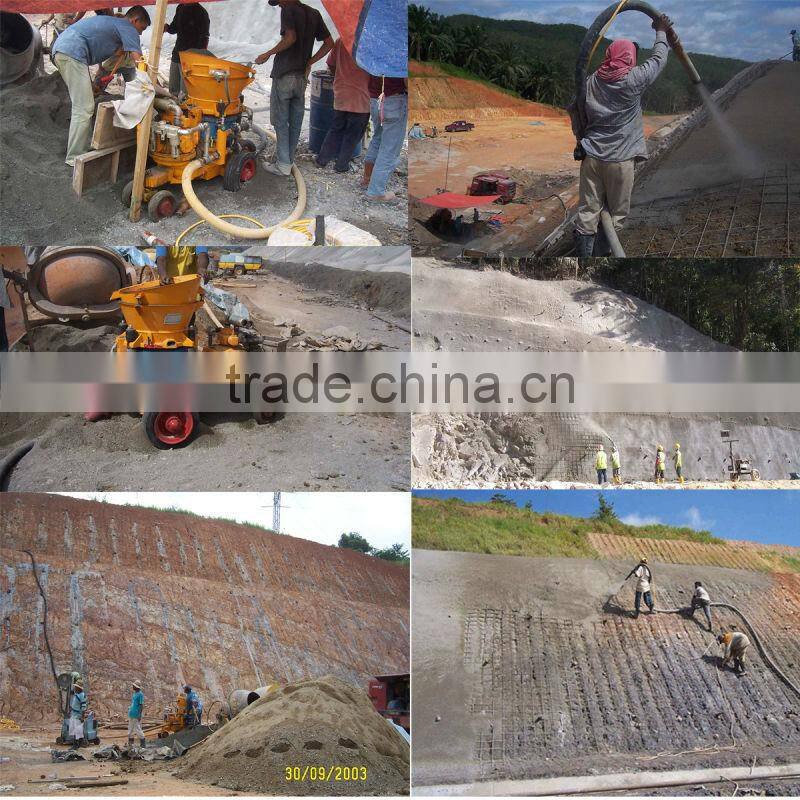

Application at site

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

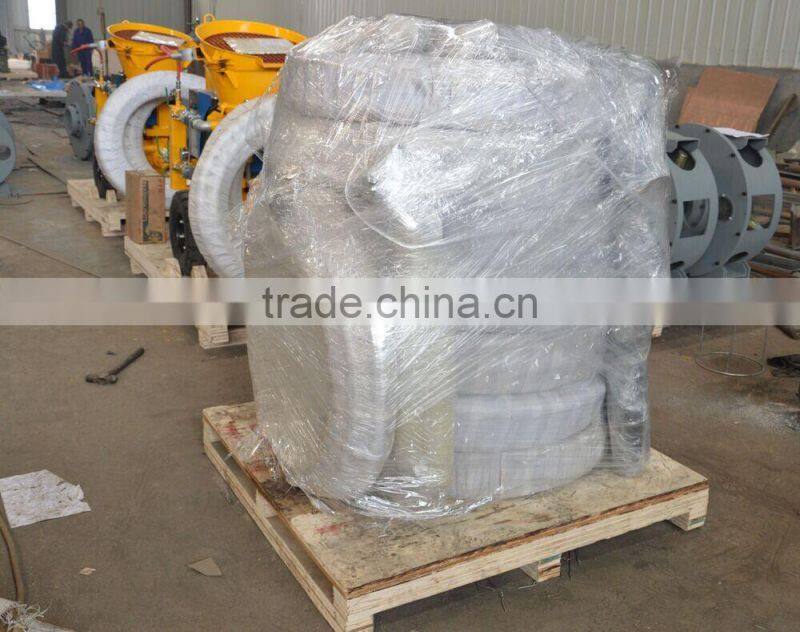

Packaging & Shipping

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

1. Packed in wooden case, fumigation-free
2. According to customers' requirements.

Certifications

Certification of our company:

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

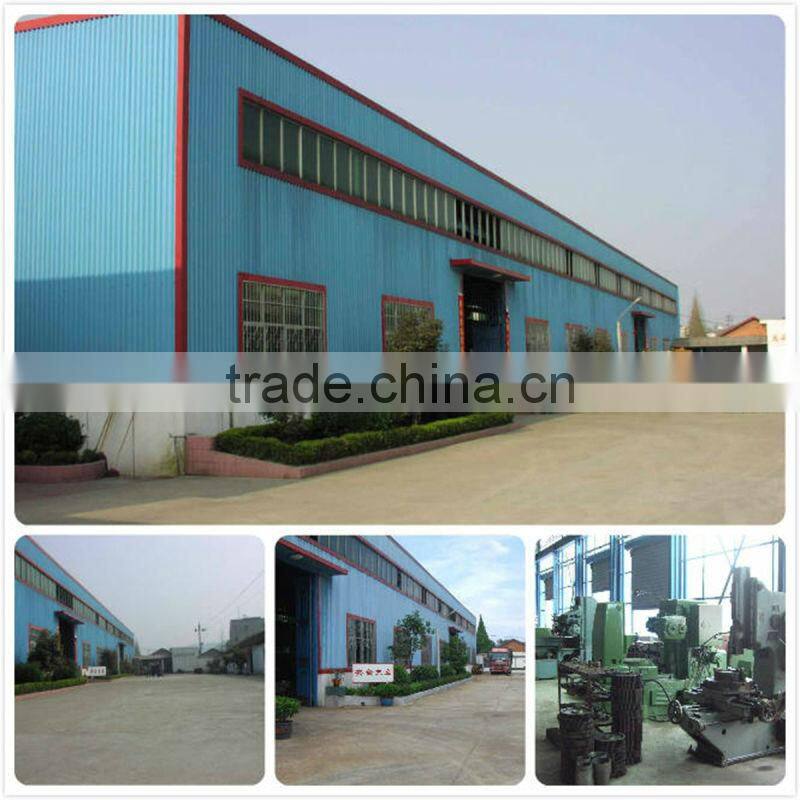

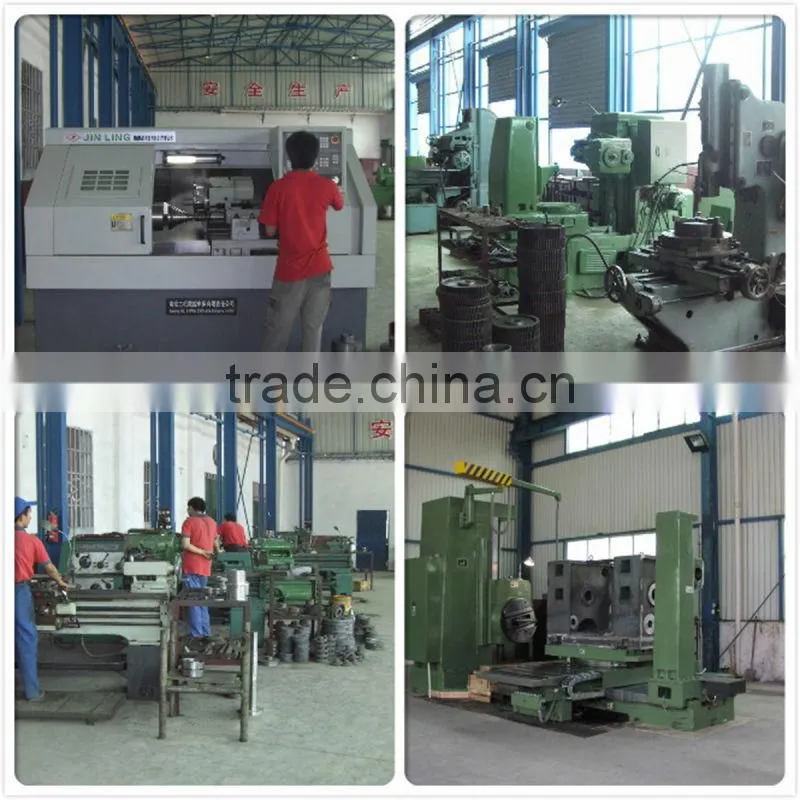

Company Information

  GAODE EQUIPMENT CO., LTD. (GEC) is a leading supplier of concrete spraying/shotcrete/gunite machines, grouting pumps, piston air motor and hose pumps in China. Many large-size hydropower and railway engineering contractors in China, such as Sinohydro Corporation, China International Water&Electric Corporation and China Railway Engineering Corporation have been using GEC machines.

GEC’s products have been exported to U.S.A, Canada, India, Malaysia, Pakistan, Korea,Bahrain and Nepal etc. And we have sales dealer/distributor in Malaysia, Canada, India, Korea, etc.

GEC’s products are of good quality and competitive price. Besides we offer excellent after-sales service.



GZ-9 output 9m3/h diesel drive dry mix shotcrete machineGZ-9 output 9m3/h diesel drive dry mix shotcrete machine



Related Products

About the GZ-9 shoctcrete machine, you also have the following points

Electric motor drive:

Output Capacity

9m3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:4~5

Max. Aggregate Size

Dia.20 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

10~12m3/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

11r/min

Electric Motor

7.5kW,Y132M-4,IP55

Vibrator Electric Motor

0.15kW,XVM-A1.5-2

Available Voltage

220V,380V, 440V,660V 50Hz/60Hz

Overall Dimension(length×width×height)

1.65×0.9×1.25m

Net Weight

900kg



Air motor drive:

Output Capacity

5-9m3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:4~5

Max. Aggregate Size

Dia.20 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption for conveying material

10~12m3/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

6-11r/min

Air Motor

TMH8A

Air pressure for air motor

0.5Mpa

Air consumption for air motor

10 m3 /min/357CFM

Vibrator

OR100,oil

Overall Dimension(length×width×height)

1.65×0.9×1.25m

Net Weight

900kg

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

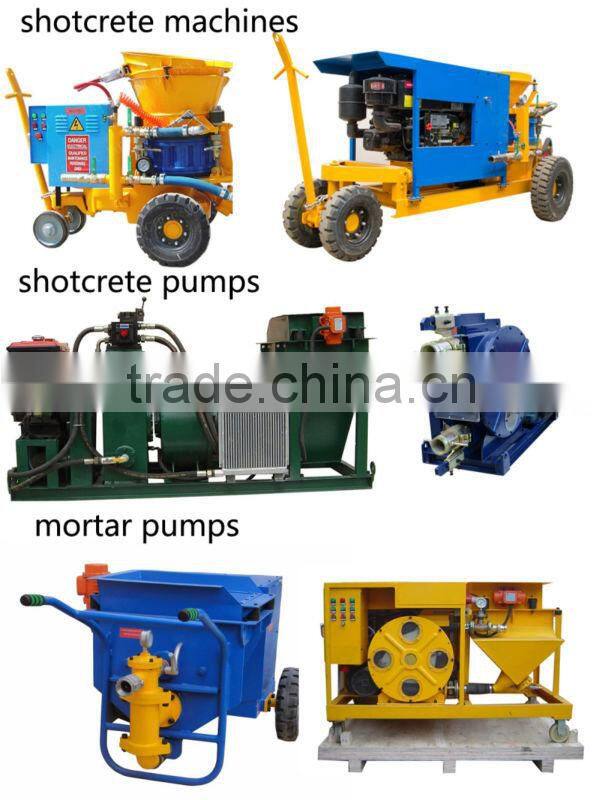

Other related shotcrete machines:

GZ-9 output 9m3/h diesel drive dry mix shotcrete machine

If you have any question please feel free to contact me.

Gaode Equipment Co.,Ltd.

Tel:+86-371-55951210 Fax:+86-371-63526676

Skype: lena.liu8

Whatsapp&viber: 86-15903613994

Thank you for your time and Welcome to Visit our factory!
